Surpass Hobby Programming Card RC Car Electronic Speed Controller Programmer LED Program Card Only Compatible with Supass Hobby Brushless ESC 25A 35A 45A 60A 80A 120A 150A (White)

• Only compatible with Surp Hobby ESC: This Sup Hobby program card is used to program the brushless ESC, and this program card is only compatible with the Super Hobby ESC made by the same manufacturer as the programming card. It cannot be used with other ESC brand.
• Electronic speed controller programmer is used to control the braking force.
• Max. Braking force: 25A, 45A, 60A is 50%, 25%, 75%, 100% (standard 50%); and 80A, 120A is 25%, 50%, 75%, 100% (standard 25%). The maximum reverse force is 25%, 50%, 75%, 100% (standard 25%).

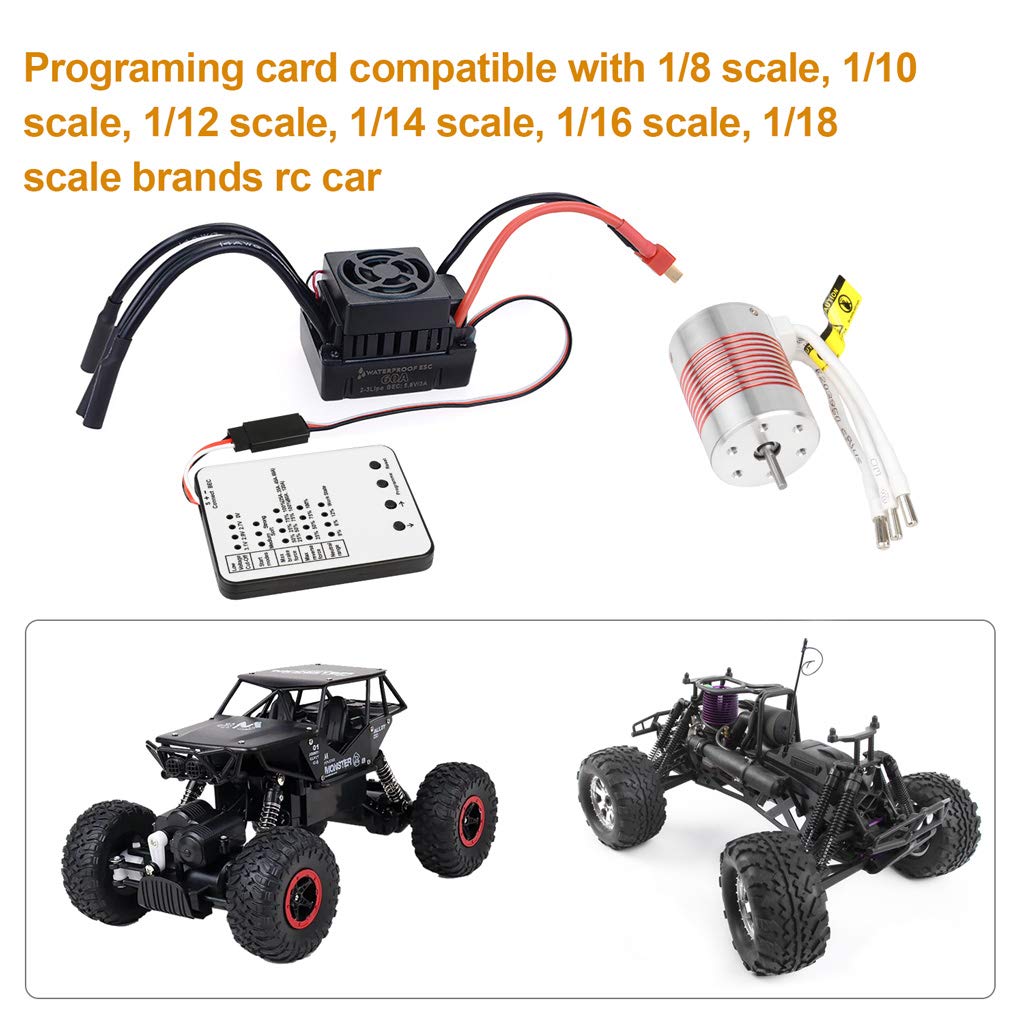

• Compatible with: 1/8 Scale 1/10 Scale 1/12 Scale 1/14 Scale 1/16 Scale 1/18 of branded RC cars such as Traxxas Slash 4x4 / 2WD / TRX-4 / X Max

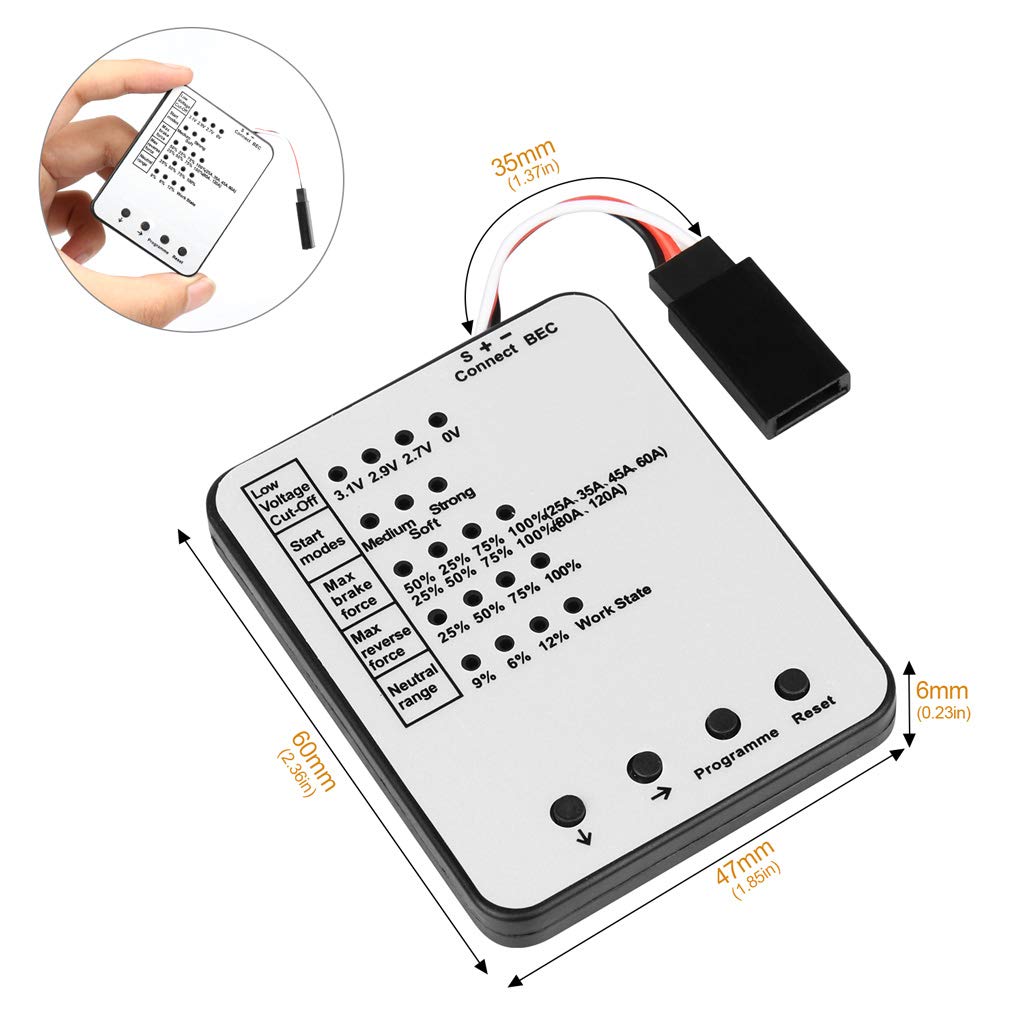

• Easy to use: Plug and play, program car is very easy to use, just plug into ESC and turn on, set desired words and it is that simple. Size: 2.4 inches x 1.9 inches x 0.2 inches.

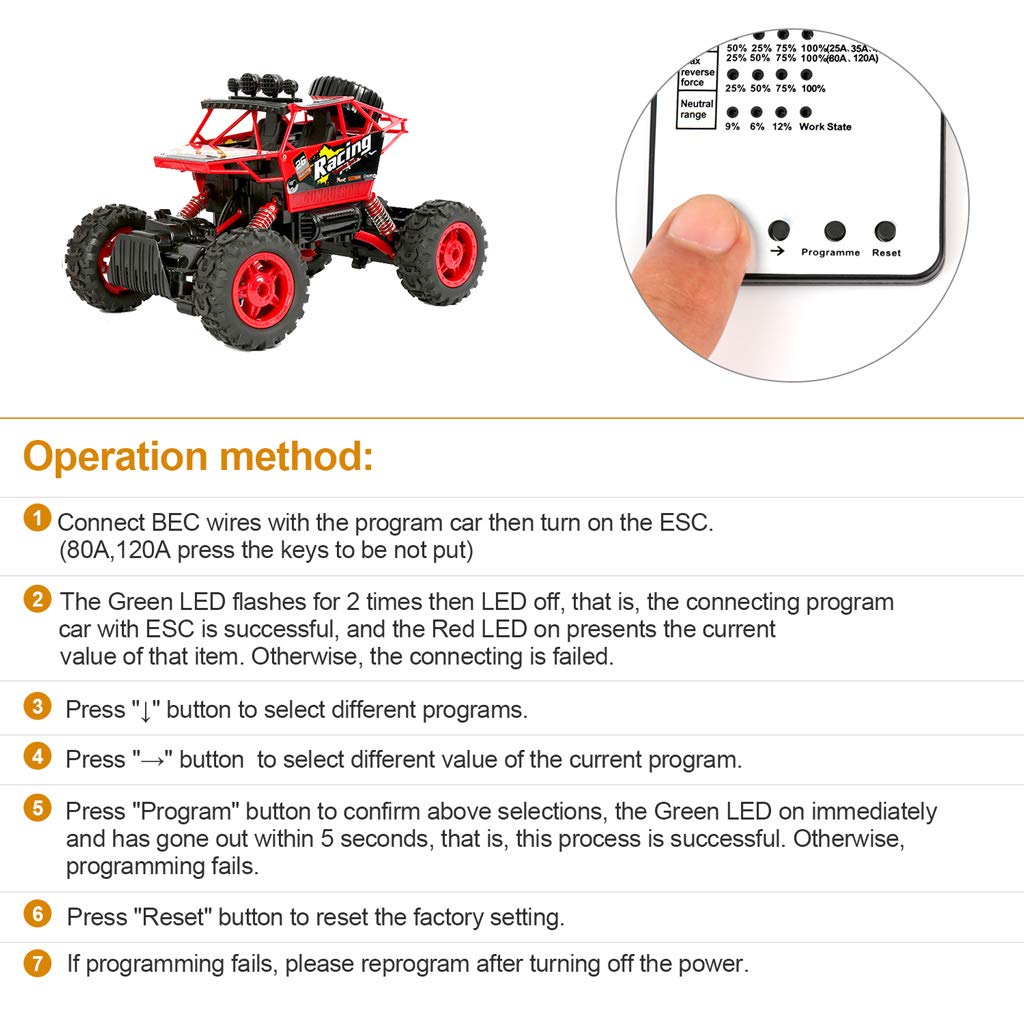

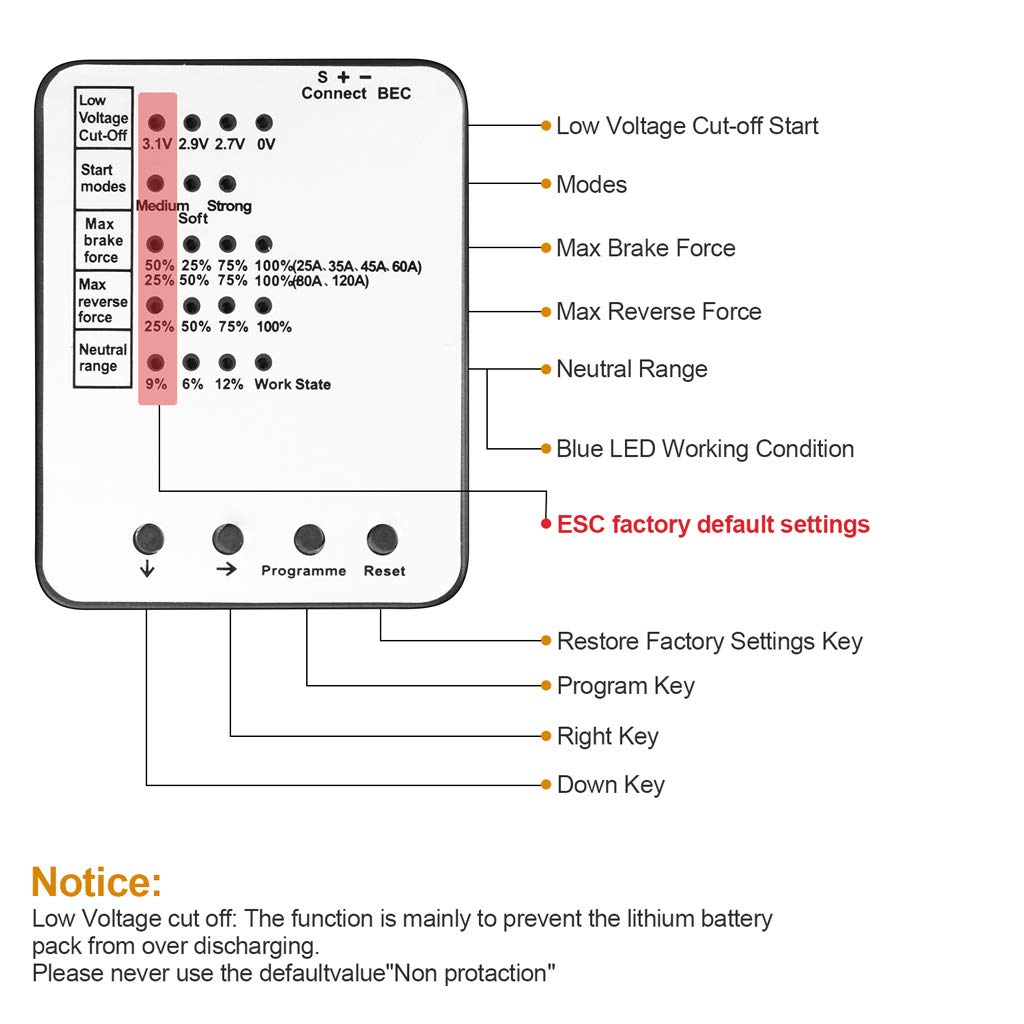

Specifications: This program box is used to program the brushless ESC. Electronic speed controller programmer is used to control braking force. Suitable esc: 25A, 35A, 45A, 60A, 80A, 120A ESC. Used with: 1/8,1/10,1/12,1/14,1/16,1/18 rc car. Size: 80x60x6mm (2.4 x 1.9 x 0.2inch). Weight: 26g (0.92oz). Function 1. Low voltage detection is 3.1V, 2.9V, 2.7V, no detection.(default 3.1V). 2. The start mode is normal, soft, and strengthened (default normal). 3. The maximum braking force (25A, 45A, 60A) is 50%, 25%, 75%, 100% (default 50%). (80A, 120A) 25%, 50%, 75%, 100% (default 25%). 4. The maximum reversing force is 25%, 50%, 75%, 100% (default 25%). 5. The width of the center point is 9%, 6%, 12% in sequence (default 9%). 6. BEC cable connection is connected according to the color direction. Programme card operation method: 1. Connect BEC wires with the program car then turn on the ESC (Note: 80A,120A should be press the keys to be not put). 2. The Green LED flashes for 2 times then LED off, that is, the connecting program car with ESC is successful, and the White LED on presents the current value of that item. Otherwise, the connecting is failed. 3. Press the Key "↓" to select different programs. 4. Press the Key "→" to select different value of the current program. 5. Press the Key "Program" to confirm above selections, the Green LED on immediately and has gone out within 5 seconds, that is, this process is successful. Otherwise, programming fails. 6. Press the Key "Reset" to reset the factory setting. (reprogram after turning off the power). Package Including 1 x ESC speed controller program card white
