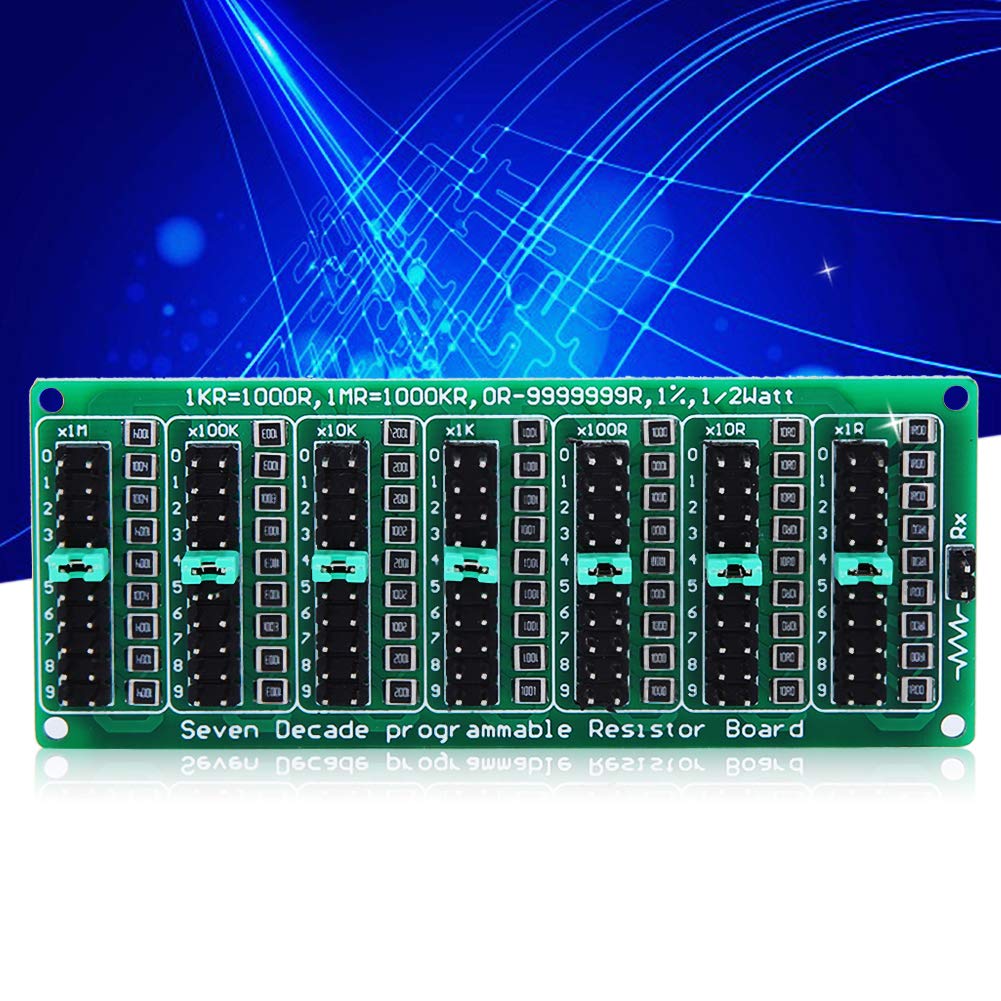

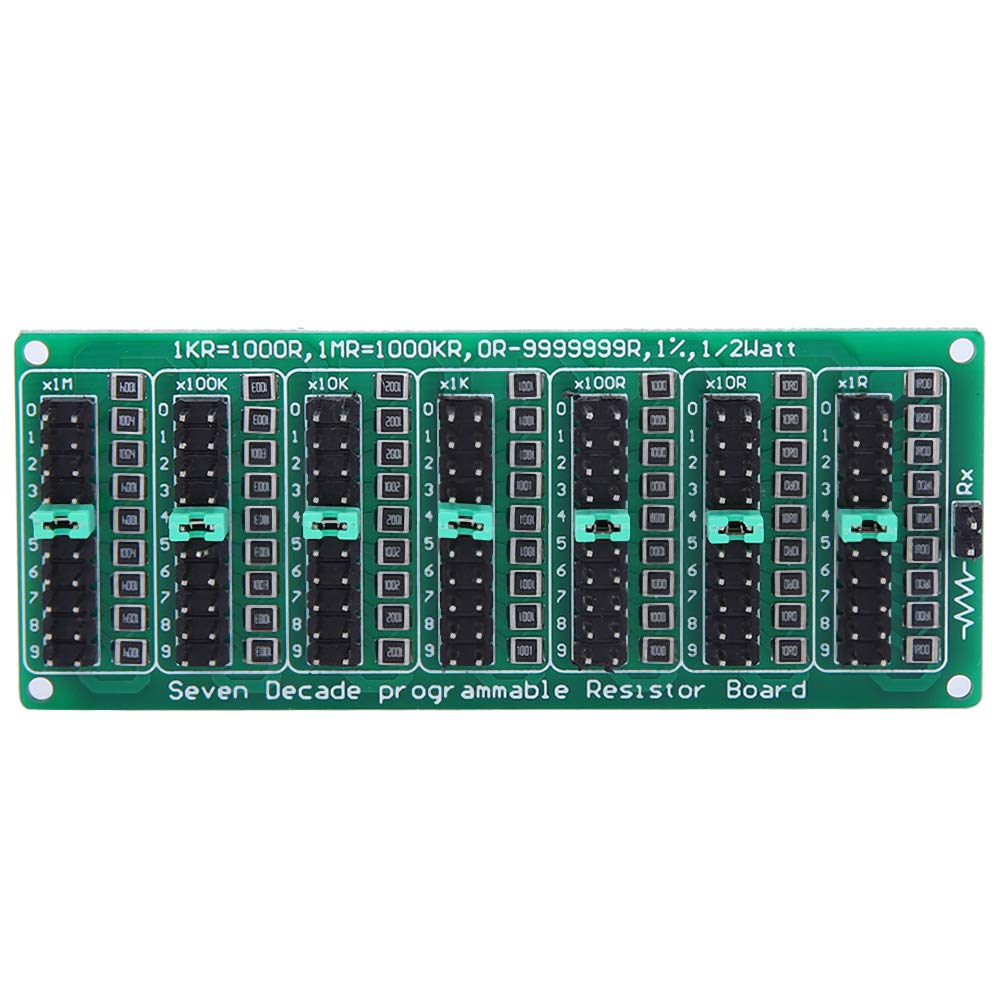

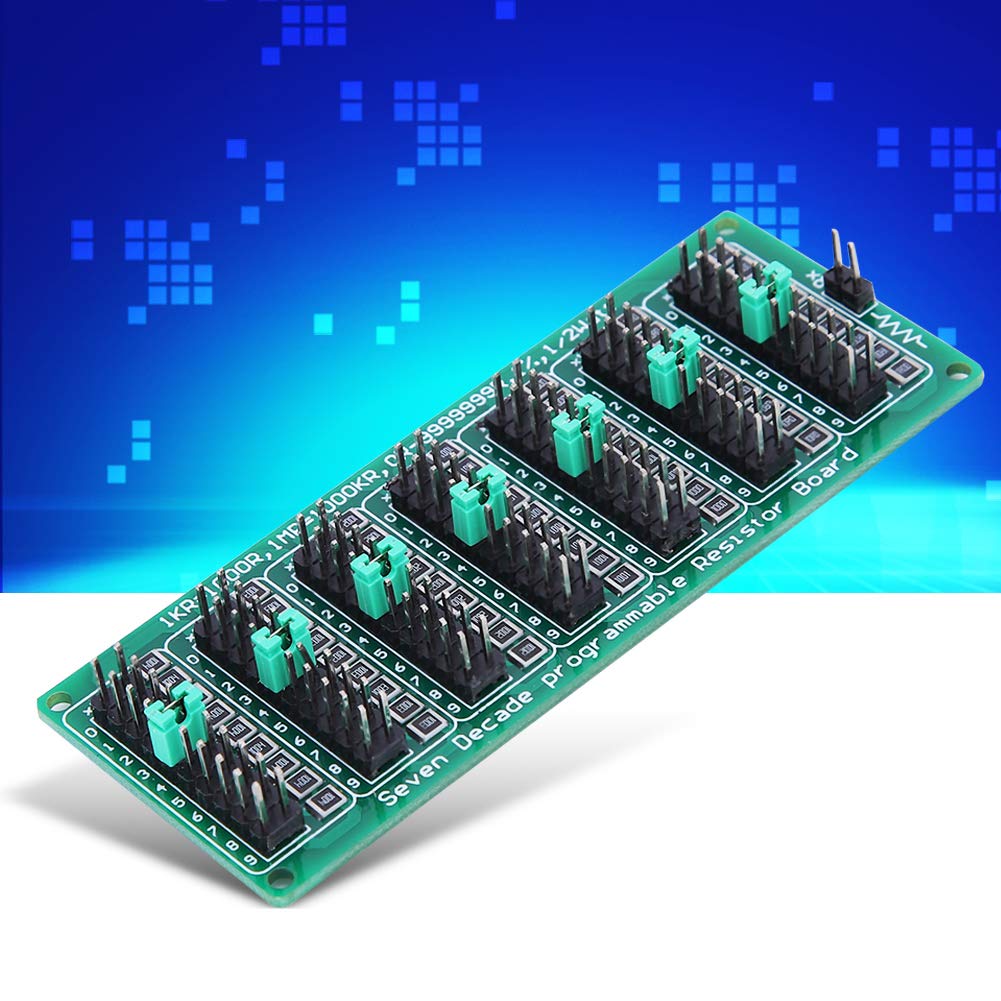

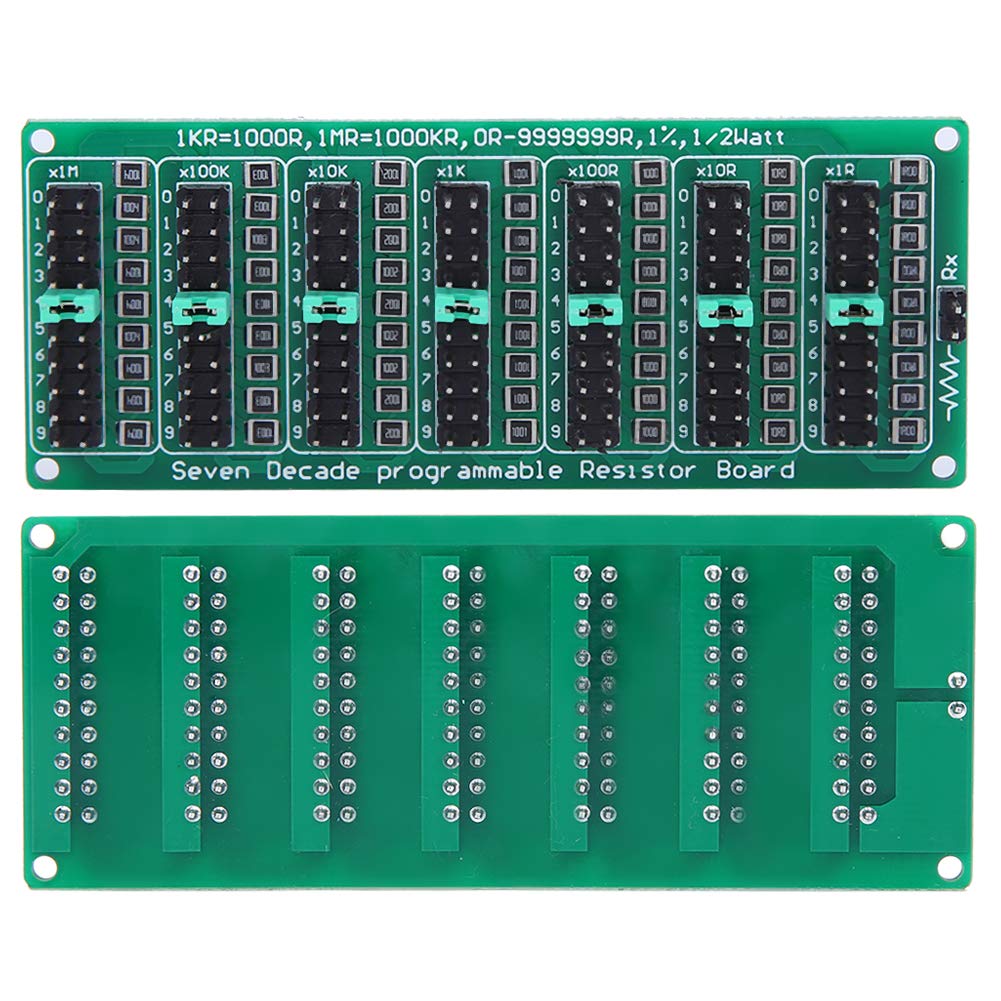

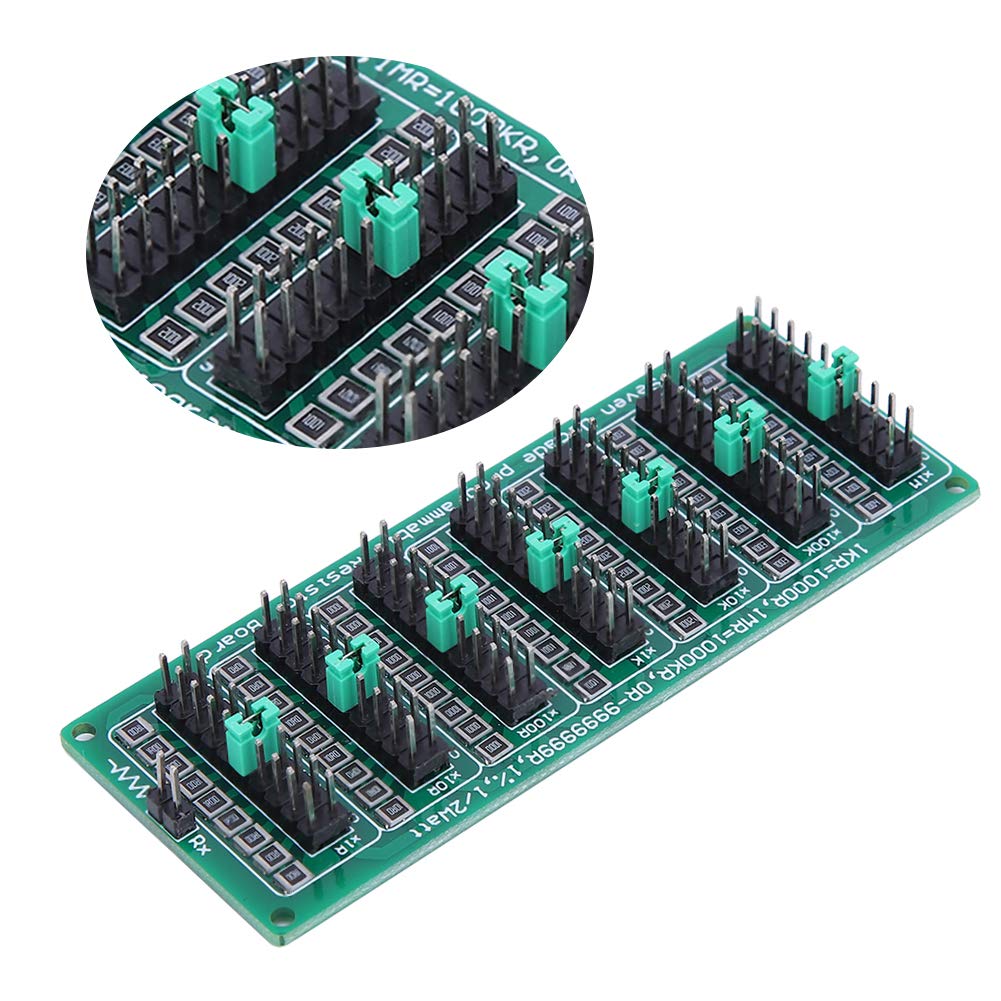

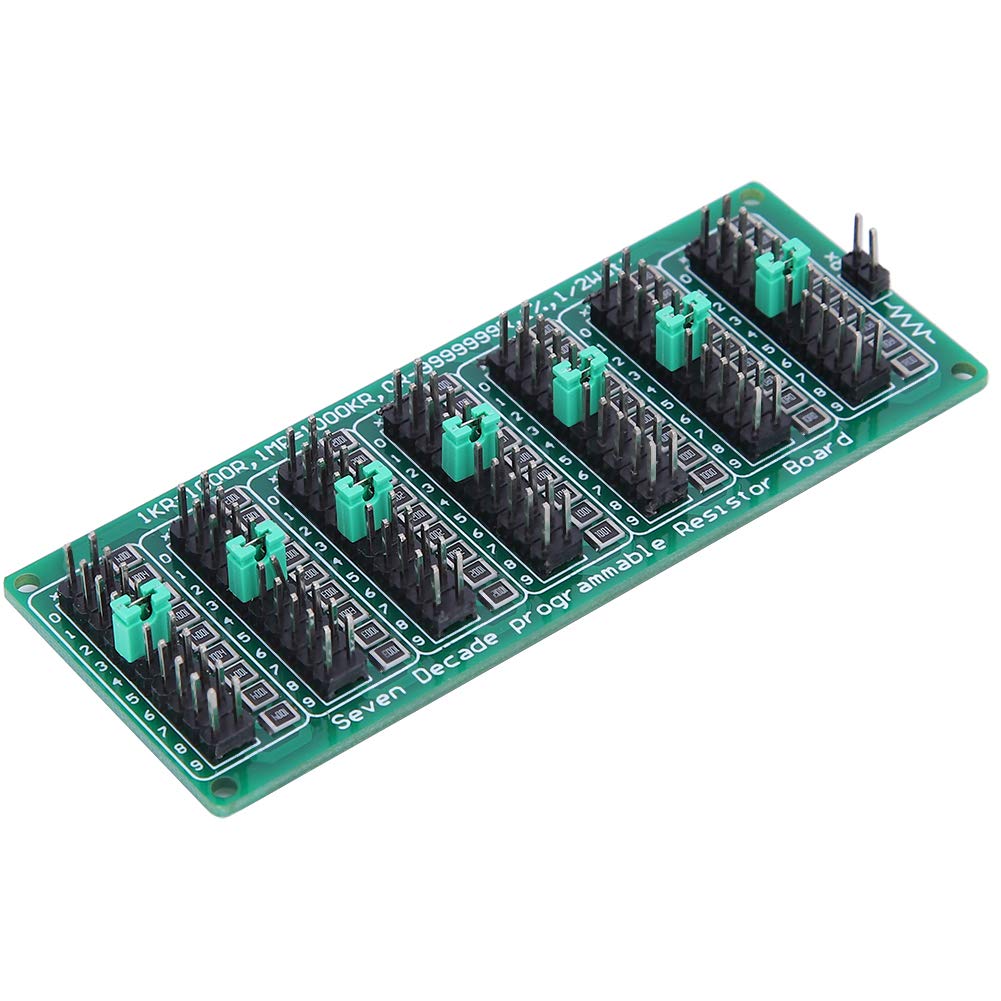

Programmable Resistor Board 8-Section 0.1R to 9999999R Accuracy Synthetic Cardboard

• Resistance Range：The resistance range can be set flexibly and quickly from 0.1R to 9999999R, with a step accuracy of 0.1R. For educational experiments, electronic engineering design or test trimming are excellent applications

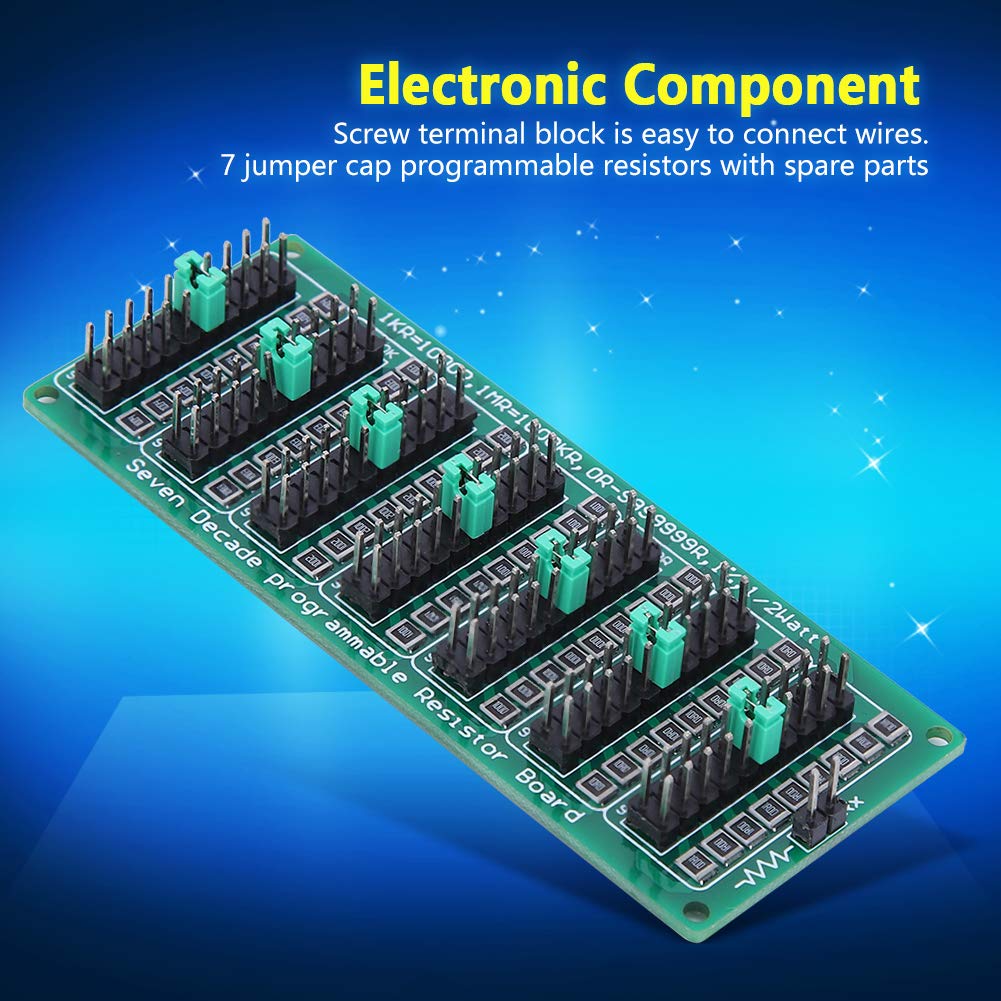

• Design of Resistor Series：Based on the design of "Resistor Series" theorem, 1~2 watt tolerance +/1% SMD resistor. Screw terminal block easy to connect wires. High quality FR4 glass fiber PCB. With spare parts 10 pieces jumper caps
• PCB Size：110mm x 40mm / 4.4" x 1.6" , uing screw terminal block, which is convenient to connect wires
• Programming Parameters：With spare parts 8 jumper cap programmable resistors, 0.1 to 9,999,999Ω, 0.1Ω/step. Resistance Tolerance: +/-1%. Rated Power: 1/2 Watt. Max. Working Voltage: 200V
• Application：Widely used in educational experiments, electronic engineering design or test trimming

Feature: 1. The resistance range can be set flexibly and quickly from 0.1R to 9999999R, with a step accuracy of 0.1R 2. Based on the design of "Resistor Series" theorem, 1~2 watt tolerance +/‑1% SMD resistor. 3. Using screw terminal block, which is convenient to connect wires. 4. With spare parts 7 jumper cap programmable resistors, 0.1 to 9,999,999Ω, 0.1Ω/step. 5. Widely used in educational experiments, electronic engineering design or test trimming is an excellent application. Specification: Item Type: Programmable Resistor Board Material: Synthetic cardboard Resistance Tolerance: +/- 1% Rated Power: 1/2W. Maximum Working Voltage: 200V. Programmable Resistance: 0.1 to 9,999,999Ω, 0.1Ω/step. Package List: 1 x Programmable Resistor Board
