Topform/HIB. Professional, Variable-Length Kitchen Worktop Jig. Shallow Scribe 5mm Inset. Solid Laminate.

• Suitable for use with Wood, Solid Surface, Square edge, Pvc edged, & Laminate worktops.

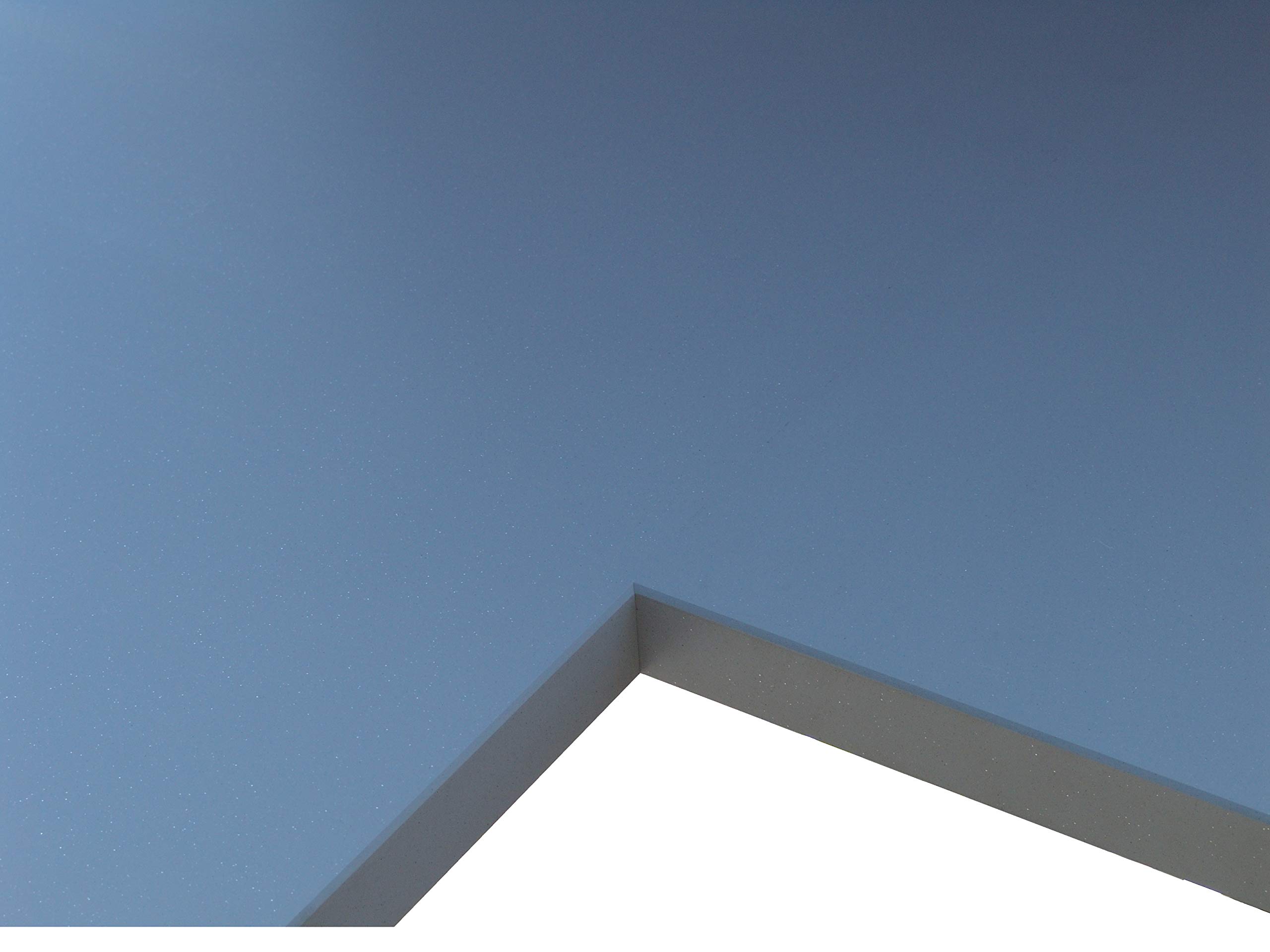

• The 5mm scribing depth gives a much neater joint. & is suitable for square edge & small radius worktops.
• Easily adjustable to cut joints up to 15° out of square.
• Length stops @ 300, 400, 500 600, 616, 635 & 650 Other lengths are accommodated infinitely up to 720mm using the new vari-length system. 3 bolt recess template with easy spanner access included.
• Machined to tolerances of +/-0.03mm (three hundredths of a millimeter) in 12mm compact laminate. (Tufnol)
• This Compact & affordable worktop jig will last for many years in constant professional use offering exceptional value for money.
• Instructions download from https://www.topformproducts.com/varijig-5-ins.pdf

At Last!!! A New Variable Length, Shallow scribe worktop jig that's made for today's worktops. This New variable length jig disposes of the restrictive length settings associated with other jigs. Now any length of joint is easily achieved by simply using a quick measurement. No more adding, subtracting, making spacers or guessing when it comes to non-standard tops. The 7 most common standard length stops are still provided if you wish to use them. Most worktops now have a front edge radius of 3mm or are even square, therefore, a 35mm or 23mm deep cut that the majority of other jigs produce is now totally unnecessary. This new shallow scribe jig produces a 5mm deep cut. The end result looks far neater and removes less material than any other jig available, (router cutters will last up to 4 x longer). The two-part design makes it very light & easy to set up. When used in conjunction with a 1/2” plunge router a worktop joint can be made in fewer than 15 minutes with perfect precision. These jigs are CNC machined by the world's longest established manufacturer of kitchen worktop jigs. They are machined from super heavy duty, 12mm thick compact laminate (tufnol) which will last a lifetime in everyday professional use. The anti-friction surface allows your router to glide smoothly through the cut without snagging. The 20mm diameter location pegs twist firmly down to make perfect alignment. No wobble, no misalignment, no errors. The simple, three-point positioning system makes these jigs the easiest to set up and use for perfect joints every time. Each jig is machined to within a tolerance of +/- 0.03mm to give the ultimate results, even when cutting up to 15° out of square. Please Note! The colour / pattern of the product is listed as various. We cannot specify which colour / pattern you will receive.
