Primeda-telecom HDMI Fiber optic Extenders, with KVM USB and loop out, HDMI over Fiber Optic converters,Singlemode single fiber 20Km(12.4mi) and Multimode 500m(0.31mi) A set

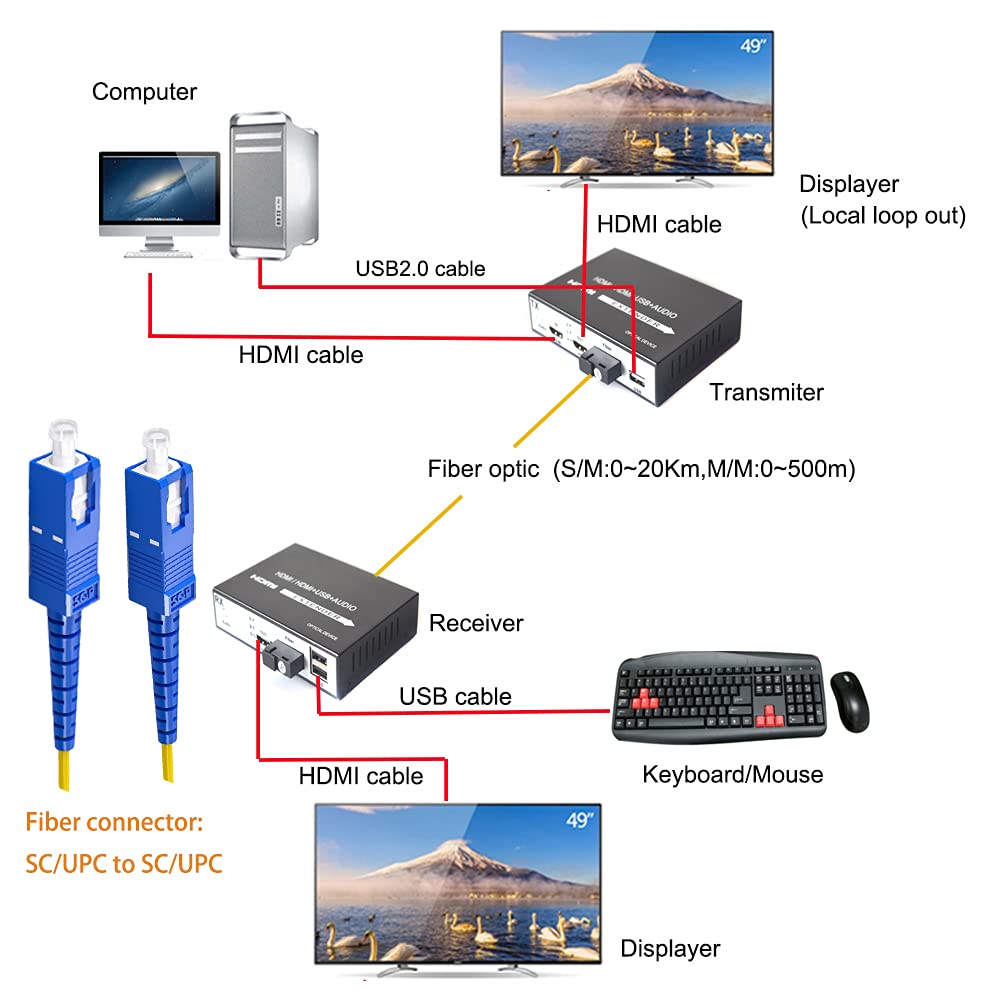

• This HDMI over fiber system is used to send 1080p HDMI signal to remote transmission through a Fiber Optic cable. The device can achieve signal distribution distances of up to 20Km(12.4miles) over a single SC-SC single-mode 9/125μm, and up to 500m(0.31miles) over a SC-SC multi-mode 50/125 or 62.5/125μm. Use with universal optical fiber type (S/M and M/M).
• Support video resolution up to 1080P@60Hz.Support one local loop out and KVM function which can remote control by keyboard and mouse.

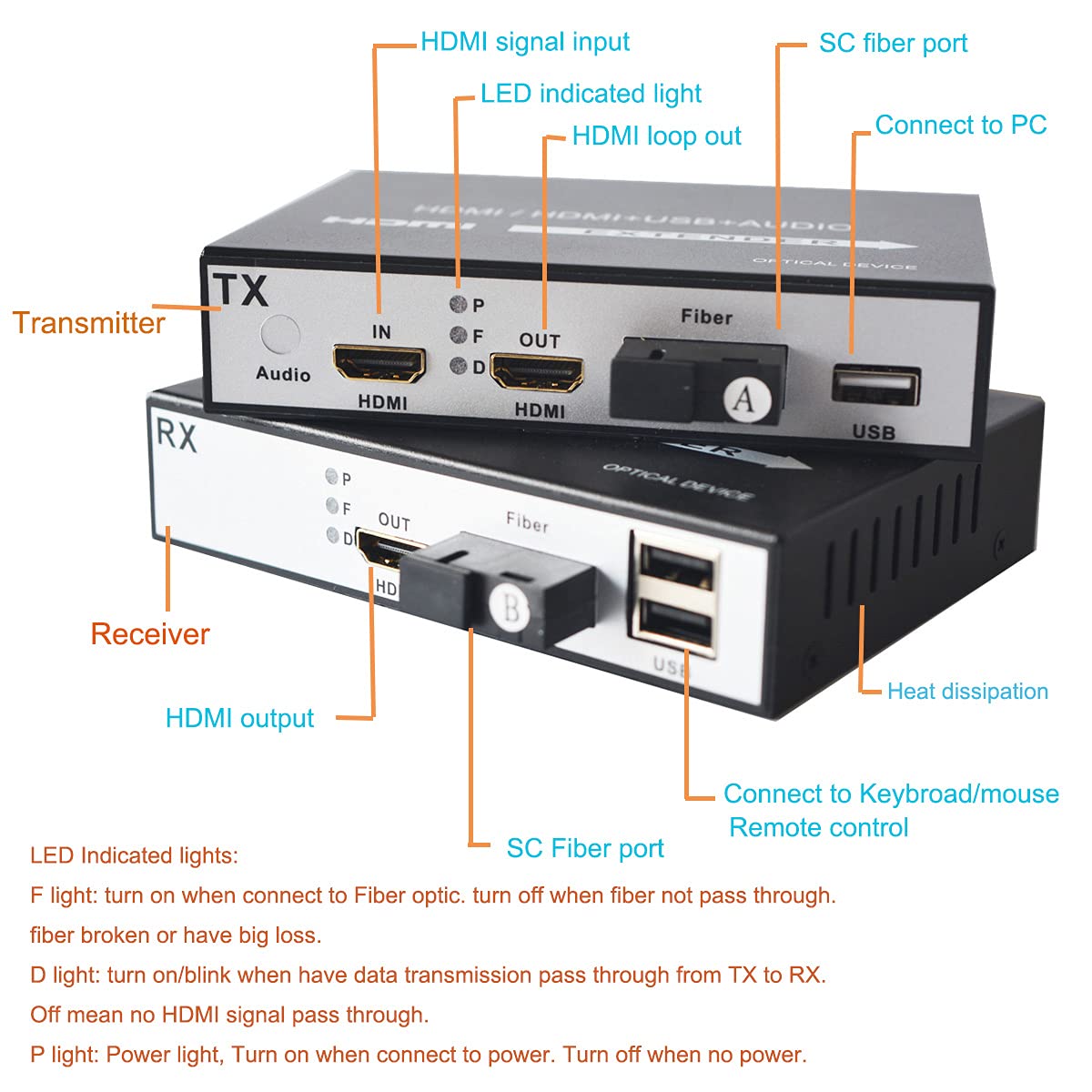

• Uncompressed HD 1080p HDMI transmission, Lossless and stable A/V signal transmission, Long working life. Smart design and Good heat dissipation. LED indicator lights always let you know the status of your devices.
• With our HDMI over Fiber Optic extender you can get greater bandwidth, faster speeds, less signal degradation, longer distance data transfer, better reliability, and more flexibility. Using a fiber optic cable can decrease costs over time because of the durability and reliability of the fiber cables. Fiber optic cables carry a low rate of bit error due to the fiber being highly resistant to electromagnetic interference.
• Plug and Play, Easy to install, no need to set up.

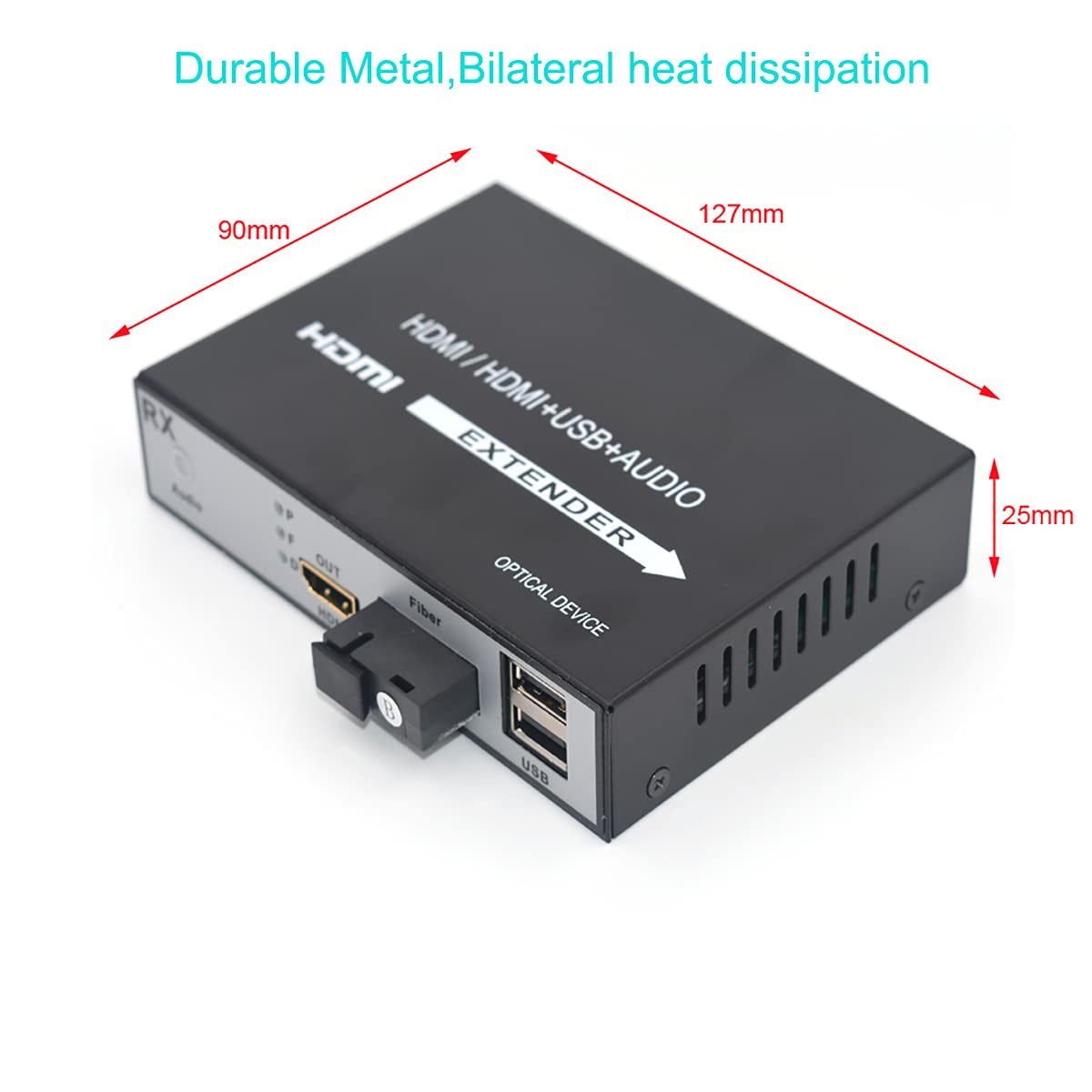

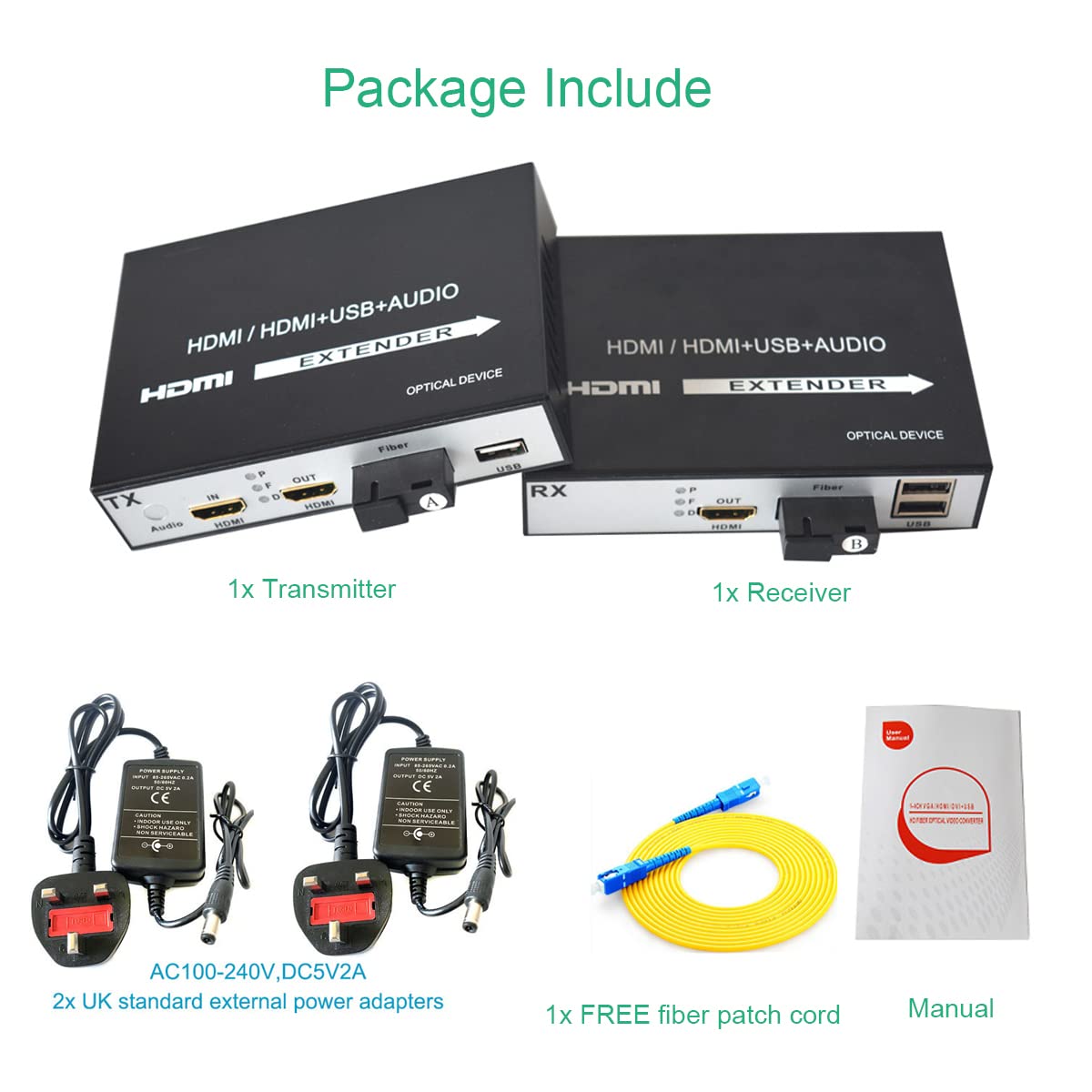

Optical index: 1.Optical connector : SC 2.Suitable for universal singlemode optical fiber 9/125 and multi-mode 50/125 or 62.5/125μm 2. Working distance: singlemode fiber up to 20Km(12.4miles). Multimode fiber up to 500m(0.3miles) 3. Wavelength: Single-mode 1310/1550μm (9/125μm), Multimode 850μm (50/125μm), 1310μm (62.5/125μm) General Index: 1. The usual time between failures (MTBF) greater than 100,000 hours 2. Size: 127x90x25mm (LxWxH). 3. Working voltage : AC100-240V,DC5V2A, with UK standard plug. Package contents: 1x HDMI transmitter 1x HDMI receiver 1x 3m SC-SC S/M fiber patch cord 2 x power AC100~240V DC5V/2A (UK standard plug) 1 x User manual
