Pressure Control Switch, Electronic G1/2'' Pressure Control Switch Air Compressor Pressure Controller,for High and Low Voltage Limit Control

• ★★★【Excellent Material】- The ressure control switch is made of high quality material, anti-corrosion, in use.
• ★★★【Usage】- Apply for freon, air, liquid and other non-corrosive media.

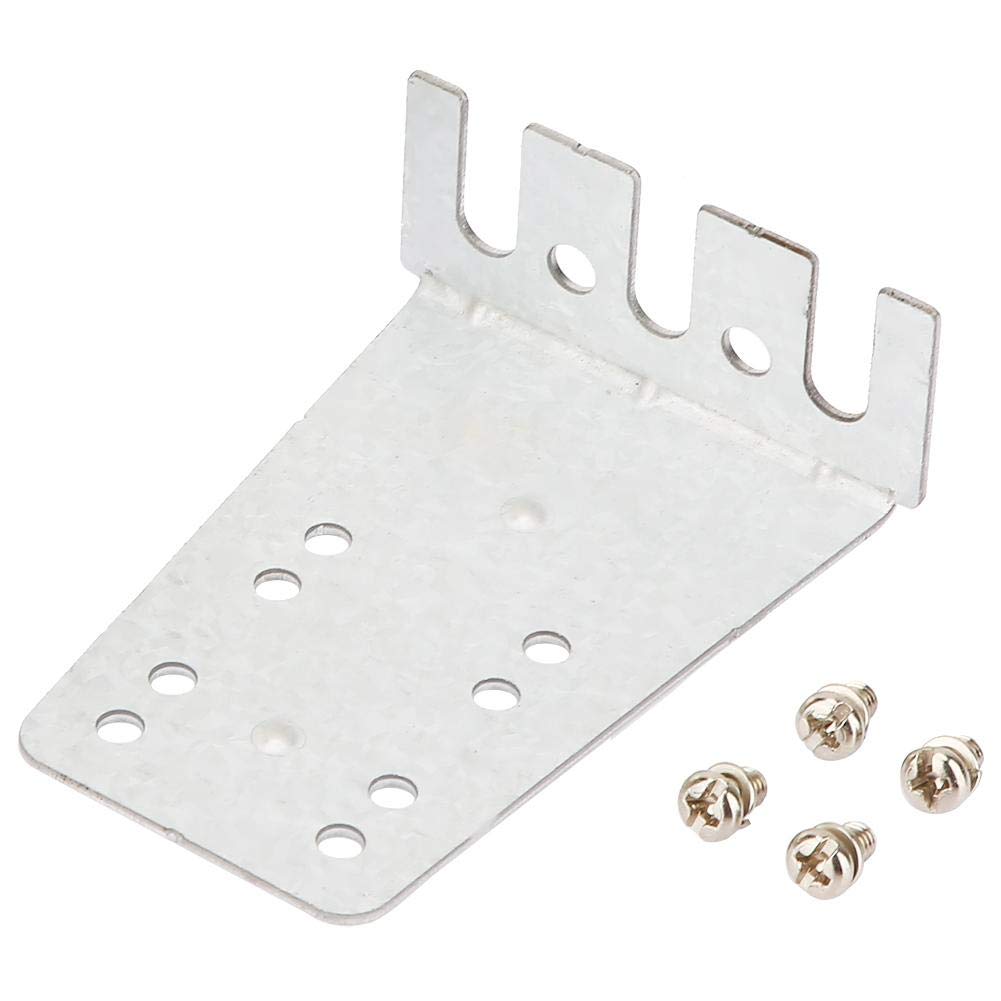

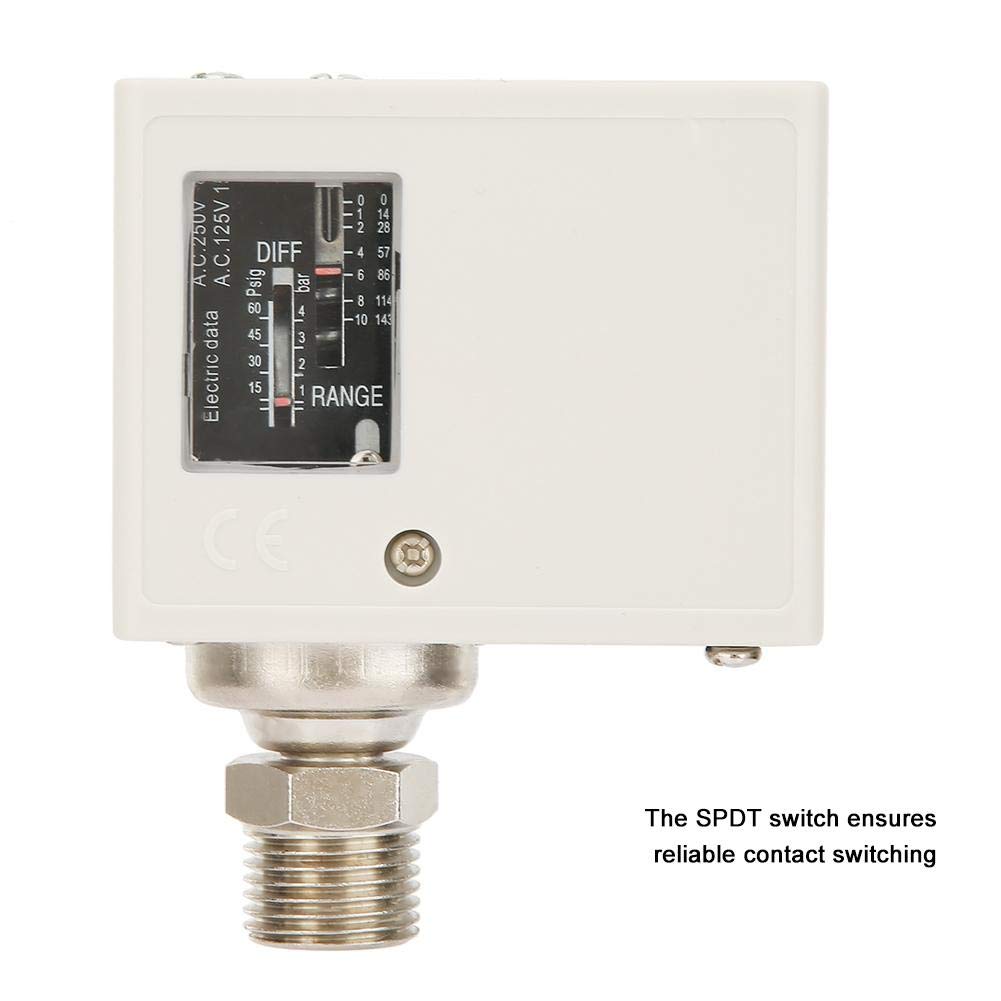

• ★★★【Attachment】- Equipped with mounting bracket and screws, easy to install. The SPDT switch ensures contact switching.
• ★★★【Application】- Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment.
• ★★★【Reliable Gurantee】- Any quality issues, we promise unconditional return service, please feel to contact us!

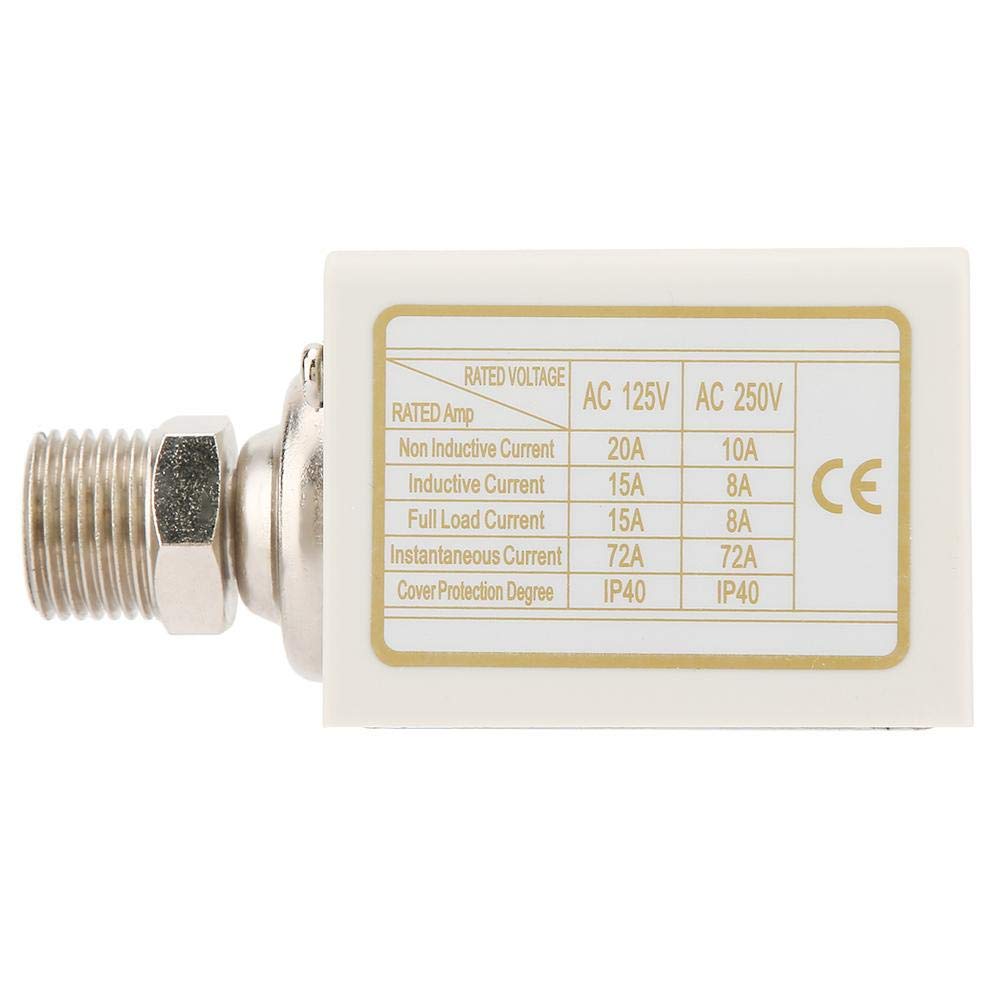

Features: Made of high quality material, anti-corrosion, durable in use. Apply for freon, air, liquid and other non-corrosive media. Equipped with mounting bracket and screws, easy to install. The SPDT switch ensures reliable contact switching. Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment. Specification: Material: Stainless steel, iron plated nickel, plastic Weight: 420g/14.8oz Pressure regulating range (bar): 1 (Min) ~ 10 (Max) Differential pressure adjustment range (bar): 1(Min) ~ 3 (Max) Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF) Maximum air tightness test (bar): 16.5 Power supply voltage: 24V~380V Micro switch life: 100,000 times Electrical parameters: When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A. When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A. Package List: 1* Pressure Control Switch 1* Mounting bracket 4* Screw 1* Instructions
