Garosa Electronic Air Compressor Pressure Switch with Adjustable Pressure Control G1/4 Female Thread for Automatic Compressor Systems

• WIDE APPLICATION: Apply for freon, air, liquid and other non-corrosive media.
• CONTACT SWITCHING: The SPDT switch ensures contact switching.
• MAIN USE: Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment.

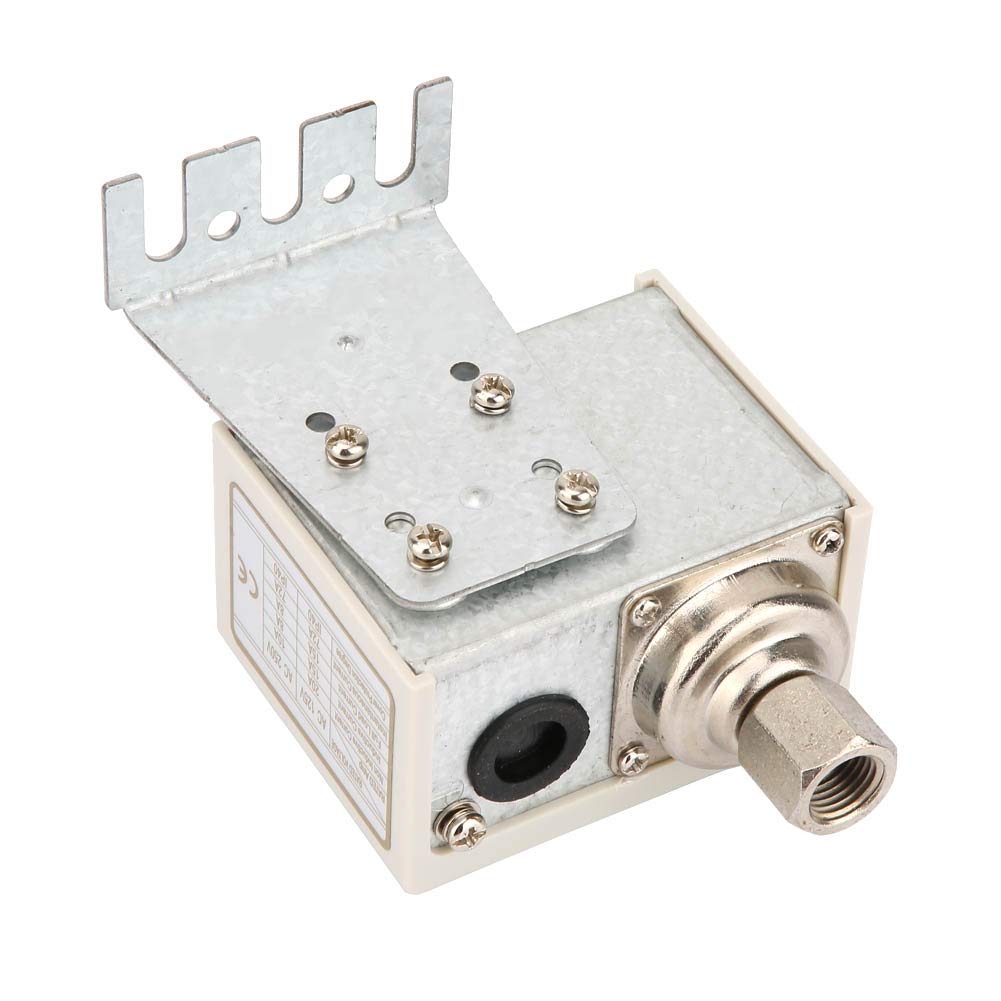

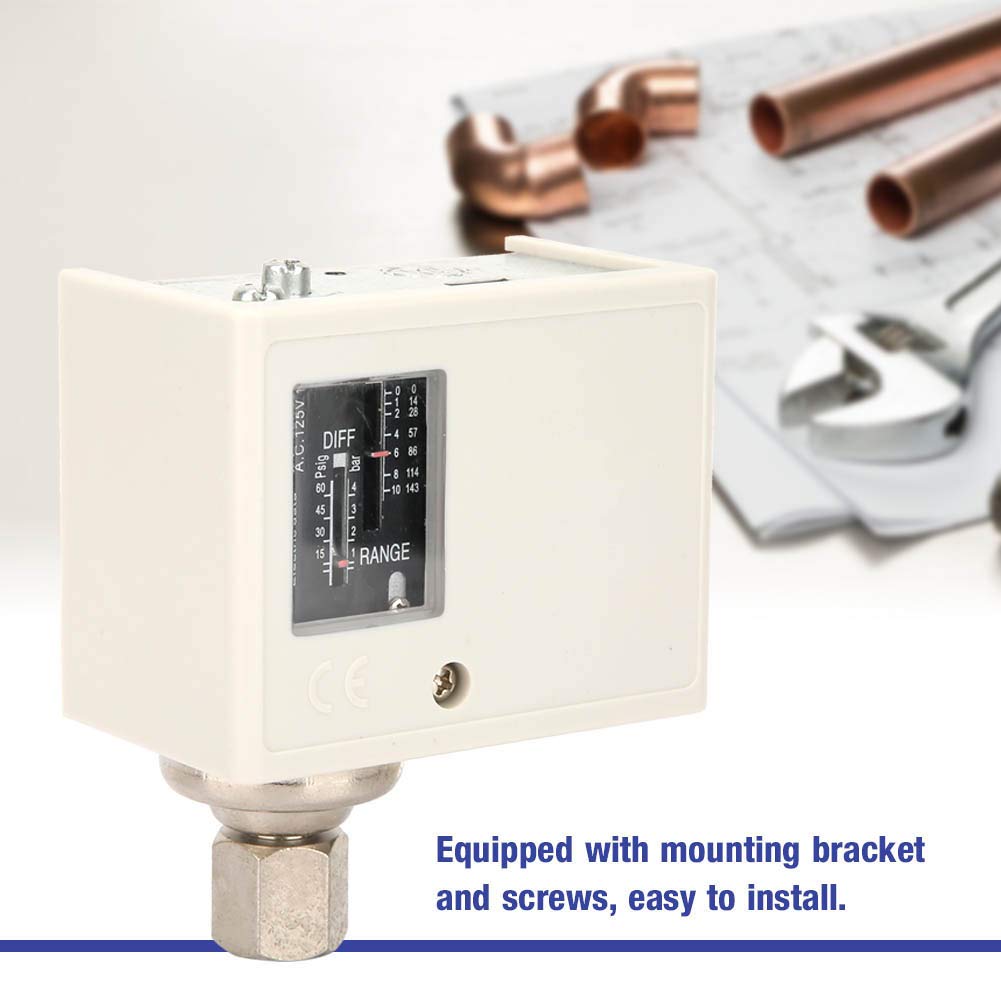

• EASY TO INSTALL: Equipped with mounting bracket and screws, easy to install.
• DURABLE: Made of high quality material, anti-corrosion, durable in use.

<b>Specification:</b><br> Material: Stainless steel, iron plated nickel, plastic<br> Weight: 400g/14.1oz<br> Pressure regulating range (bar): 1 (Min) ~ 10 (Max)<br> Differential pressure adjustment range (bar): 1(Min) ~ 3 (Max)<br> Factory setting (bar): 5 (OFF/ON) ~ 6 (ON/OFF)<br> Maximum air tightness test (bar): 16.5<br> Power supply voltage: 24V~380V<br> Micro switch life: 100,000 times<br> Electrical parameters:<br> When the voltage is 125VAC, the non-inductive current is 20A, the full load current is 15A, and the instantaneous current is 72A.<br> When the voltage is 250VAC, the non-inductive current is 10A, the full load current is 8A, and the instantaneous current is 72A.<br> <br> <br> <b>Package List:</b><br> 1* Pressure Control Switch<br> 1* Mounting bracket <br> 4* Screw <br> 1* Instructions<br>
