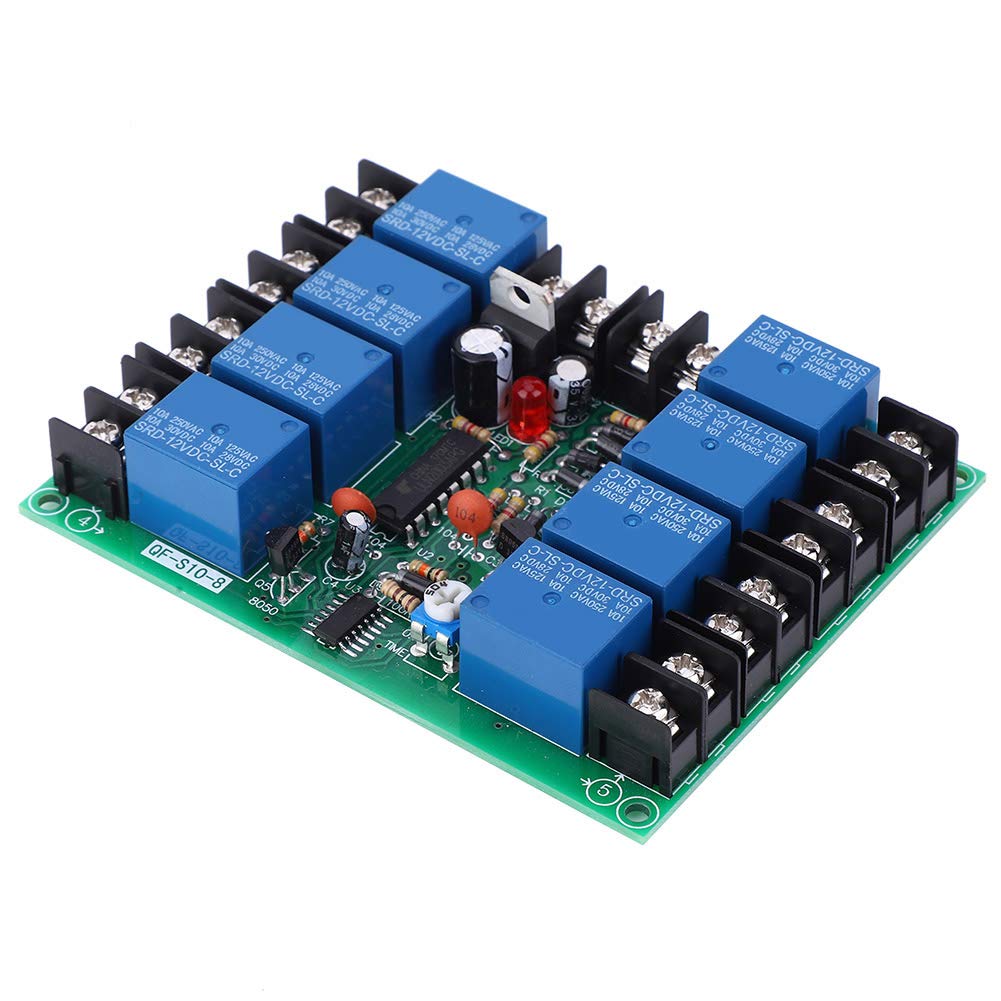

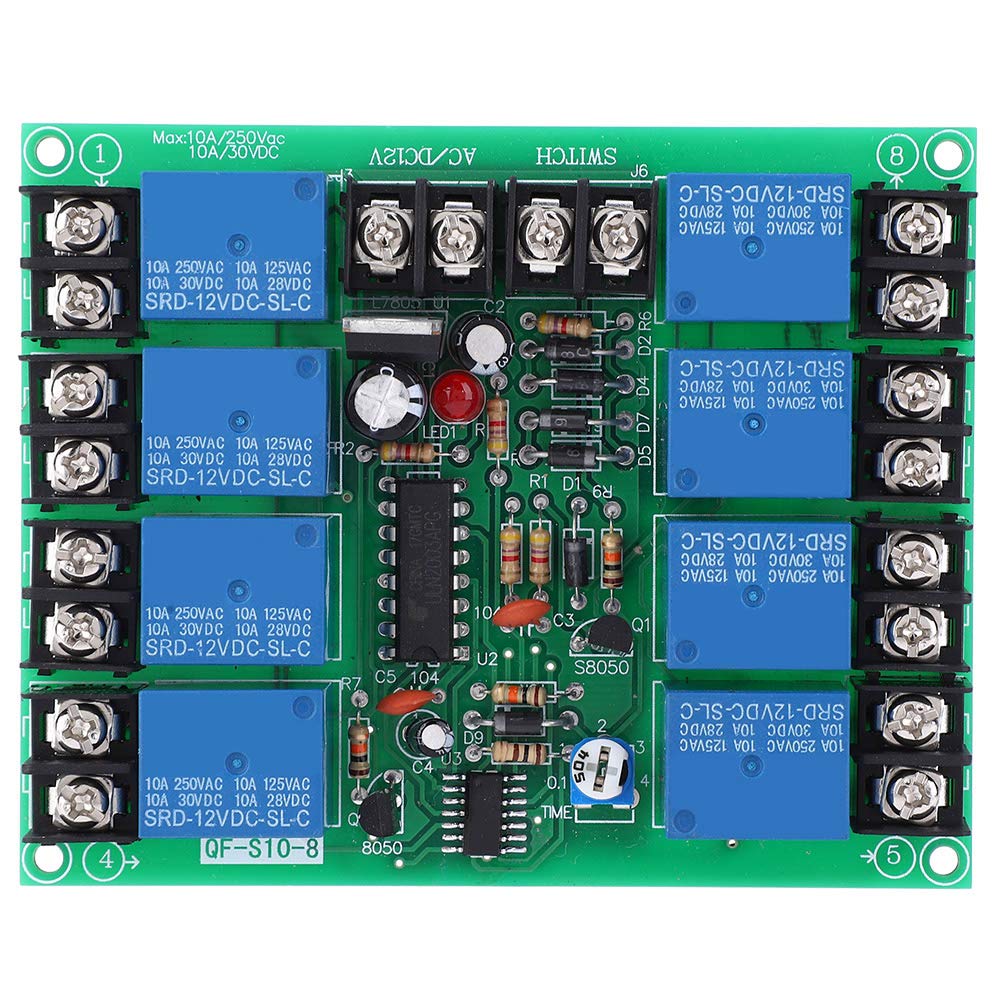

Garosa Power Time Sequence Board 8-Channel QF-S10-8 0.2-4S Adjustable Delay Relay Board Time Sequence Module

• USING FOR TIME SHARING: Used for time-sharing start of power distribution to prevent excessive starting current at the same time.
• TIME SEQUENCE BOARD: Passive output (ie dry contact), NC-COM (normally open-common) of the relay.

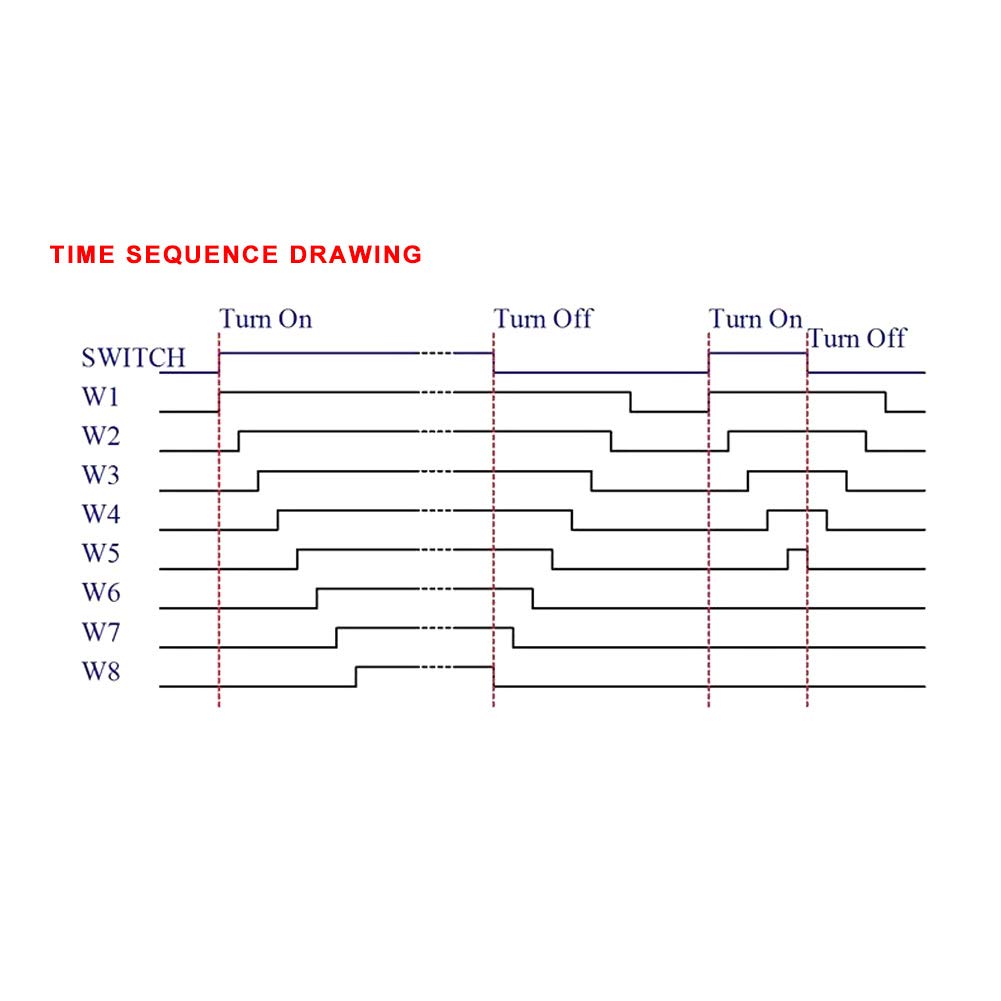

• 8 CHANNELS: 8 channels power time sequence board, start in sequence and stop in reverse.
• 0.2-4S ADJUSTABLE: 0.2 seconds-4.0 seconds is the time adjustment range.
• APPLICATION: Suitable for stage, KTV and other audio equipment, to prevent erroneous startup or simultaneous startup to damage the equipment.

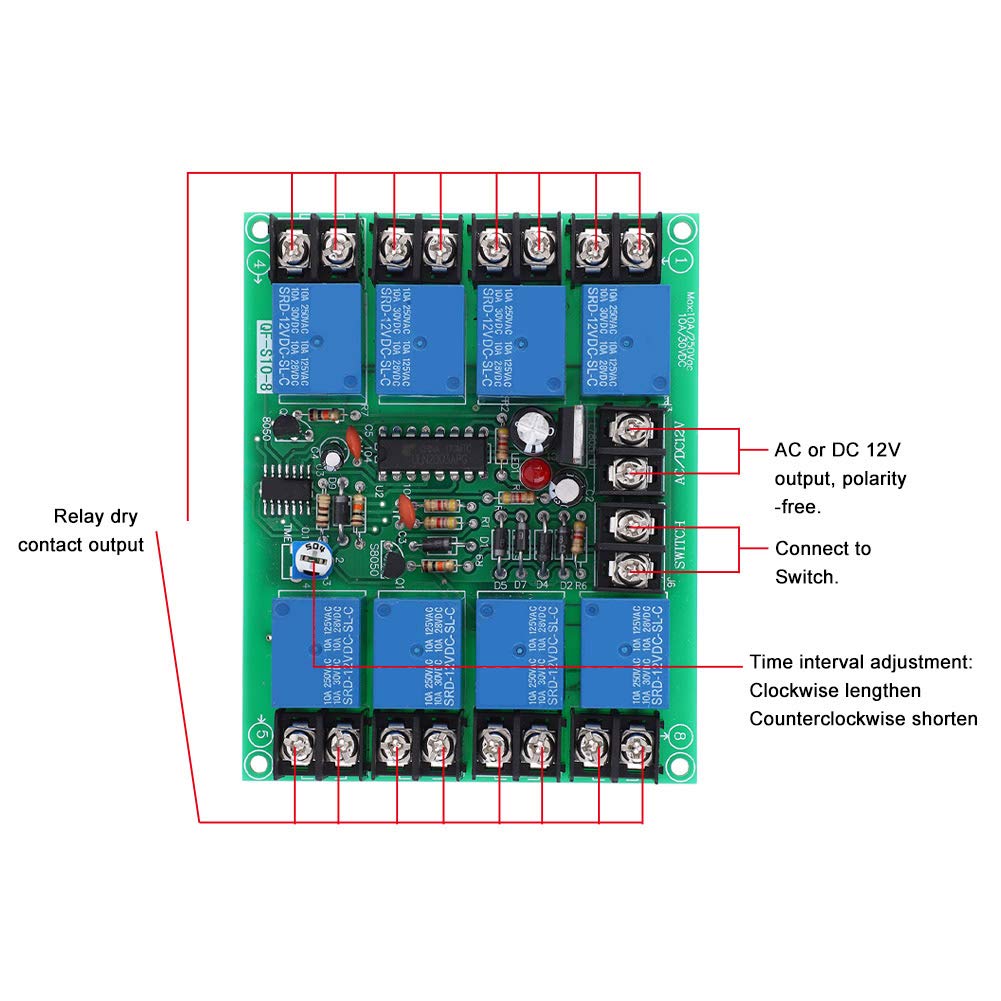

Specification: Item Type: Power Time Sequence Board Power Supply: 12V DC or AC, the minimum required current is 400mA, available in the range of 10V-17V. Number of Output Channels: 8 Output Capacity: 10A maximum per channel, 0-250V AC (or 30V DC) Output Method: Passive output (ie dry contact), relay NC-COM (normally open-public) Time Interval Adjustment Range: 0.2-4.0 seconds Response Speed: 20mS (20ms) Application Range: 1. The power distribution unit is started at different times to prevent excessive starting current at the same time. 2. Stage, KTV and other occasions to prevent the wrong start or simultaneous start damage equipment. Package List: 1 x Power Time Sequence Board
