Power Meter Electricity Usage Monitor, Digital LCD Display Single Phase DIN-Rail Electronic Energy KWh Meter Calculator Analyzer Meter for Professional Use 5-30A 220V

• 【FEATURE】 The meter is fully in conformity with the relevant technical requirements of GB / T17215.321-2008 national standard and the IEC62053 international standard of grade 1 or level 2 single-phase energy meter, which can directly and accurately measure active energy of the energy consumption.
• 【GOOD PERFORMANCE】 It has good anti-electromagnetic interference, low power consumption, high precision, high overload, high stability, anti electricity-stolen and long life.
• 【HIGH RELIABILITY】 It features high reliability, small volume, light weight, beautiful appearance, advanced technology, and 35mmDIN standard guide rail installation, etc.
• 【HIGH QUALITY】 LCD display is 7 + 1 or 6 + 1 meter shows the total power consumption.
• 【WIDE APPLICATION】 This table is suitable for the measurement of rated frequency 50 Hz or 60 Hz single-phase ac active electricity, used for fixed installation indoors, apply to the environment temperature is -25 ~ 55 , relative humidity is 95%, and in the air does not contain corrosive gases and avoid dust, mold, salt fog, condensation, insects, etc.

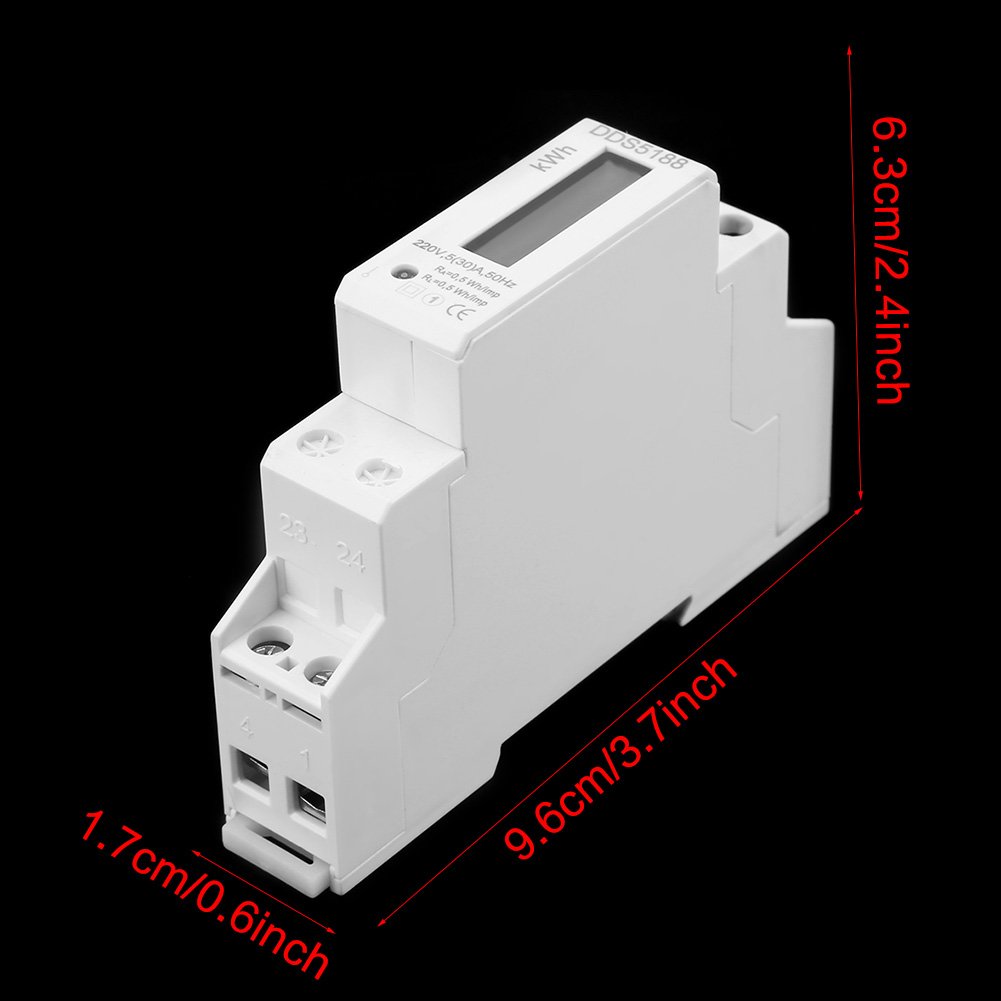

Description: The meter complies with the relevant technical requirements of national standard GB / T17215.321-2008 and international standard IEC62053 for single-phase 1 or 2-level energy meters, which can directly and accurately measure the active energy of energy consumption. small volume, light weight, beautiful appearance, advanced technology and 35mmDIN standard rail installation, etc Specifications: Model: DDS5188 Phase number: single phase Type: conductor type Display mode: LCD Rated voltage: 220V Rated current: 5 (30) A Working temperature: -25 ℃ ~ 55 ℃ Rated frequency: 50-60Hz +/- 10% Accuracy level: Level 1 (corresponds to a measurement error <1%) Including S0 port 2000Imp / kWh (ti = 80ms) Relative humidity: 95% Size about. 9.6 X 6.3 X 1.7 cm / 3.7 X 2.4 X 0.6 inches Weight: 97g Package contents: 1 x Din Rail Energy Meter (Other items in the picture are not included)
