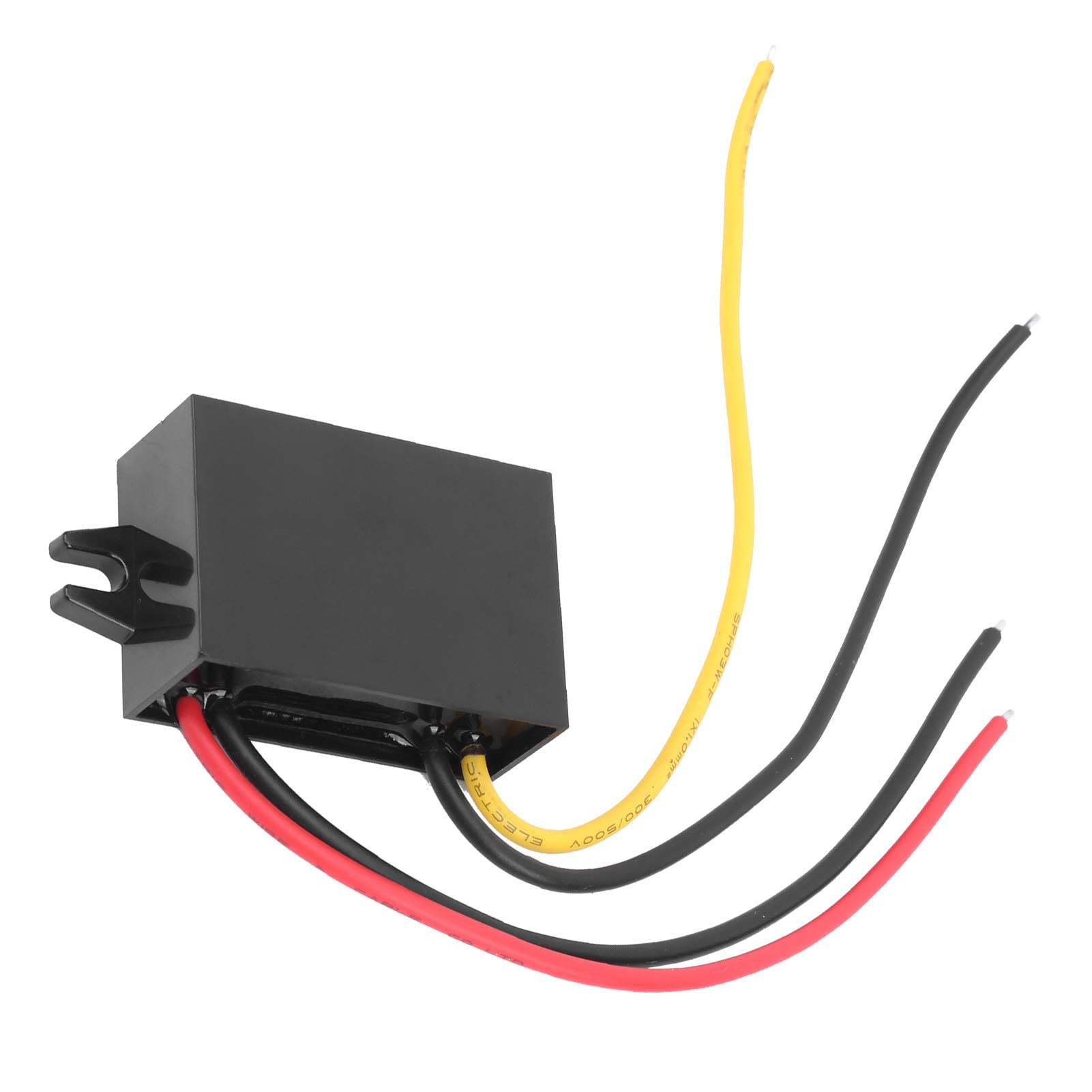

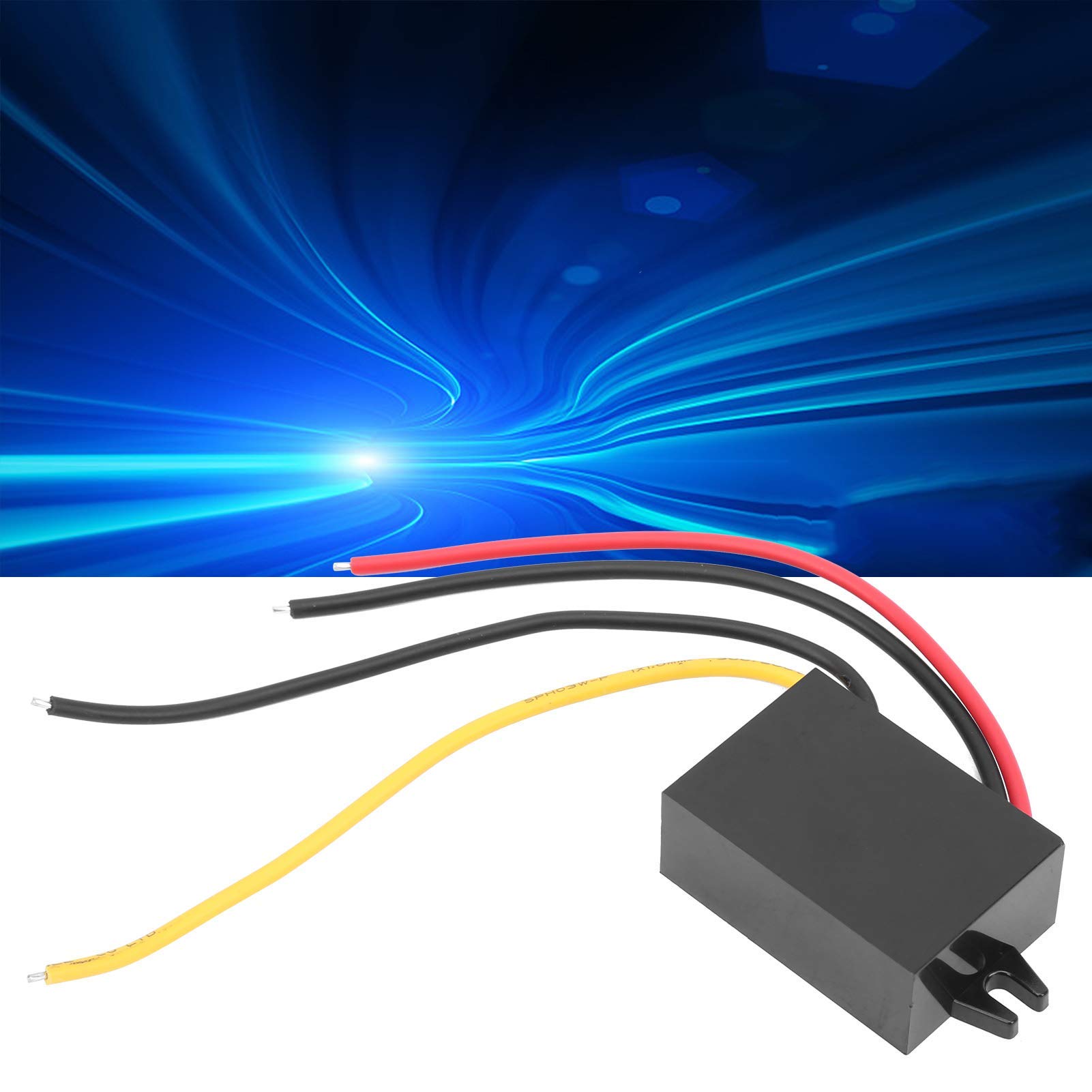

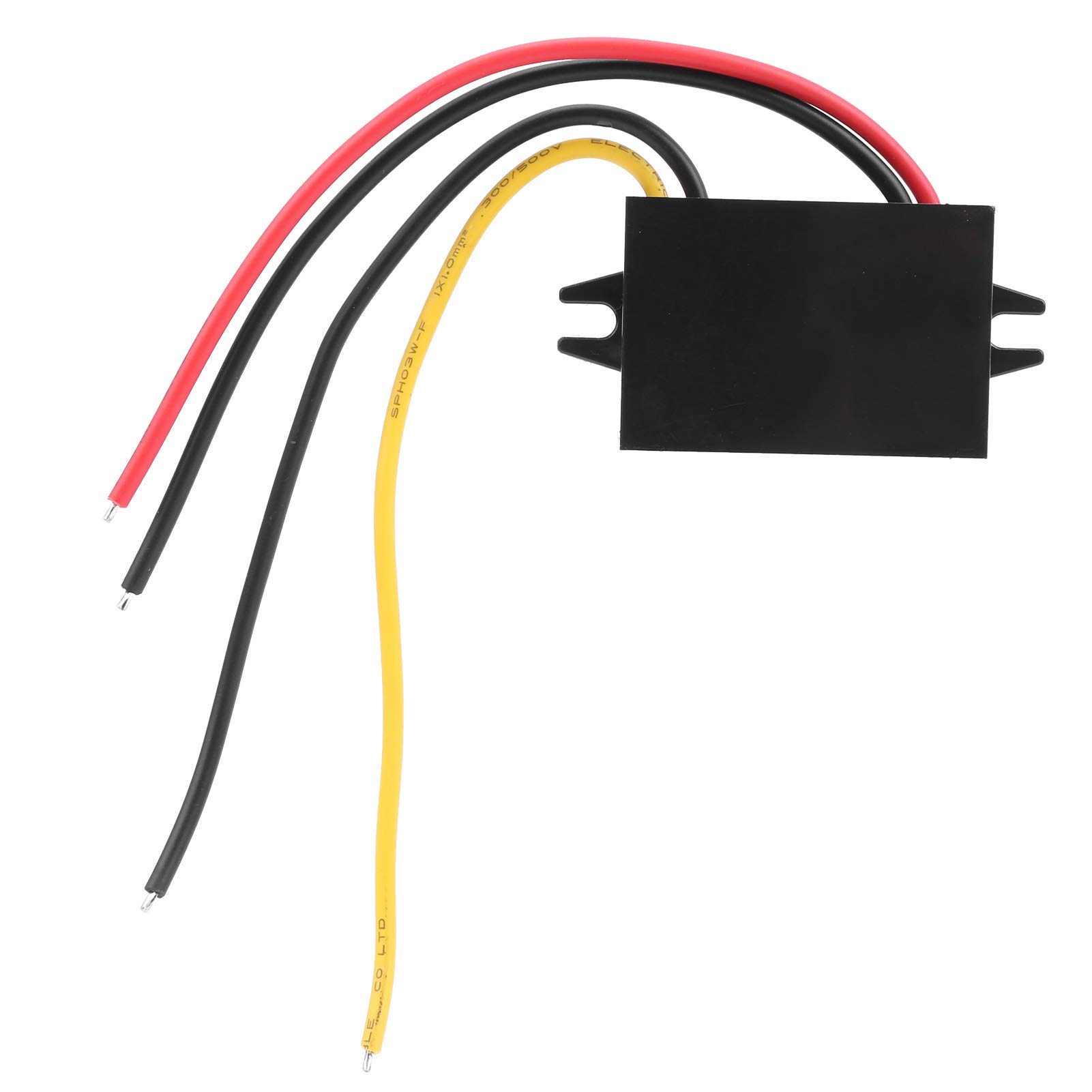

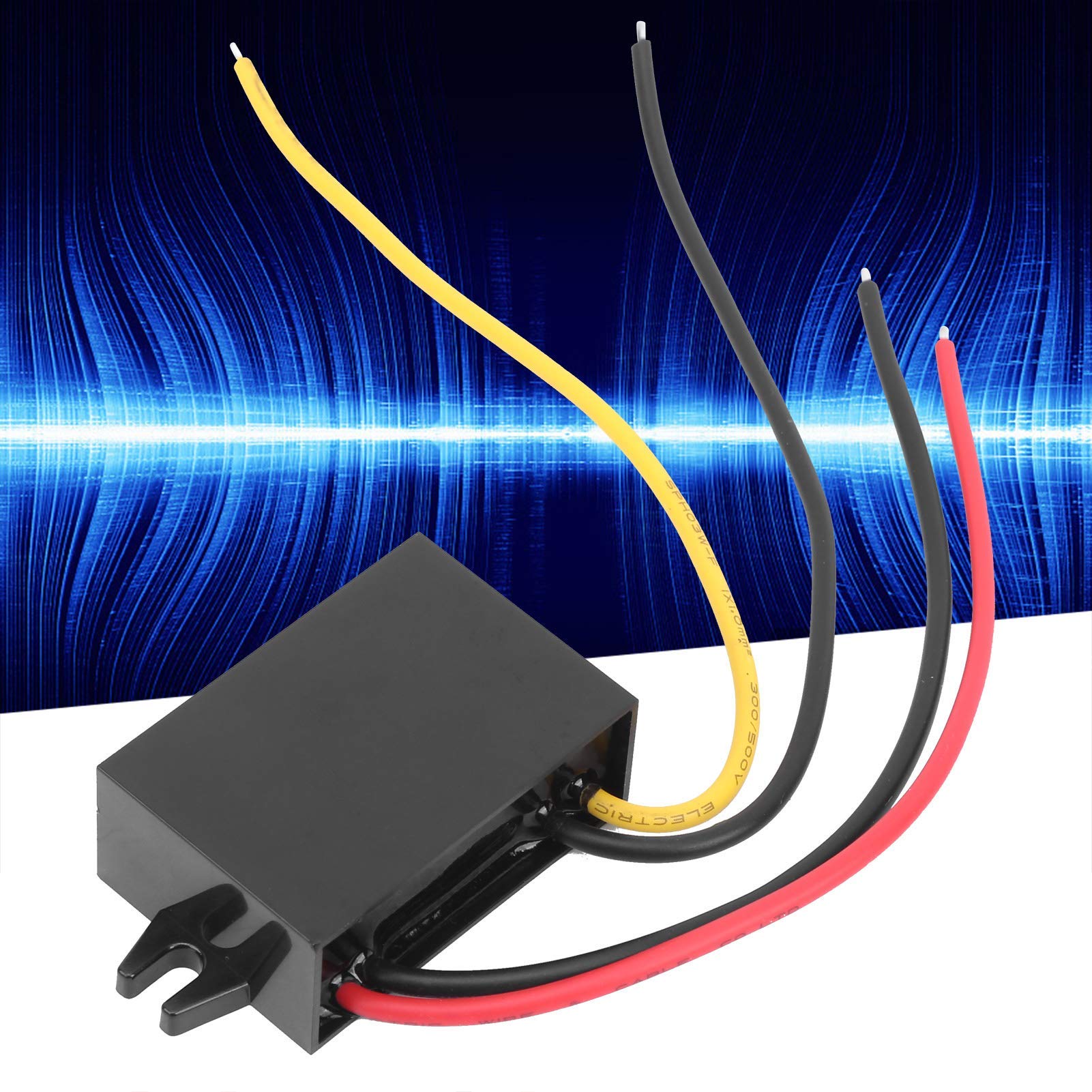

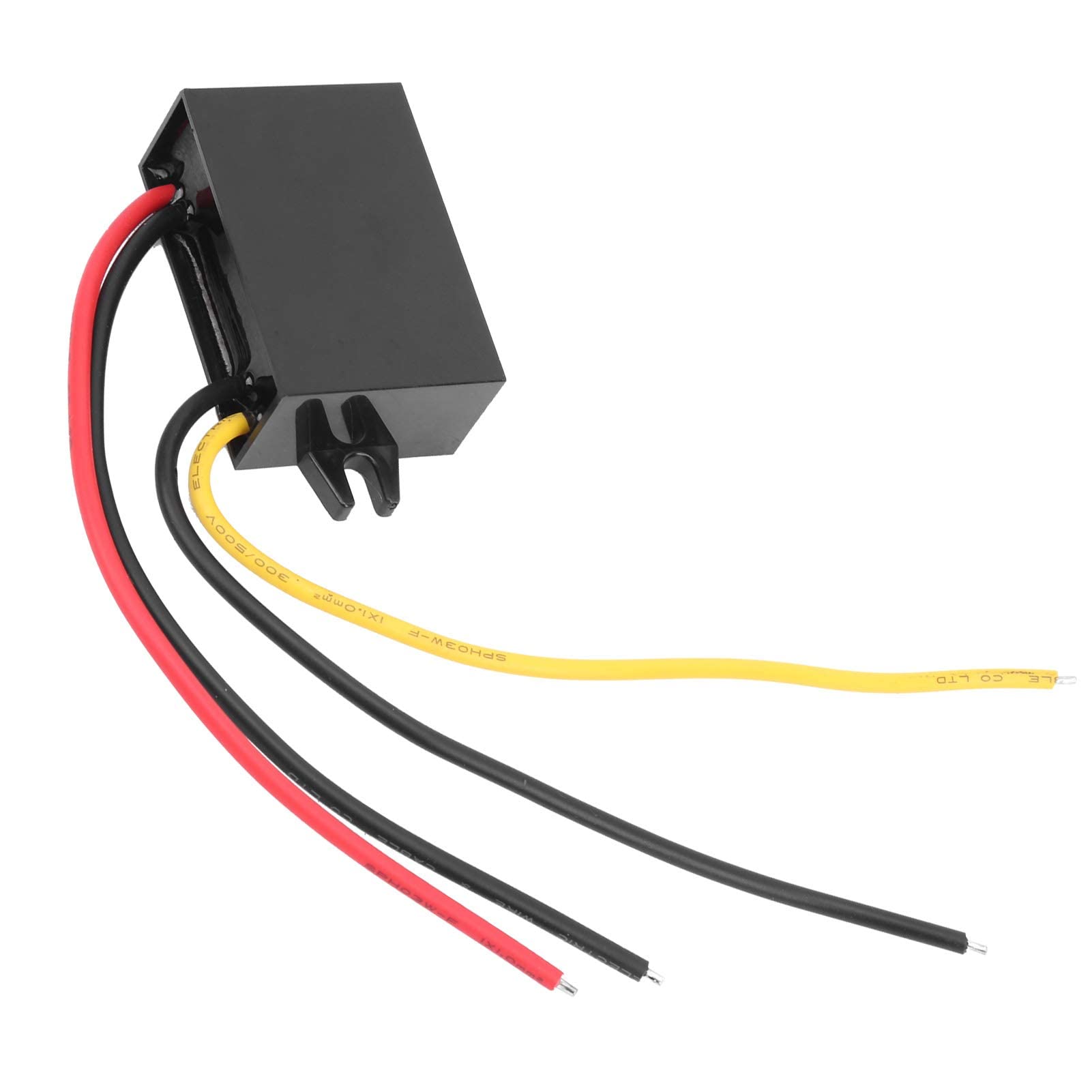

Power Converter Transformer Converter Voltage Regulator Step‑Up Module DC Voltage Converter F12S36V1.5A2S 12V to 36V

• 【High Quality】The regulator has highly integrated chip components, stable and quality. Synchronous rectification technology has a conversion rate of over 90% and low heat generation
• 【Good Protection】This step‑up module has over-current and over-temperature functions, and can work normally after the state is restored
• 【Potting Process】The booster module adopts potting process, which has the functions of anti-vibration, waterproof and dustproof, and is suitable for automobile, outdoor and other environments
• 【Parameter】The modulation method of the boost module is pulse width modulation (PWM) type, input voltage 12V, output voltage 36V, output current 1.5A
• 【Wide Application】The power converter can be used to monitor the integrated wiring of alarm and fire protection, large trucks, solar power generation, bus display screens, walkie-talkies and monitoring systems, etc.

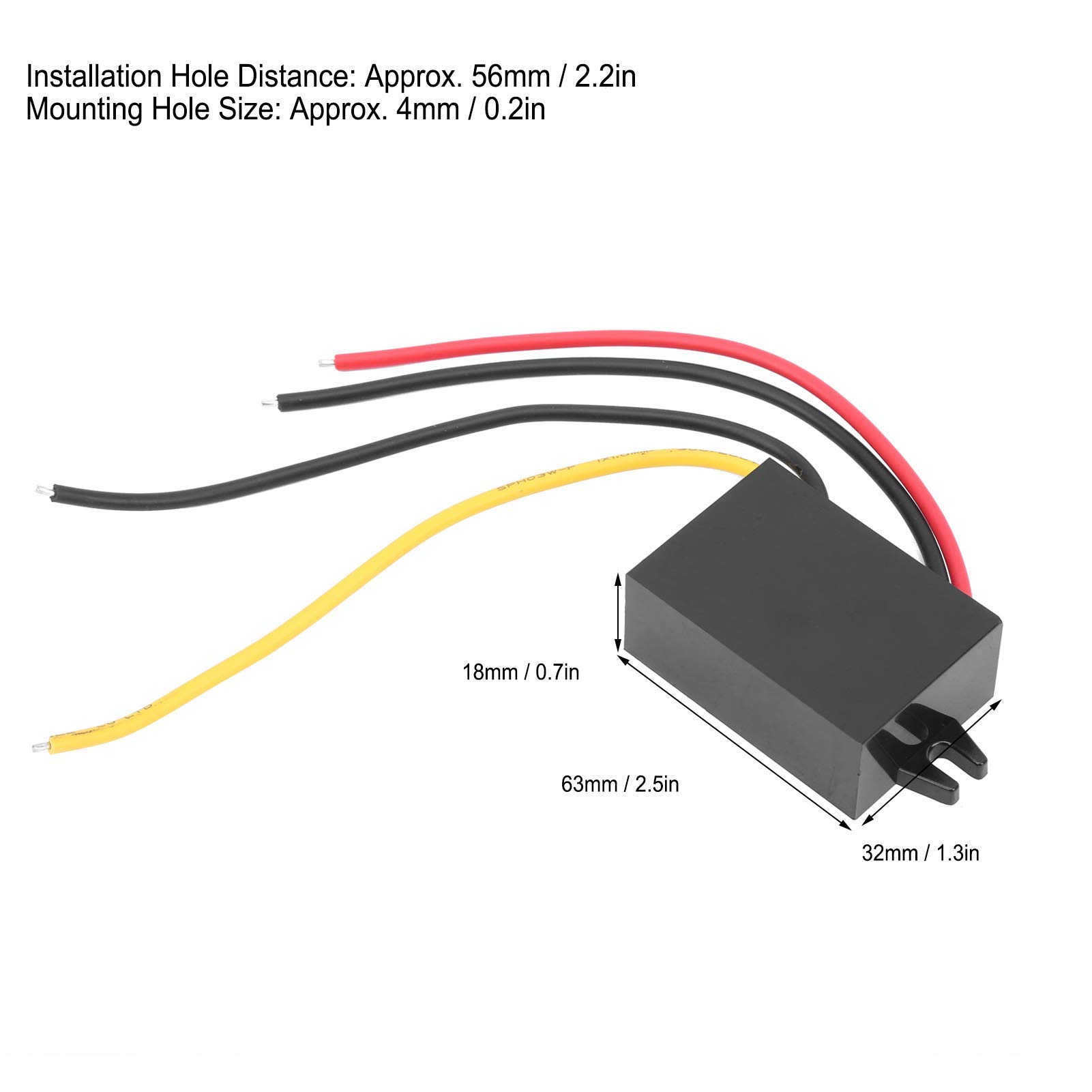

Feature: 1. Wide application range, can be used to monitor the integrated wiring of alarm and fire protection, large trucks, solar power generation, bus display screens, walkie-talkies and monitoring systems, etc. 2. Using highly integrated chips and components, the quality is stable and reliable. 3. With synchronous rectification technology, the conversion rate is over 90% and low heat generation. 4. With the functions such as over‑current and over‑temperature, and can work normally after the conditions are restored. 5. Using potting process, it has shock resistance, waterproof and dustproof effect, suitable for vehicle, outdoor and other environments. Specification: Item Type: Step‑Up Module Product Material: Plastic Product Model: F12S36V1.5A2S Type: DC/DC power supply Modulation Method: Pulse width modulation (PWM) type Input Voltage: 12V Output Voltage: 36V Output Current: 1.5A Protection Level: IP67 Length: Approx. 63mm / 2.5in Width: Approx. 32mm / 1.3in Height: Approx. 18mm / 0.7in Installation Hole Distance: Approx. 56mm / 2.2in Mounting Hole Size: Approx. 4mm / 0.2in Package List: 1 x Step‑Up Module
