Portta AHD Converter AHD To HDMI AHD Converter Upscaler (720p/1080p)

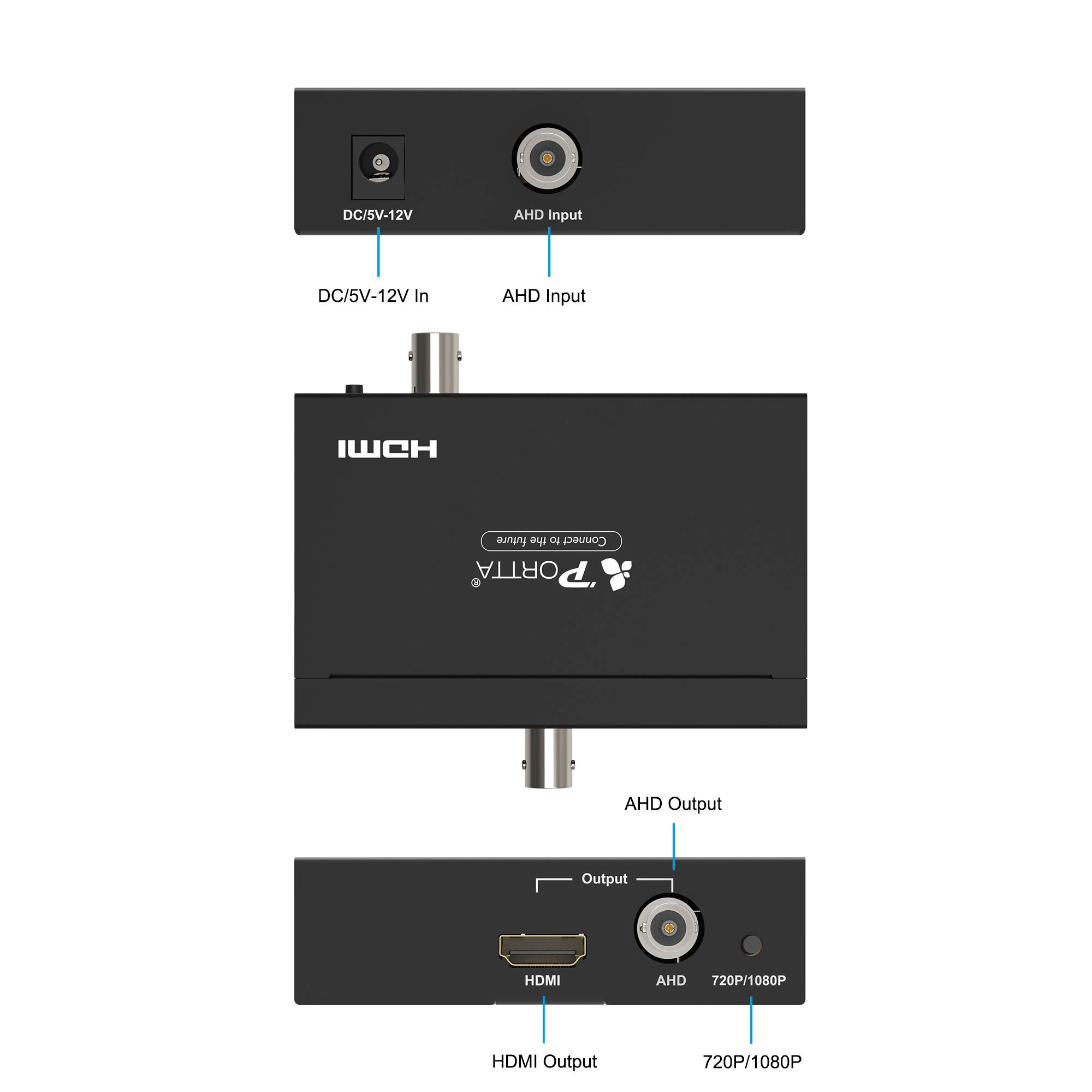

• Input: 1x AHD Output: 1 x AHD; 1 x HDMI;
• Coaxial cable impedance: 75Ω Support AHD loop out

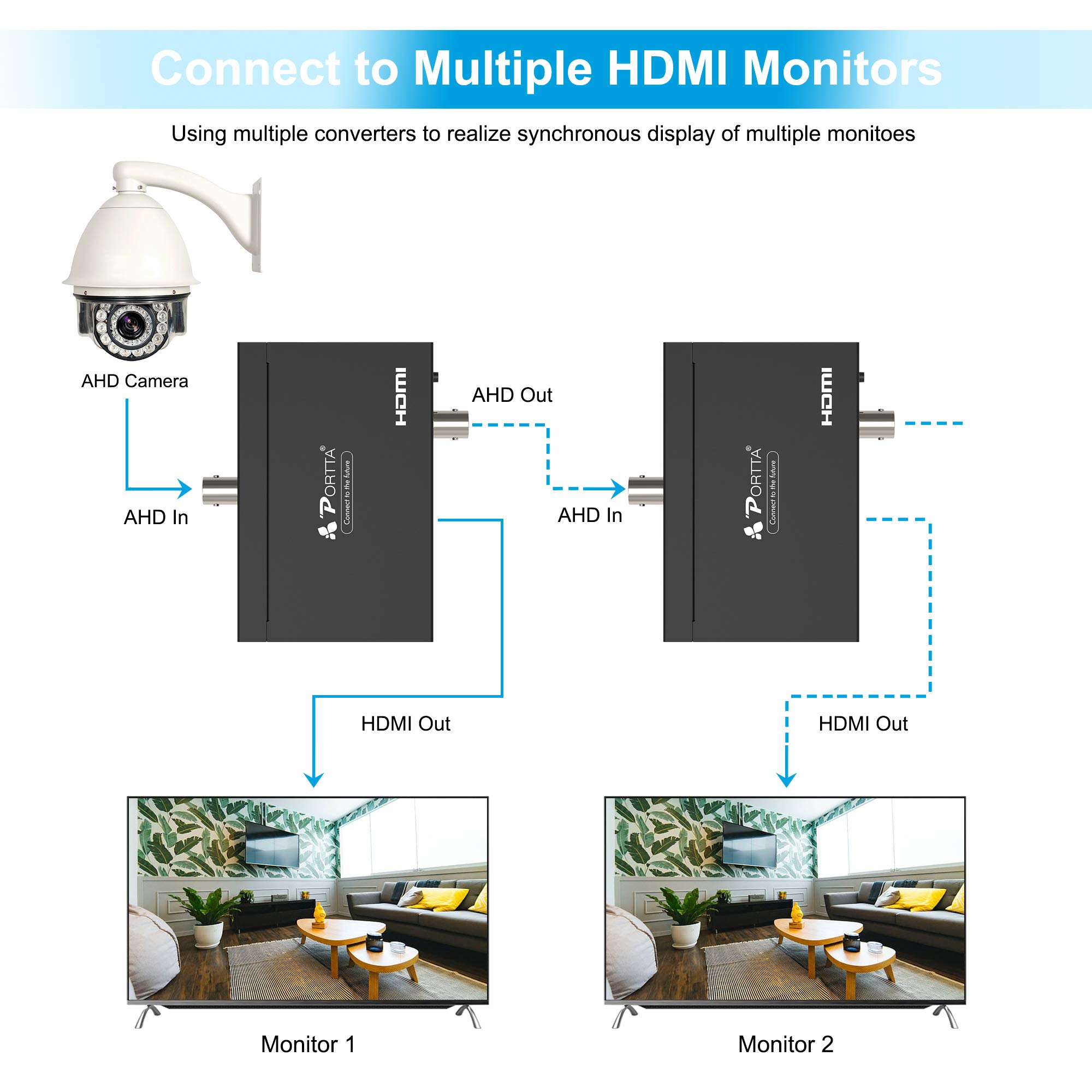

• Two Outputs could be displayed simultaneously. Support AHD signal transmission distance up to 500m Support wide range voltage for power adapter:5V~12V
• Support OSD (On-Screen Display) for input and output resolutions No need to install drivers, portable, flexible, plug and play.
• AHD input supported resolution: 720pat25Hz/30Hz,720pat50Hz/60Hz,1080pat25Hz/30Hz Built-in scaler allows user to adjust the output signal to 720pat60Hz or 1080pat60Hz

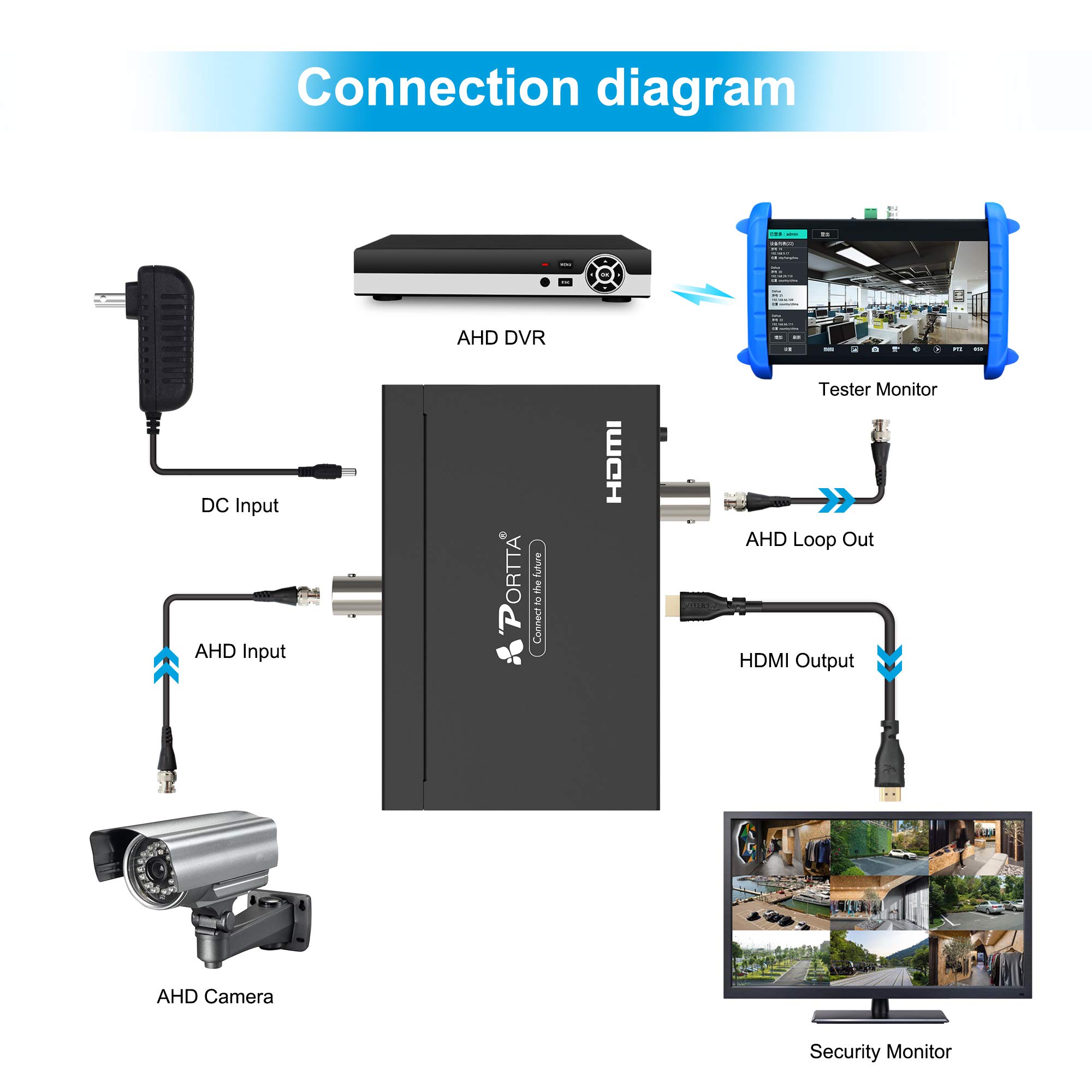

A HD to HDMI + A HD Converter Converter (720P/1080P) 1.0 Introduction This converter can convert a HD (Analog High Definition) signal to HDMI signal with HD TM loop output. The device comes with an upconverter that will allow you to adjust the output signal to a resolution (720P/1080P) compatible with your HDMI-enabled display. To ensure you maintain perfect high-definition video quality, ahd-hdmi converter supports resolutions up to 1080P, which allows you to convert an A HD format to HDMI without sacrificing video quality. For worry-free installation, the HD to HDMI converter offers -and-play and requires no software or driver installation. 2.0 Feature * Input: 1x a HD * Output: 1 x HD; 1 x HDMI; * Resolution supported per HD input: 720P at 25Hz/ 30Hz, 720P at 50Hz/ 60Hz, 1080P at 25Hz/ 30Hz * Built-in scaler allows user to set output signal to 720P @60Hz or 1080P@60Hz * Support OSD (on-screen Display) for input and output resolutions * No need to install drivers, portable, flexible, plug and play. * Coaxial cable impedance: 75Ω * Support HD loop * Two outputs can be displayed simultaneously. * Support extended voltage range for AC adapter: 5V 12V
