POPPSTAR 12 V DC 2.5 A 30 W DIN Rail Power Supply, Corded Electric, Current Rating 2.5 amps, Din Rail Mount, Adjustable Voltage 11.4V-12.6V DC, Overload Protection, Input 100-240 V AC 50/60 Hz

• Use e.g. in switch cabinet, control of building services: bell transformer, door intercom, access system, automation/communication technology

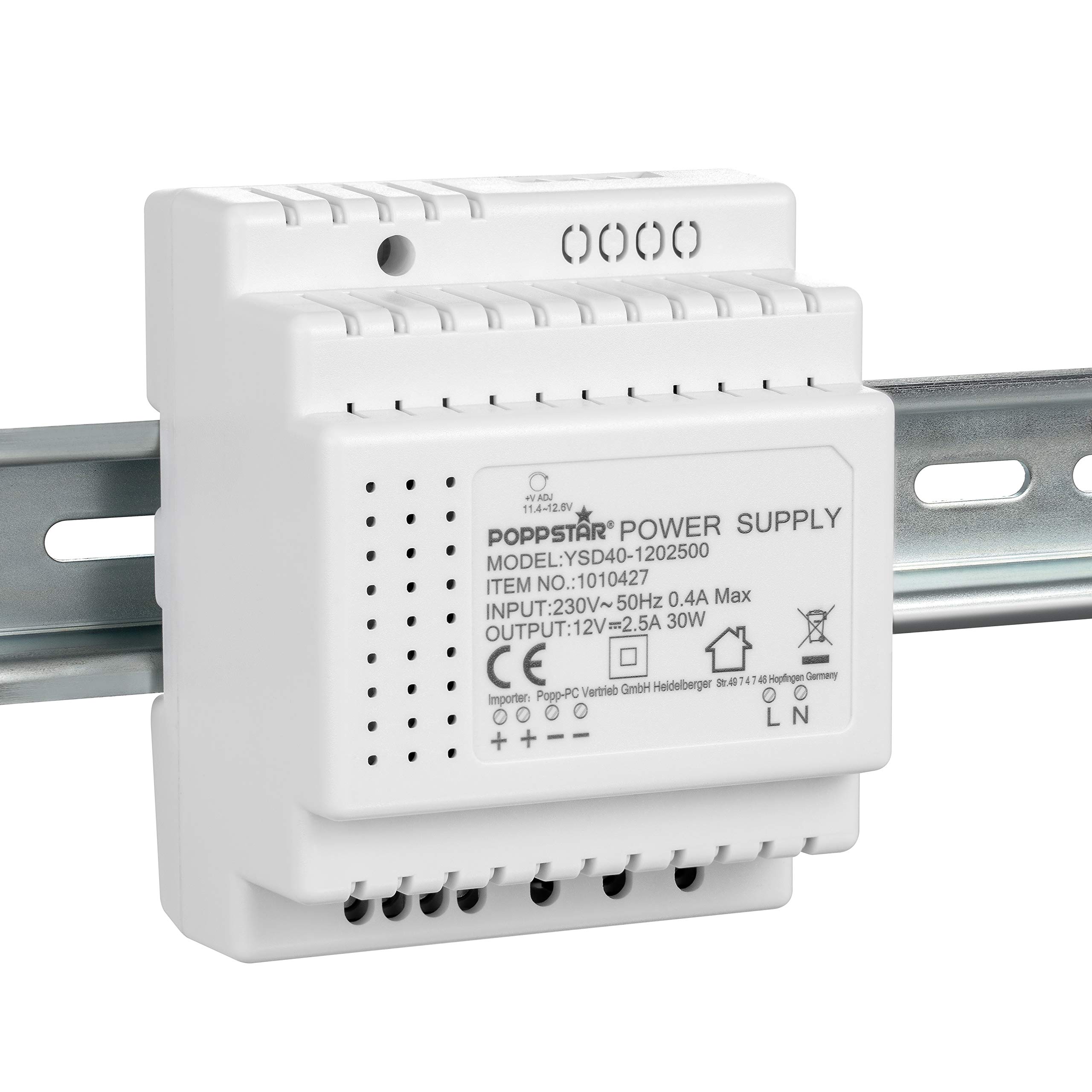

• Switch-mode power supply unit top-hat rail: fastening with click system, compatible with standard top-hat rail TS 35/7.5 and TS 35/15
• Output voltage 11.4...12.6VDC, transformer with DC OK indicator light, overload protection (hiccup mode), overvoltage/short-circuit fuse protection
• DIN rail power supply unit 24V with optimum operating temperature: -20 to 50 °C; storage temperature -40 to 80 °C; storage humidity 10-95%

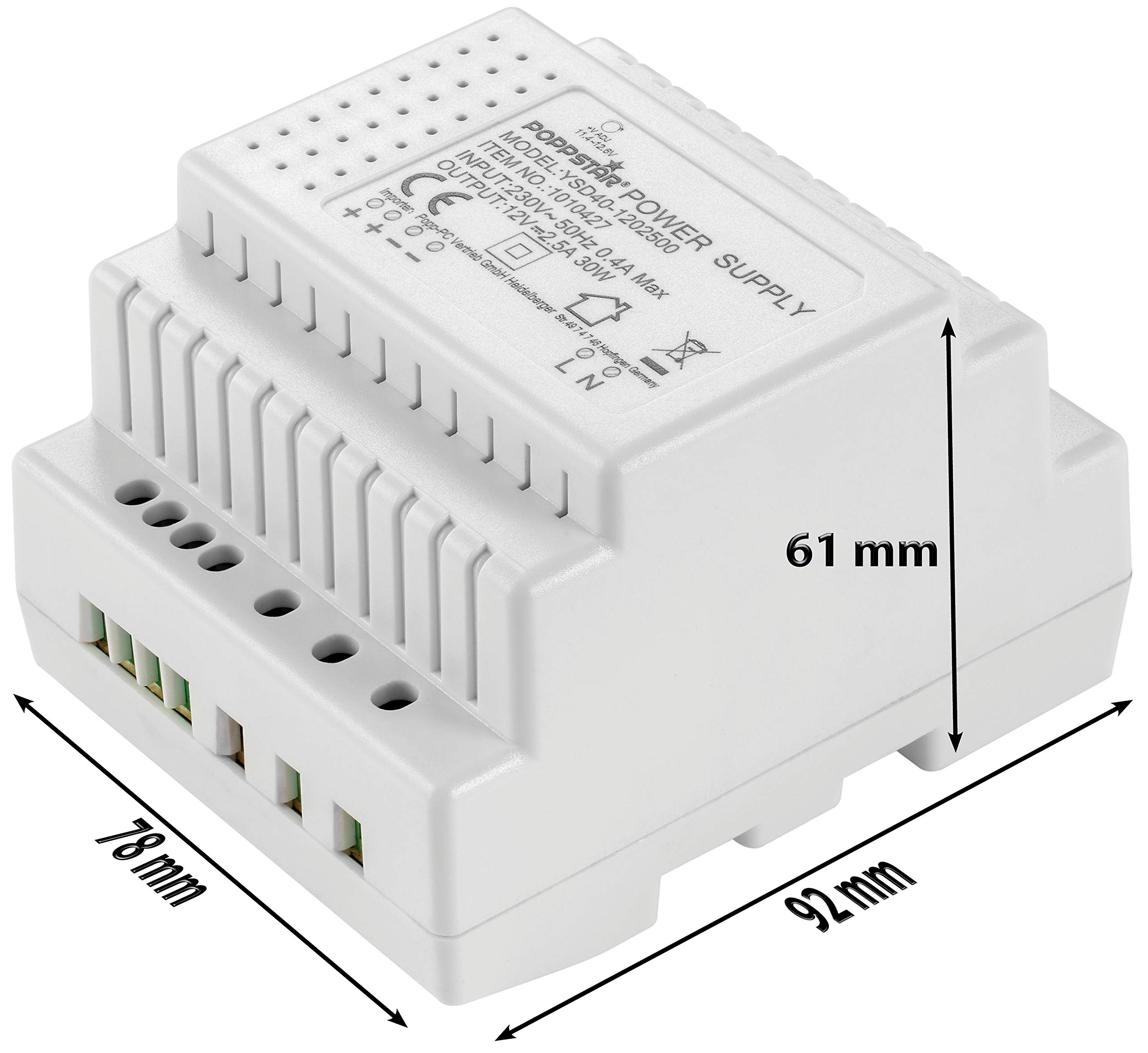

• Delivery: Din-Rail top-hat rail power supply unit with plastic housing (78 x 92 x 61 mm, output: 12V 2.5A; power: 30 watts)

Poppstar DIN-Rail Power Supply Our DIN rail power supply module can be used in many appliances such as distribution boxes, logistics information systems and automation engineering. It is mountable on standard DIN-rails TS-35/7.5 or TS-35/15. Other features: easy installation and safe use thanks to protection against short circuits, overload and over-voltage. Safety advice: Please commission an expert to install this product. Product description High efficiency Low ripple, low noise Overload protection (hiccup mode) 130-200% Overvoltage protection 110-145% Overcurrent protection 110%-180% Short circuit protection Isolation class II DC output voltage adjustable Durable, slim and light design Easy installation and use DIN rail TS 35/7.5 or TS 35/15 mountable Specifications Input voltage 100 - 240 V AC, 50/60 Hz Output voltage 12 V DC (current: 2.5 A, power: 30 W) (adjustable voltage: 11.4V - 12.6V) Operating temperature: -20 bis 50 °C Humidity: 20-90% RH non-condensing Storage temperature: -40 bis 80 °C Storage humidity: 10-95% RH Product dimensions: 78 x 92 x 61 mm Poppstar DIN rail power supplies: available output values 5V 2A 10W 12V 1,25A 15W 12V 2,5A 30W 24V 2,5A 60W 12V 4,5A 54W 12V 7,5A 90W
