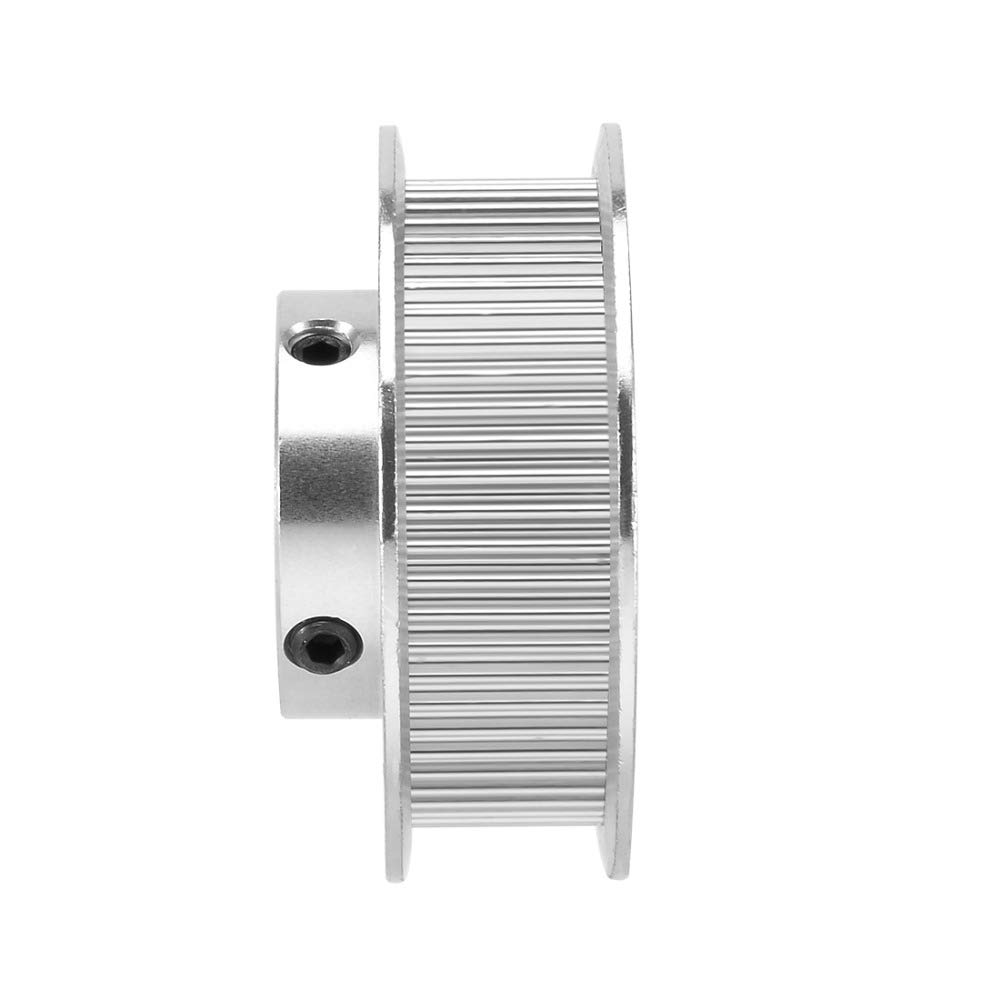

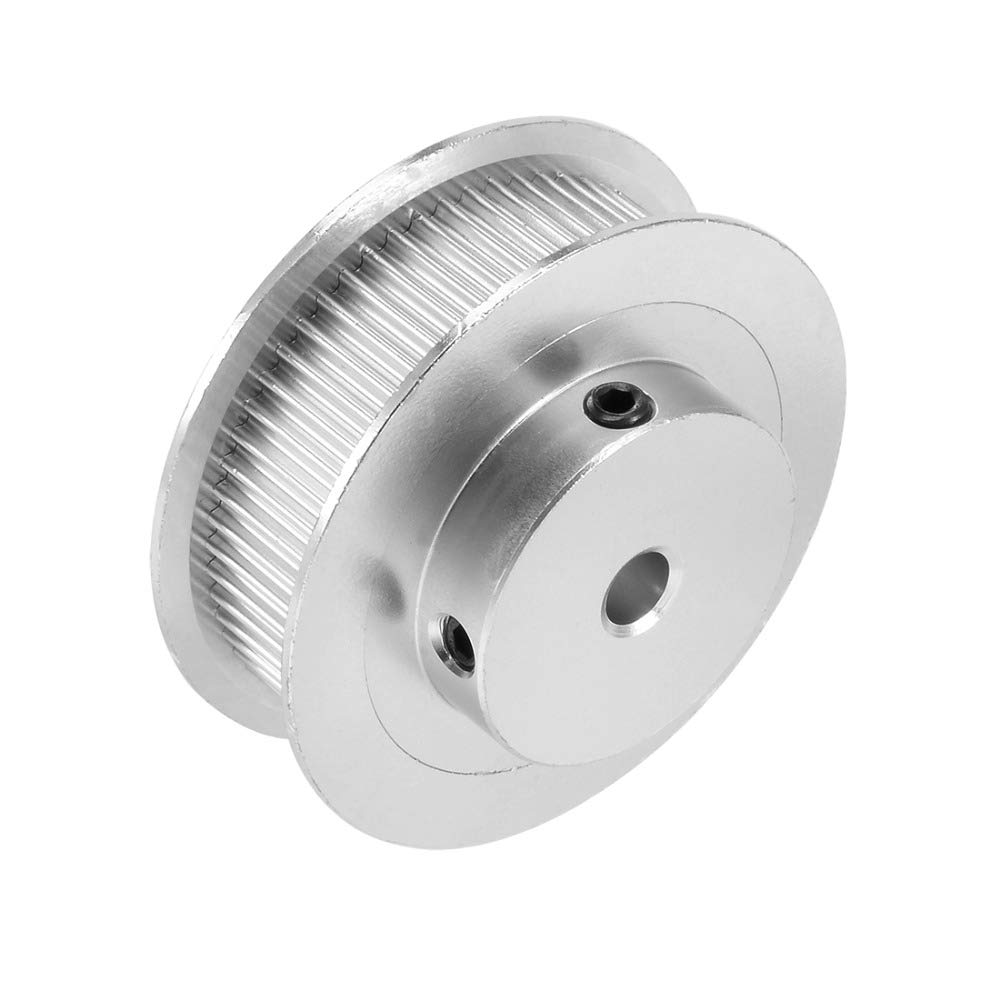

PoPprint GT2 6mm 60 teeth 5mm bore Aluminum Timing Pulley for width 6 mm GT2 belt (Pack of 2)

• 1.Model number : 2GT
• 2.Tooth number: 60
• 3.Bore diameter: 5mm
• 4.Belt width: 6mm
• 5.Material : Aluminum alloy

Specification: Type : BF type timing pulley Model number : 2GT-6mm Tooth number: 60 Tooth pitch: 2mm Bore diameter: 5mm Tooth outside diameter : 43mm Material : Aluminum alloy Package Included: 2* 60 Teeth GT2 Aluminum Pulleys 1* Allen Key 1.The PowerGrip GT2 system is an extension of the HTD system with greater load-carryingcapacity. HTD was developed for high torque drive applications, but is not acceptable for most precision indexing or registration applications. 2.As smaller diameter pulleys are used, the clearance required to operate properly is increased. HTD drive clearance, using small diameter pulleys, is approximately four times greater than an equivalent GT2 timing belt drive. 3.circular arc tooth profile, tooth space is small, suitable for straight line driving.Breaking Strength:85N Per 1mm(61 lbf per 1/8inch)Belt Width; Working Tension:110 N for 25.4mm Belt width(24 lbf for 1inch.)Temperature Range:-34°C to +85°C(-30°F to + 185°F)
