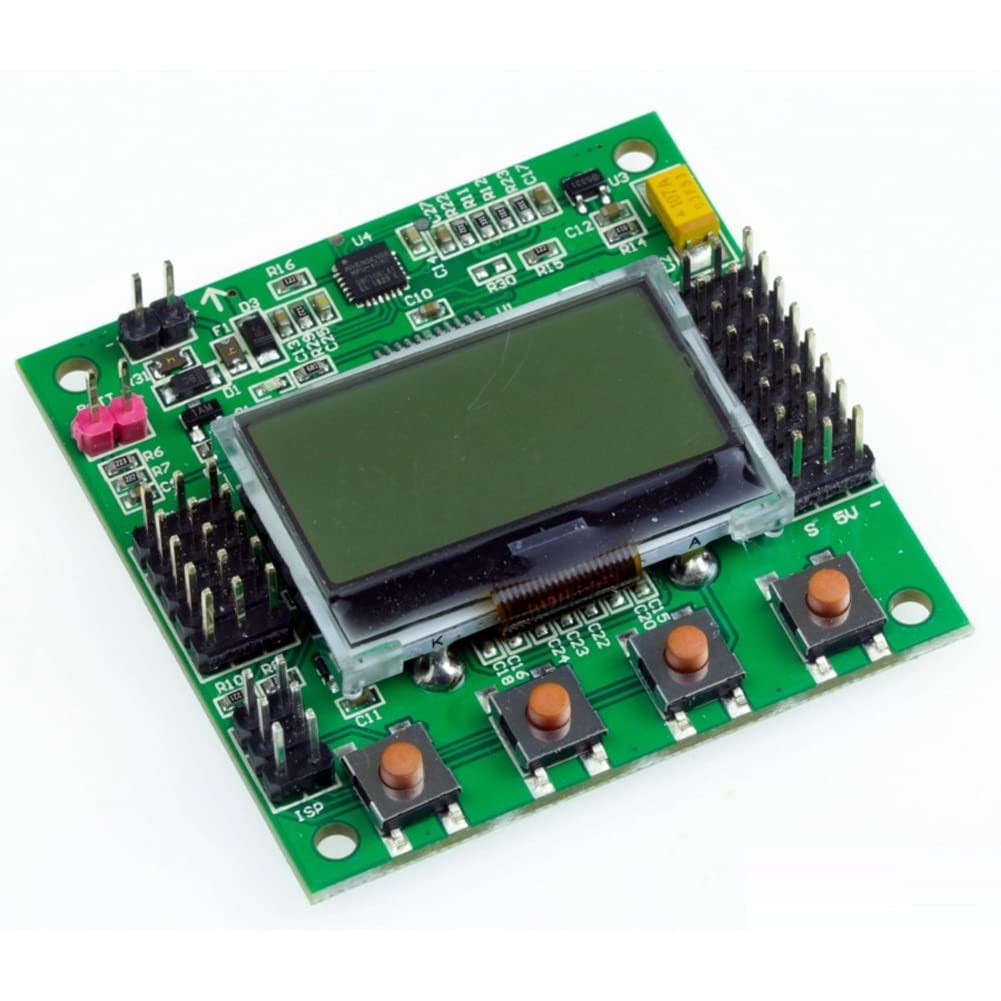

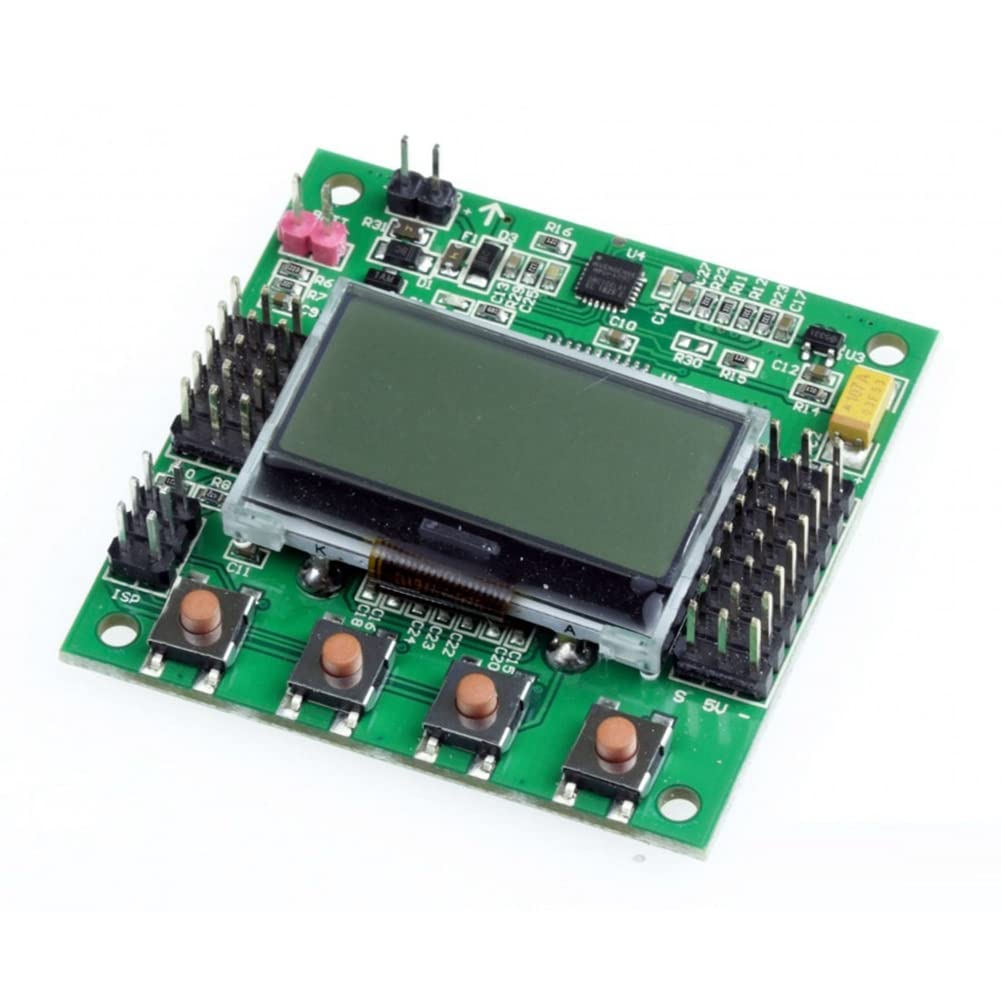

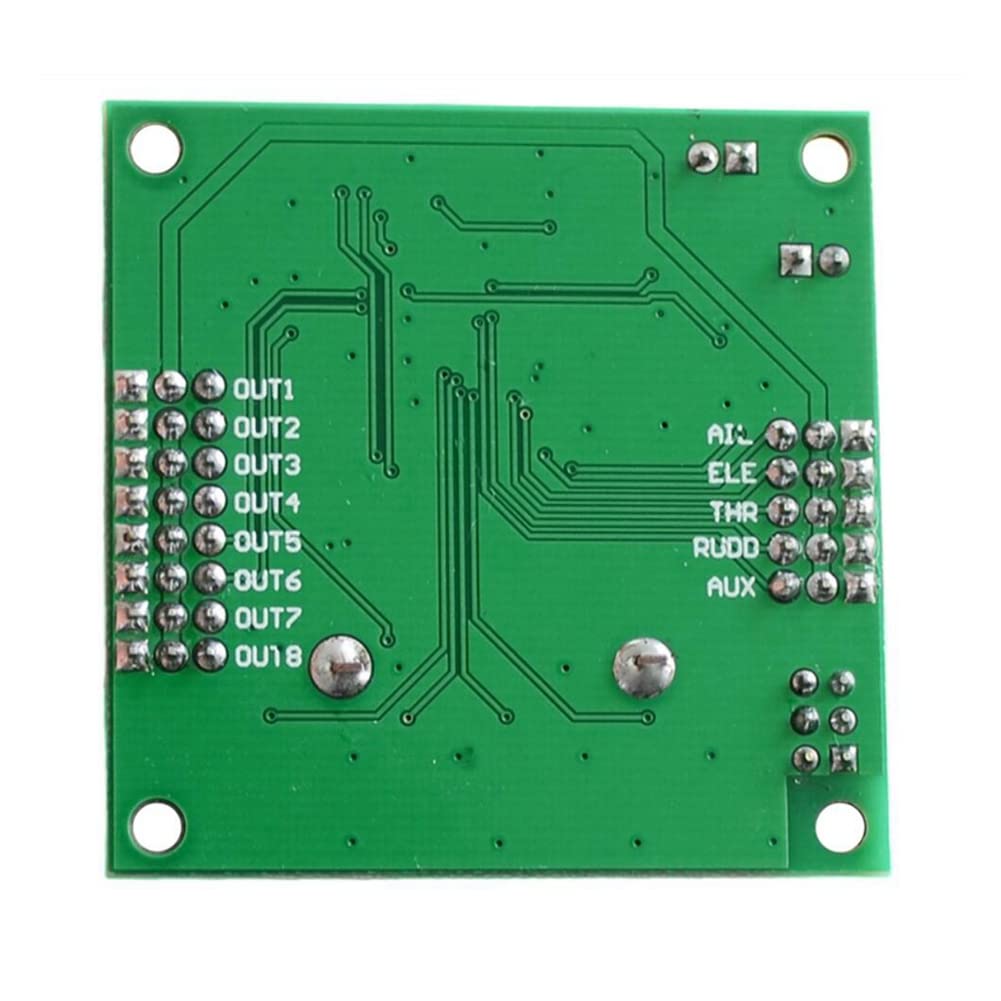

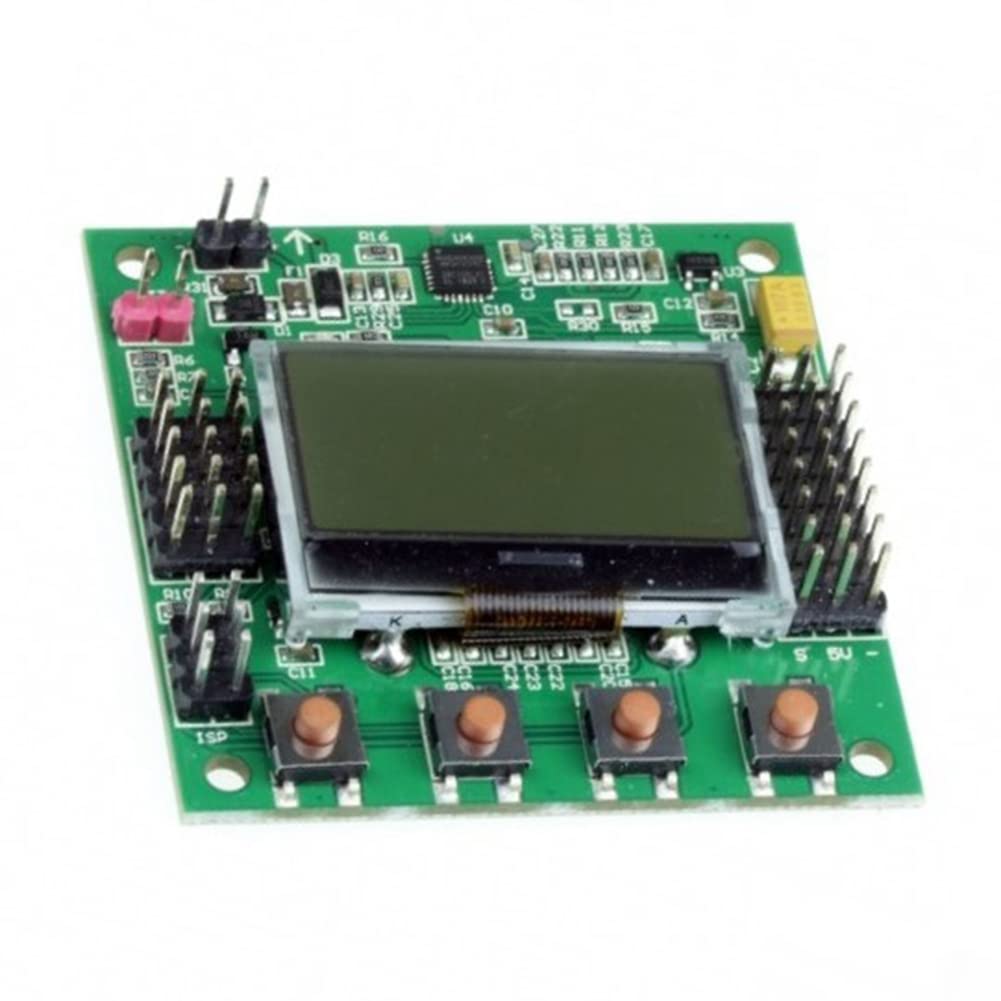

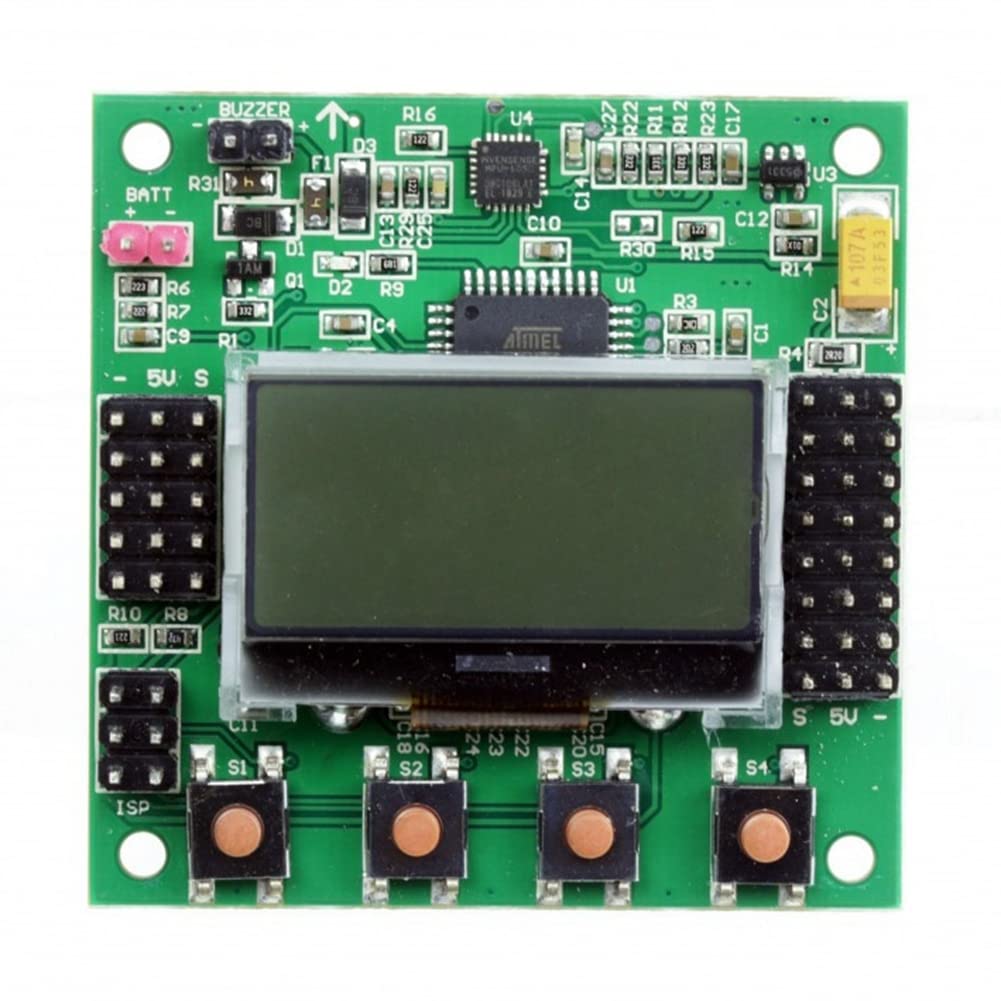

Pojedehy Multi-Rotor LCD Flight Control Board with 6050MPU and Atmel644PA 644PA Drone Accessory 4.8-6.0V

• High performance,easy and convenient to use.
• Updated to an incredibly sensitive 6050 MPU system making this the most stable KK board ever and allowing for the addition of an auto-level function.
• Control board for multi-rotor aircraft (Tricopters, Quadcopters, Hexcopters etc) so as to stabilize the aircraft during .

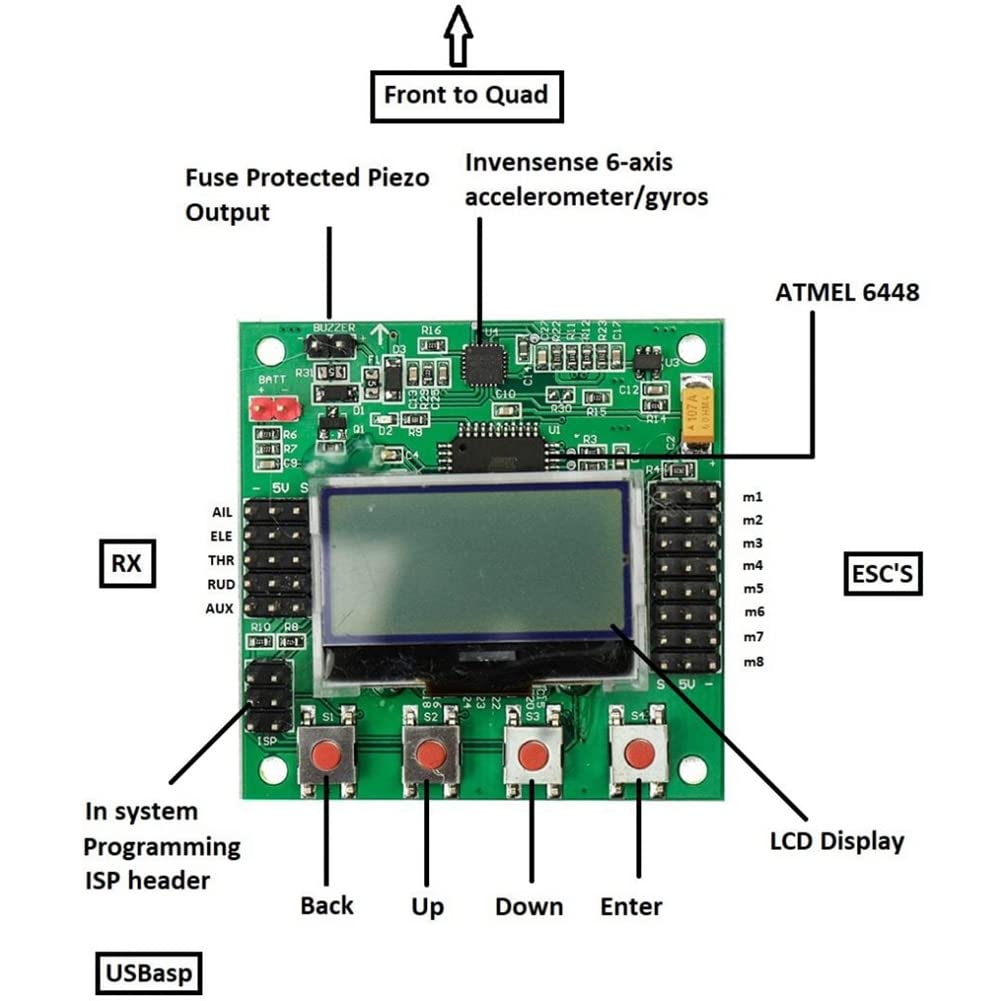

• Uses signals from your receiver (Rx) and passes these signals to the Atmega644PA IC via the aileron, elevator, throttle and rudder inputs.Once this information has been processed the IC send varying signals to the ESCs which in turn adjust the rotational speed of each motor to induce controlled (up, down, backwards, forwards, left, right, yaw).

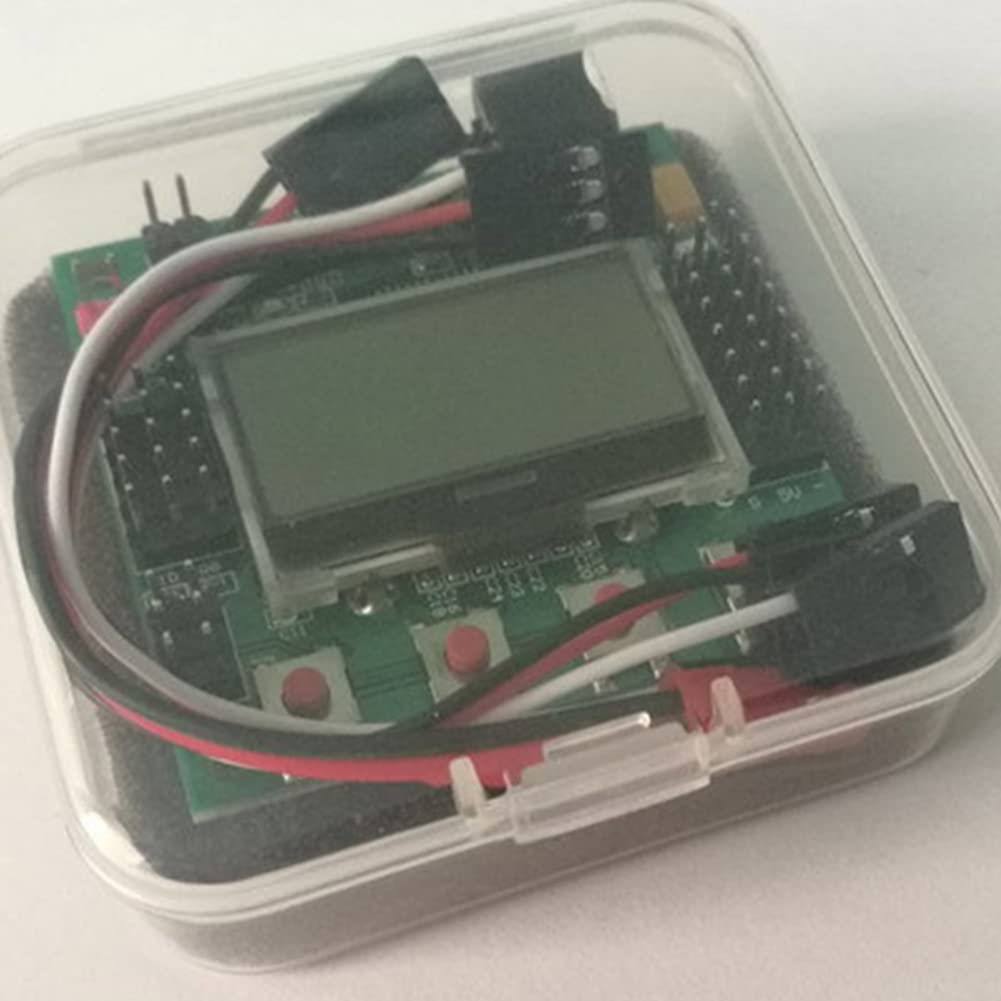

Pojedehy type: Flight Controller Board Built-in : Dualcopter Tricopter Y6 Quadcopter + Quadcopter X Hexcopter + Hexcopter X Octocopter + Octocopter X X8 + X8 X H8 H6 V8 V6 Aero 1S Aileron Aero 2S Aileron Flying Wing Singlecopter 2M 2S Singlecopter 1M 4S Size Chart: IC: Atmega644 PA Gyro/Acc: 6050MPU Inc. Auto-level: Yes Input Voltage: 4.8-6.0V AVR interface: standard 6 pin. Signal from Receiver: 1520us (5 channels) Signal to ESC: 1520us Firmware Version: V1.17S1 Colour: Green Material: PCB+Electronic component Size: .51x51x12mm/2x2x0.47inch Package Contents: 1 * Controller Board 3 * cable Only the above package content, other products are not included. Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
