PNGKNYOCN SC Fiber Optical Waterproof Connector & Adapter - IP68 Rating, Duplex Cable, Outdoor Use

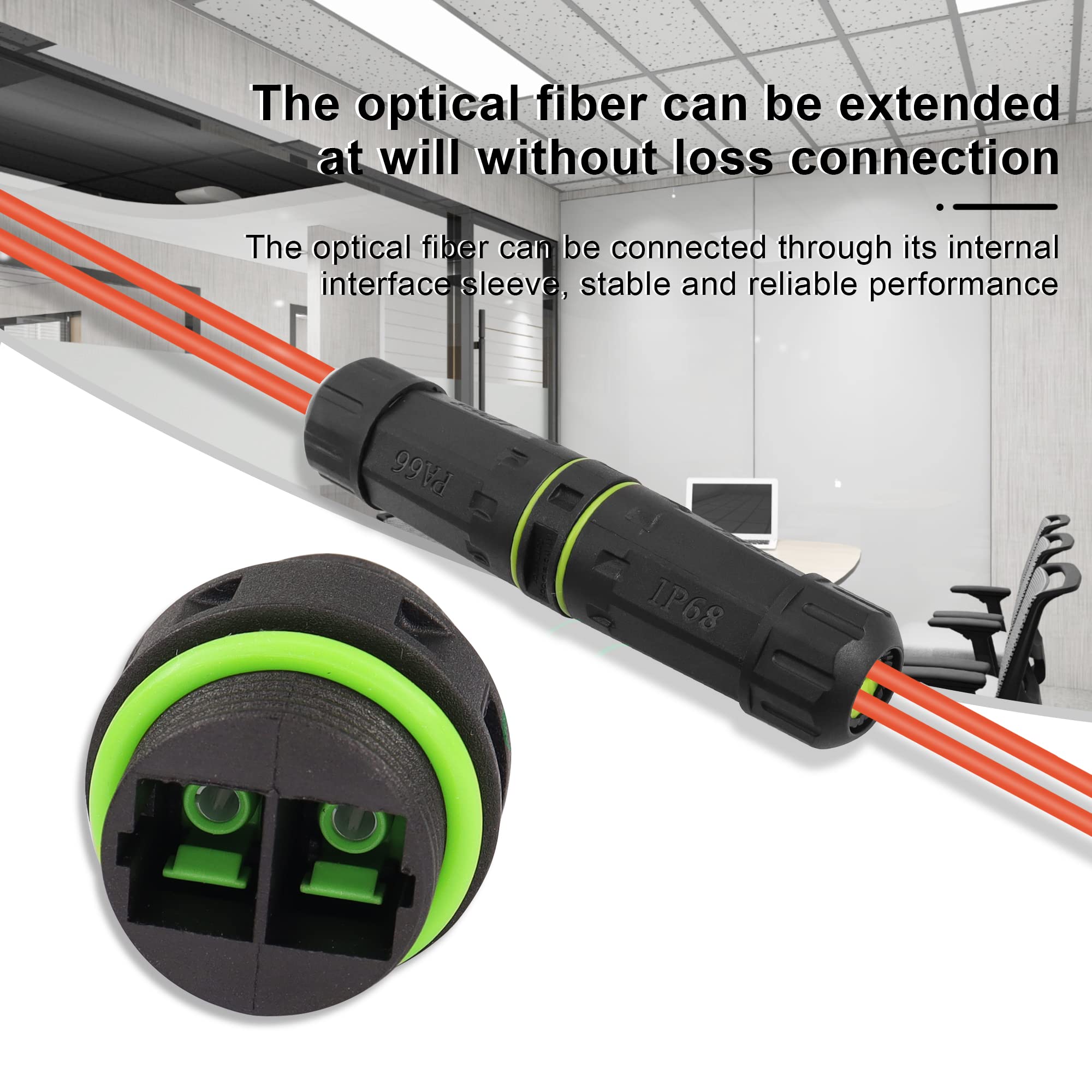

• SC fibre optic waterproof coupler is suitable for extending fibre optic cable connections by connecting 2 short cables together, thus protecting network components from moisture, oxidation and corrosion and enabling high quality connections.

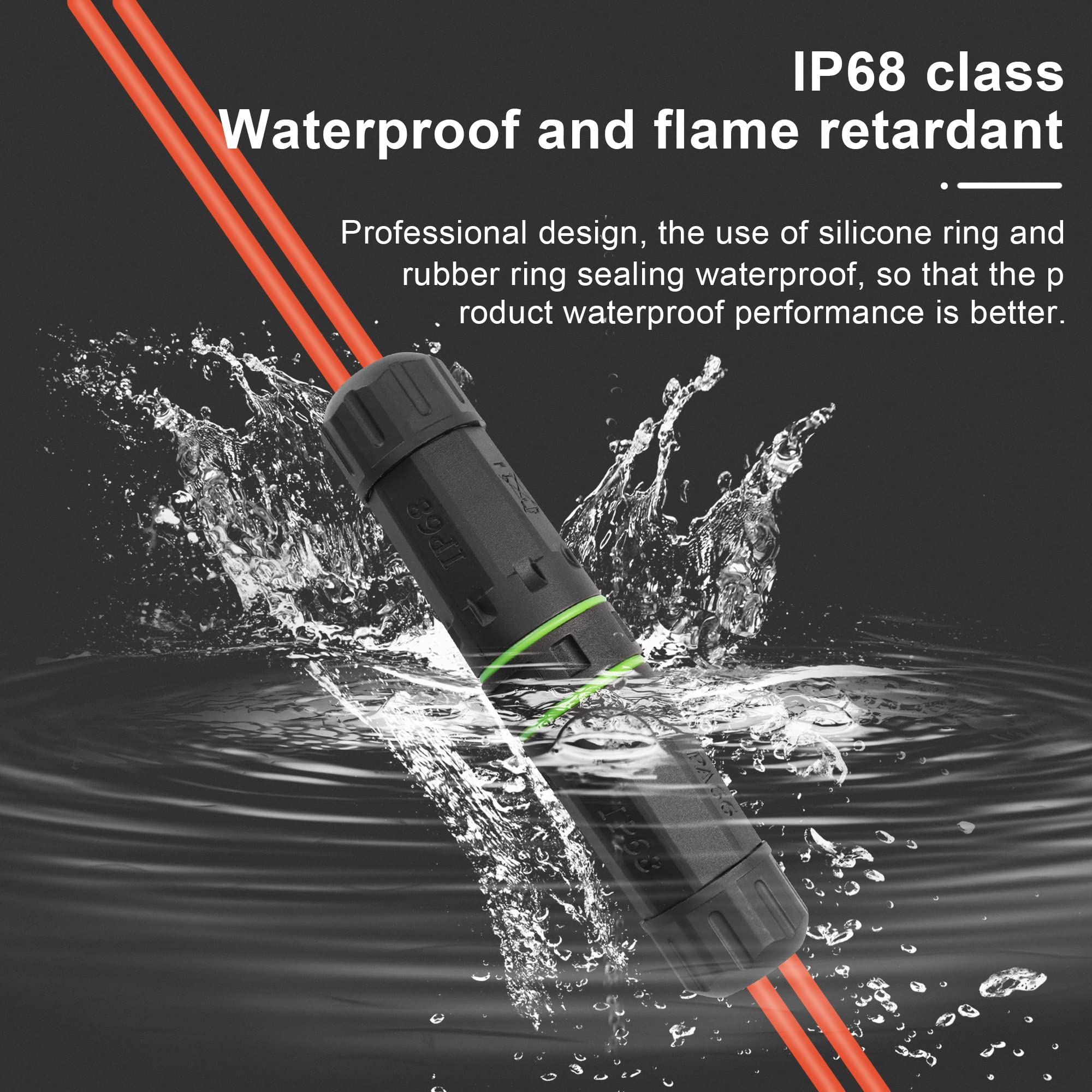

• This fibre optic duplex coupler allows for quick connection/disconnection, is waterproof to IP68, works effectively in harsh environments and uses cable assemblies efficiently, accepts 2x (0-4mm) OD cable

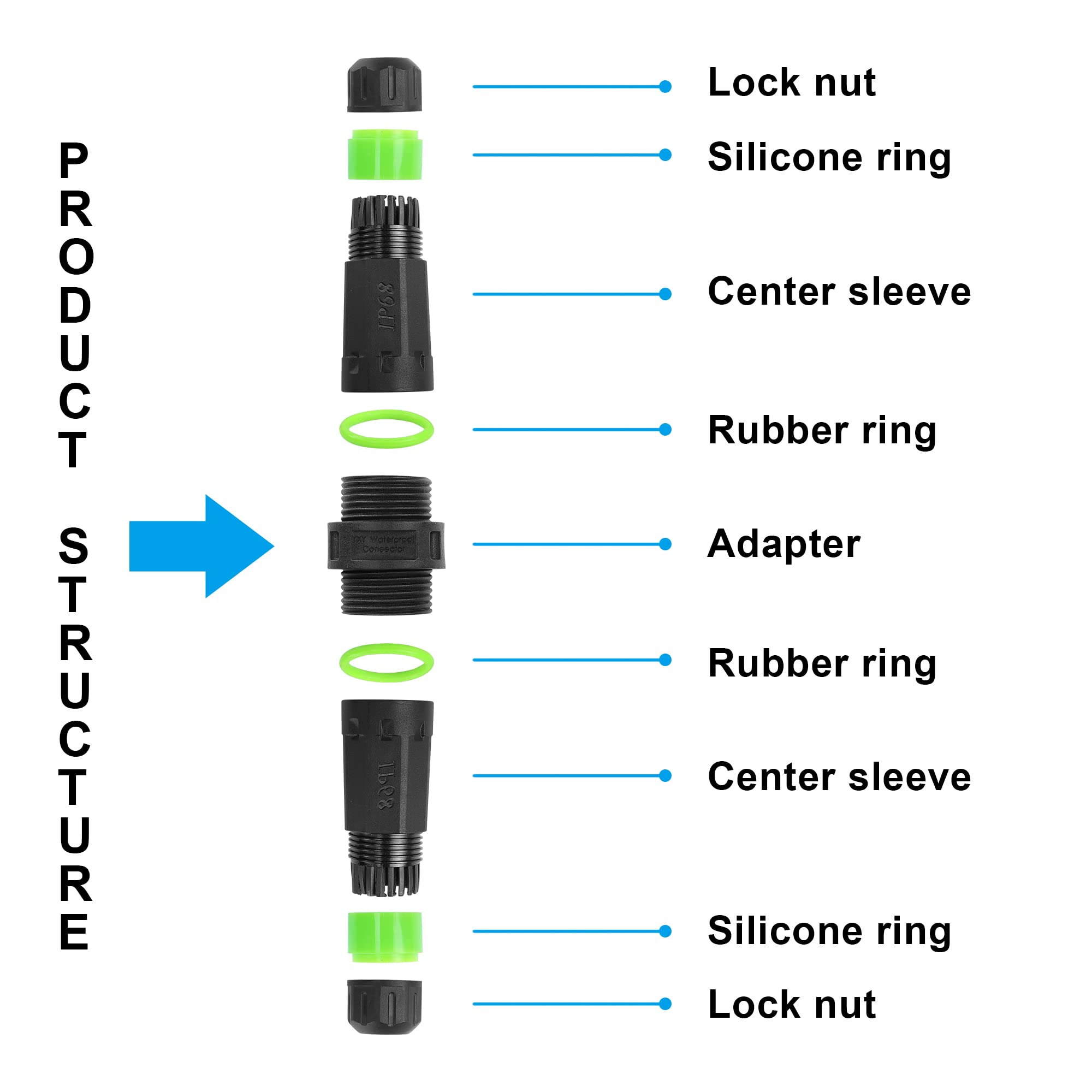

• This SC fiber optic waterproof connector shell is made of nylon PA66, high performance ceramic conduit is safe and reliable, using silicone ring and rubber ring to seal the water-proof performance of the product
• Widely used where fibre optic signal transmission is required, no tools and expertise are required for installation, plug and play, easy and fast
• Note: After long-term use in a humid environment, it is necessary to regularly check the sealing of the sealing ring to prevent water from penetrating into the connector. If used in corrosive soil and humid environment, the shell will be more susceptible to corrosion. Also, do not immerse the connector in water.

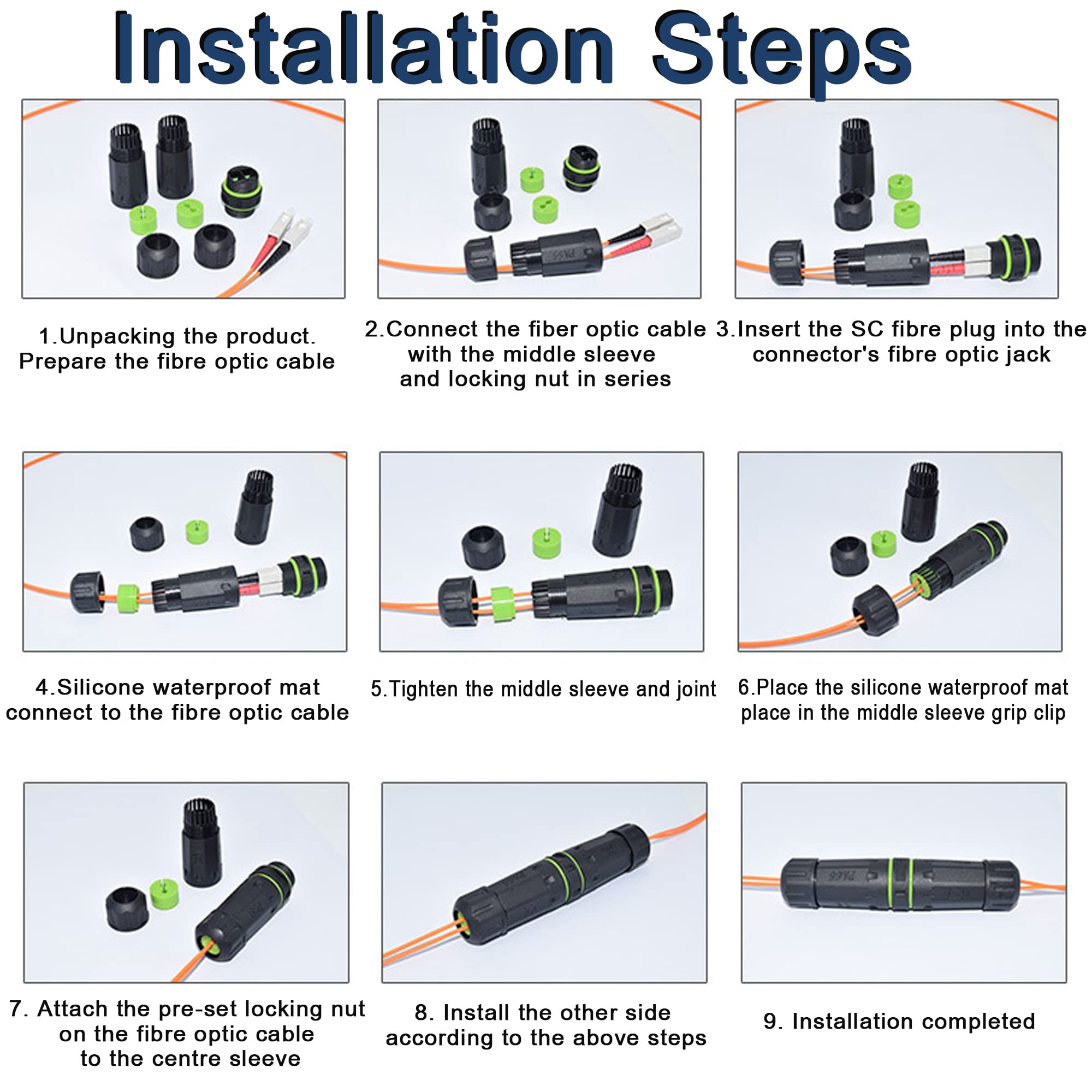

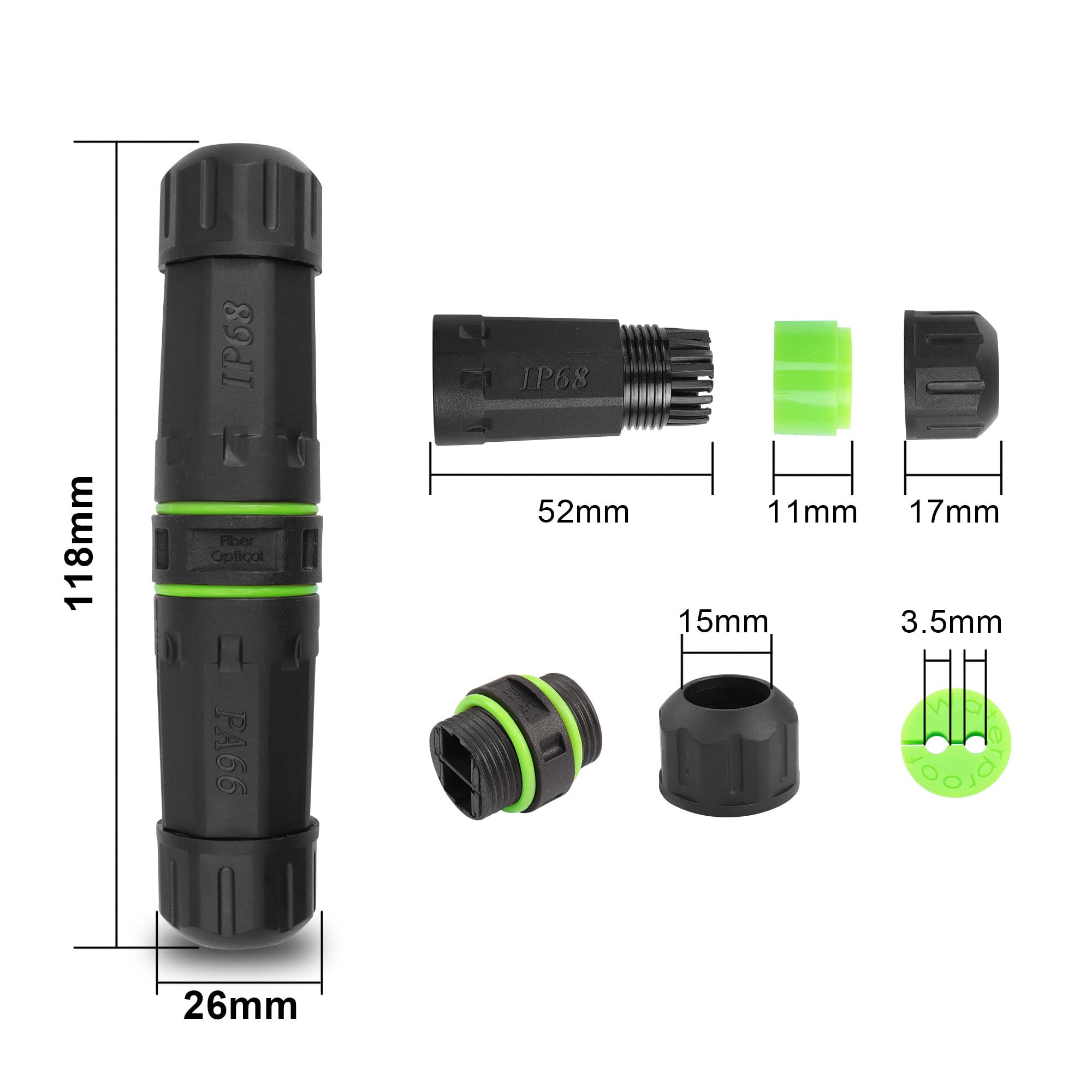

Product name: SC duplex waterproof connector SC waterproof connectors can convert existing Ethernet connectors into dustproof and waterproof, allowing for quick connection/separation, and can work effectively in harsh environments and use cable components effectively The SC female to female waterproof connector is suitable for extending the fiber optic cable connection by connecting two short network cables together, thereby preventing moisture, dirt, and insect resistance of network components Specification: Color: Black Material: Shell nylon PA66, silicone waterproof rubber ring Protection level: IP68 Connection port: SC duplex Working temperature: -40~85 ℃ Packaging includes: 1 x SC duplex waterproof connector Installation steps: 1. Disassemble the product and prepare the fiber optic cable; 2. Connect the fiber optic cable in series with the middle sleeve and locking nut; 3. Insert the SC fiber optic plug into the fiber optic jack of the connector; 4. Connect the silicone waterproof pad to the fiber optic cable; 5. Tighten the middle sleeve and joint; 6. Place the silicone waterproof pad into the grip clip of the middle sleeve; 7. Install the locking nut pre installed on the fiber optic cable onto the middle sleeve and tighten it; 8. Install the other side according to the above steps; 9. Installation completed
