PNGKNYOCN DB9 Flat Ribbon Cable,2 Pack RS232 Male to Female Extension Serial Cable (0.5M)

• RS-232 serial cable com port adapter cable DB9 9 pin male plug to female panel mount internal cable
• Fasten a DB9 (RS232) Serial port to any computer system which has an RS232 serial panel mount receptacle，Flat ribbon cable saves space and time in circuit interconnect assemblies
• Connector Type: DB9 Male to DB9 Female; Package Contents: 2pcs x DB9 Flat Ribbon Cable
• DB9 serial cable uses high-quality nickel-plated connectors and plugs and a high-quality PVC injection housing，With wear-resistant, durable, smooth transmission and other functions

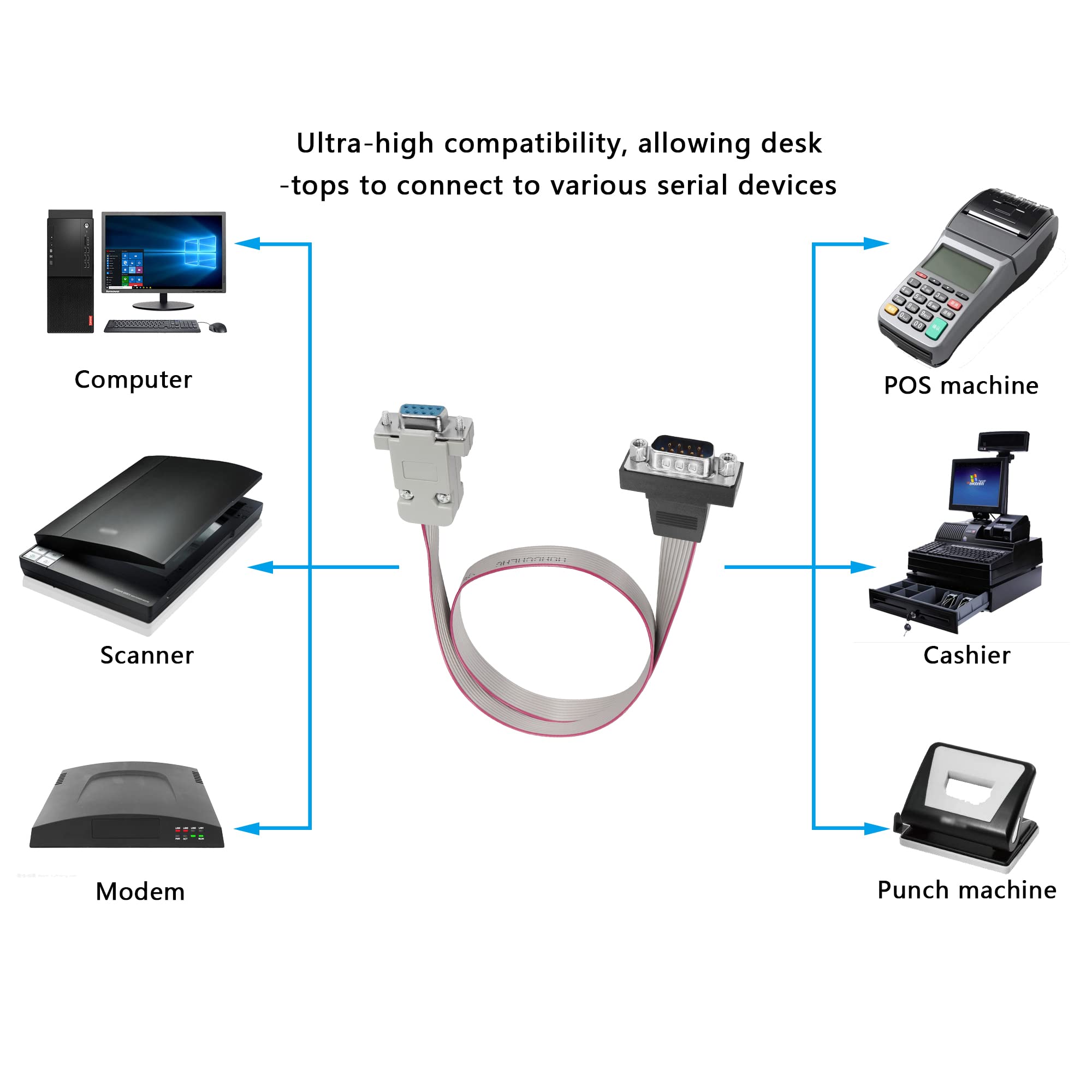

• Uses: industrial control, automatic control. Programming cable CNC machine tool PDA tax control machine barcode machine

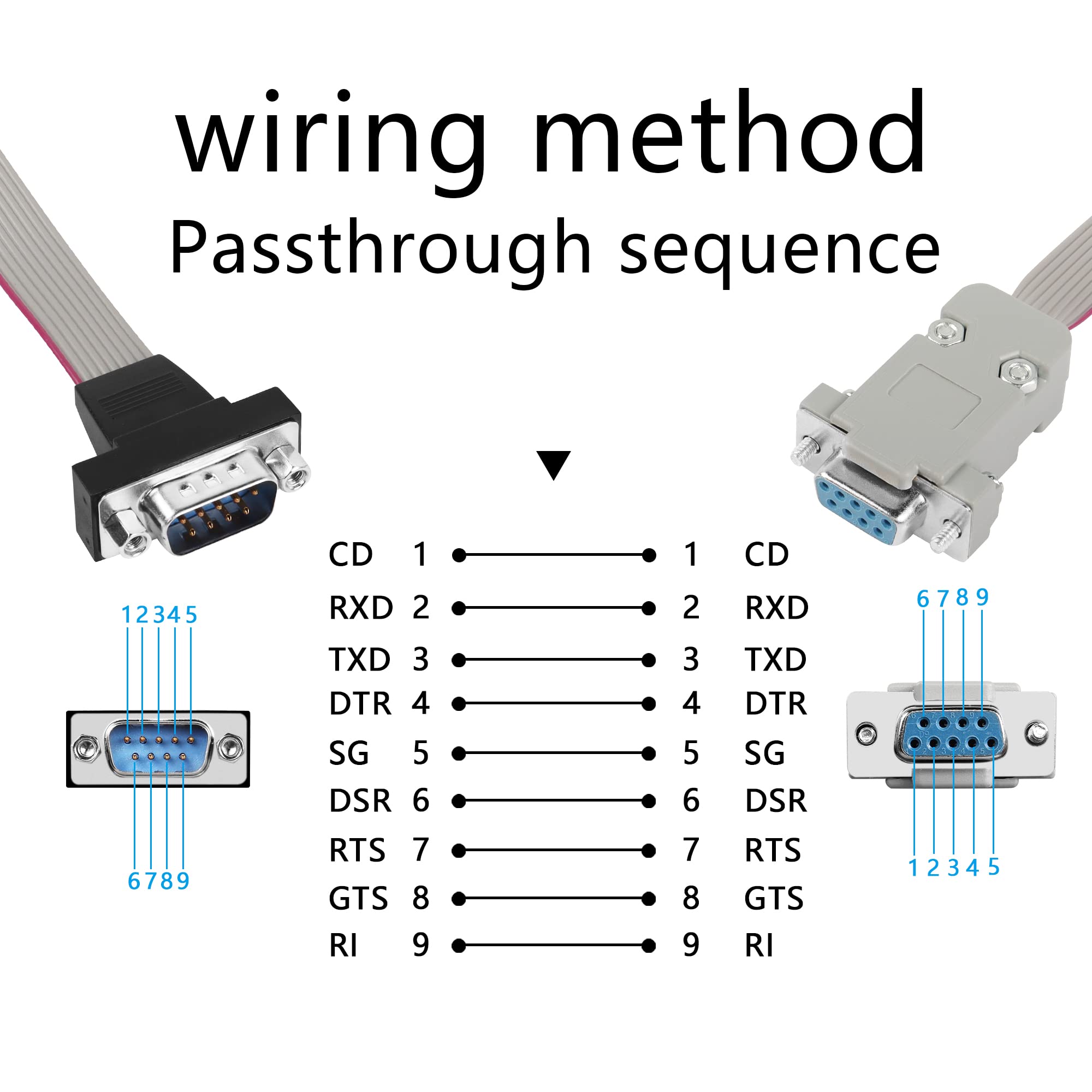

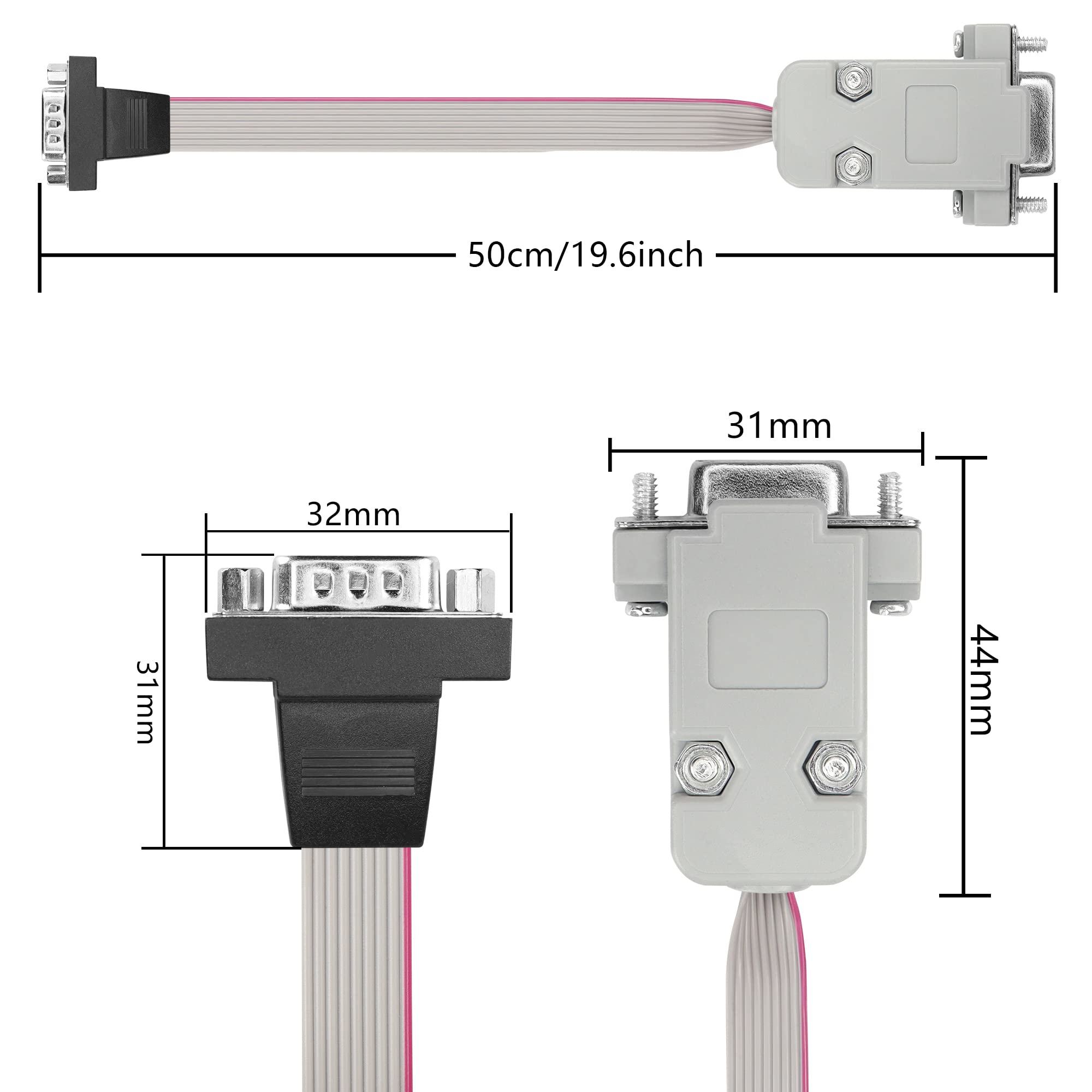

1. Product name: DB9 male to female serial cable. 2. Cable length: 0.5M/1.6FT. 3. Interface: DB9 pin male to female. 4. Use: industrial control, automatic control. Programming cable, CNC machine tool, PDA, tax control machine, barcode machine. 5. The definition of each pin of the nine-pin serial port: ①pin (DCD) data carrier detection, ②pin (RXD) receiving data, ③pin (TXD) sending data, ④pin (DTR) data terminal preparation, ⑤pin (SG) signal ground, ⑥ pin (DSR) data device ready OK, ⑦ pin (RaS) request to send, ⑧ pin (CTS) clear to send, ⑨ pin (RI) ringing indication. 6. DB9 extension cords can extend your existing connections or replace cables that limit you. 7. Package quantity: 2 x RS232 serial port cable.
