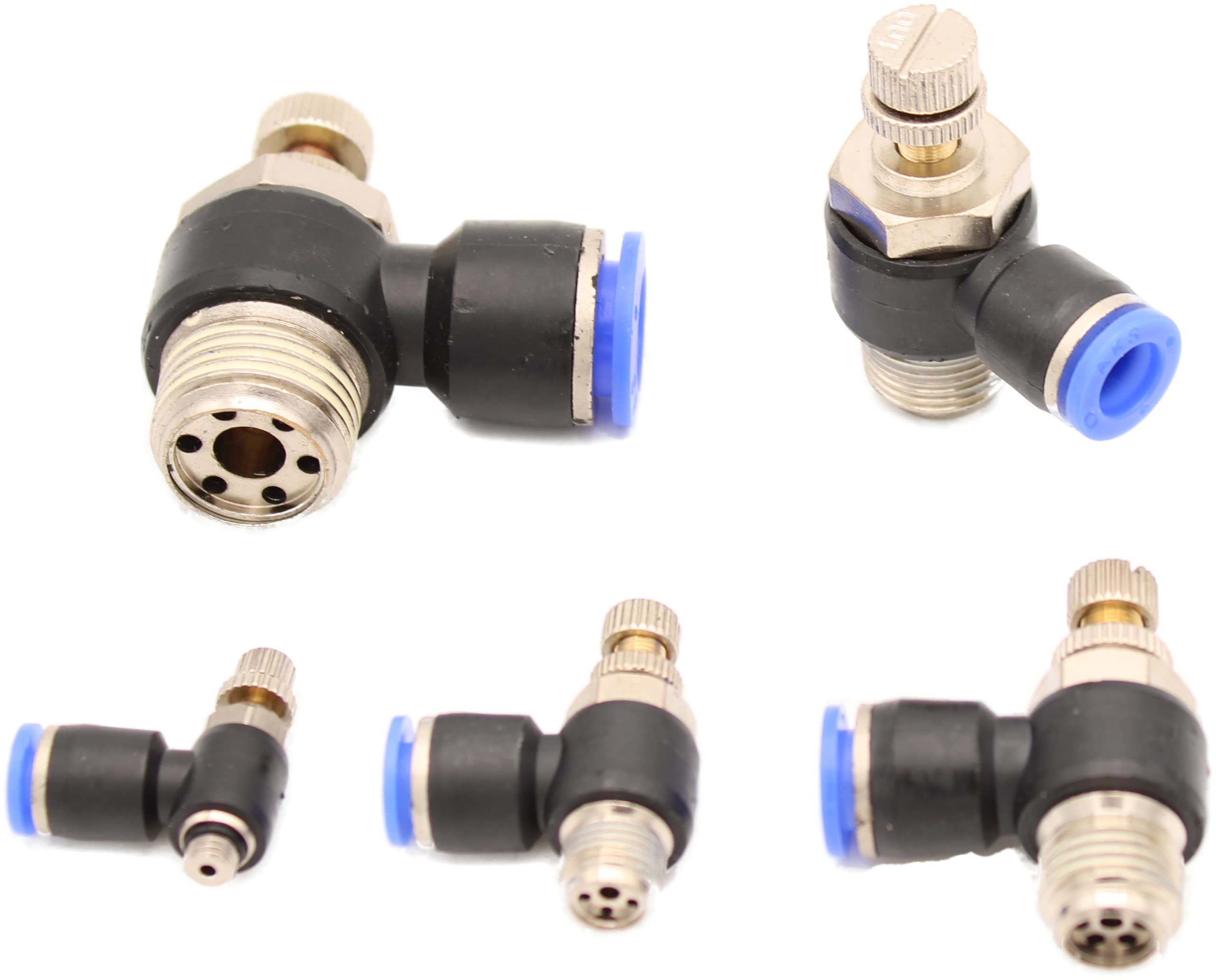

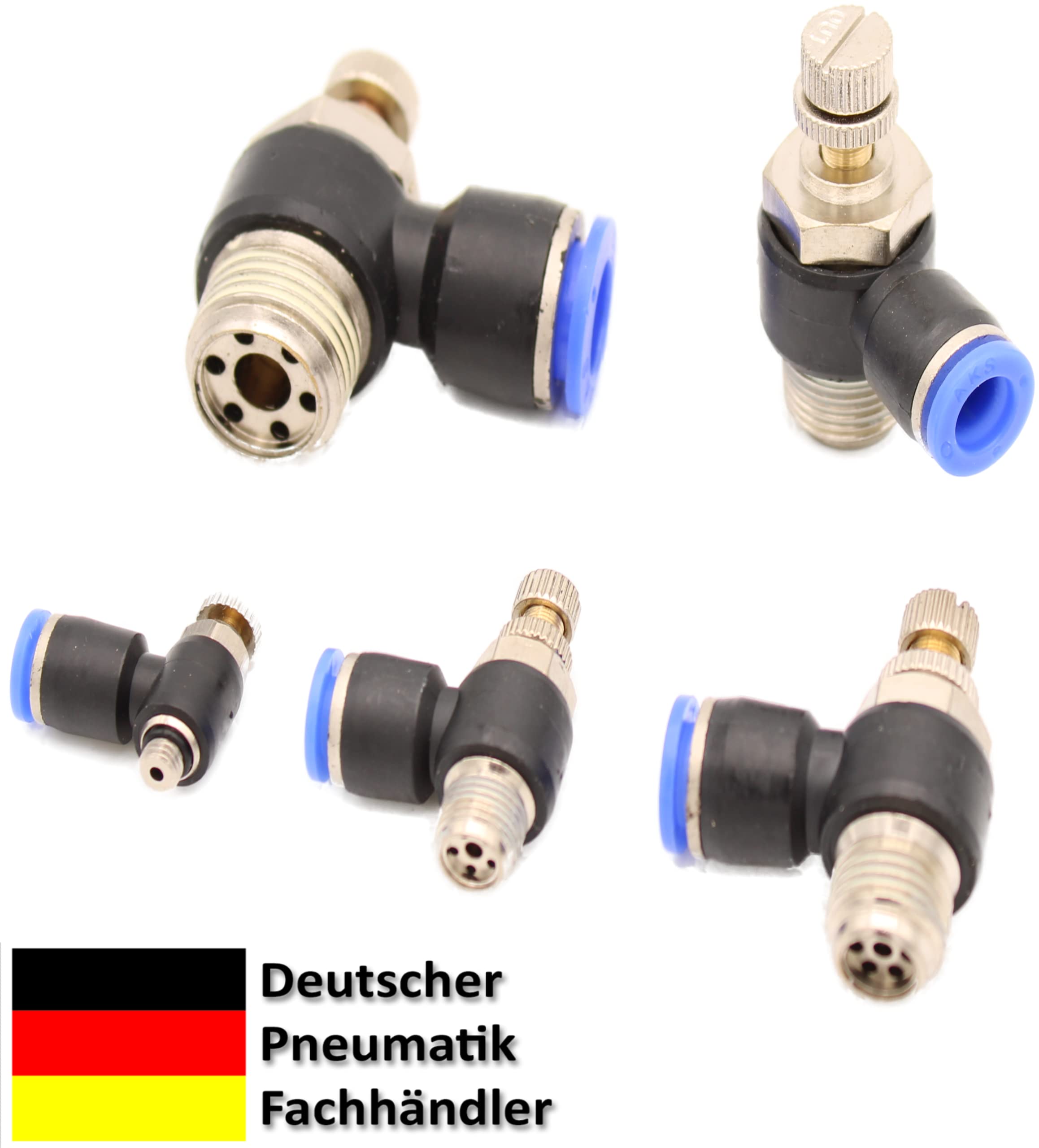

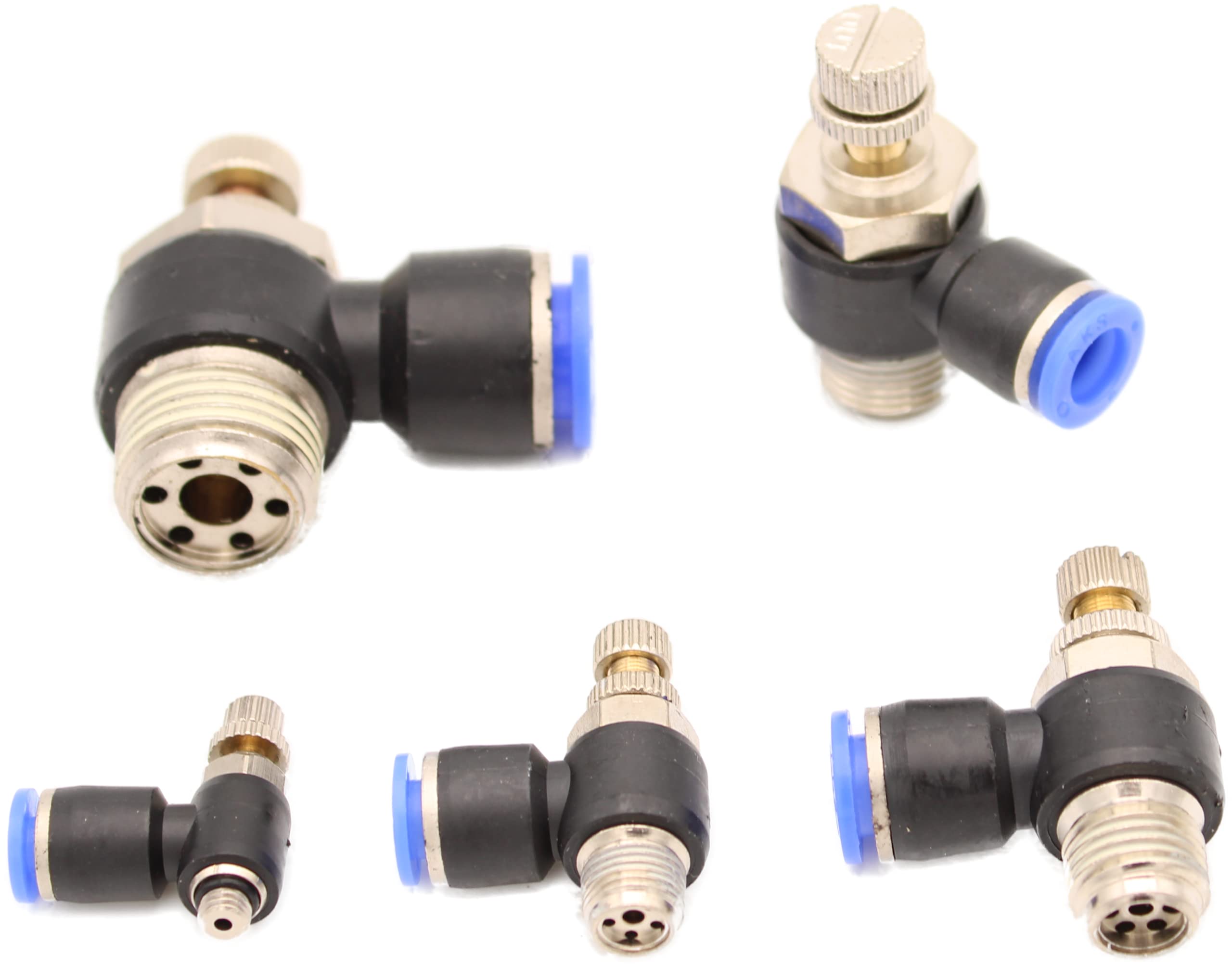

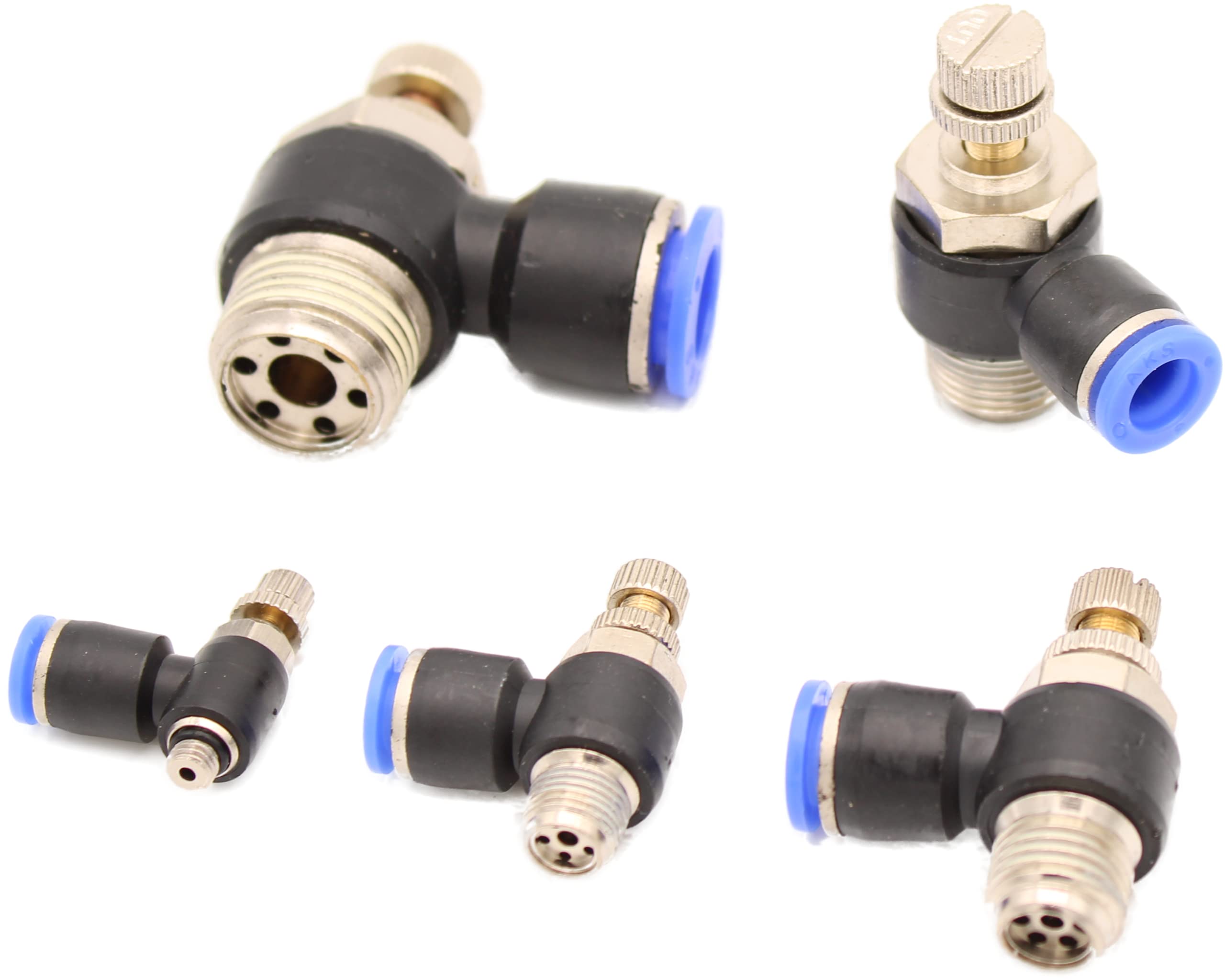

Pneumatic Exhaust Throttle / Throttle Valve M5 1/8 Inch 1/4 Inch 3/8 Inch 1/2 Inch 4 - 12 mm IQS Hose Connection (M5 - 4 mm)

• Air extraction / air extractor throttle with M5 or G thread 1/8 inch, 1/4 inch, 3/8 inch, 1/2 inch and 4 mm, 6 mm, 8 mm, 10 mm or 12 mm connection for P.P. air hose. Advantage of an exhaust throttle: thanks to the free supply air and throttled exhaust air, the running behaviour of the cylinder is improved, and leads to a consistent speed even under load.
• Quality control – the pneumatic exhaust throttle is made of high-quality materials. Brass spindle MS58, body: PBT - polybutylene terephthalate, loosening ring: PA 66, seal: NBR, stainless steel retaining claws. For a reliable and secure connection of your compressed air line.
• Pressure air throttle return for exhaust air, angled 90°, operating temperature 0°C to 60°C, operating pressure up to 12 bar, thread M5, 1/4 inch, 1/8 inch, 3/8 inch or 1/2 inch, hose connection IQS diameter 4 mm, 6 mm, 8 mm, 10 mm. mm or 12 mm for externally calibrated pneumatic hose, suitable for: oiled and unoiled compressed air as well as neutral gases.
• Loading – 1 x pneumatic exhaust throttle valve with a thread and IQS hose connection for outdoor calibrated pneumatic hose of your choice.
• ✅ 30-day return - Are you not 100% satisfied with our pneumatic throttle valve? Then send the exhaust valve back for free and you will receive your money back without ifs and buts. No risk. Corporate headquarters in Germany.

Suitable for use with M5, 1/8 inch, 1/4 inch, 3/8 inch or 1/2 inch thread and 4 mm, 6 mm, 8 mm 10 mm or 12 mm IQS quick connection for professional applications. For externally calibrated compressed air / pneumatic hose. High quality angled exhaust valve. Versatile use: whether industry, workshop or hobby, with compressed air accessories from Schlichtechn you are always on the safe side. Easy to use: made of brass (spindle) and robust plastic PBT, the retaining claws are made of stainless steel. Operating pressure 0.9 - 12 bar, operating temperature 0 - 60 °C. German dealer, easy to use.
