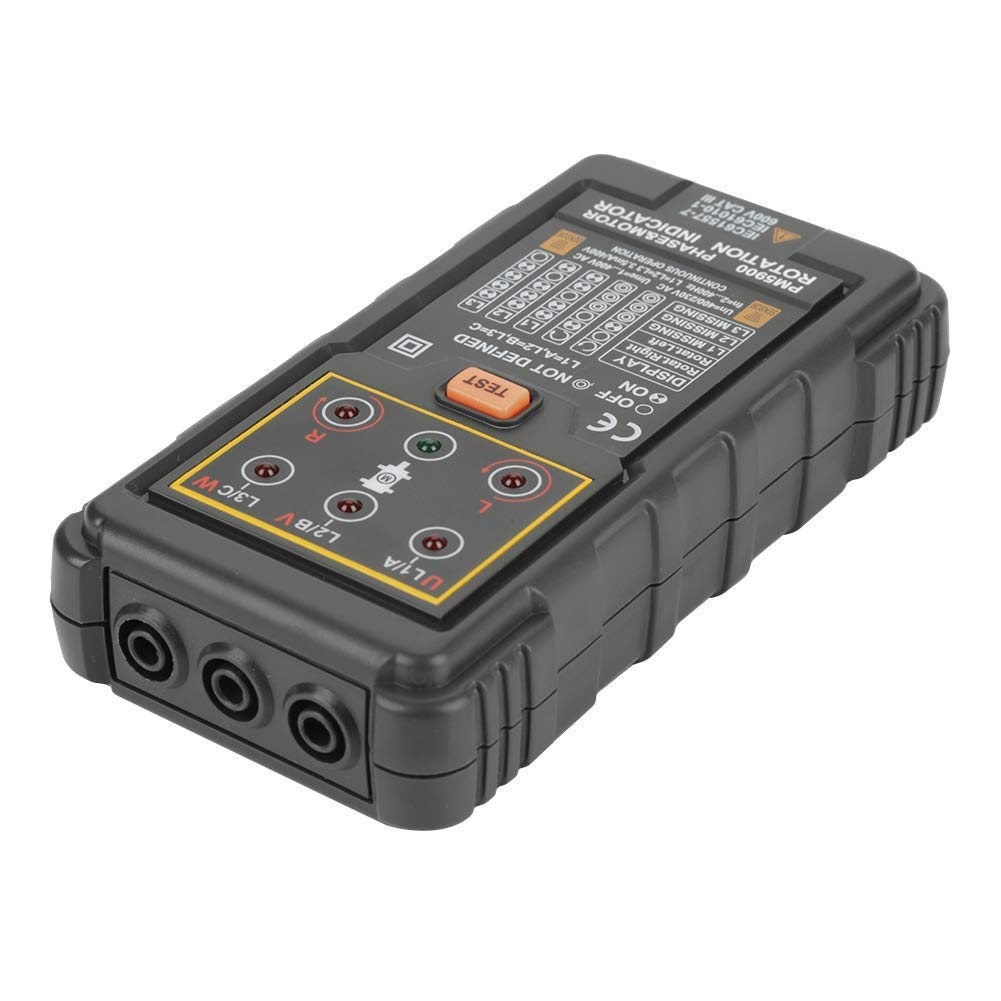

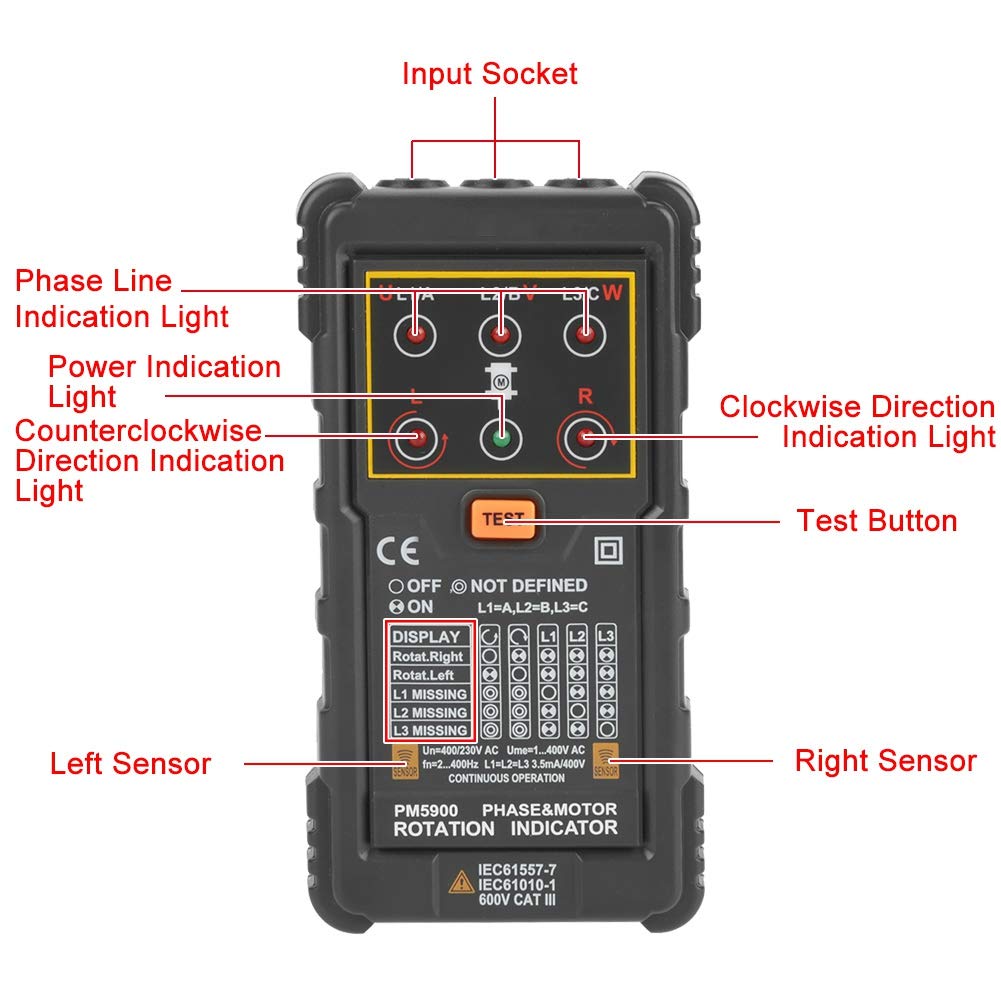

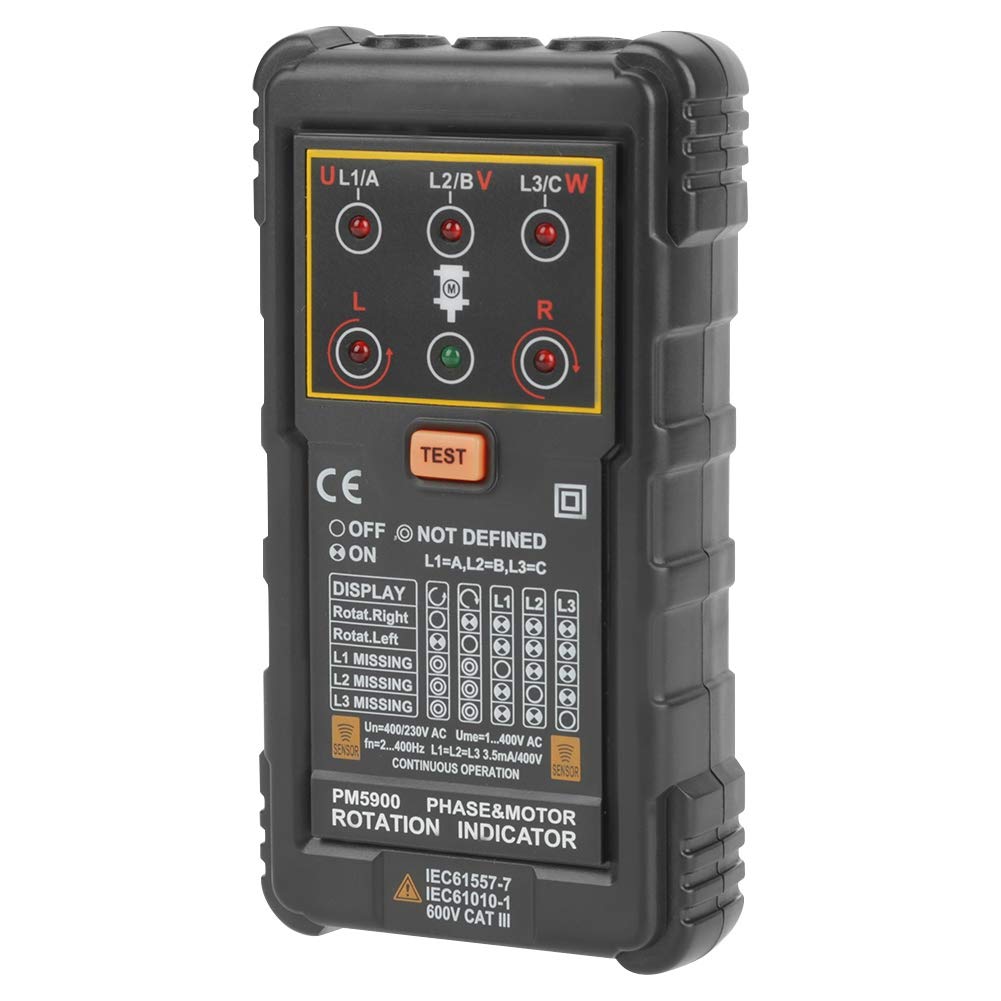

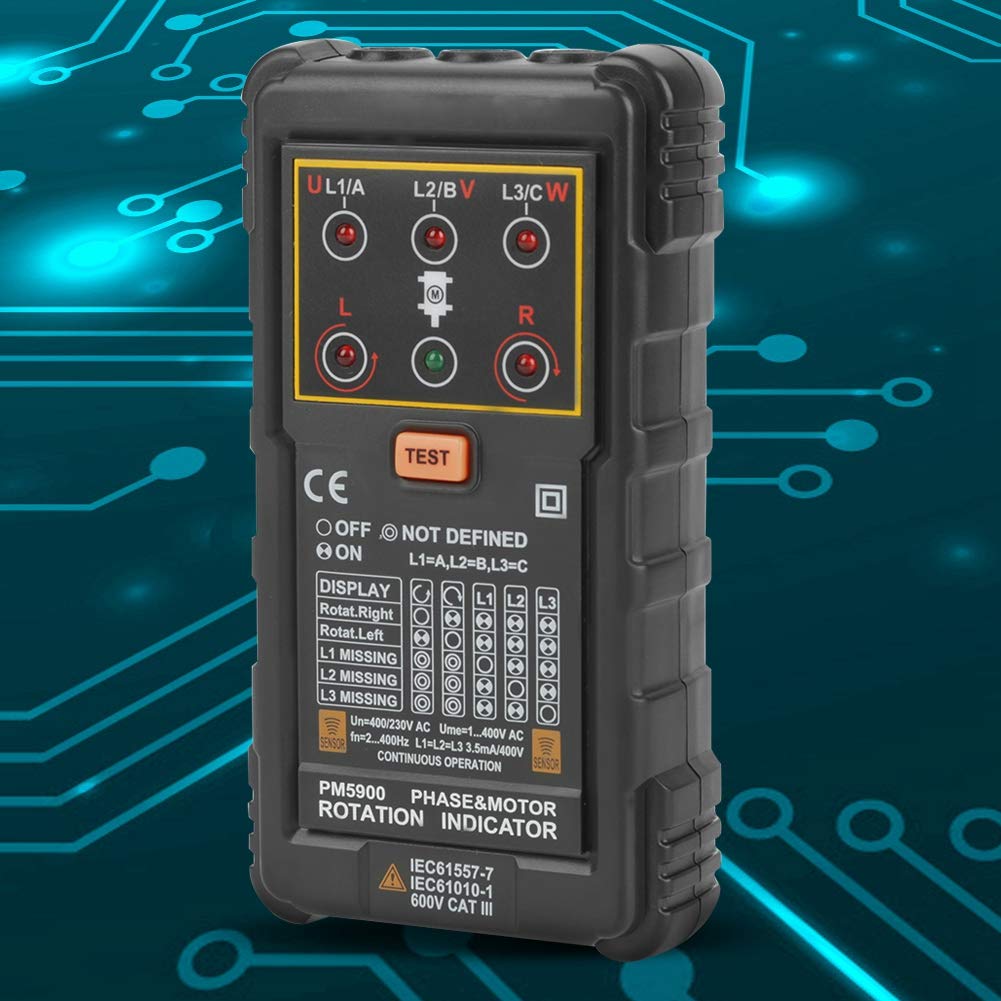

PM5900 Motor Three-Phase Motor Rotation Indicator Tester Portable Handheld Tester for Install Repair or Maintain Three-Phase Motor

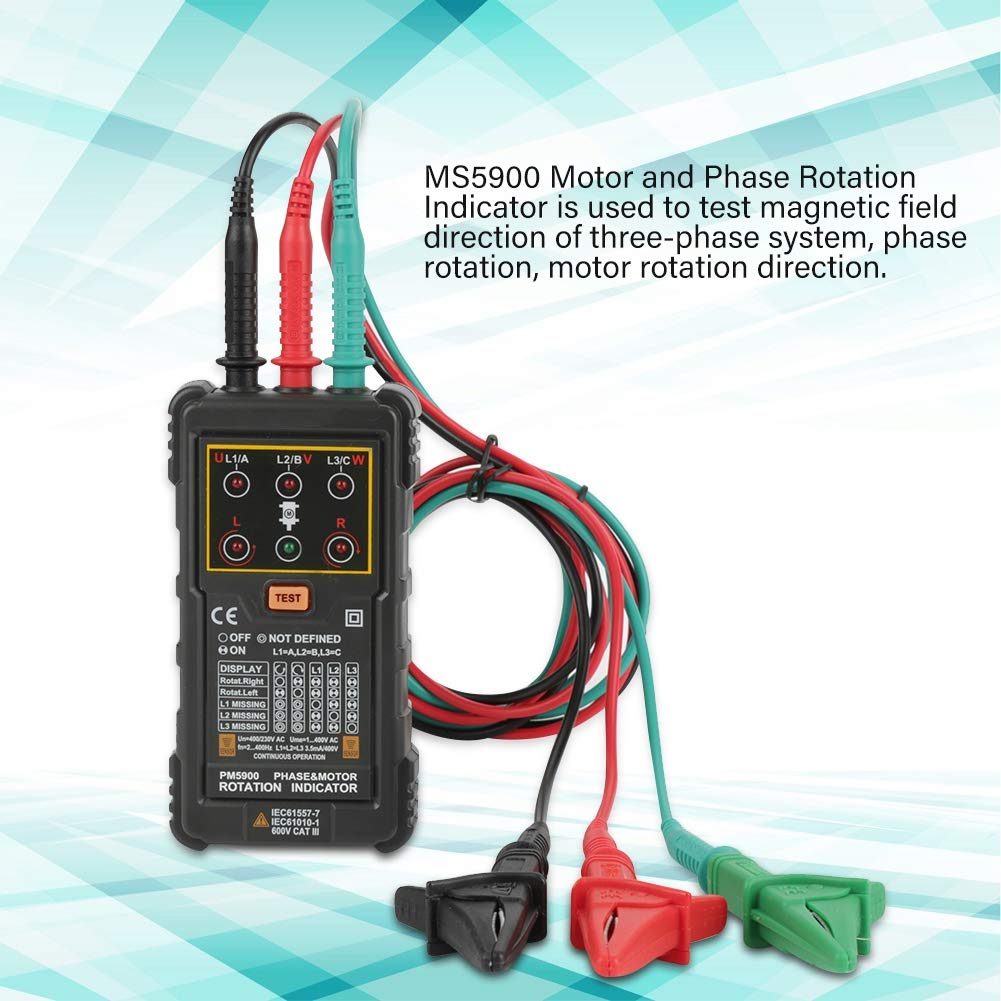

• 【The Main Function】MS5900 Motor and Phase Rotation Indicator is used to test magnetic field direction of three-phase system, phase rotation, motor rotation direction, it can Confirm motor cable, Detecting magnetic field. It also supports non-contact type magnetic field rotation direction test (motor rotation direction test).

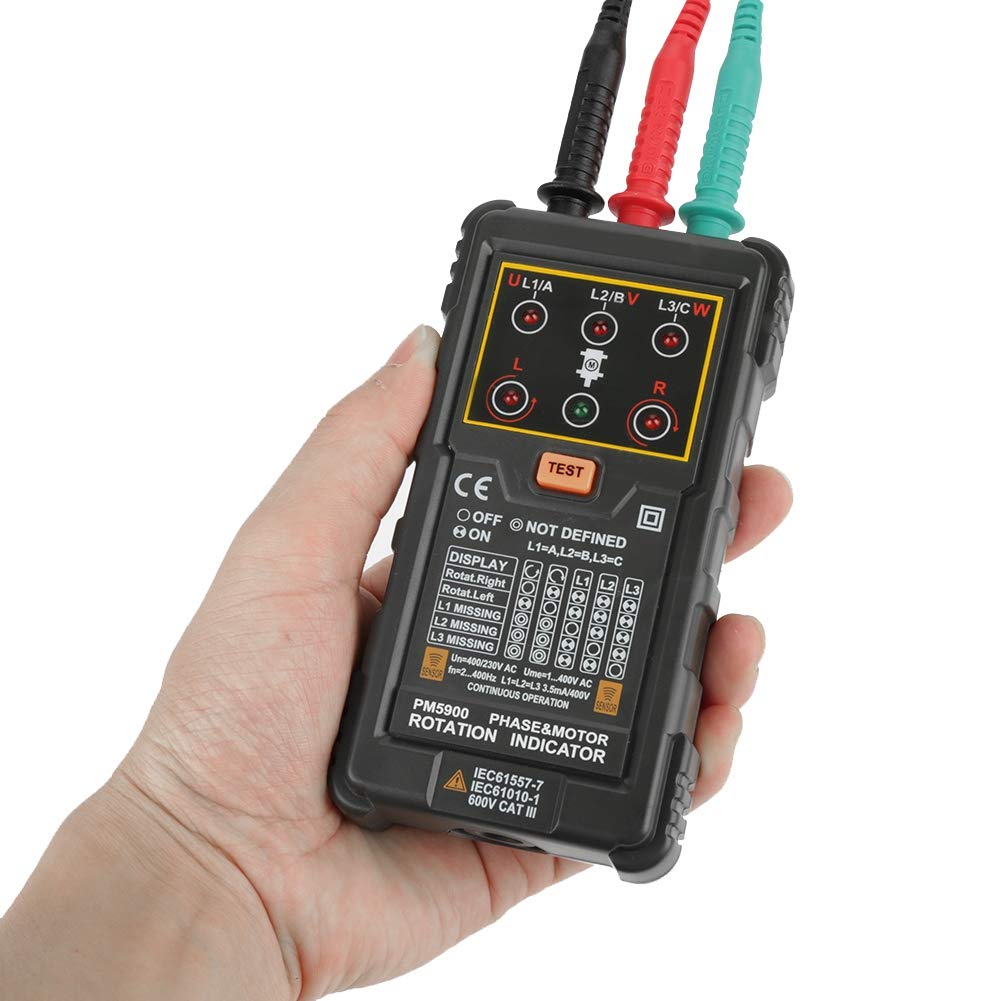

• 【Excellent Design】Small in size and easy to operate with one hand, this motor and phase sequence rotation indicator is an indispensable tool for installation and maintenance. The ergonomic design of the housing makes it comfortable to hold and non-slip, making it difficult to fall. Equipped with a meter kit for easy carrying.
• 【Easy to Use】The MA5900 motor and phase sequence steering indicator is a hand-held operating instrument designed to detect the rotating magnetic field of a three-phase system and determine its motor steering. Unique non-contact motor direction indication: Without a need to link testing line, the motor rotation direction can be decided by placing this indicator the motor and aligning it with motor drive shaft.
• 【Widely Applicable】This Phase Rotation Indicator Meter is durable, and light-weight handheld device, which is necessary tool for those who often install, repair or maintain three-phase system or motor. Used to test phase sequence input of three-phase voltage, to indicate phase line L1, L2 and L3.
• 【NOTE】We strive to provide you with the highest quality product and the best customer experience. Your nice comment on our product page will be a great encouragement to improve our service. if you're not entirely satisfied, please just feel to contact us at any time.

Features:PM5900 Motor and Phase Rotation Indicator is used to test magnetic field direction of three-phase system, phase rotation, motor rotation direction.Without a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with motor drive shaft.It is durable, reliable and light-weight handheld device, which is necessary tool for those who often install, repair or maintain three-phase system or motor.Used to test phase sequence input of three-phase voltage, to indicate phase line L1, L2 and L3.It also supports non-contact type magnetic field rotation direction test (motor rotation direction test). Specifications: Brand: PEAKMETER Model: PM5900 Maximal working voltage: 400V AC voltage Nominal voltage (tested at rotation direction): 2~400V AC voltage,2~400Hz Nominal voltage (tested at phase sequence): 120~400V AC voltage,2~400Hz Test current (per phase): <3.5mA Battery: 3 x 1.5V AA batteries(NOT included) Temperature: Operating: 0~40℃, maximal 80 % relative humidity (non-condensing) Storage: -10~50℃, maximal 80 % relative humidity (non-condensing, battery not included) Altitude: <2000m(meter) Anti-explosion type: IP 40 Weight: 442g(approx.) Package Includes: 1 x Tester (batteries are NOT included) 3 x Test Cables 3 x Cable Clips 1 x Bag
