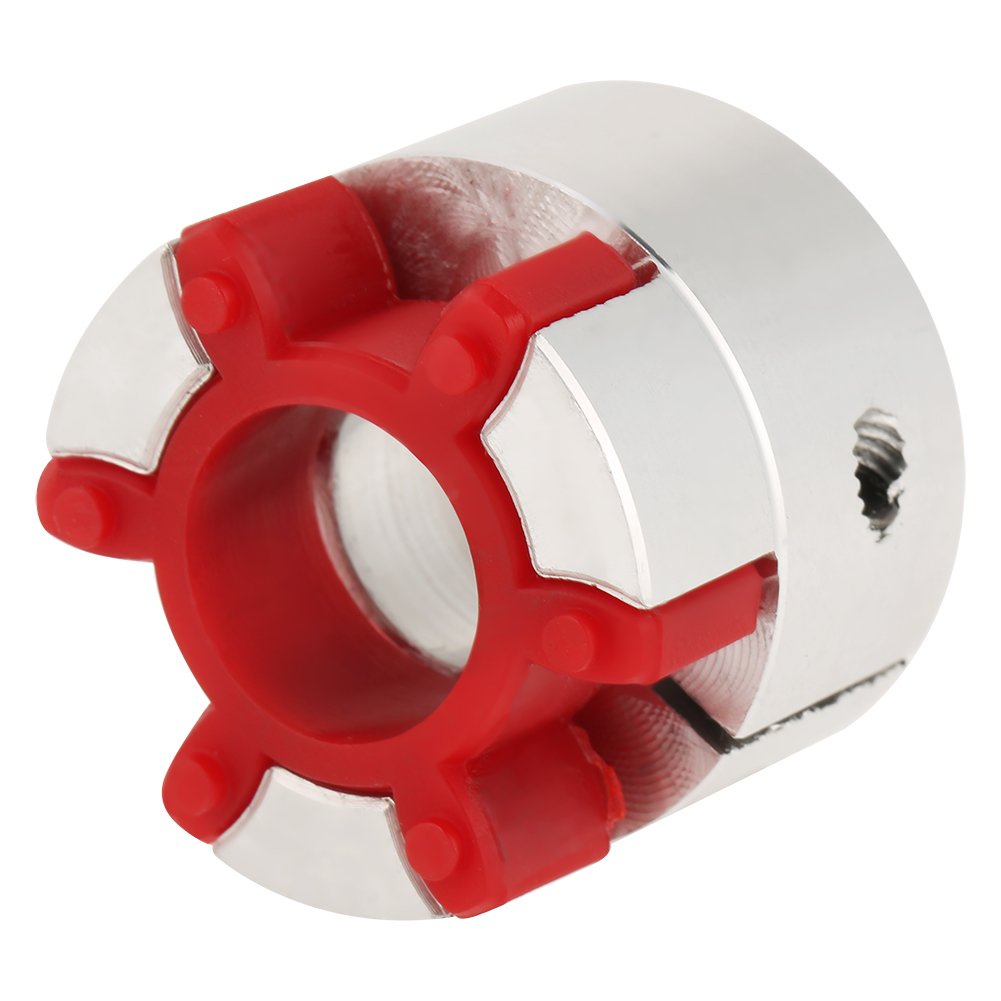

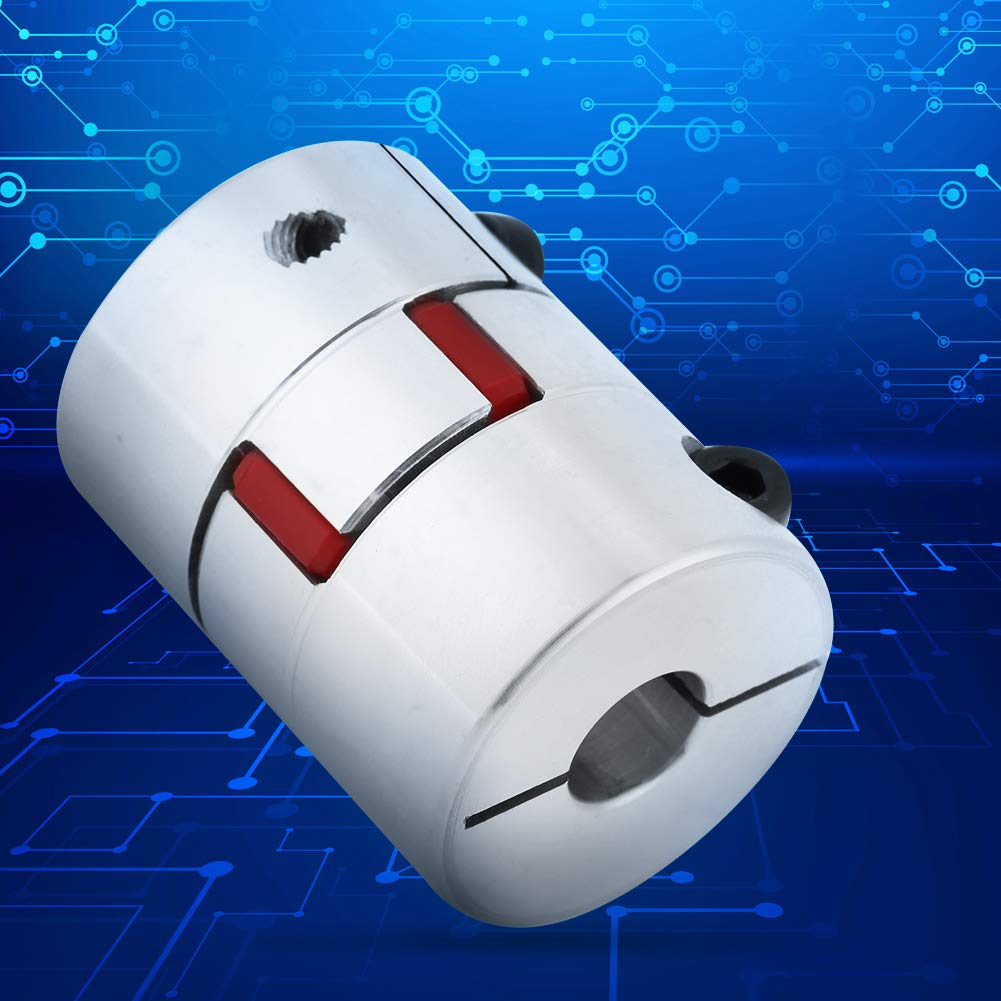

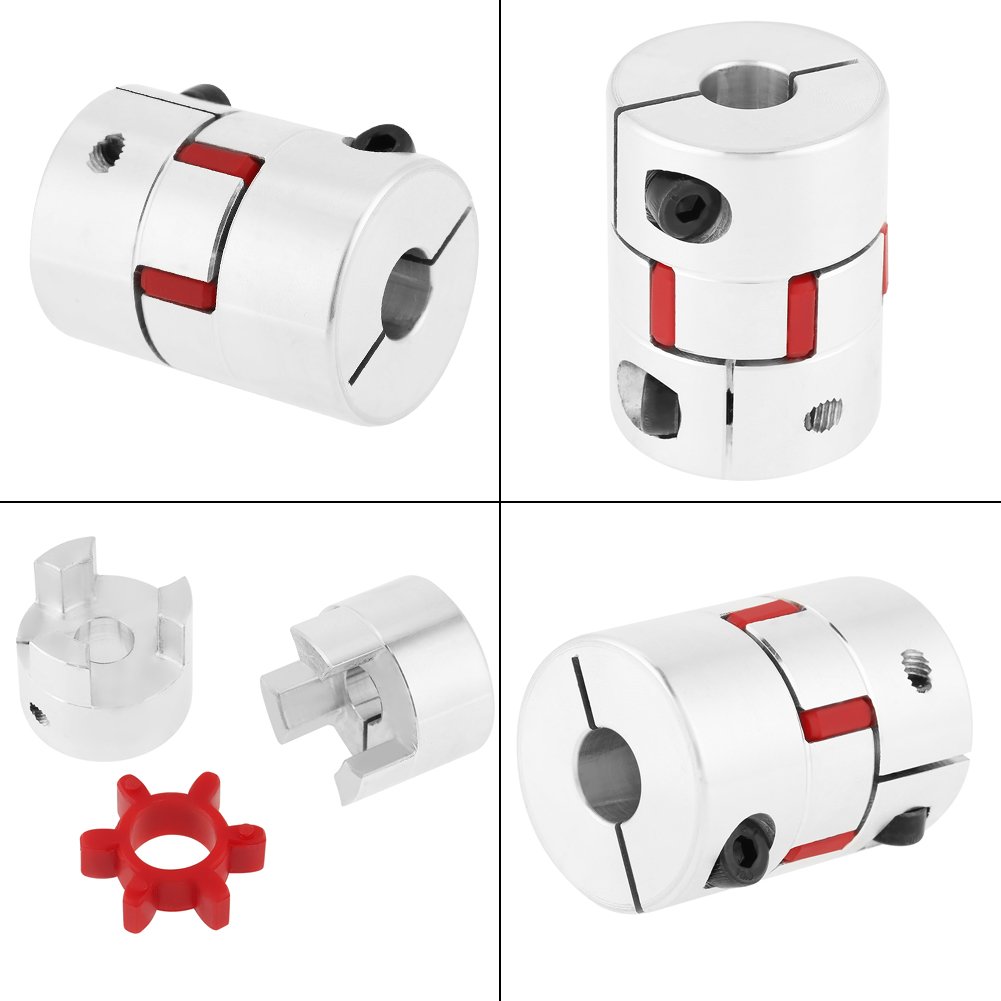

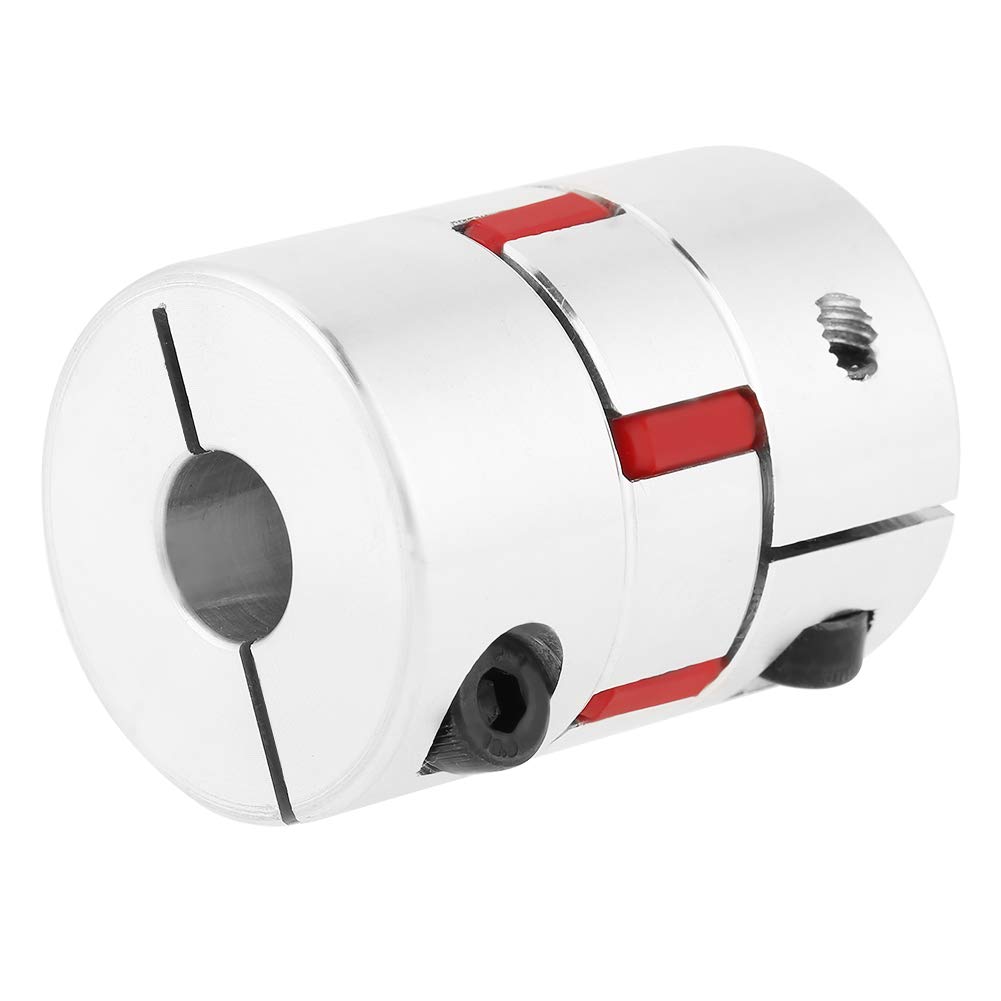

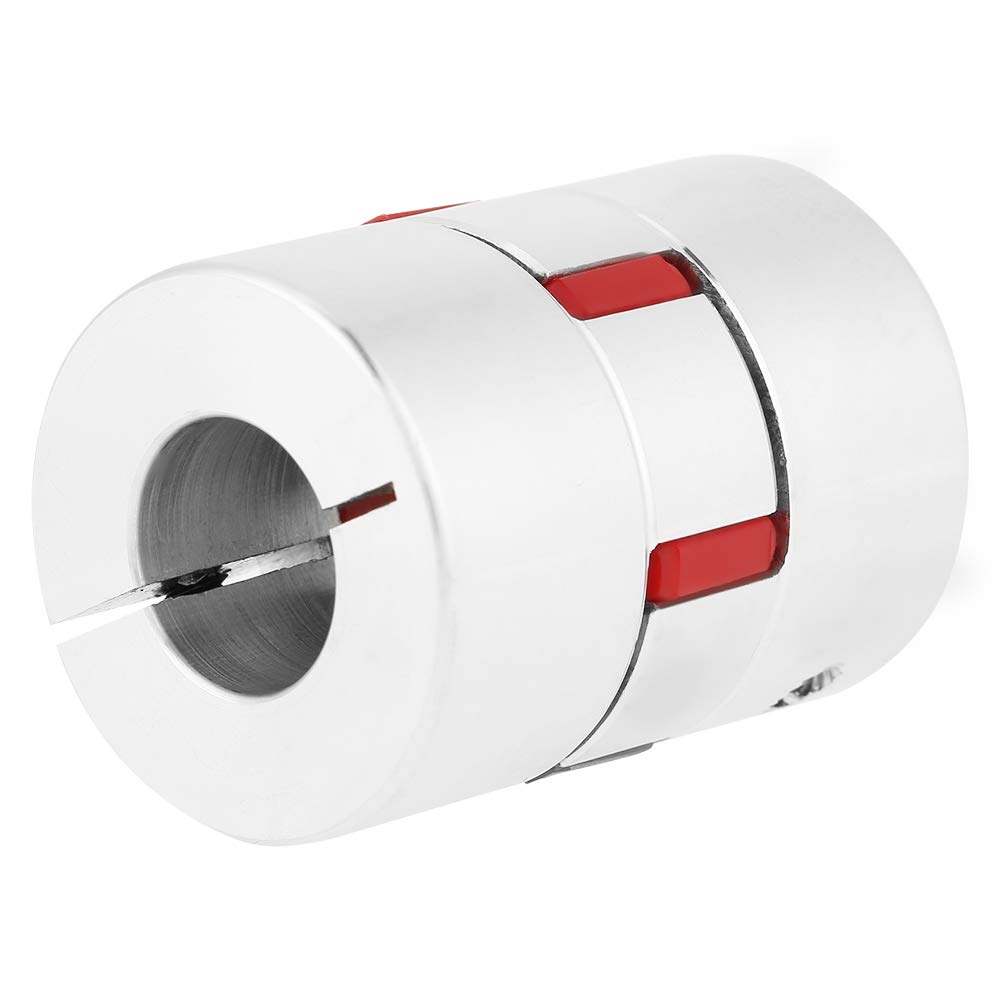

Plum Coupling Shaft, Flexible Spider Shaft Coupling OD30mm x L40mm CNC Stepper Motor Coupler Connector - High Strength Aluminum Alloy

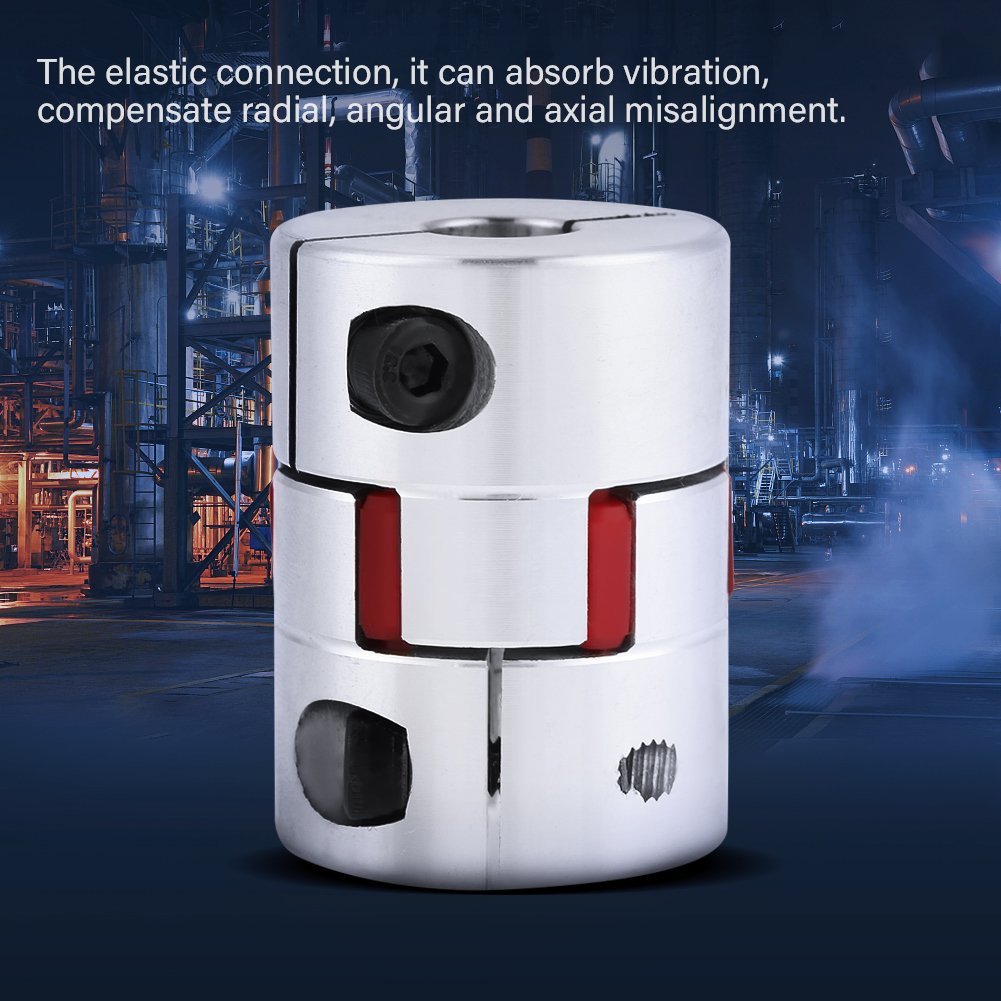

• Clutch Shaft Functions - The structure is simple, easy to install, buffer, damp, easy to disconnect. Compact size and smooth surface. The elastic connection can absorb vibrations, compensate for radial, angular and axial misalignment.
• Shaft coupling - Shaft coupling is often used to connect servomotors, stepper motors, encoders, screws, machine platforms, etc. The clockwise and counterclockwise rotation properties are identical. Clamp and tighten screws.
• Furthermore - Wide for wave transmission of various mechanical devices, such as pumps, fans, compressors, oil machines, printing machines.

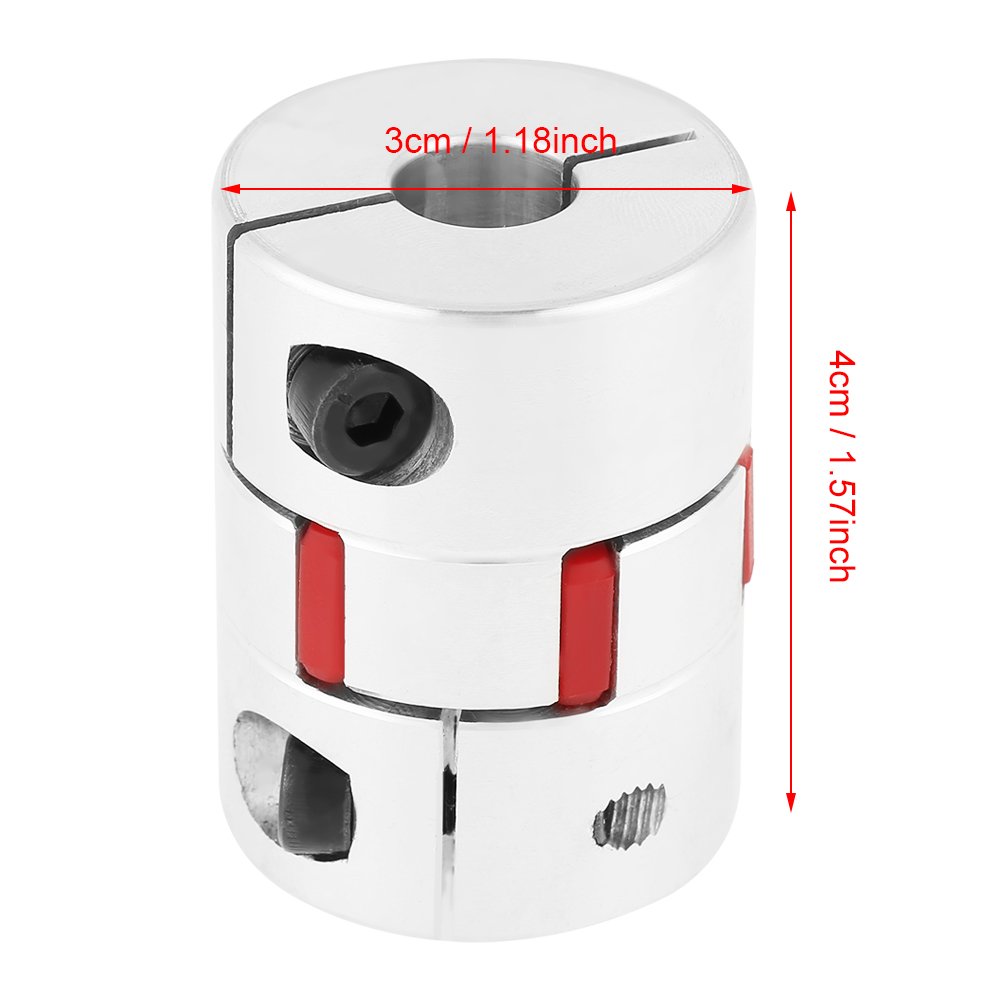

• Specification - Permitted speed: 10000 (U / m), Allowable torque: 12.5 (Nm), Length: 40 mm Outer diameter: 30 mm, Hole diameter: 10 mm-14 mm / 0.39-0 , 55 inches
• Quality assurance - The quality of our products is guaranteed and can be used without hesitation. If you have any questions during use, feel free to contact us

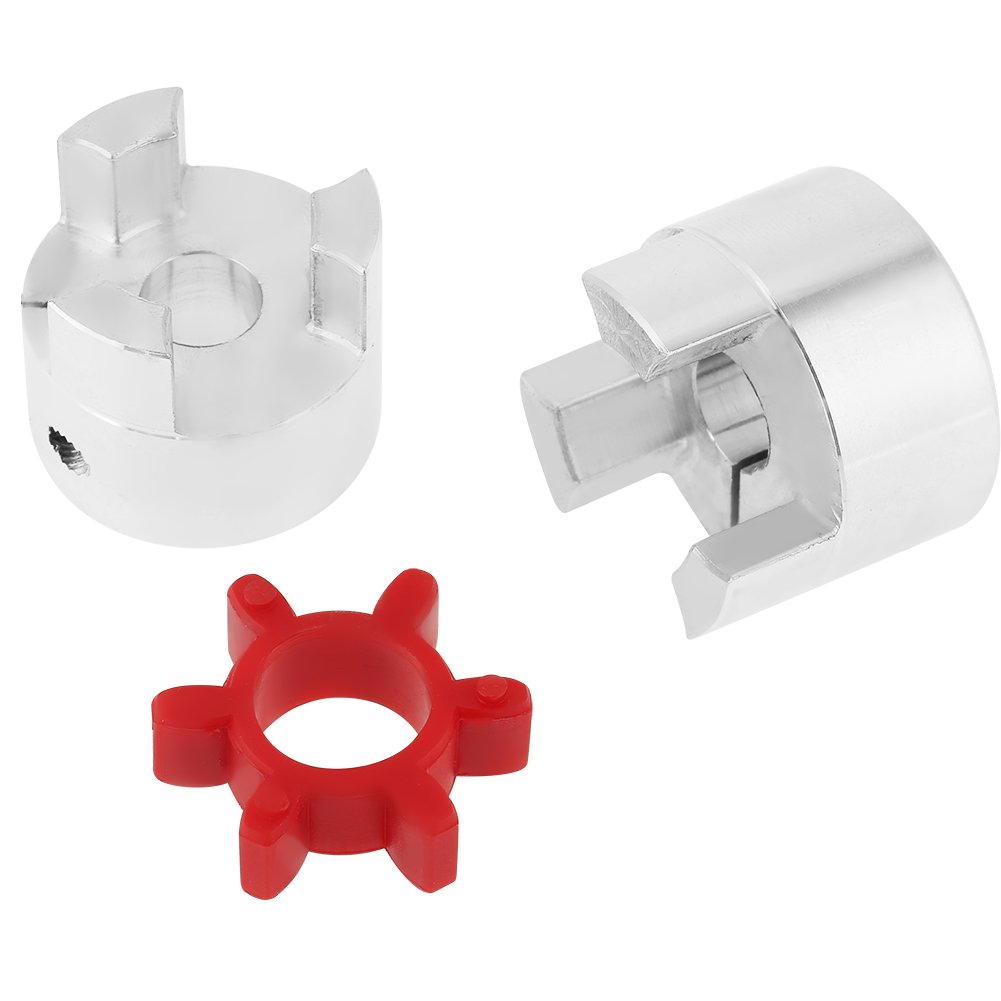

Features: The structure is simple, easy to install, buffer, damping, convenient to disconnect. Compact size and smooth surface The elastic connection, it can absorb vibration, compensate radial, angular and axial misalignment. Shaft coupling is often used to connect servo motor stepper motor,encoder, screw driving, machine platform etc. Clockwise and counterclockwise rotation properties are identical. Clamp the screws and fix them. Widely used in the shafting transmission of various mechanical devices, such as pumps, fans, compressors, petroleum machinery, printing machinery. Specifications: Elastomer material: imported polyurethane Sleeve material: high strength aluminum alloy Allowable speed: 10000 (r/m) Allowable torque: 12.5 (N.M) Length: 40 mm / 1.57in Outer diameter: 30 mm / 1.18in Hole diameter: 10mm-14mm / 0.39-0.55in Weight: 58g Package included: 1 x Flexible Coupler
