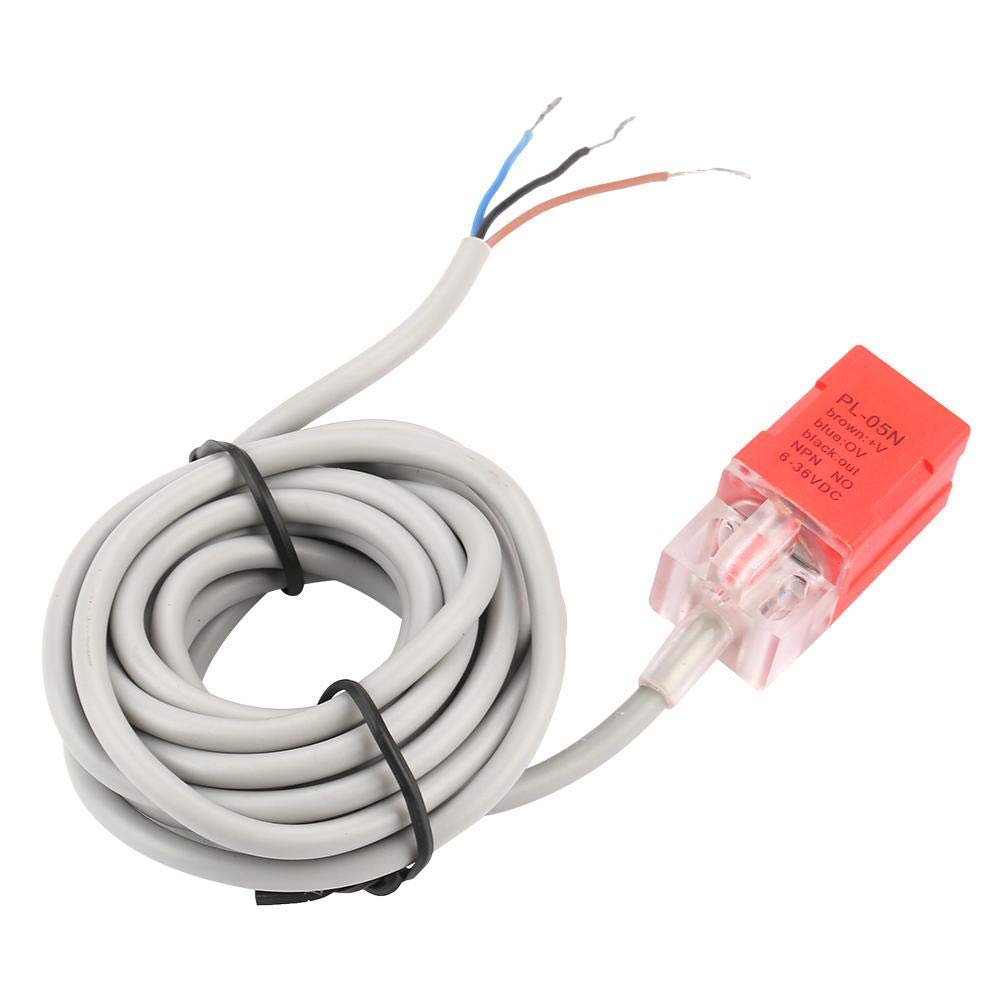

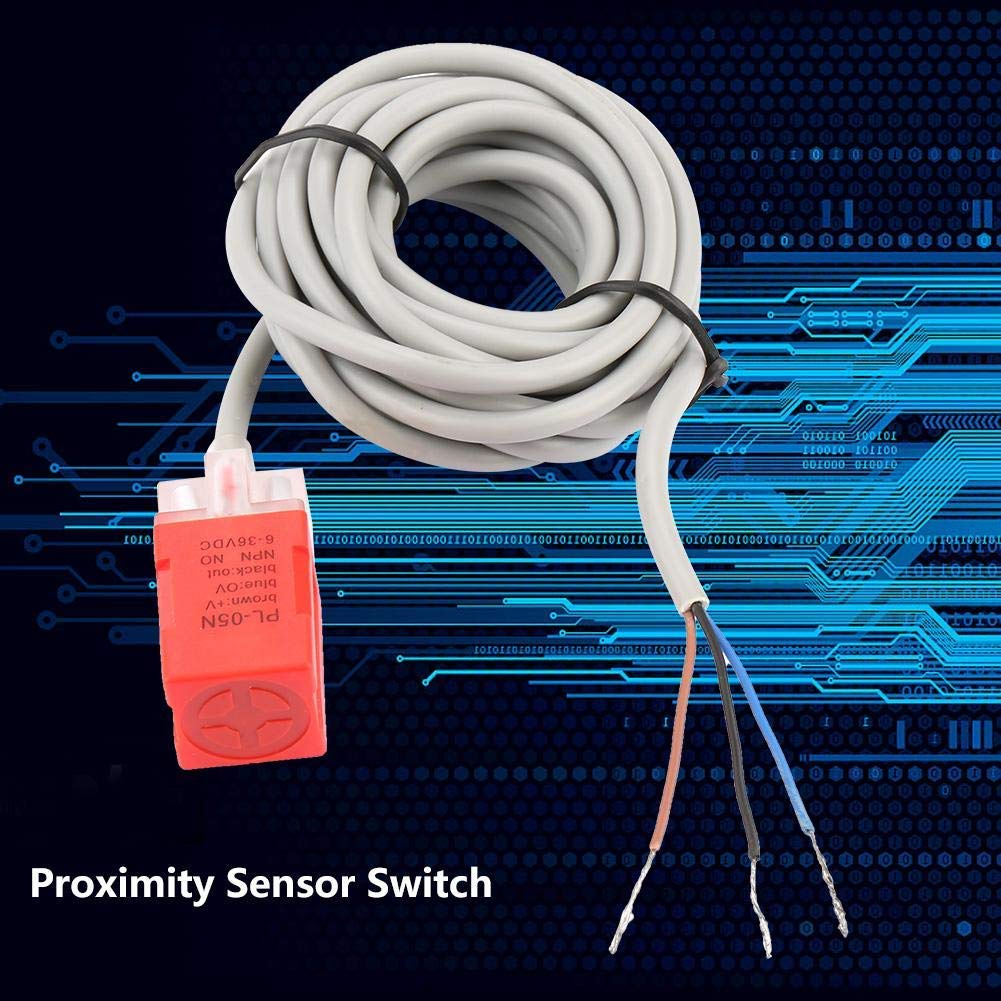

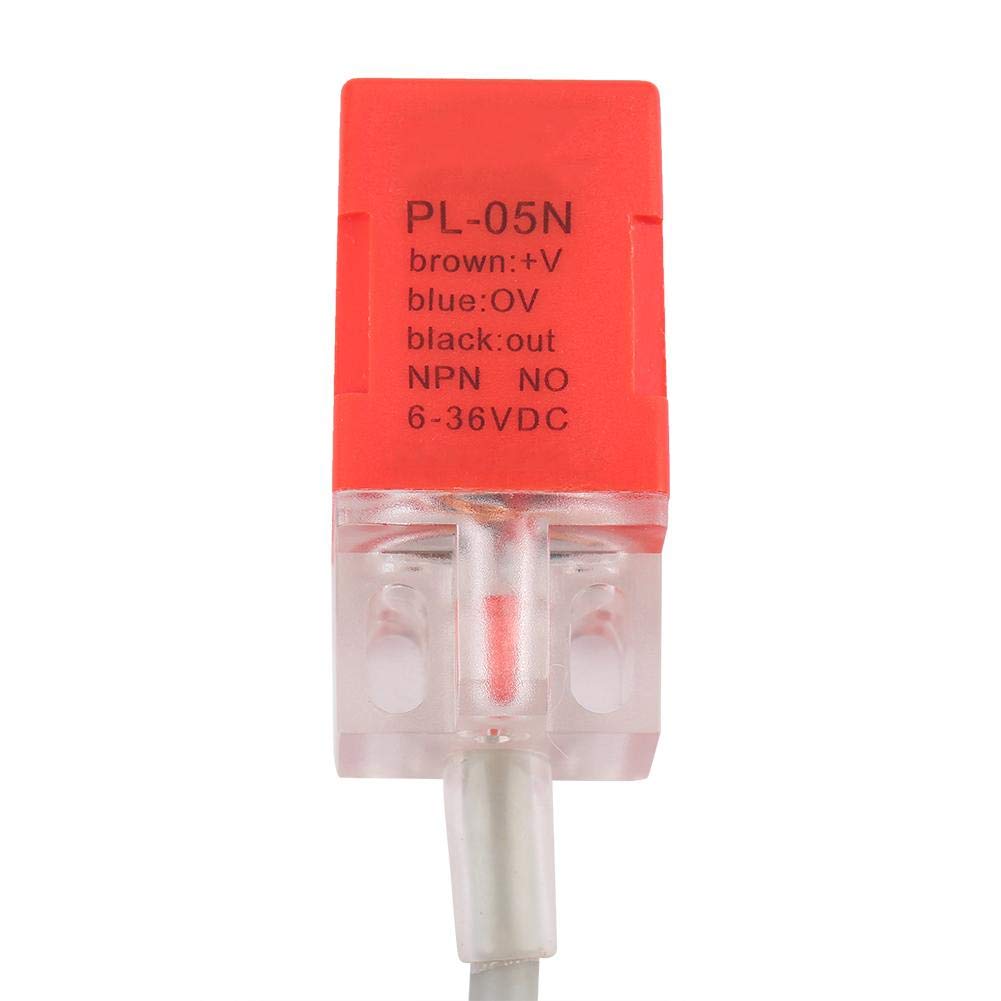

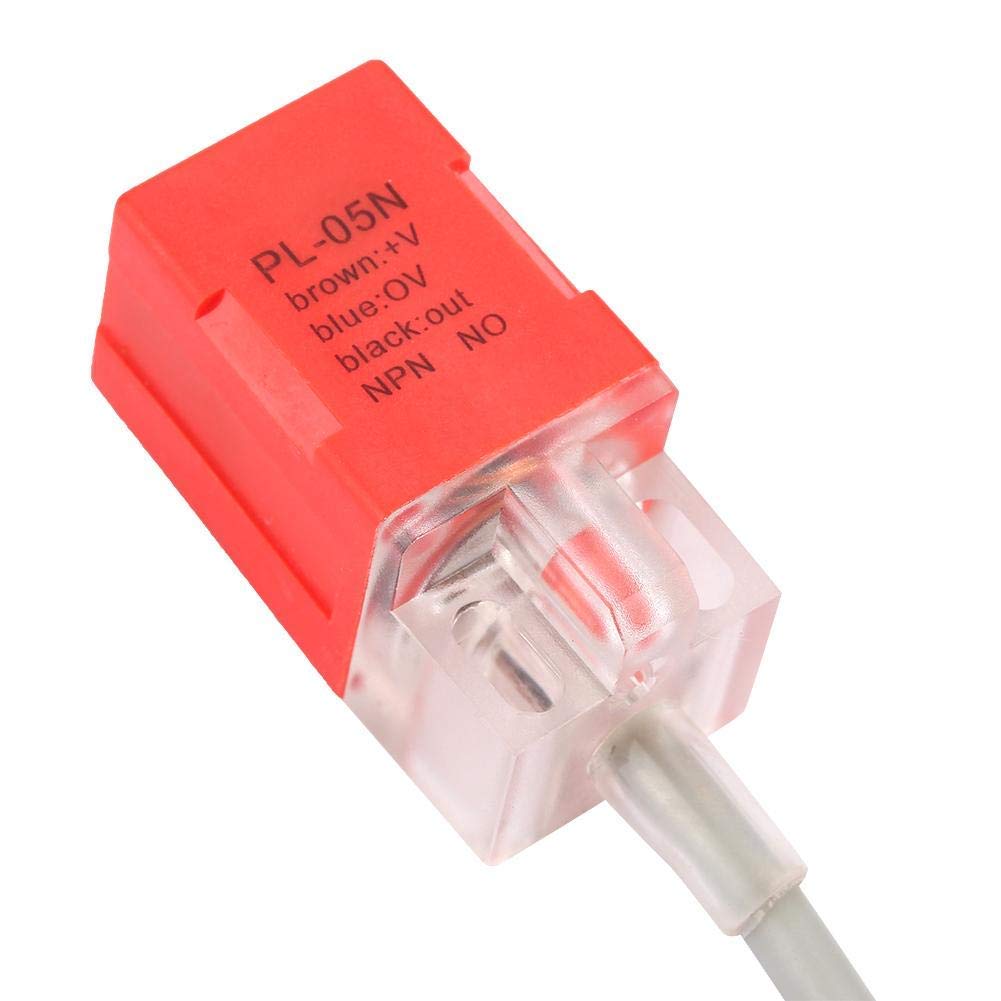

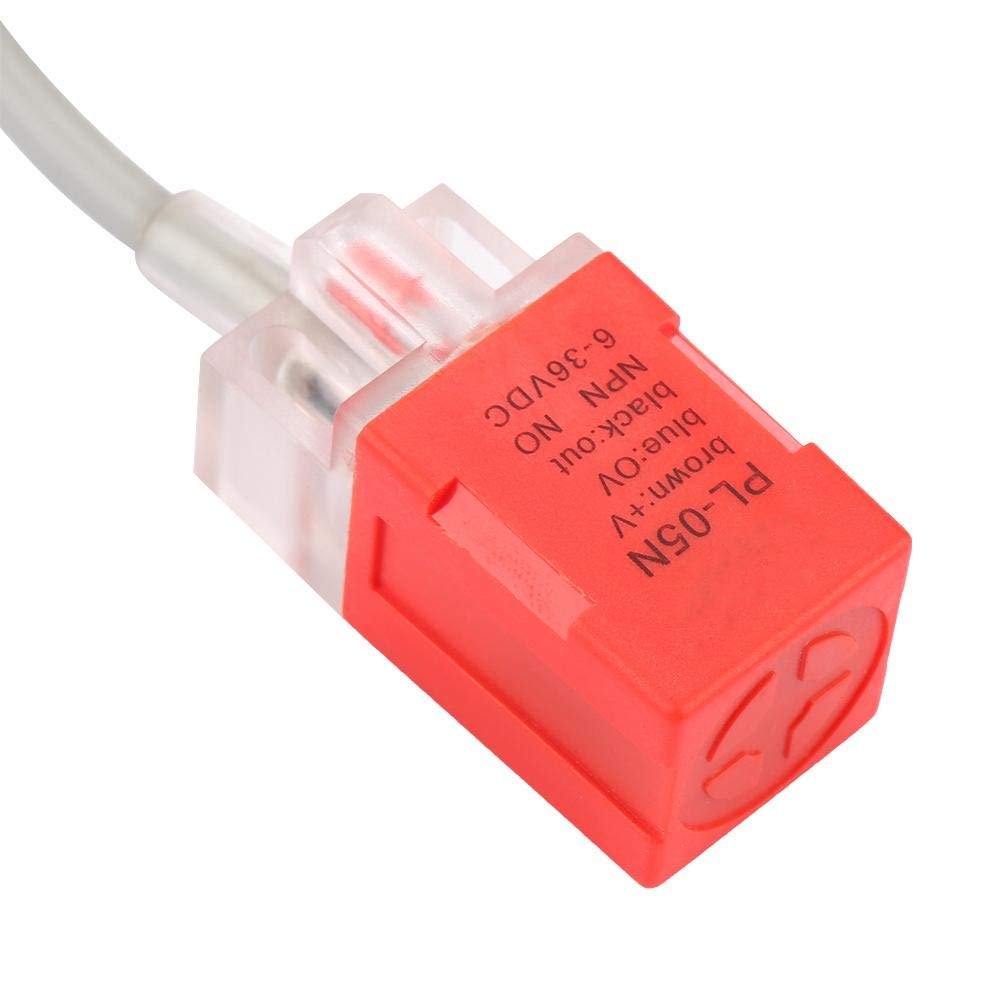

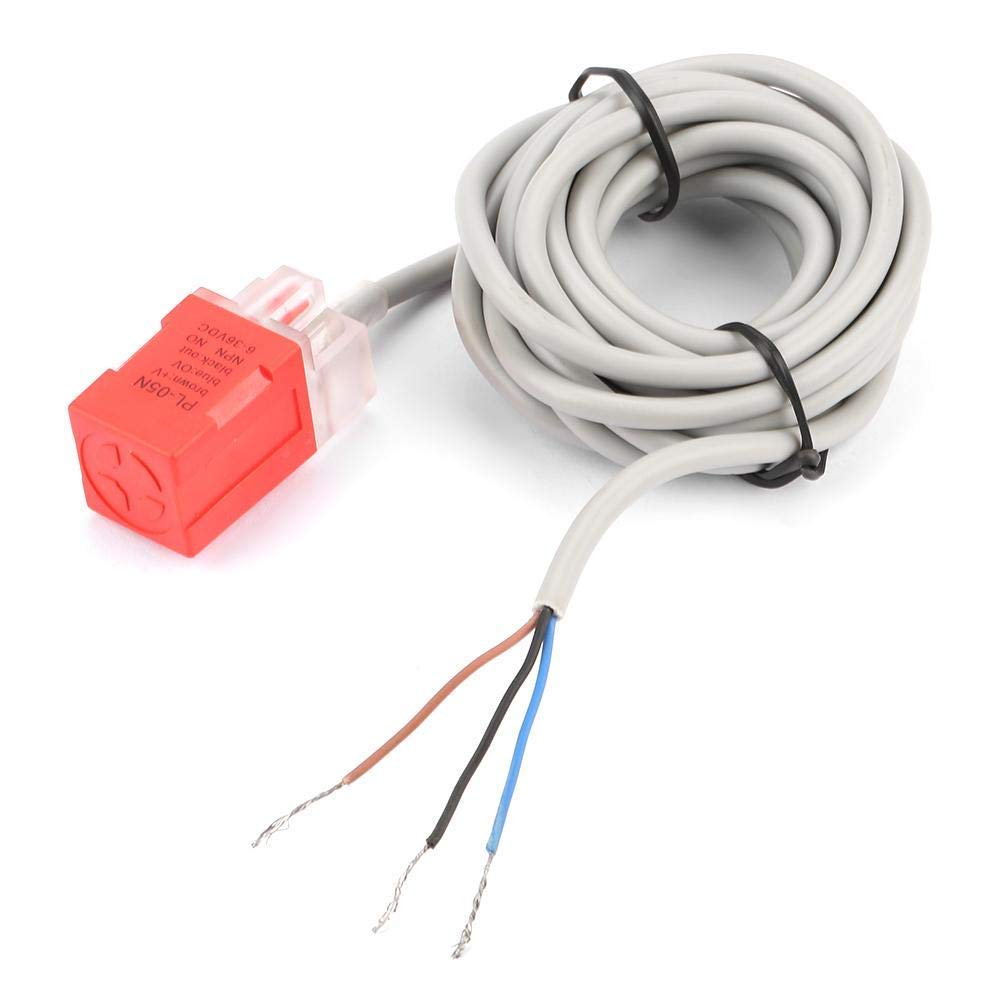

PL-05N NPN Proximity Switch 5mm ABS Material Inductive Proximity Sensor Switch Detecting Distance Approach Sensor Cylinder Proximity Switch

• The proximity switch is a position sensor with switching output that can be connected to a microcomputer
• The proximity switch can also switch off directly from electromagnetic relay, counters and contactor to achieve automatic control purposes.
• A proximity switch is a common component in the control industry for capture, control and non-contact switching.

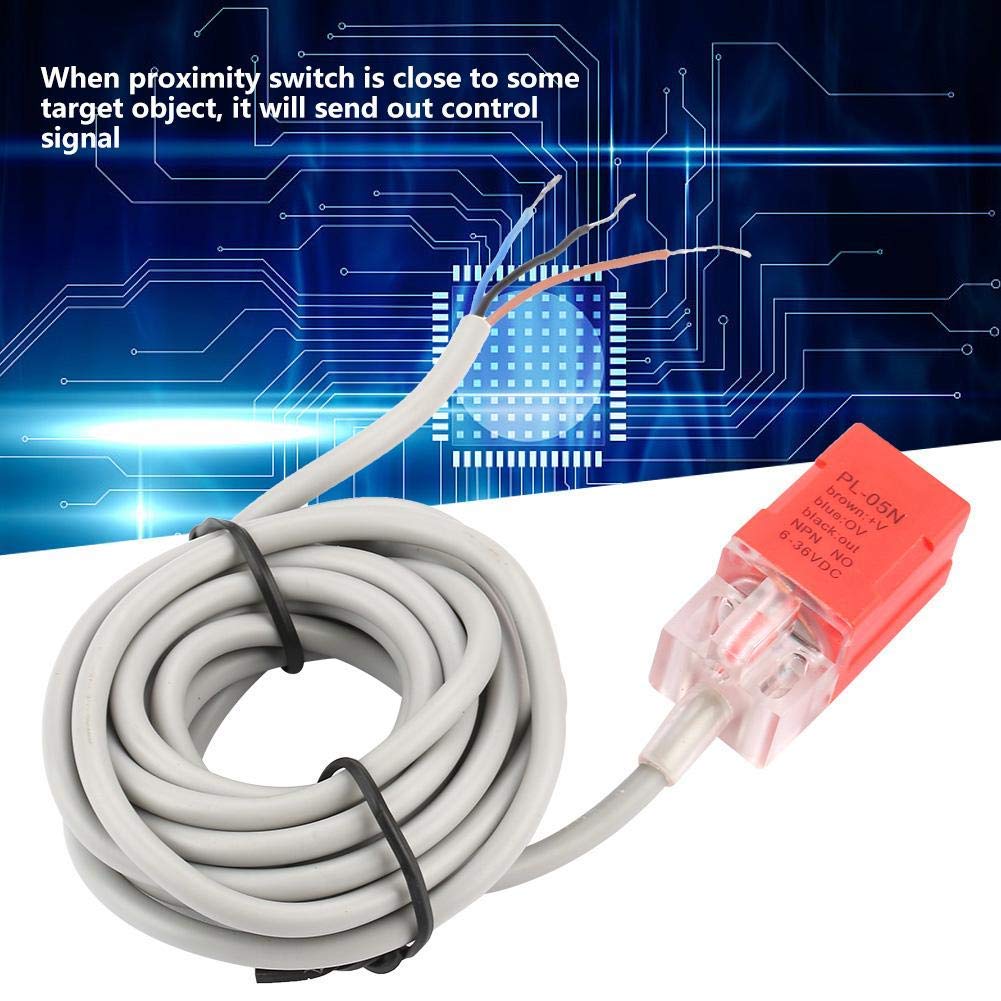

• When the proximity switch is near a target object, it sends a control signal.
• It is widely used in machinery, paper making, light industry to limit stations, orientation and accelerate attempts etc.

Specification: Model: PL-05N Detection distance: 5 mm ± 10%. Setting distance: 0 - 4 mm. Delay distance: <10% detection distance Standard object: magnetic metal (detection distance for non-magnetic metals decreases). Detect object: iron 18 × 18 × 1 mm. Response frequency: DC: 0.5 kHz AC: 25 Hz Power supply: DC12-24V (6-36V); AC110-220V (36-250V) 50/60Hz Withstand voltage: AC 1000 V 50/60 Hz. Effect of voltage: ± 15% rated voltage. Consumption current: N.P: <13mA, D: <0.8mA, A: <1.7mA Control output: N.P: <300mA, D: <200mA, A: <400mA Circuit Protection: A: Overvoltage Protection N.P.D: Overvoltage Protection, Reverse Connection Protection Temperature range: -25 - +60 Insulation resistance: > 50 MΩ. Material: ABS Storage and use temperature: -30 - + 65 °C (no ice, no frost). Storage and use humidity: 35 - 95% rF. Package contents: 1 x proximity switch. Note: Actual product colour may vary a little from the photo due to lighting conditions. There may be a slight difference in size when measuring the product.
