PJRC DEV-13305 Teensy LC Development Board with Boot Loader and Micro USB for Arduino IDE and Write Arduino Sketches - Green

• 32 bit ARM Cortex-M0+ 48 MHz CPU, 62kb Flash Memory, 8kb RAM, 1/8(emu)kb EEPROM
• 13 High Resolution Analog Inputs, 27 Digital I/O Pins (NOT 5V Tolerant)
• 10 PWM outputs, 7 Timers for intervals/delays, separate from PWM
• 3 UARTs (serial ports), SPI, I2C, & I2S, I2S (for high quality audio interface)
• 4 Lightweight DMA channels, Touch Sensor Inputs

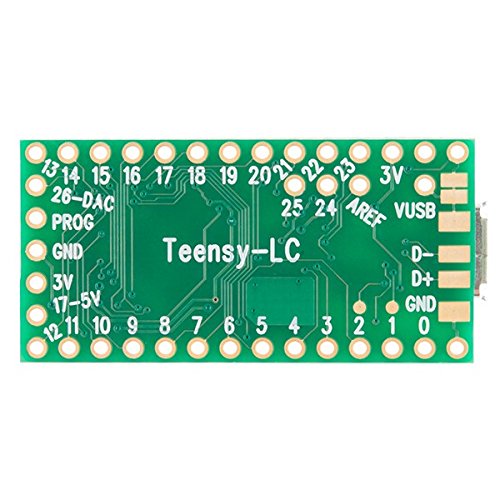

Product Description The Teensy LC (Low Cost) is a breadboard-friendly development board with bootloader and micro USB. It is a 32 bit microcontroller board that provides you with an uncomplicated option for getting started with the Teensy line of products. The Teensy LC comes pre-flashed with a bootloader so you can program it using the on-board USB connection: No external programmer needed! You can program for the Teensy in your favourite program editor using C or you can install the Teensyduino add-on for the Arduino IDE and write Arduino sketches for Teensy! The processor on the Teensy also has access to the USB and can emulate any kind of USB device you need it to be, making it great for USB-MIDI and other HID projects. The 32 bit processor brings a few other features to the table as well, such as multiple channels of Direct Memory Access and an I2S digital audio interface. There are also 2 separate interval timers Also and it can provide system voltage of 3.3V or 5V to other devices at up to 5-20mA. All of this functionality is jammed into a 1.4 x 0.7 inch board with all headers on a 0.1 inch grid so you can slap it on a breadboard and get to work! This version of the Teensy has been streamlined to be as cost effective as possible. It is equipped with 8kb RAM, 62kb of flash memory, and 27 Digital I/O pins with 13 high res Analog inputs. Box Contains 1 x Teensy LC board
