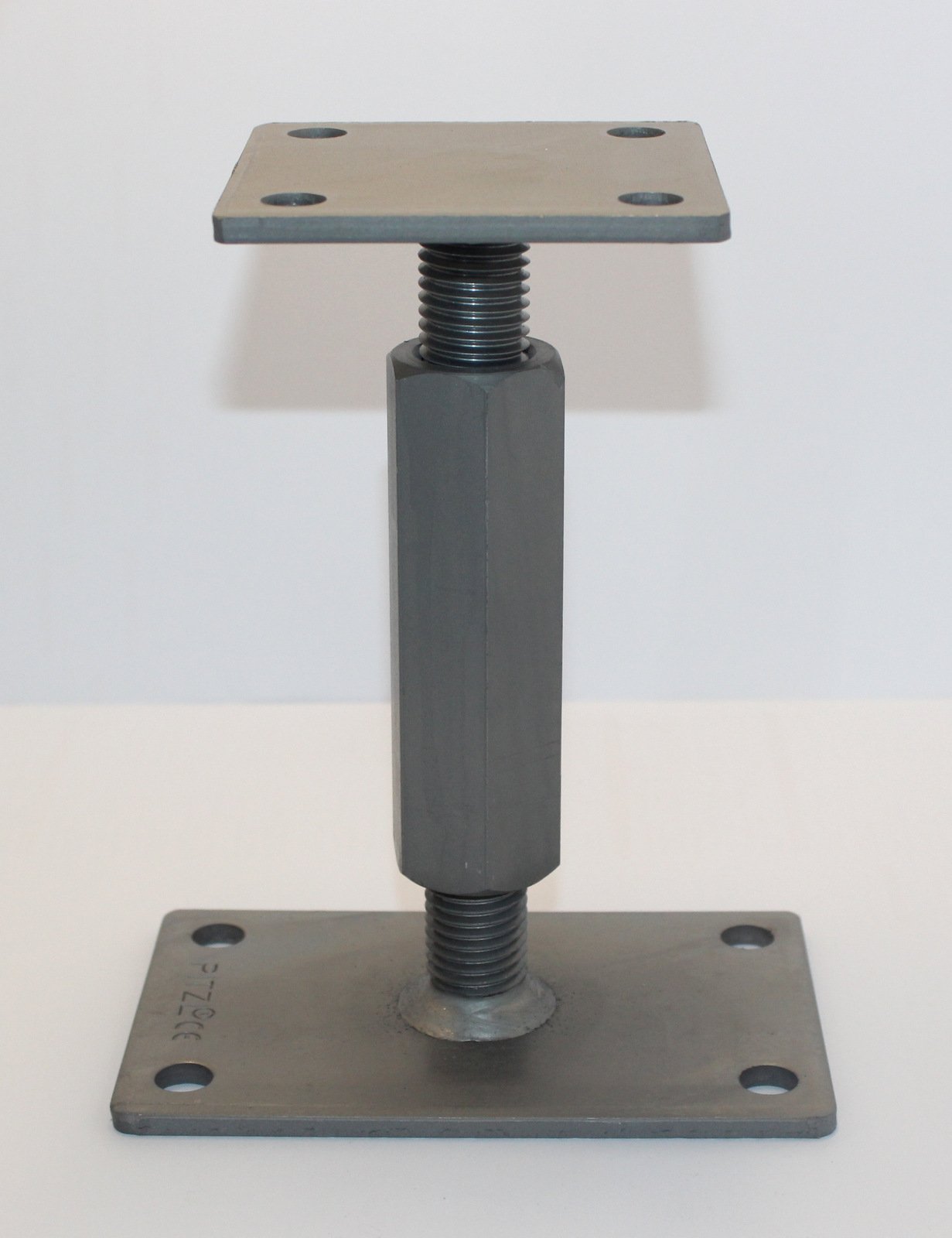

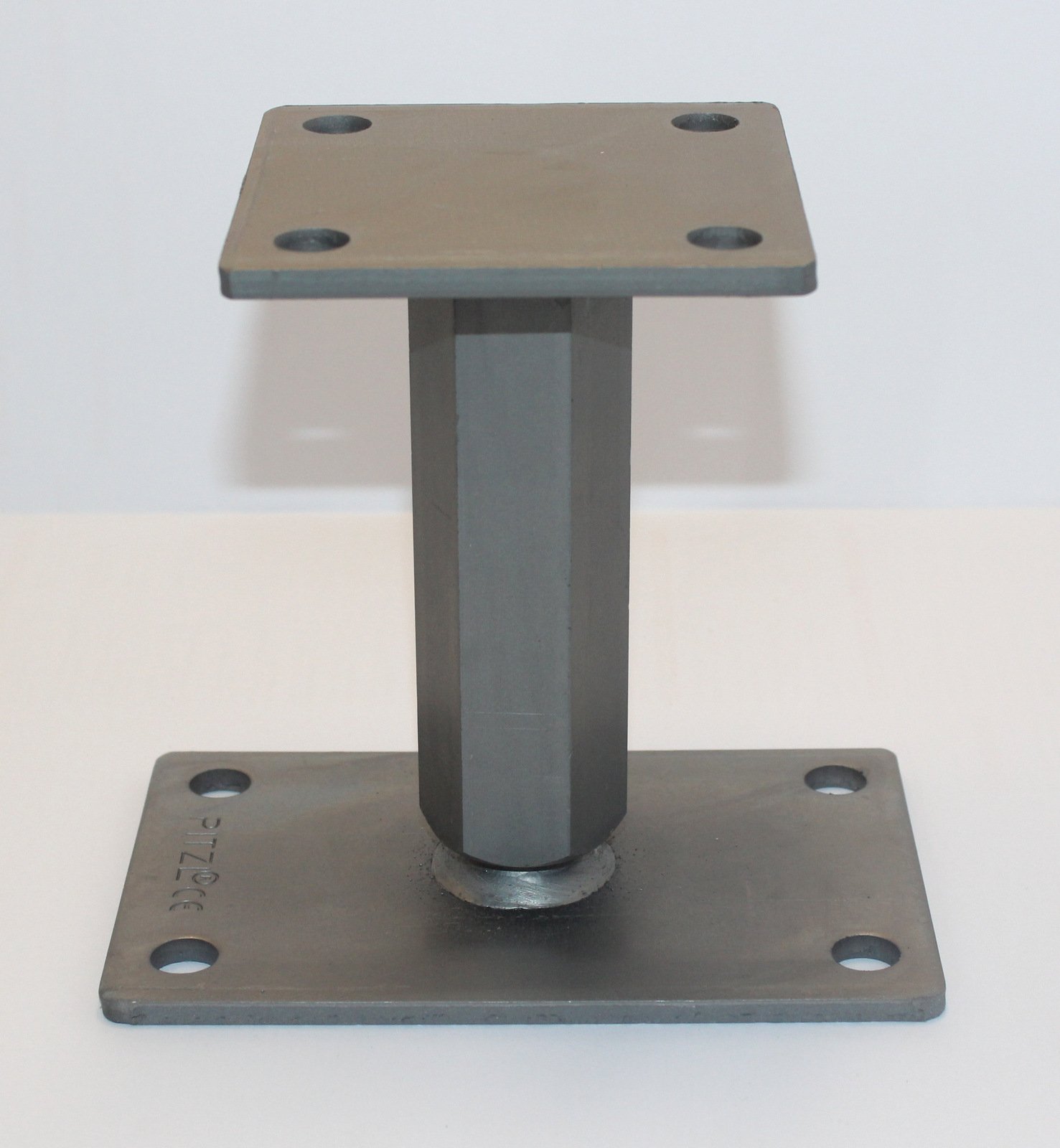

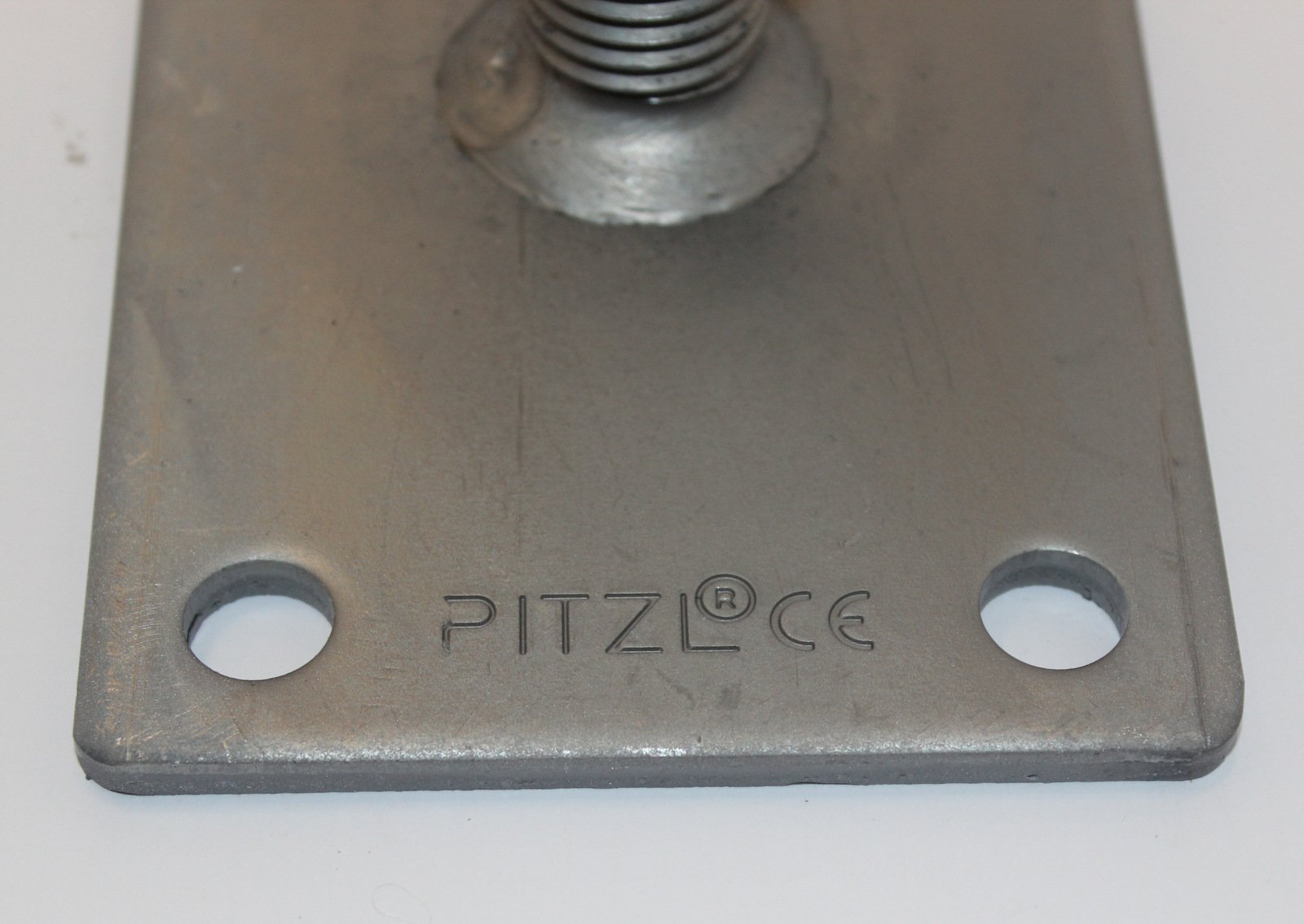

Pitzl Post Anchor Type 10920.1000 ZiNiP Coated Right/Left Silver Height (mm): 142-207

• ZiNiP coating, with ETA-10/0413 approval, usage class 3
• Continuous load 4.15 to., short-term peak load 7.60 tonnes.
• Very sturdy design with M 24 thread, weight 2.30 kg
• Base plate 160 x 100 x 6 mm, holes 13 mm, mounting plate 100 x 100 x 6 mm, holes 12 mm
• Right / left threaded sleeve, base height 142 mm, adjustable up to 207 mm

1 piece PITZL® post carrier type P ZiNiP with EU approval ETA-10/0413, use class 3, continuous pressure load capacity 4.15 tons. Short term peak load capacity 7.60 tonnes. Height adjustable even after installation without any problems. Very stable design with M 24 thread base plate 160 x 100 x 6.0 mm, hole holes 13 mm mounting plate 100 x 100 x 6.0 mm, hole holes 12 mm right/left threaded sleeve, adjustable from 142 - 207 mm with ZiP coating, Therefore use class 3. Only use class 3 is suitable for outdoor use. Can also be used with road salt, sea air environment. A galvanic zinc plating is only suitable for indoor or a protected well covered outdoor area. Do not use in road salt or sea air. High constructive wood protection thanks to the concealed mounting. On request, a 2-piece cover sleeve made of metal also with ZiNiP coating. Optically similar P-coating to P-coating A stainless steel surface. First class and high quality, made in Germany. German craft quality is not possible at a dumping price. Please keep in mind that the post supports and their attachment are the most important but the lowest factor. Imagine a replacement of post supports as well as the attachment after a few years. Instructions for mounting. Suitable for posts from 120 x 120 cm. Post in the centre mm post mm centre And fully screw on the plate. We recommend HECO Topix plate head screws 10 x 120 mm VG or 10 x 160 mm VG. The floor mounting should be made with heavy-duty anchors, preferably made of A4 stainless steel
