PiSugar 2 Plus Portable 5000 mAh UPS Lithium Battery Power Module Platform for Every Raspberry Pi 3B/3B+/4B Model Accessories (Not Include Raspberry Pi)

• Continuous Operation: PiSugar2 provides UPS function. It can also shut down safely when the power is too low to avoid data loss and damage caused by sudden power failure.
• Elegant Experience: Control the module through well-designed graphical web interface. you can get power level and charging status, configure timing power on, custom button functions, low power auto off, etc.
• Onboard RTC: The onboard RTC makes it possible to obtain real time in any network condition. Timing boot function is also provided.
• Multiple Usage: Charge through TypeC port (compatible with e-mark) or microUSB port. PiSugar2 Pro adopts PH2.0 standard battery plug, you can also replace other lithium batteries with 3.7V output on your need.
• Extensible Power: input/output pads are provided on the circuit board, which can be equipped with any 5V standard charging devices, such as solar panels and QI wireless charging.

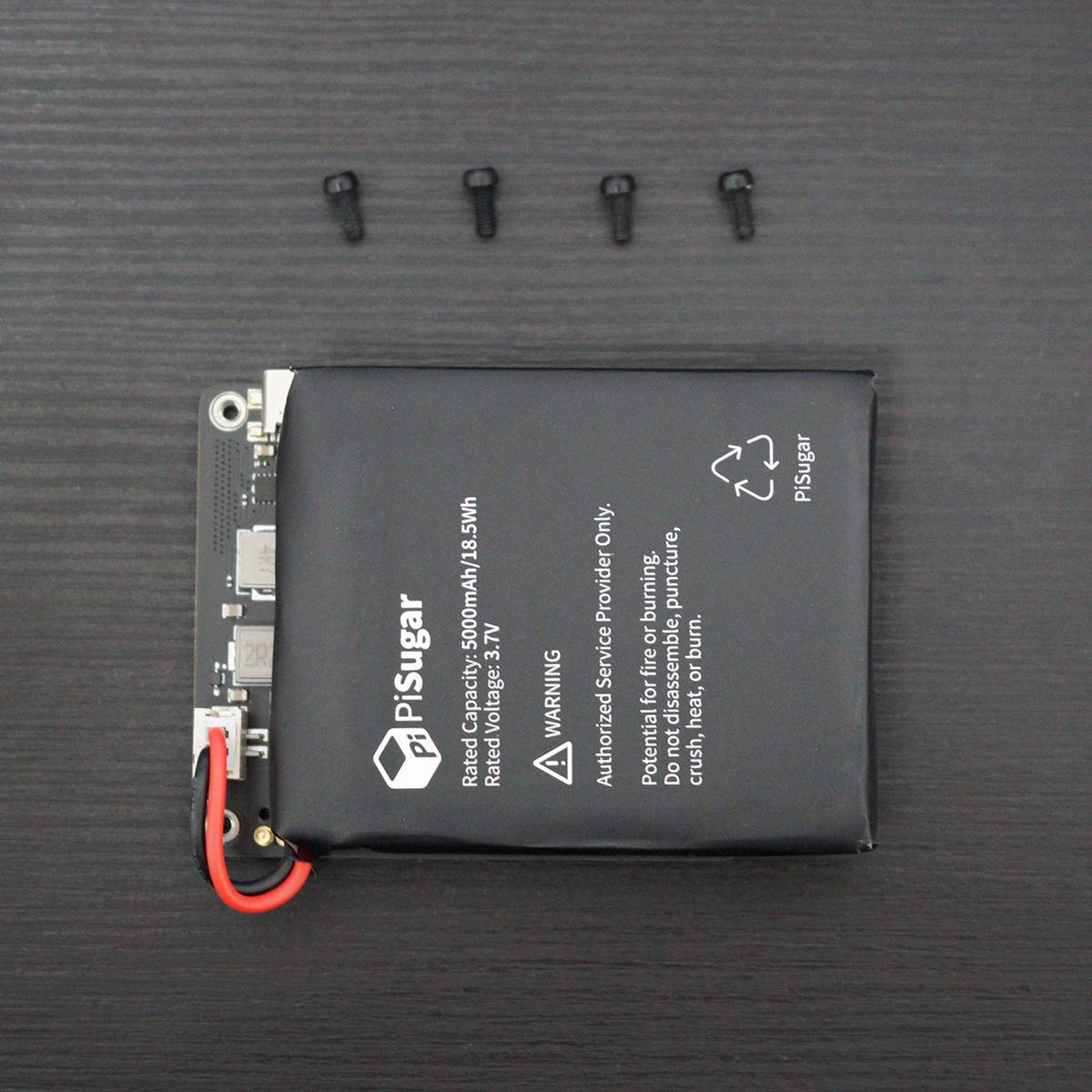

PiSugar 2 Pro is a portable power platform specially designed for Raspberry Pi 2/3A+/3B/3B+/4B. It integrates UPS, RTC, I2C battery management, and custom buttons, the continuous output capability of 5V3A. All of these features bring unprecedented portability to Raspberry Pi. Features 5V3A output, perfect for all versions of Raspberry Pi Bottom contact with SugarPin, do not occupy GPIO I2C to get battery information Onboard RTC, timing boot TypeC + Micro USB Charging Server + WebUI for easy management Custom button function Electrical SPECS Input: 5V-3A Output: 5V-3Amax Battery Capacity: 5000mah Battery Voltage: 4.2Vmax Advanced Features Support charged and discharged at the same time UPS Low battery safe shutdown RTC real-time clock Timing boot Programmable button WebUI for management Physical disconnect switch Extensible with wireless charging and solar charging Package Include: 1 x Battery Module 4 x Screws Hardware Installation Turn the switch to OFF Align SugarPin to Raspberry Pi GPIO Use matching screws to tighten Press and hold the activation button for 2 seconds (activation is required after battery replacement/low battery shutdown) Turn the switch to ON and enjoy Software and more details can be found on Github.
