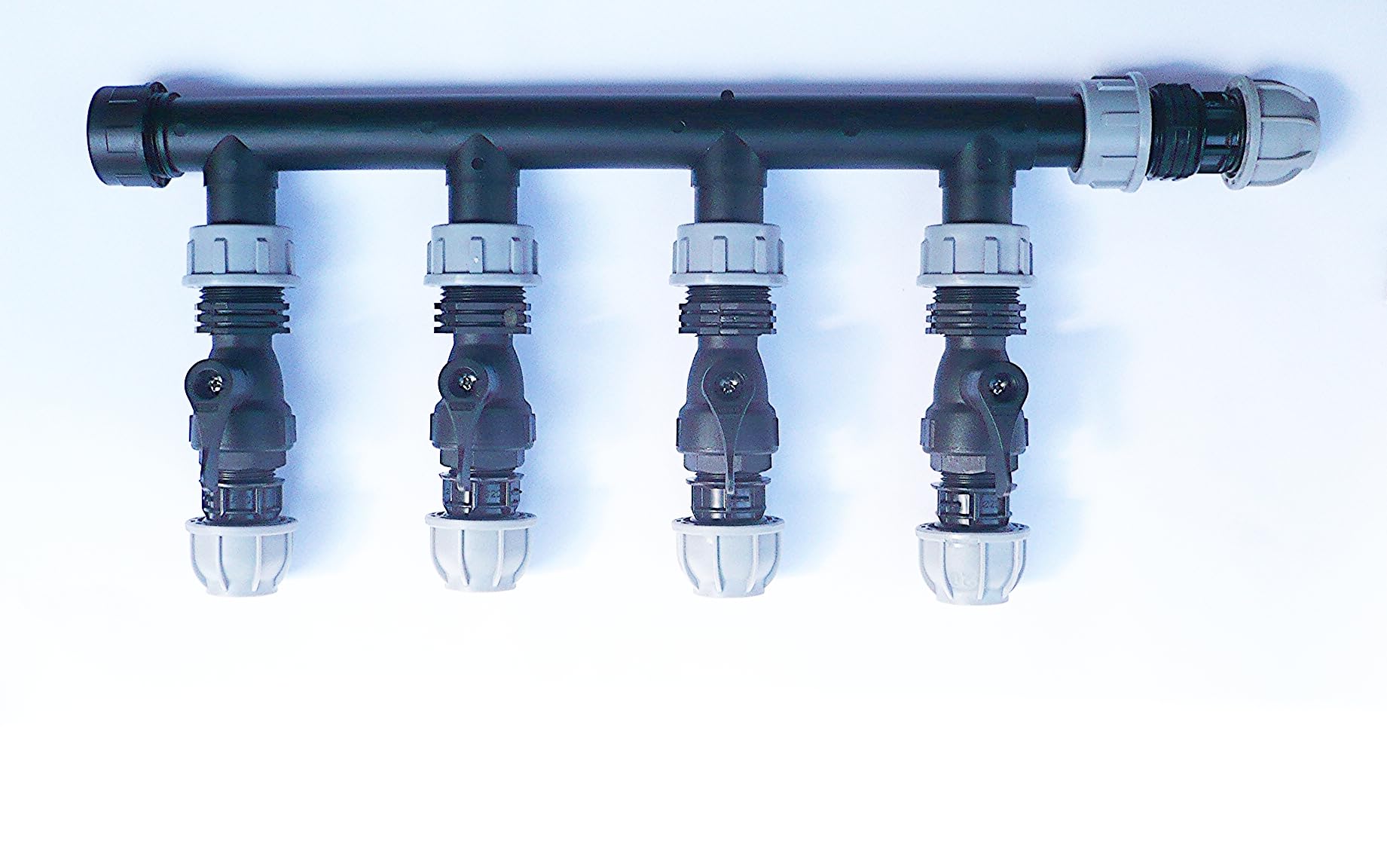

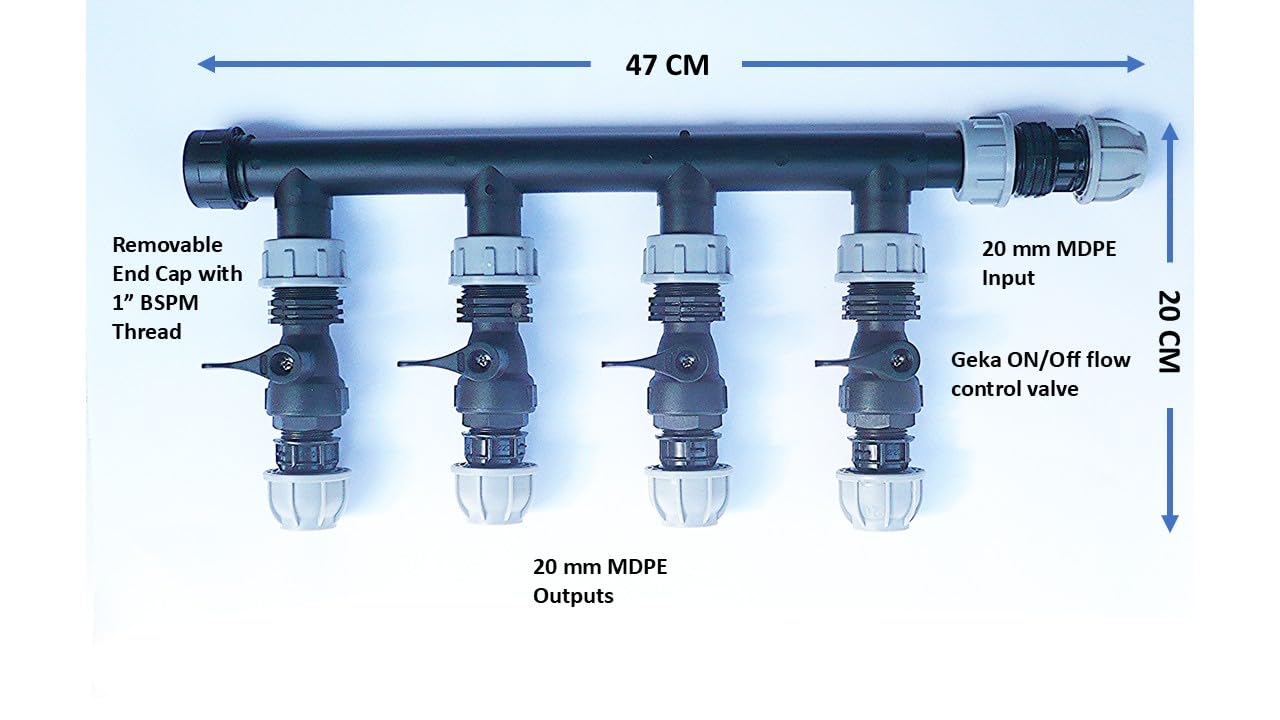

Pipe Joining Manifold with MDPE Outlets, Flow Control Valves & 1'' BSPM inlet (4 Outlets. 20 mm MDPE)

• This is a pipe connection manifold for MDPE / Alkathene pipe. Available in 20 mm, 25 mm and 32 mm sizes (External diameter of pipe).
• There are options for a 2, 3 or 4 MDPE pipe outlet all with an individual GEEKA On/Off, flow control valve
• The main body of the unit is finished with a 1" BSP end cap to seal the water flow. If required, this can be removed leaving a 1" BSP male thread onto which other fittings can be attached.
• Removal of the end cap also enables another manifold unit to be added. This means that you can have almost any number of outlets by combining the 2, 3 and 4 outlet manifolds
• This is a very robust heavy duty capable of withstanding up to 10 bar pressure.

This is a pipe connection manifold for MDPE / Alkathene pipe. Available in 20 mm, 25 mm and 32 mm sizes (External diameter of pipe). There are options for a 2, 3 or 4 MDPE pipe outlet all with an individual GEEKA On/Off, flow control valve The main body of the unit is finished with a 1" BSP end cap to seal the water flow. If required, this can be removed leaving a 1" BSP male thread onto which other fittings can be attached. Removal of the end cap also enables another manifold unit to be added. This means that you can have almost any number of outlets by combining the 2, 3 and 4 outlet manifolds This is a very robust heavy duty capable of withstanding up to 10 bar pressure.
