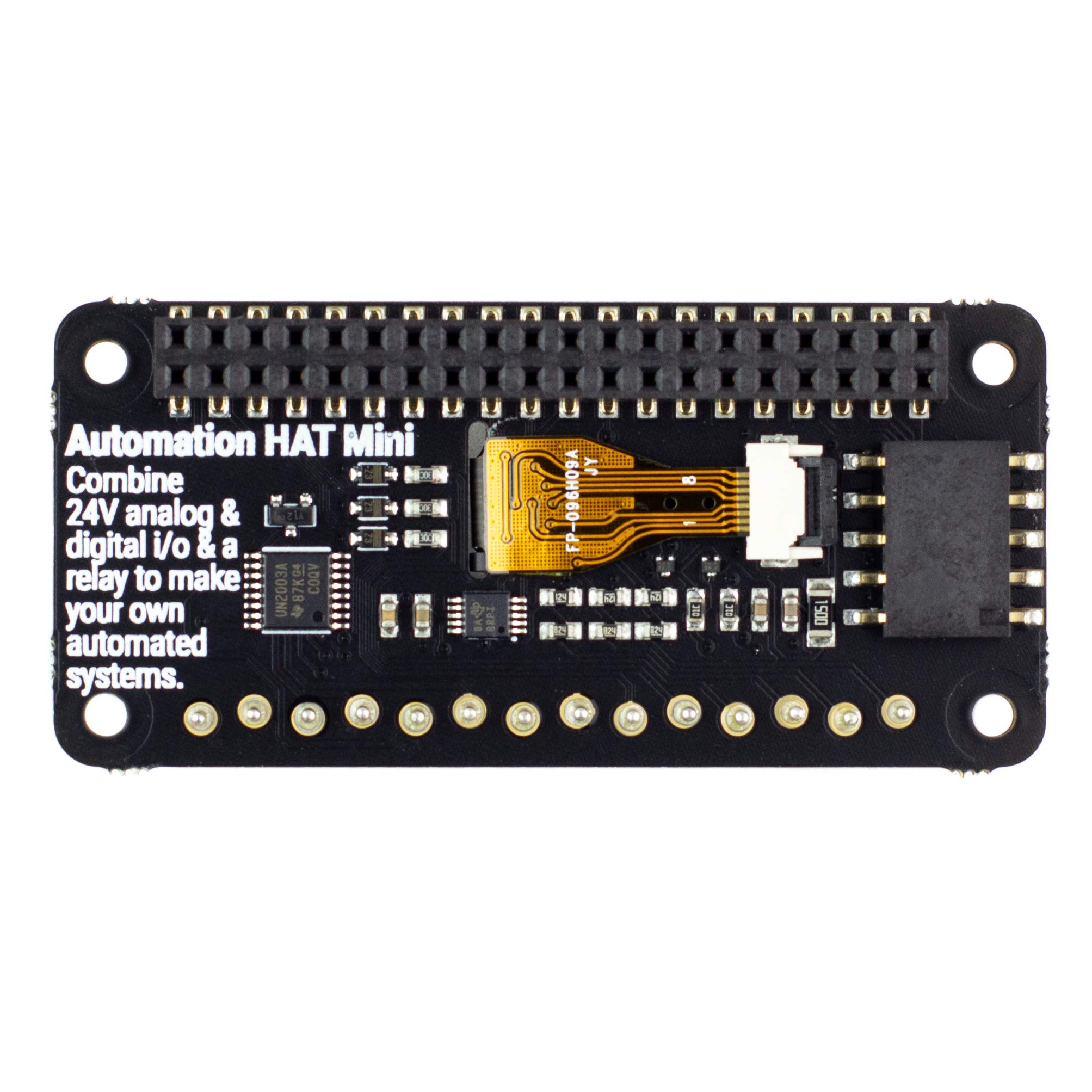

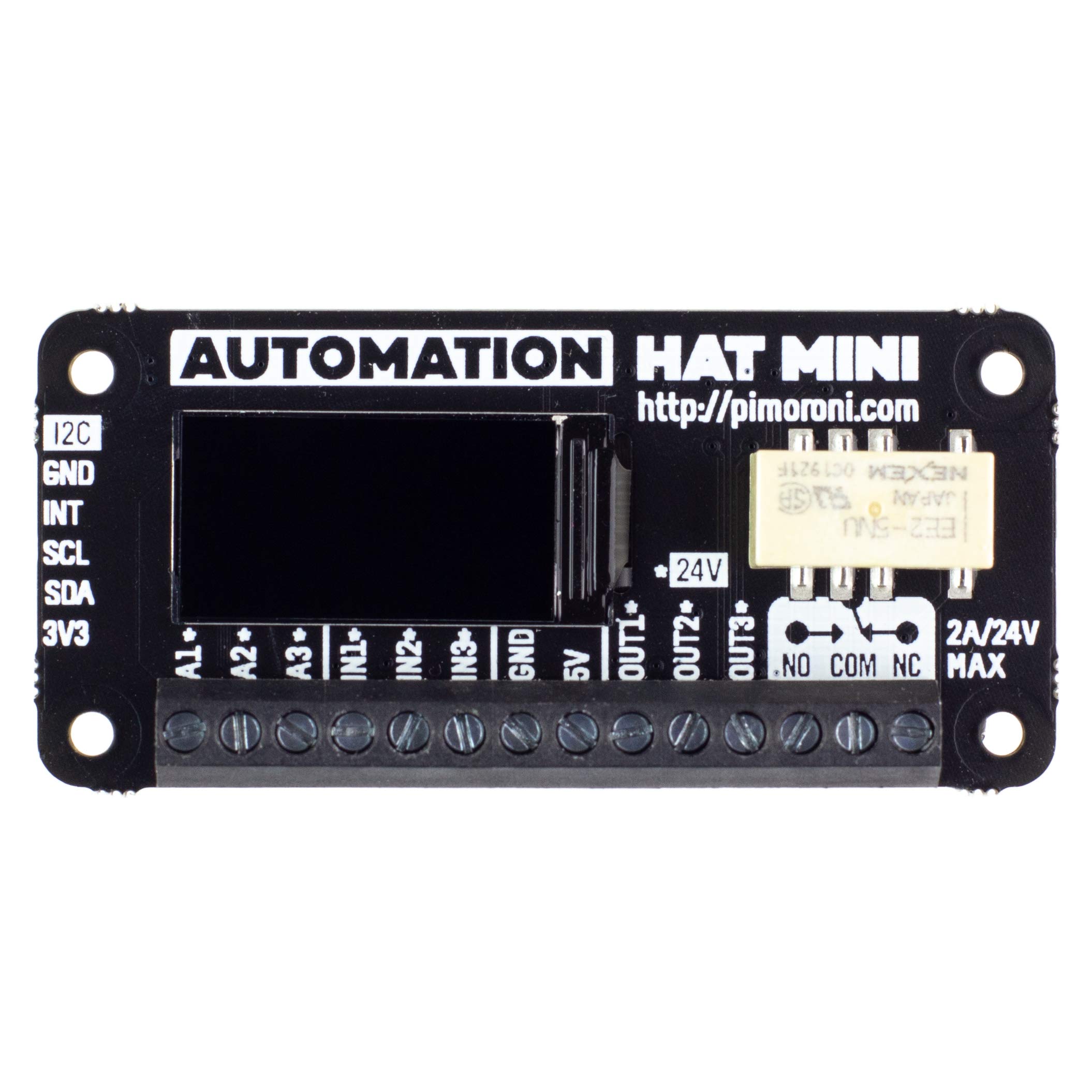

Pimoroni Automation HAT Mini

• Automate your world with Automation HAT Mini!
• Monitor and control up to 24V systems and see their status on the gorgeous full-colour display.
• 0.96" colour LCD (160x80)
• 1 x 24V @ 2A relay (NC and NO terminals), 3 x 12-bit ADC @ 0-24V (ADS1015) (±2% accuracy)
• 3 x 24V tolerant buffered inputs, 3 x 24V tolerant sinking outputs

Don't be fooled by its size... Automation HAT Mini packs a whole bunch of functionality in. It has a relay, 3x buffered inputs 3x outputs, and 3x analog inputs, all 24V-tolerant. Last but not least, it has a beautiful 0.96" full-colour IPS LCD to display the status of your systems. Automation HAT Mini is perfect for home automation projects, giving your greenhouse intelligent sprinklers, for scheduling your fish feeding, or for controlling low-voltage lighting systems. Features 0.96" colour LCD (160x80) 1 x 24V @ 2A relay (NC and NO terminals) 3 x 12-bit ADC @ 0-24V (ADS1015) (±2% accuracy) 3 x 24V tolerant buffered inputs 3 x 24V tolerant sinking outputs 3.5mm screw terminals Pimoroni breakout-compatible pin header Mini HAT-format board Fully-assembled (no soldering required) Compatible with all 40-pin header Raspberry Pi models Python library Automate your world! All of the inputs and outputs, and the relay, on Automation HAT Mini are 24V-tolerant and many low-voltage systems in home devices (and also in cars) run on either 12V or 24V. Automation HAT Mini is a great way to monitor and control them. Use the buffered inputs to sense the on/off state of your devices, or get more granularity with the analog inputs that measure the input voltage with 12-bit accuracy. The sinking outputs can sink a total of 500mA across the three channels. For higher-current loads, you can use the relay that can tolerate up to 2A at 24V, and take advantage of the normally-open or normally-closed sides to give the correct failover state. Notes Loads for the outputs should be switched on the ground side The relay can tolerate up to 2A each and should be switched on the high side The accuracy of the ADC is ±2%. Do not use to switch mains voltages!
