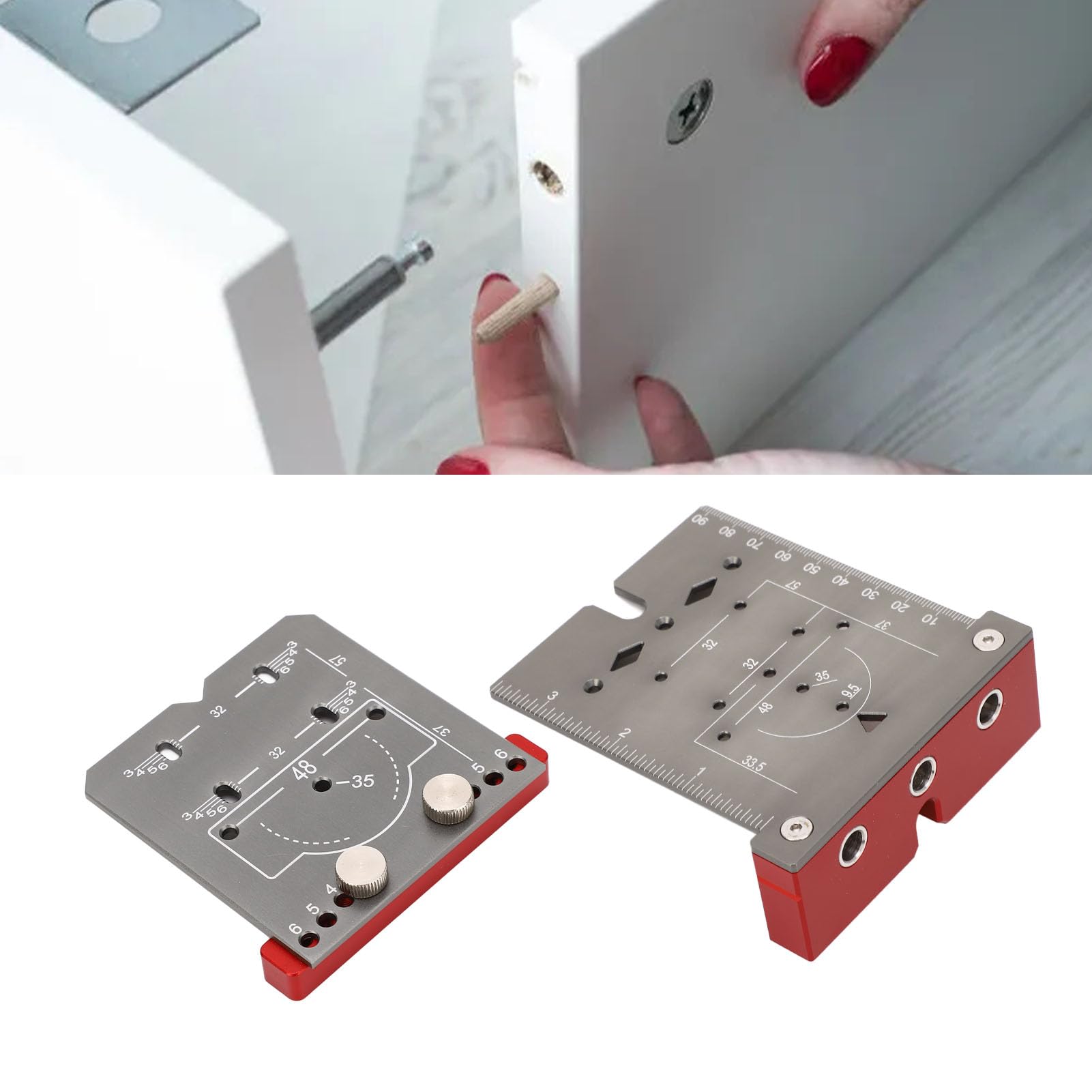

Pilipane Hinge Hole Drilling Locator, Aluminum Alloy Cabinet Door Hinge Mounting Guide Woodworking Hole Drill Locator for Woodworking Drilling(S)

• RELIABLE MATERIAL: The main body is made of aluminum alloy, the surface is sandblasted, the drill bushing is made of stainless steel, which is hard wearing and greatly extends the drilling life.
• MAIN FUNCTION: This hole drill locator is used for common 35mm straight arm and mid bend hinges, greatly improves the mounting efficiency.
• ECCENTRIC WHEEL DESIGN: The hinge hole locater is designed for common 40mm connecting rod, with eccentric wheel hole position design, is moved up 1.5mm, the splicing is closer.
• EASY TO USE: Align the locator with the marking line and place on the cabinet door, cover the red baffle on the edge, use the marking tool to mark the hole center and the two screw holes.
• WIDE USAGE: The hole drill guide is widely used for hinge installation of cabinet, door, window, folding table and other furniture, very practical.

Specification: Item Type: Hinge Hole Drilling Locator Material: Aluminum Alloy Positioning Function: 35mm Straight Arm or Middle Bending Hinge Hole Positioning 32mm Connector Hole Positioning Hinge Cup Edge Distance: 3 4 5 6mm Four Gear Adjustable Drill Bushing Size: Approx. 8mm/0.3in Hole Spacing: Approx. 28mm/1.1in Scale Parameters: English Range: 3-11/16in, Minimum Scale: 1/16in Metric Range: 94mm, Minimum Scale: 1mm Package List:1 x Hinge Hole Drilling Locator
