Pico Audio Pack (Line-Out and Headphone Amp)

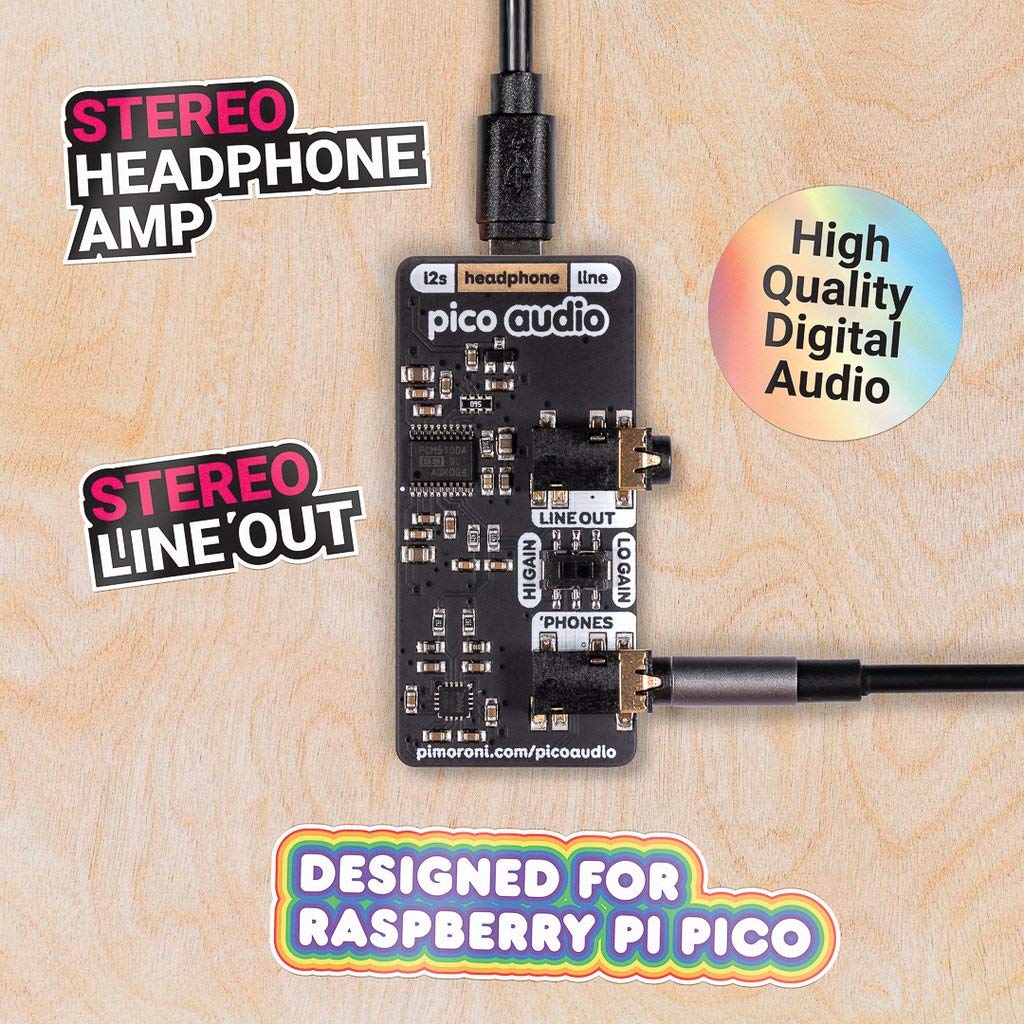

• Make some noise with this high quality stereo I2S audio add-on board for your Raspberry Pi Pico, with amplified headphone AND unamplified line level outputs!
• 3.5mm stereo headphone jack connector
• 3.5mm stereo line out jack connector
• up to 32-bit, 384KHz stereo audio
• Compatible with Raspberry Pi Pico

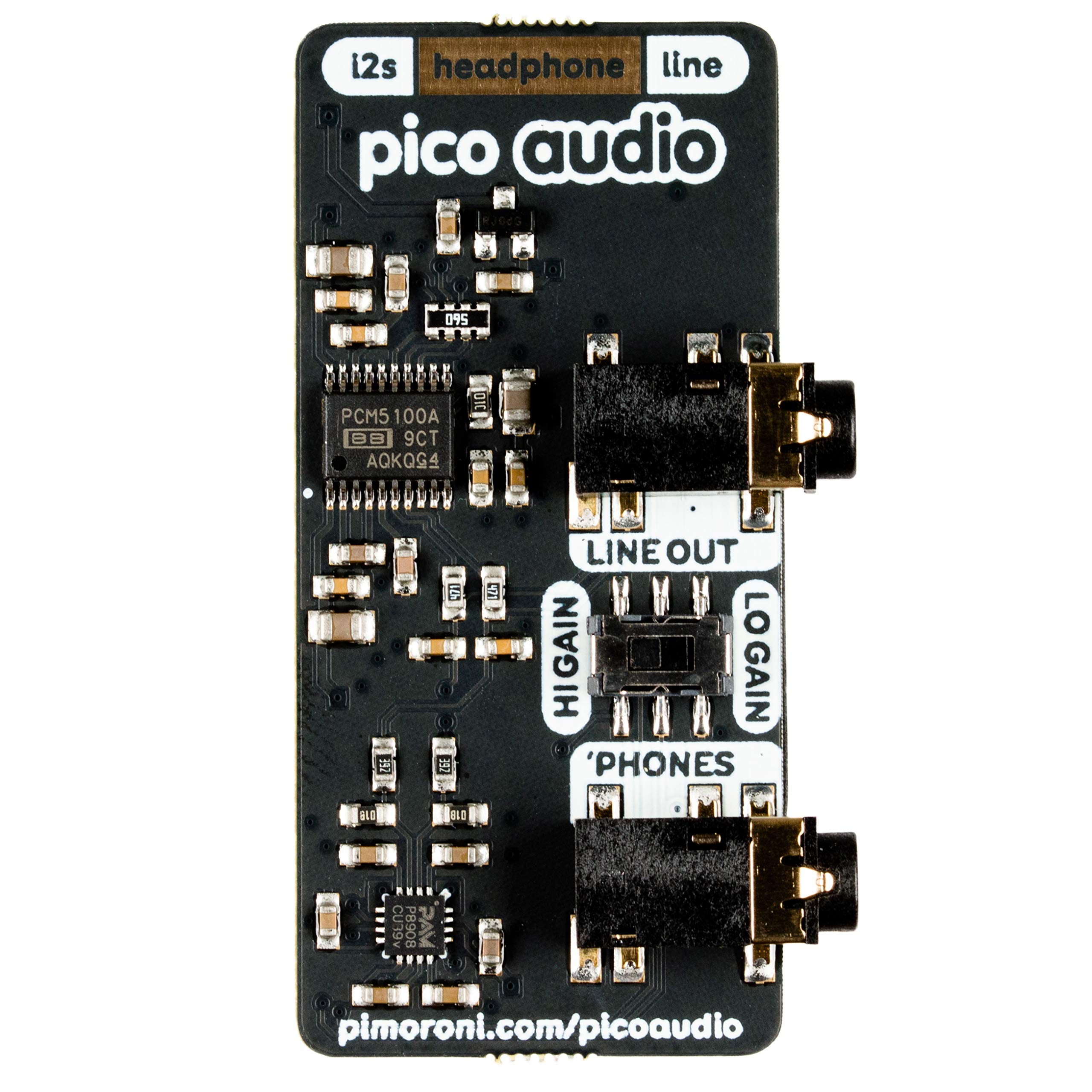

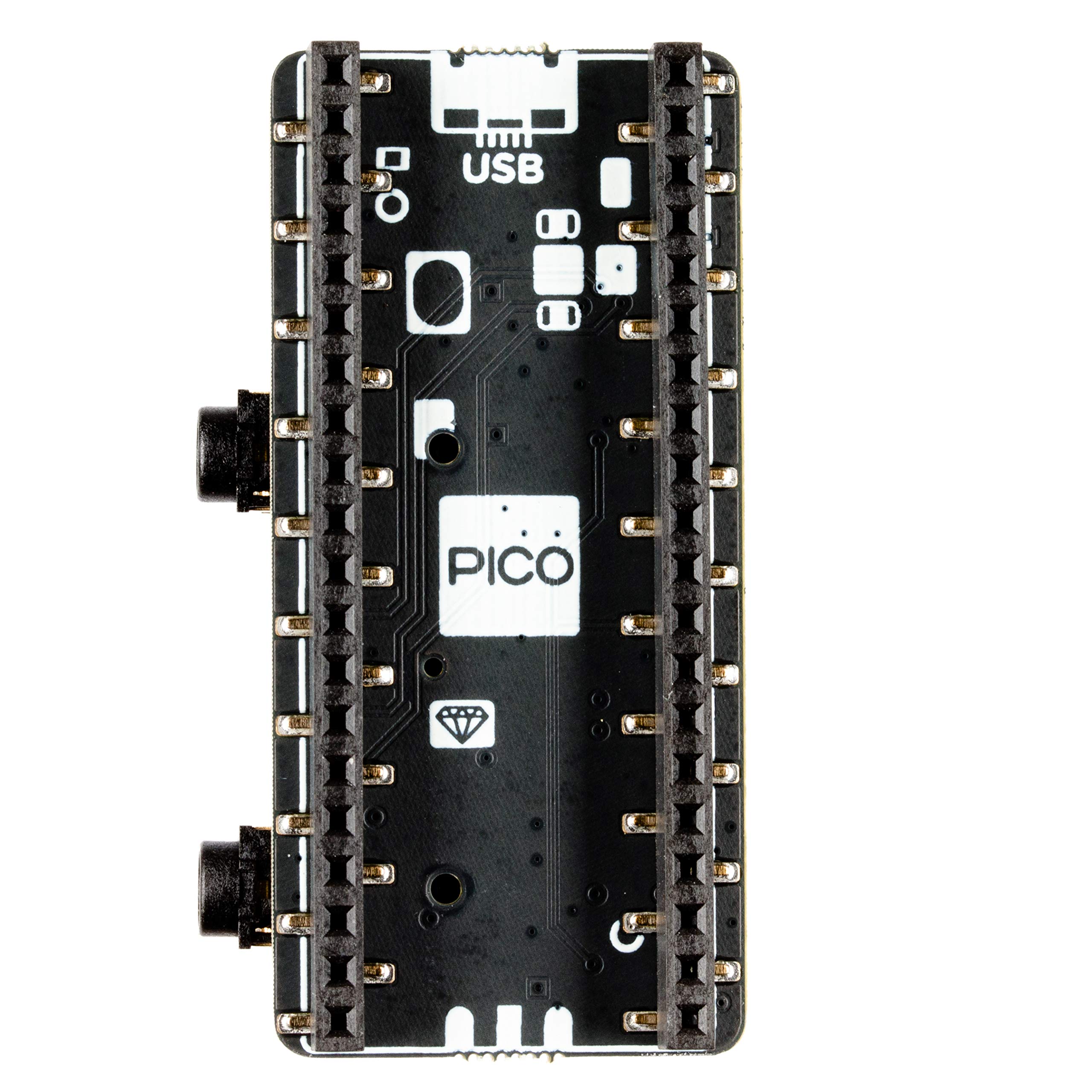

Pico Audio Pack uses its PCM5100A DAC to output up to 32-bit, 384KHz stereo audio along its 3.5mm line out connector, ready for plugging into an external amp or powered speakers. If you're after something a little louder for your ears, it can also pump out amplified stereo audio from its 3.5mm headphone jack. You could generate interesting noises with code on your Pico to output into a lo-fi synth, or hook your Pico up to another device and use it as a custom USB sound card. Please note that Pico Audio Pack only currently works with the C/C++ Pico SDK! We have Micro Python support planned but it is not available yet. A Raspberry Pi Pico is not included Your Pico will need to have male headers soldered to it (with the pins pointing downwards) to attach to our add-on boards. Features PCM5100A stereo DAC PAM8908JER stereo headphone amp 3.5mm stereo headphone jack connector 3.5mm stereo line out jack connector Switch to adjust headphone amp gain (low / high) Pre-soldered female headers for attaching to Pico Compatible with Raspberry Pi Pico Fully assembled No soldering required (as long as your Pico has header pins attached). Programmable with C/C++ The labels on the underside of Pico Audio will show you which way round to plug it into your Pico - just match up the USB port with the markings on the board. Pinout Pico Audio Pack provides a high quality stereo DAC which uses I2S_DATA, I2S_BCK, and I2S_LRCK to recieve audio data. We also offer a MUTE pin which can be used to silence the output. About Raspberry Pi Pico Raspberry Pi Pico is a flexible, low cost microcontroller development board from the folks at Raspberry Pi, based on their very own chip - the RP2040. It's easily programmable over USB with C/C++ or MicroPython
