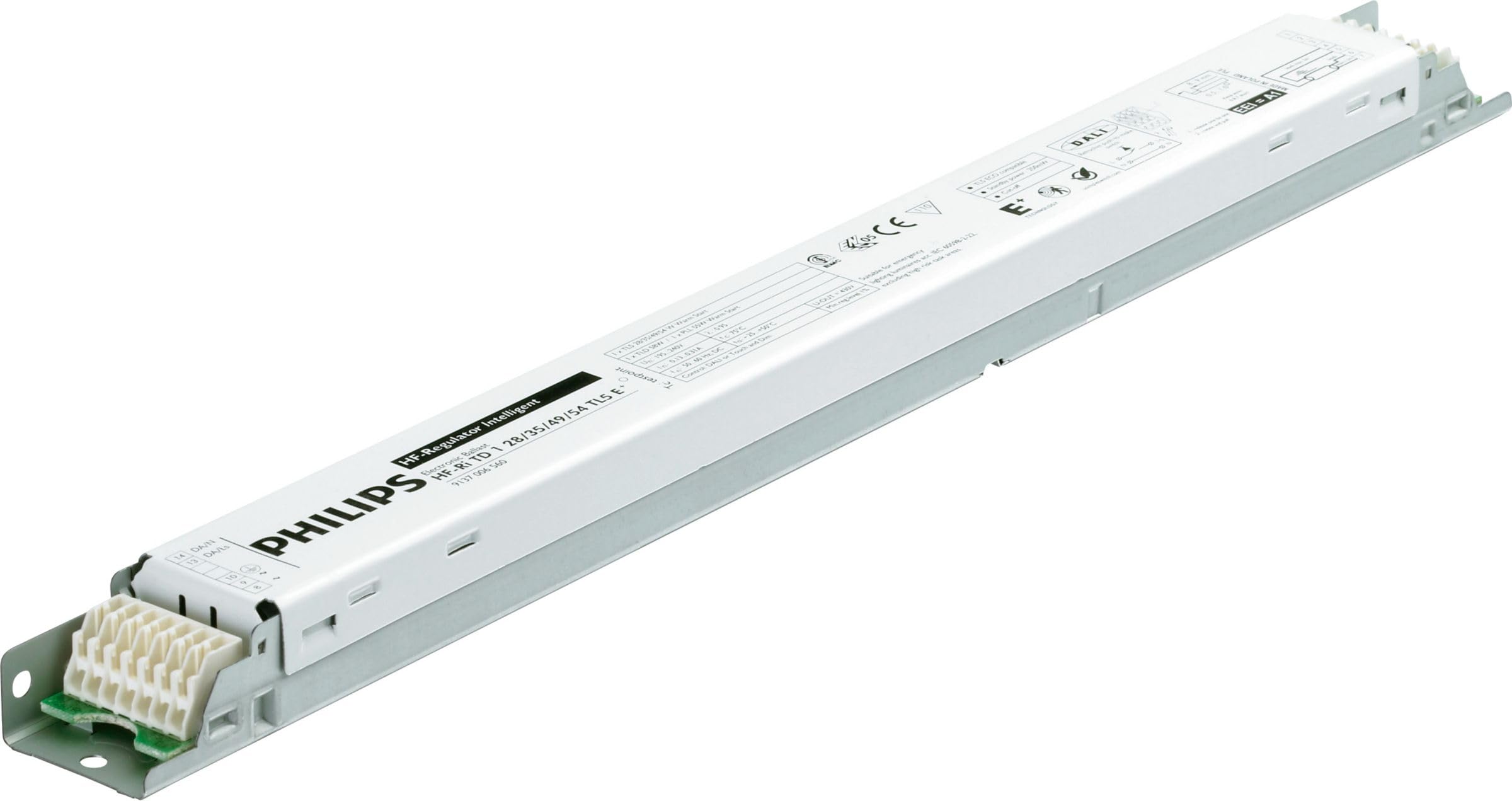

Philips – HF-Ri TD 2 28/35/49/54 TL5 E + 195 – 240 V; 2 x TLD58 W; 2 x PL L55 W. Gen2

• Intelligent high-frequency electronic dimming ballast
• Uses DALI (Digital Addressable Lighting Interface according IEC62386), or Touch and Dim push-button protocol for fluorescent lamps
• HF-Ri TD 2 28/35/49/54 TL5 E + 195 – 240 V; 2 x TLD58 W; 2 x PL L55 W. Gen2

Philips electronic ballast with dimmable touch and Dali control Uses: Use as ballast for the following lamps: Fluorescent lamp T5 with 16 mm diameter; Set of 2 with 25 watt or 28 watt or 32 watt or 35 watt or 45 watt or 49 Watt or 54 Watt Such As: TL5/LUMILUX T5/T5 LUXLINE Fluorescent T8 with 26 mm diameter: – 2 Inch pieces with 58 Watt T8 fluorescent lamp, e.g. TL-D/LUMILUX/T8 LUXLINE Pack of 2) Compact Fluorescent Light (CFL) TC – L with 55 watts (e.g.: PL-L, Dulux/L strip – L, Lynx – L) Features: – Dimmable 1 to 100% – Digital controlled by Dali Interface in accordance with industry standard – Touch Control with the corresponding button Müglich – Flicker free instant full light – protected against mains surges and incorrect wiring – Automatic safety shutdown with Defective lamps – Suitable for installation with emergency lighting in accordance VDE0108 – Automatic warm start for the gentle illumination and prolong the lamp life Dimensions (L x W x H): Width: 30 mm Height: 22 mm Length: 360 mm
