PHASENKOPPLER F R POWERLINE PRODUKTE

• Connects all 3 internal network phases capacitively
• Transfer rates up to 650 Mbit for internet or computer networking
• If the signal is only fed in 1 phase, the phase coupler connects every 3 phases
• Also suitable for wireless intercoms

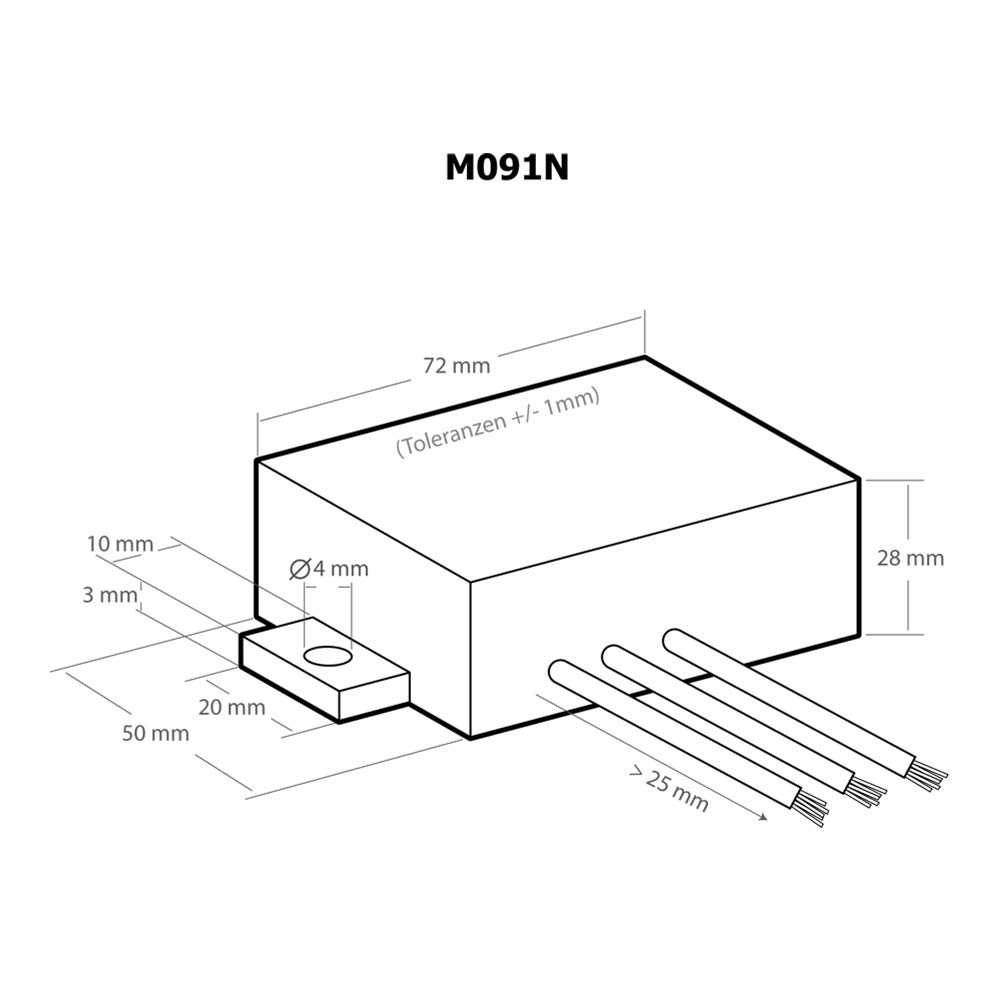

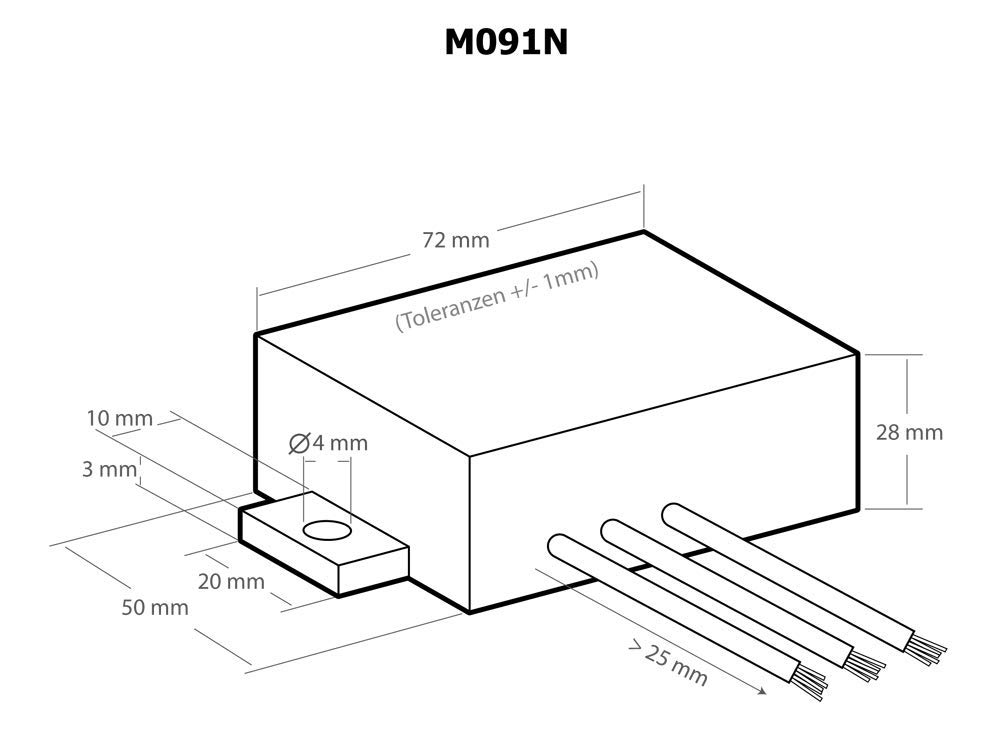

• Dimensions: approx. 72 x 50 x 28 mm (without mounting straps)

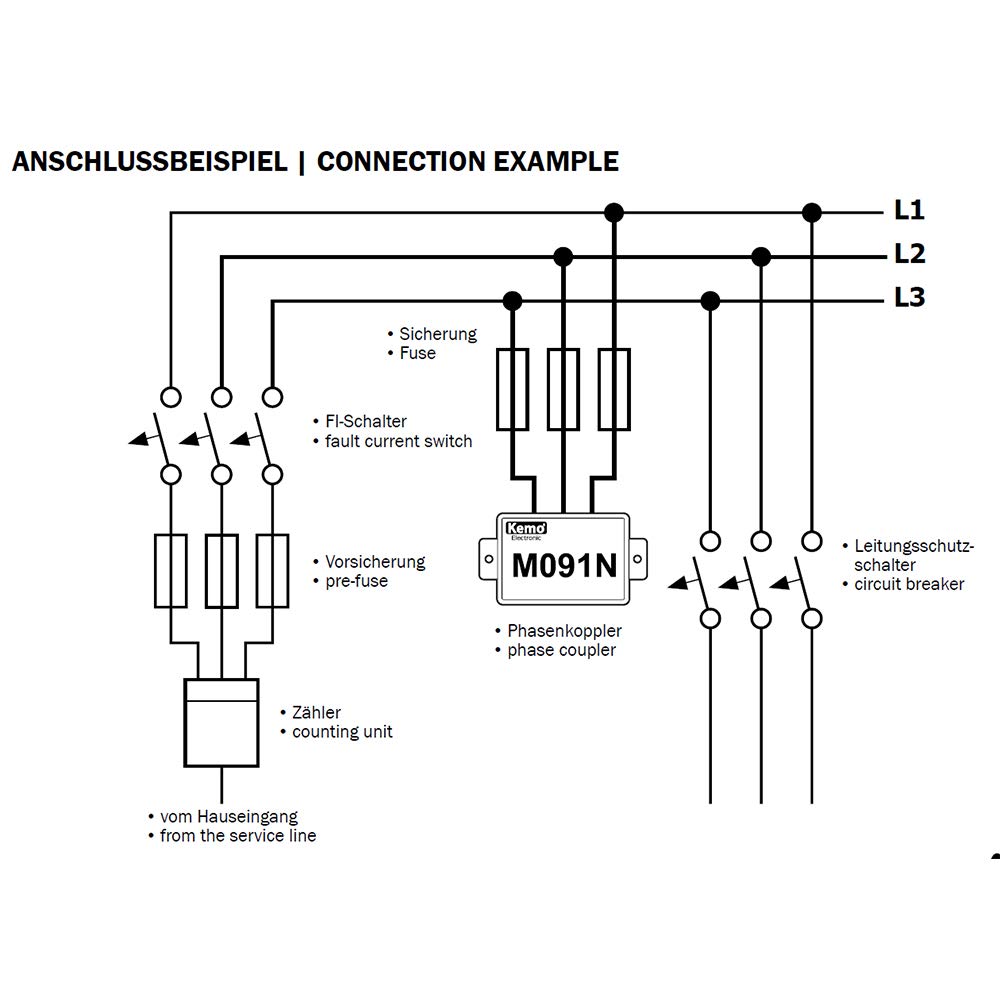

Connects all 3 in-house network phases capacitive to each other, so that transmission rates up to 650 Mbit are possible via the mains for internet or computer networking (depending on the condition of the power network) M091N. If the signal is only fed in 1 phase, the phase coupler connects all 3 phases to each other, so that they are permeable to the power line signal, and the internet or computer signal is also available on all other sockets on the home network. Also suitable for wireless intercoms. A significant increase in range and transmission quality can be achieved. For power networks: 110 - 440 V/AC. 3-phase version: 0.5 - 100 MHz. For Powerline products: 10-650 Mbit. Dimensions: approx. 72 x 50 x 28 mm (without mounting straps). Installation only by an authorised electric professional.
