PetrolScooter Garden Multitool Gasket Set For 49cc - 55cc Two Stroke Engine T-Mech True Shopping Compatible With Tomking Hyundai Parker

• Gasket Set for 49cc - 55cc 2 stroke pullstart Multitool engines
• Set includes gaskets for the crankcase, exhaust, both sides of the inlet manifold, carburettor and cylinder head
• Fits many of the 2 stroke hand held Multitool engines used to power the 5 piece attachment kits
• This kit fits a variety of Chinese made UK branded models listed below
• A Petrolscooter manufactured and branded part

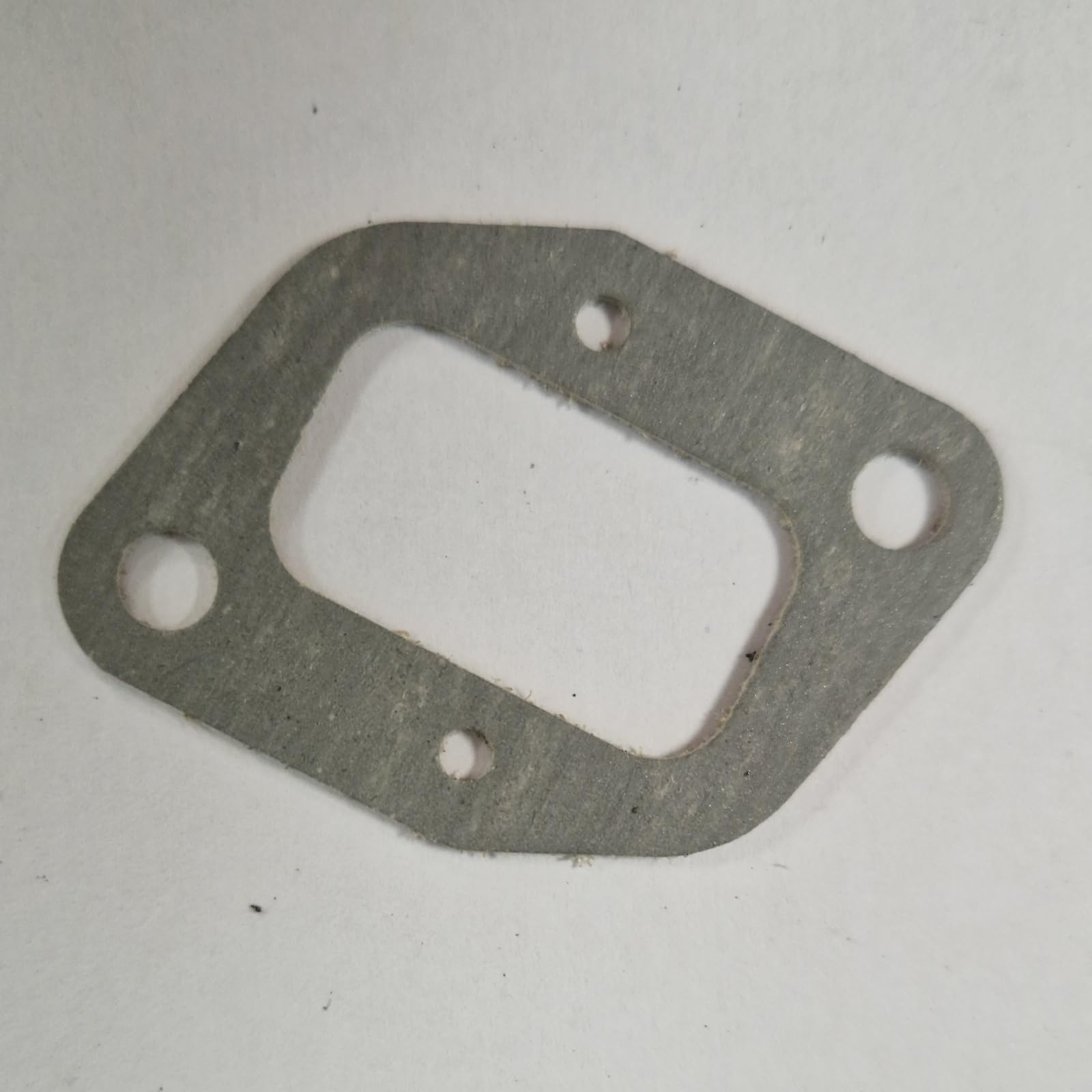

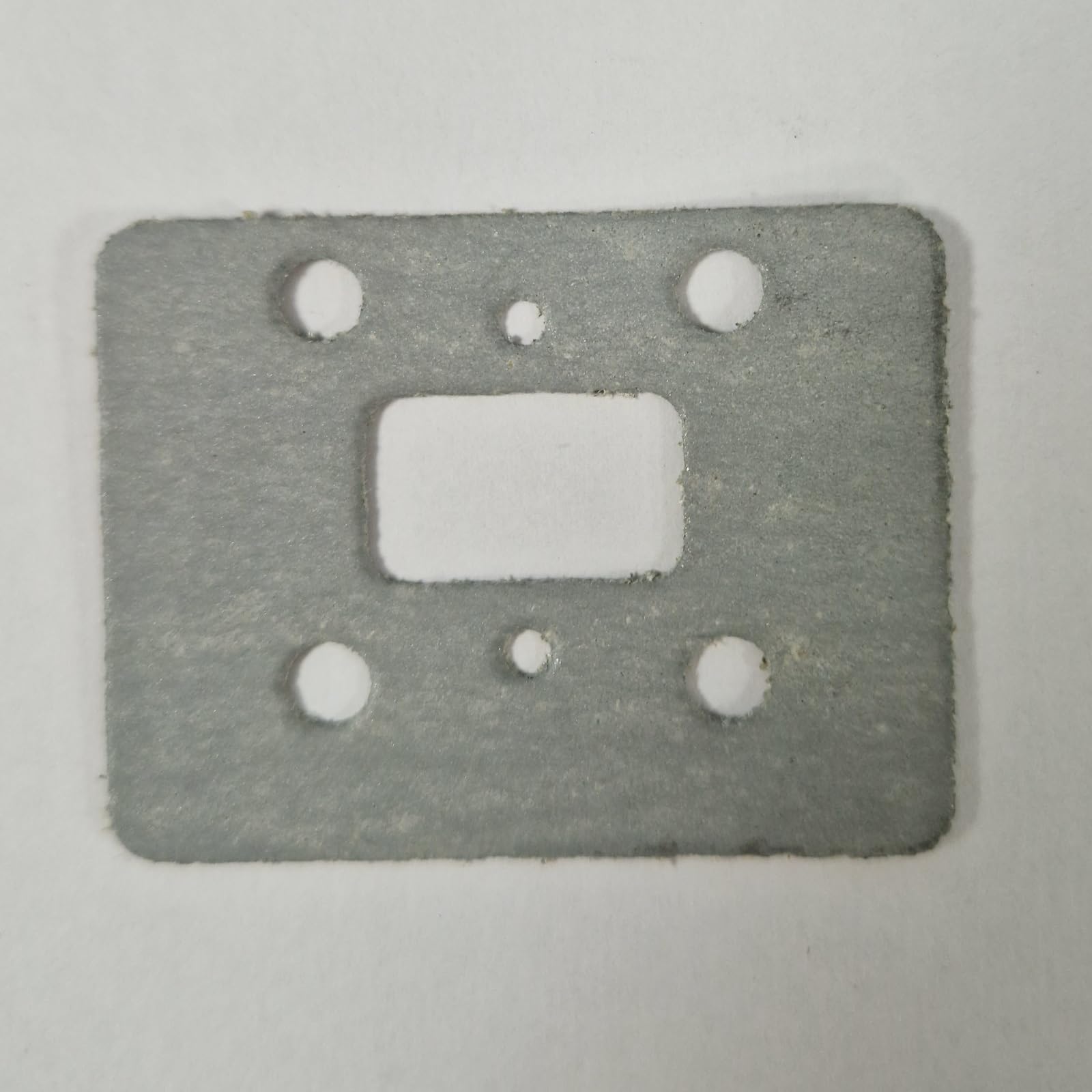

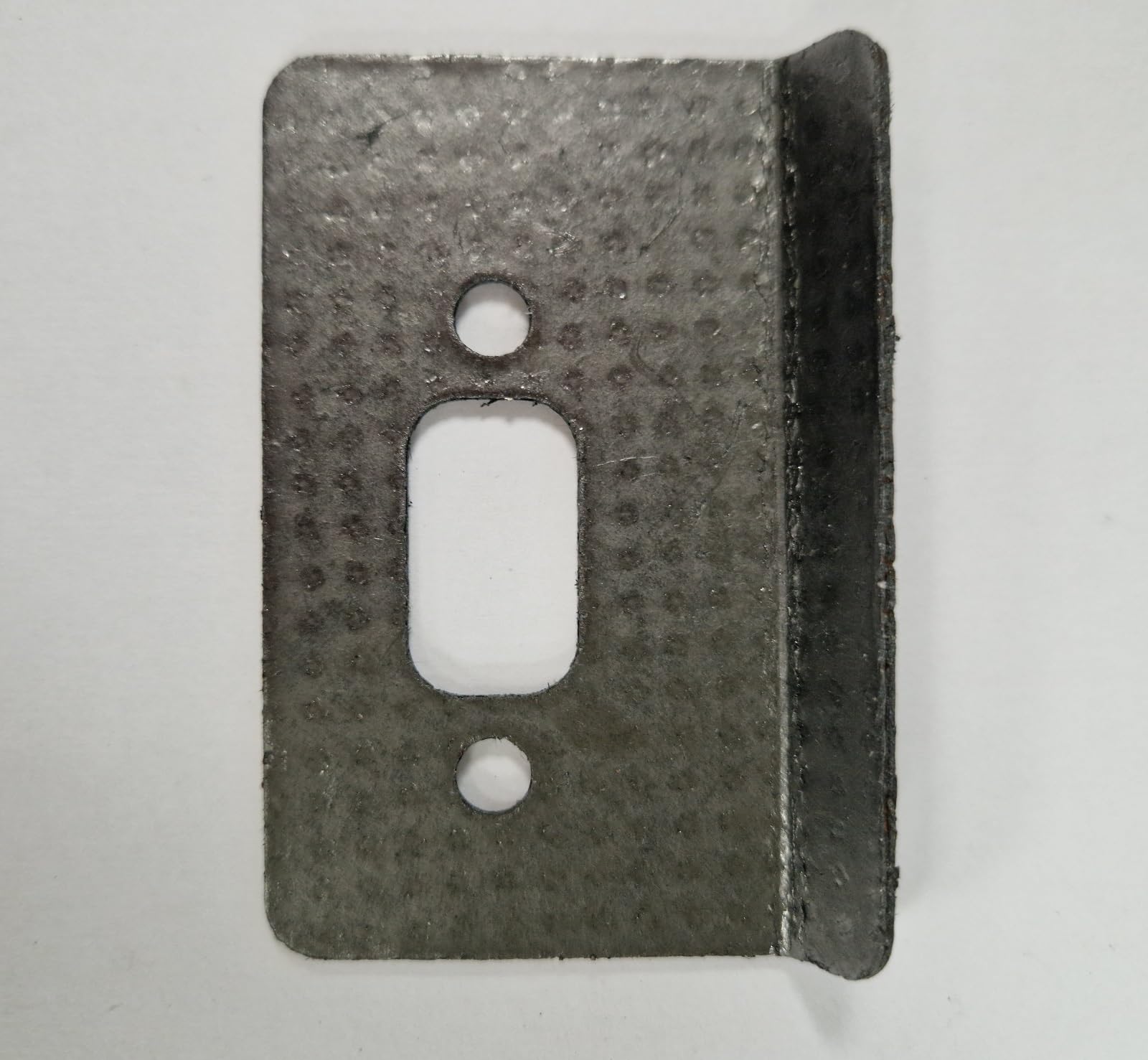

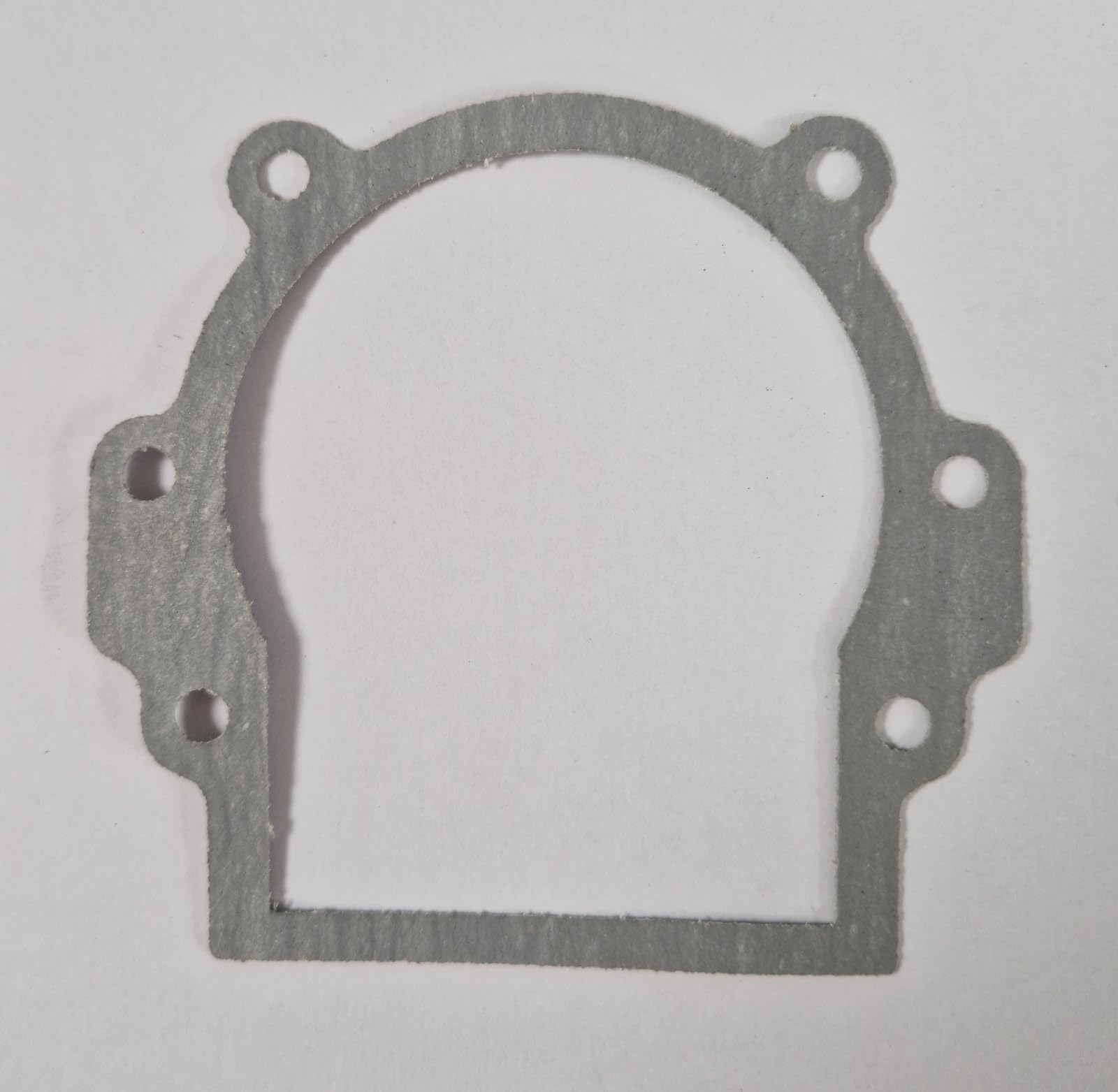

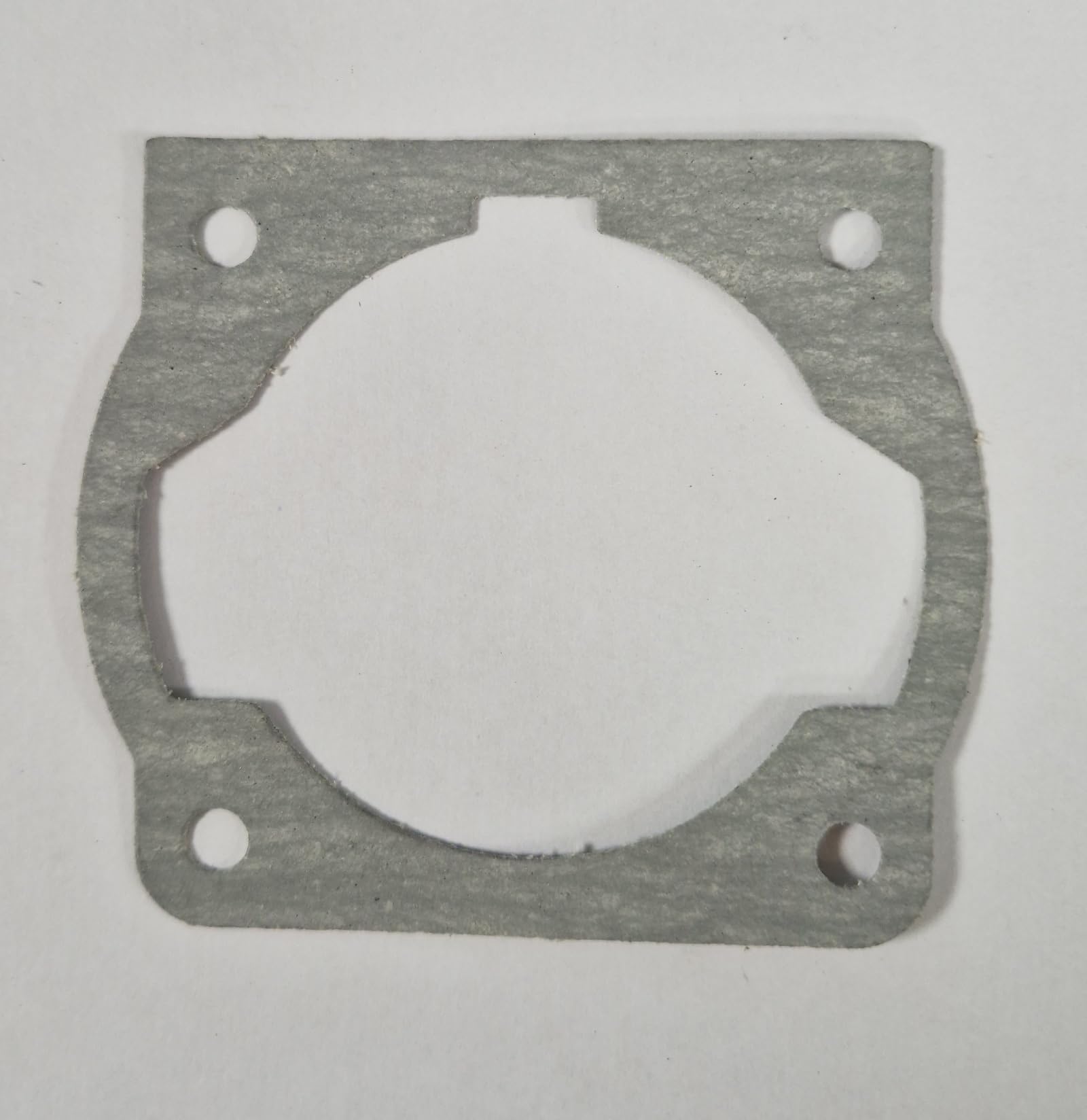

Number of Gaskets in Set: 5 Top Left Gasket: Overall Length: 80mm Overall Width: 85mm Distance Between Fixing Holes Top (Centre of Eye to Centre of Eye): 50mm Distance Between Fixing Holes Middle (Centre of Eye to Centre of Eye): 74.5mm Distance Between Fixing Holes Bottom (Centre of Eye to Centre of Eye): 65mm Bottom Left Gasket: Overall Length: 72.5mm Overall Width: 63mm Diameter of Central Hole (Greatest): 63mm Diameter of Central Hole (Smallest): 50mm Distance Between Fixing Holes Shortest (Centre of Eye to Centre of Eye): 48mm Distance Between Fixing Holes Diagonally (Centre of Eye to Centre of Eye): 70mm Top Right Gasket: Overall Length: 79.4mm Overall Width: 51.5mm Length of Central Hole: 26mm Width of Central Hole: 15mm Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 40mm Bottom Right Gasket: Overall Length: 50mm Overall Width: 38.6mm Length of Central Hole: 19mm Width of Central Hole: 11.2mm Middle Gasket: Overall Length:49mm Overall Width: 32.5mm Distance Between Fixing Holes (Centre of Eye to Centre of Eye): 38mm
