PENGLIN 2PCS USB3.0 IP67 Waterproof Connector Industrial Standard Double Head Adapter Female to Female Plug Panel Mount with Waterproof/Dust Cap for Digital Automobiles Electronic Equipment

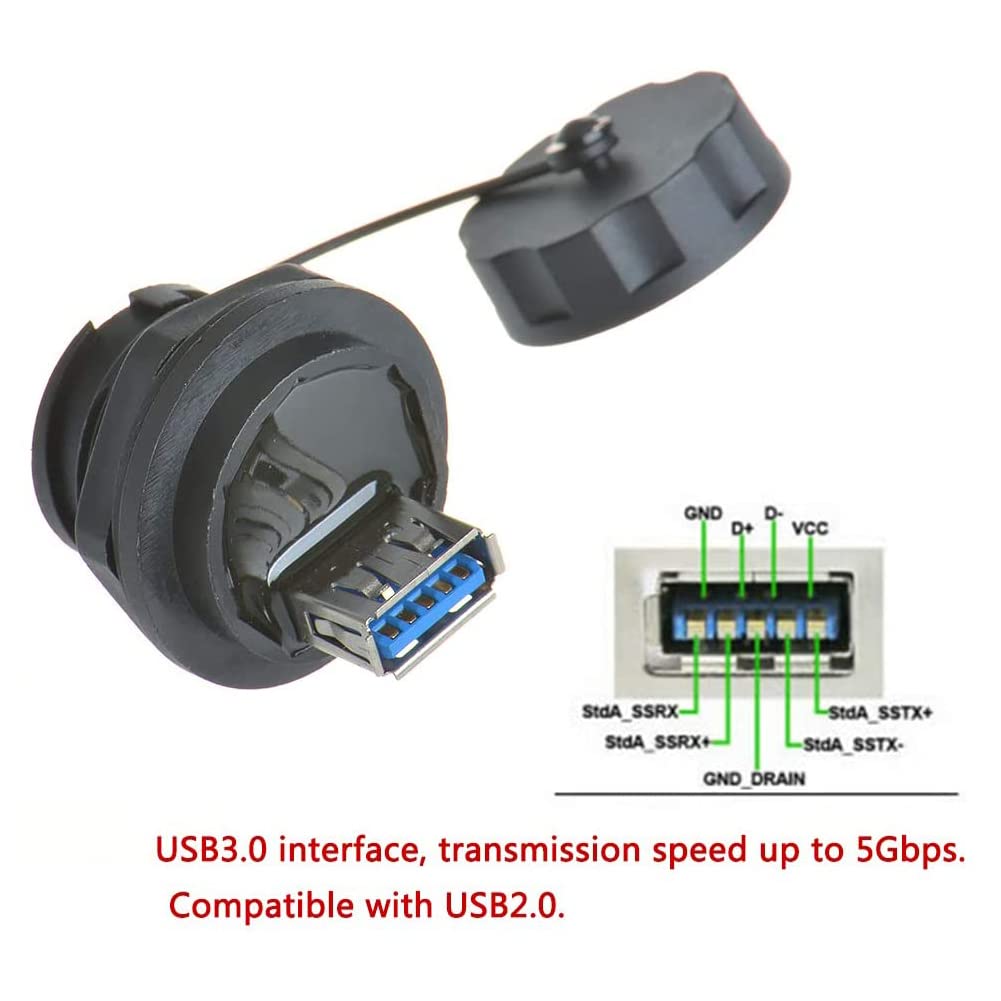

• Independent USB3.0 socket design, transmission speed is up to 5.0Gbps. Compatible with USB2.0.

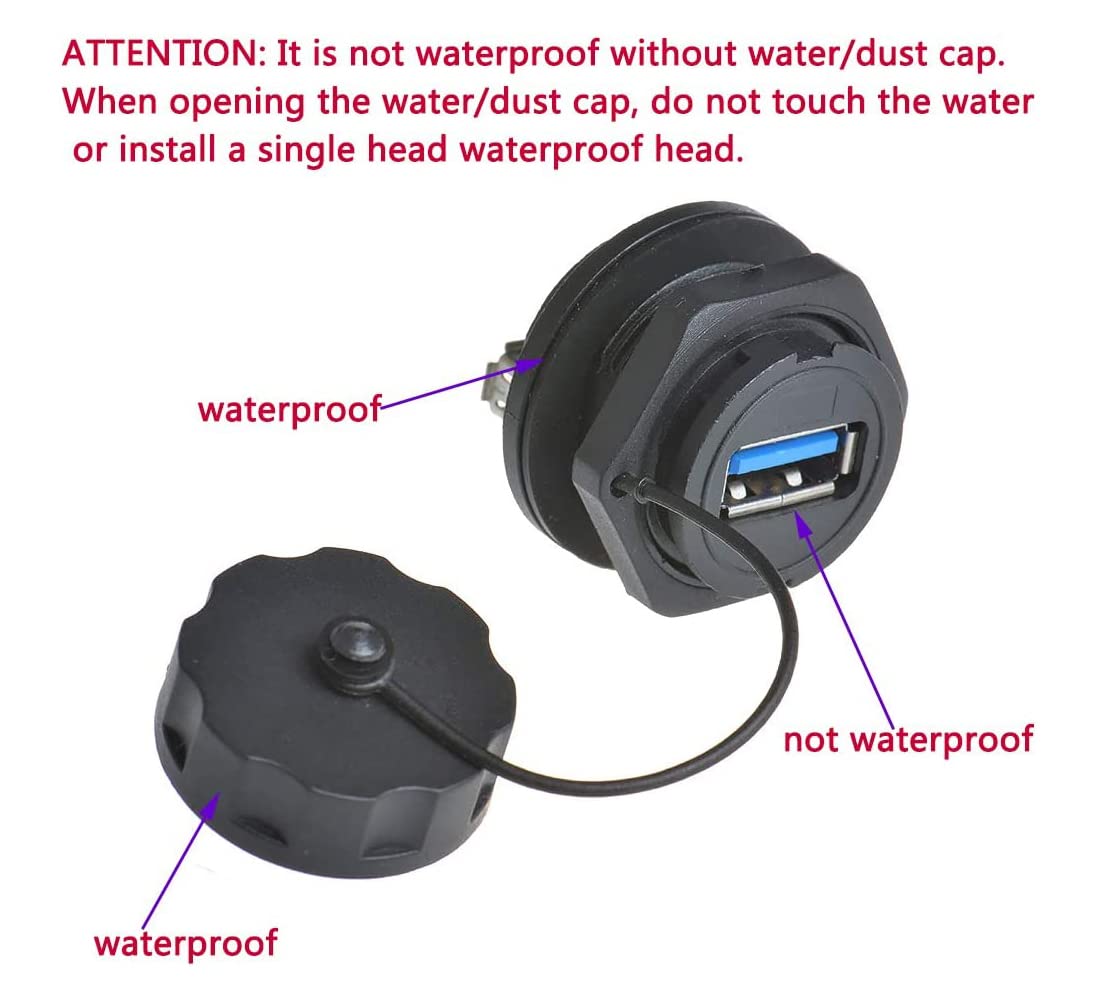

• The shielded industrial panel mount bulkhead includes a water/dust cap, that with characters of fire safety, compression, anti-explosion and anti-deformation, meets IP67 Water Protection. It is not waterproof without water/dust cap.

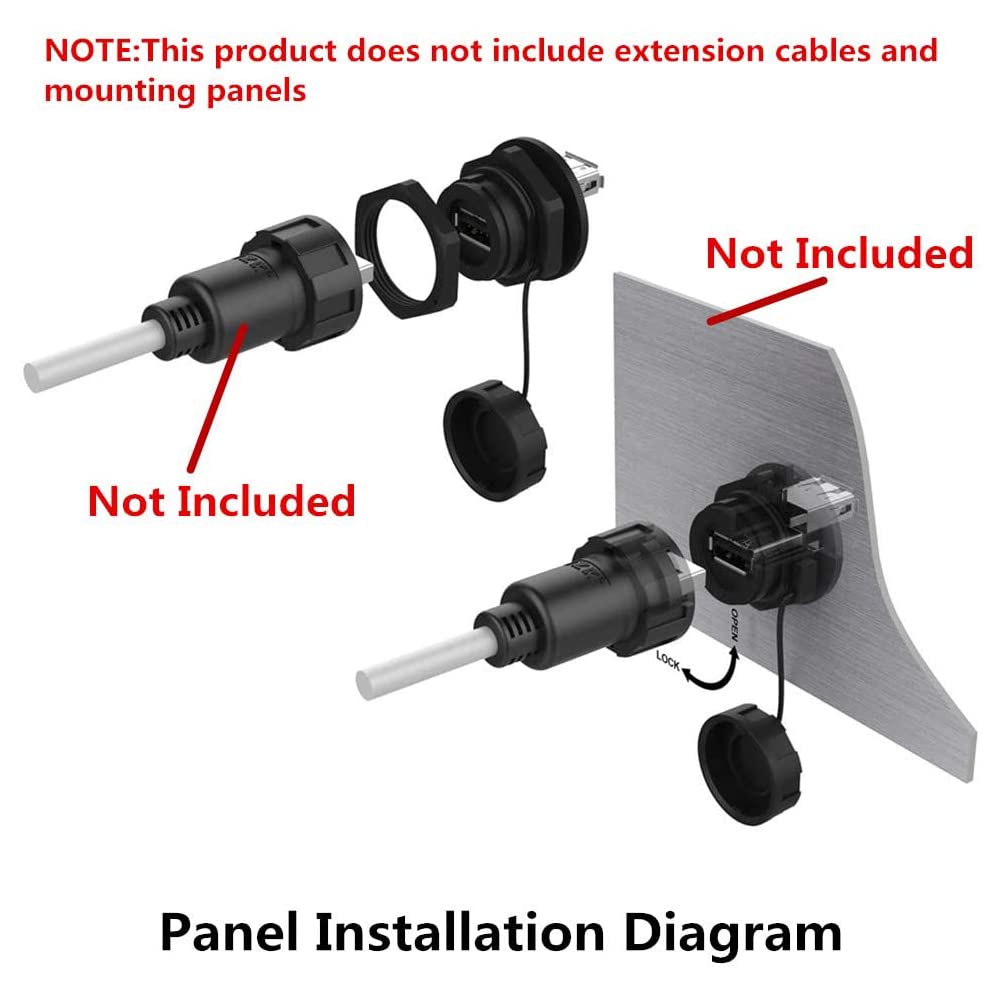

• EASY INSTALLATION:No soldering, no installation tools, just plug the standard USB head directly for quick installation.
• Solid connections system can provide the solutions for data transmission in harsh environments.

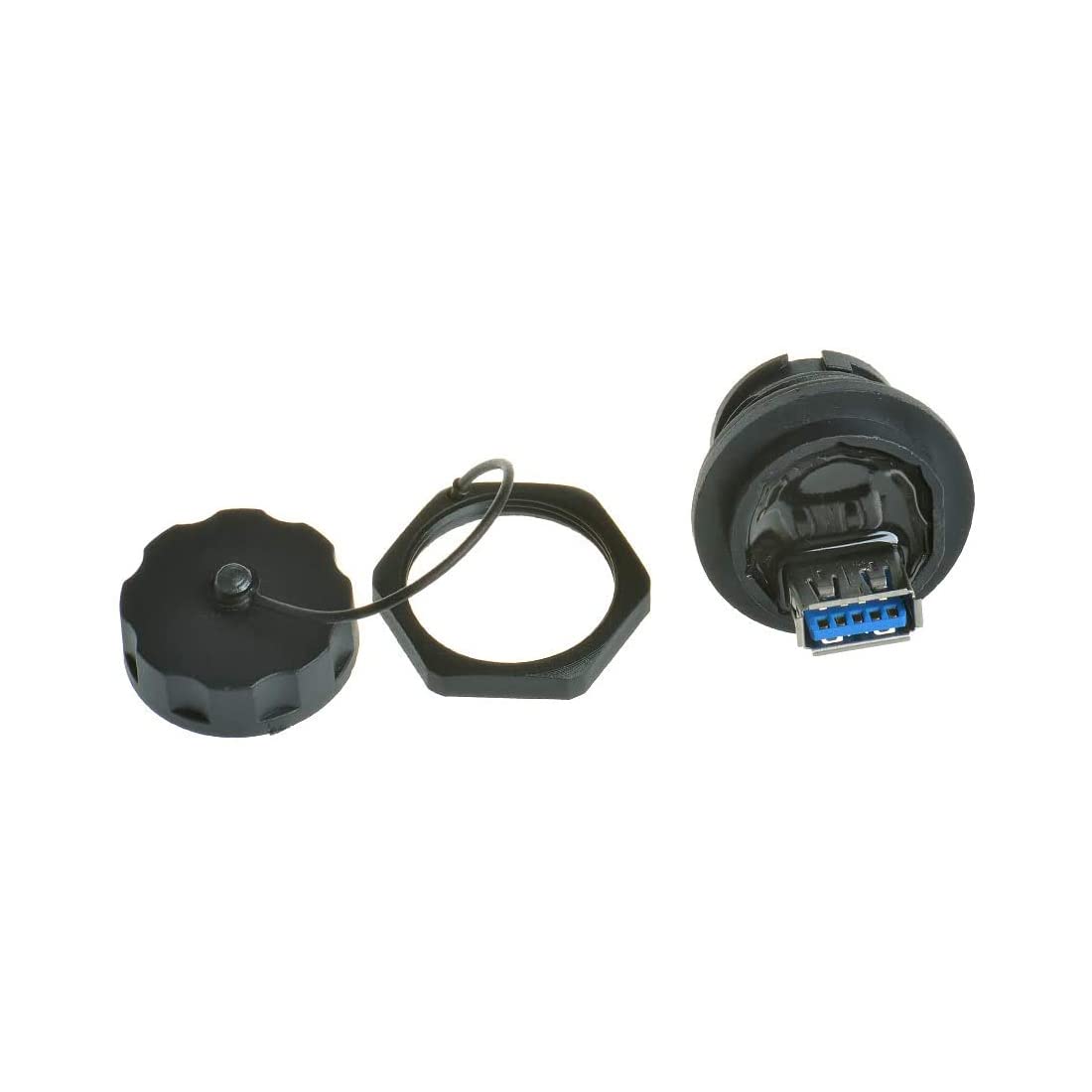

• The bulkhead comes with o-rings to ensure that water does not penetrate from the outside.

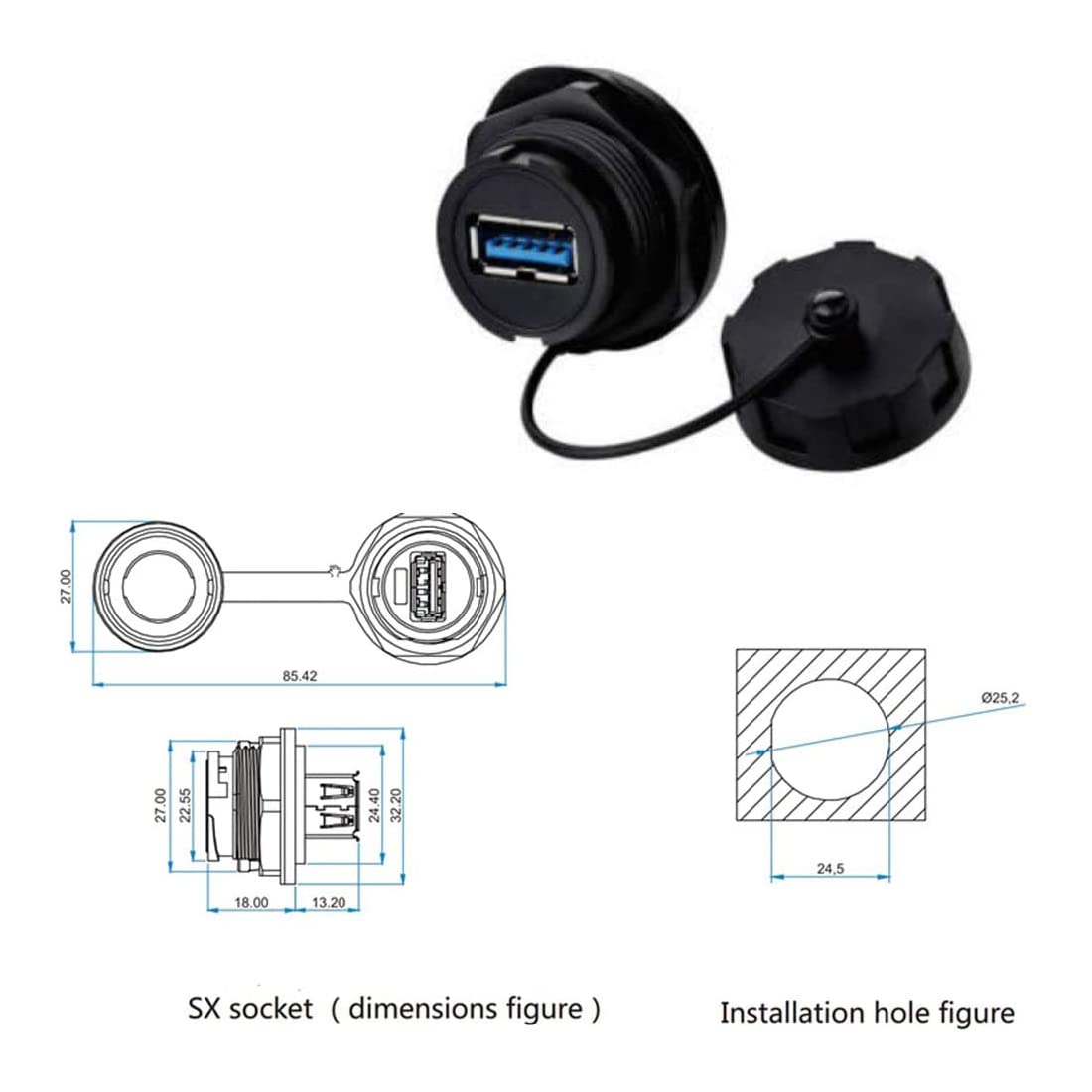

Technical Specifications: Ingress Protection: IP67 Core: 9 Rated Current: 1.5A Working Voltage: 30V Contact Resistance: less than 30mΩ Hole Size:25.2mm Cable Specification: 0.15mm²~0.2mm²/26-24 AWG Diameter Range: φ5.5mm~φ7mm Withstand Voltage (AC.V) 1 minute: 1000V dc Working Temperature: -40 Celsius ~ 80 Celsius Waterproof ring: silica gel Insulation Resistance: more than 500MΩ Connection: quickly bayonet connection Shell, Insulation parts: high performance engineering plastics Flame Retardance: UL94-V0 Package includes: 2 x USB3.0 IP67 Waterproof Connector
