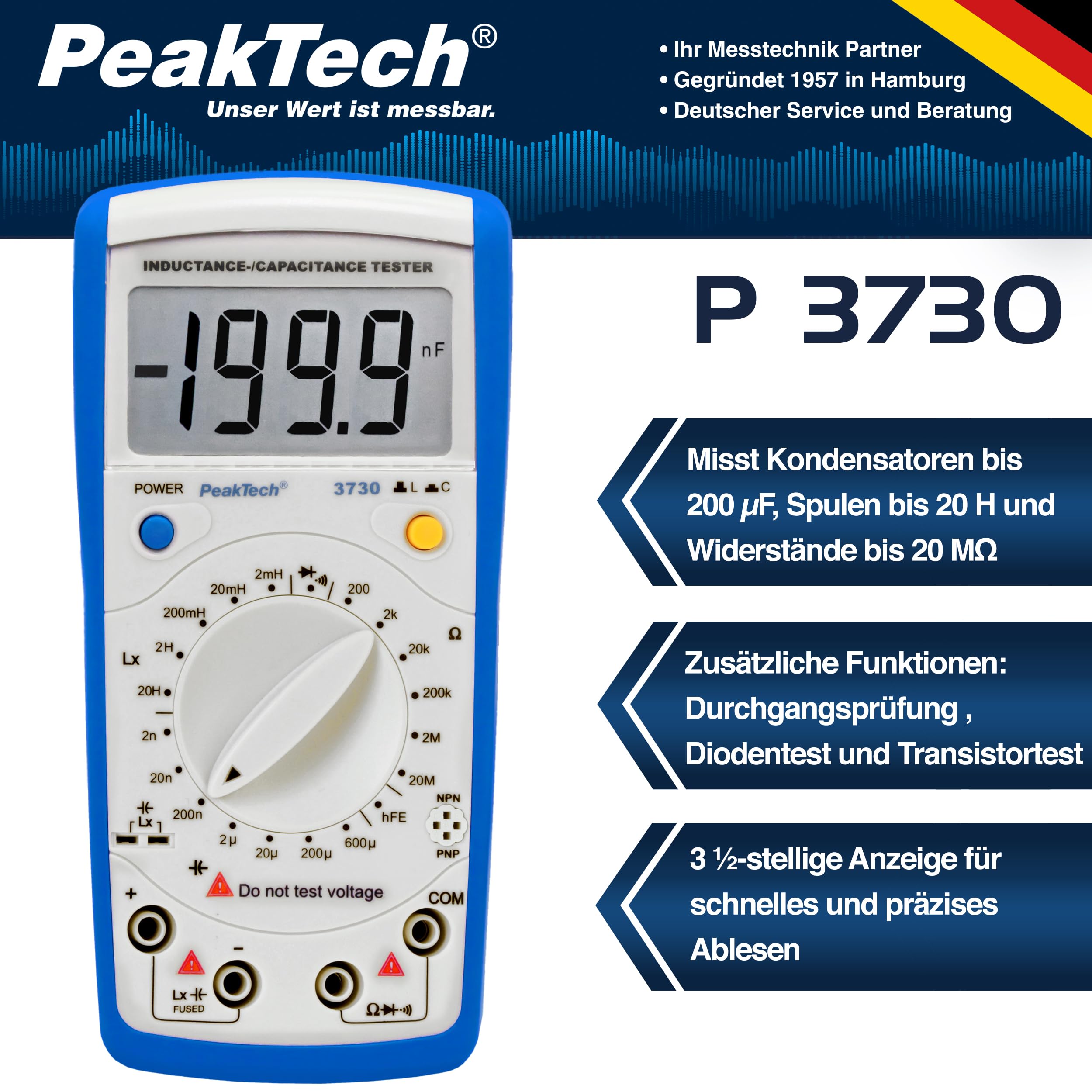

PeakTech LCR Meter, Max. 200 µF / 20 H / 20 Mohm, 1 Unit, P 3730

• Practical device for quick component testing.

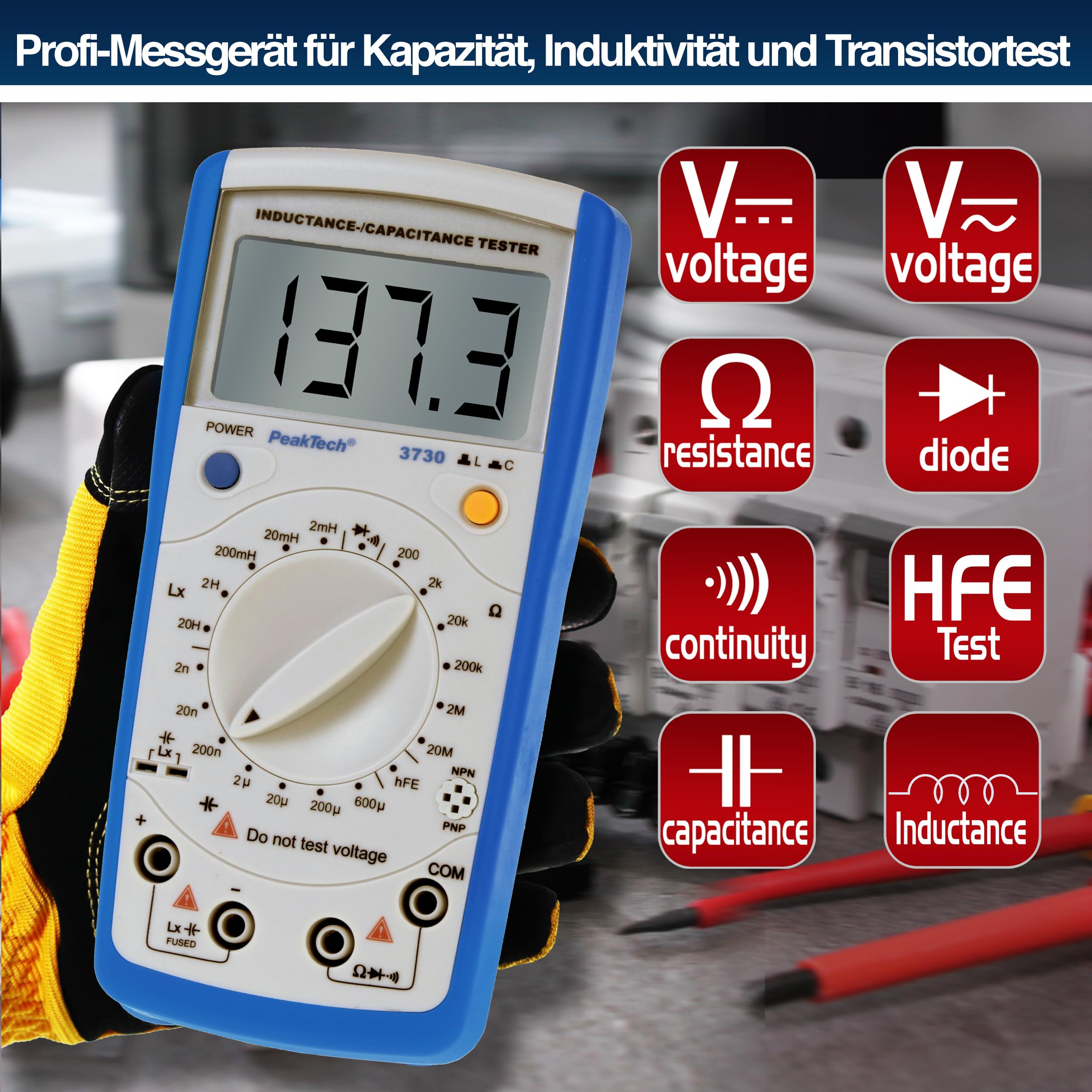

• Inductance, capacitance and resistance measurement.
• Quick continuity test.
• HFE test and diode test.
• Safety: EN 61010-1; CAT II.

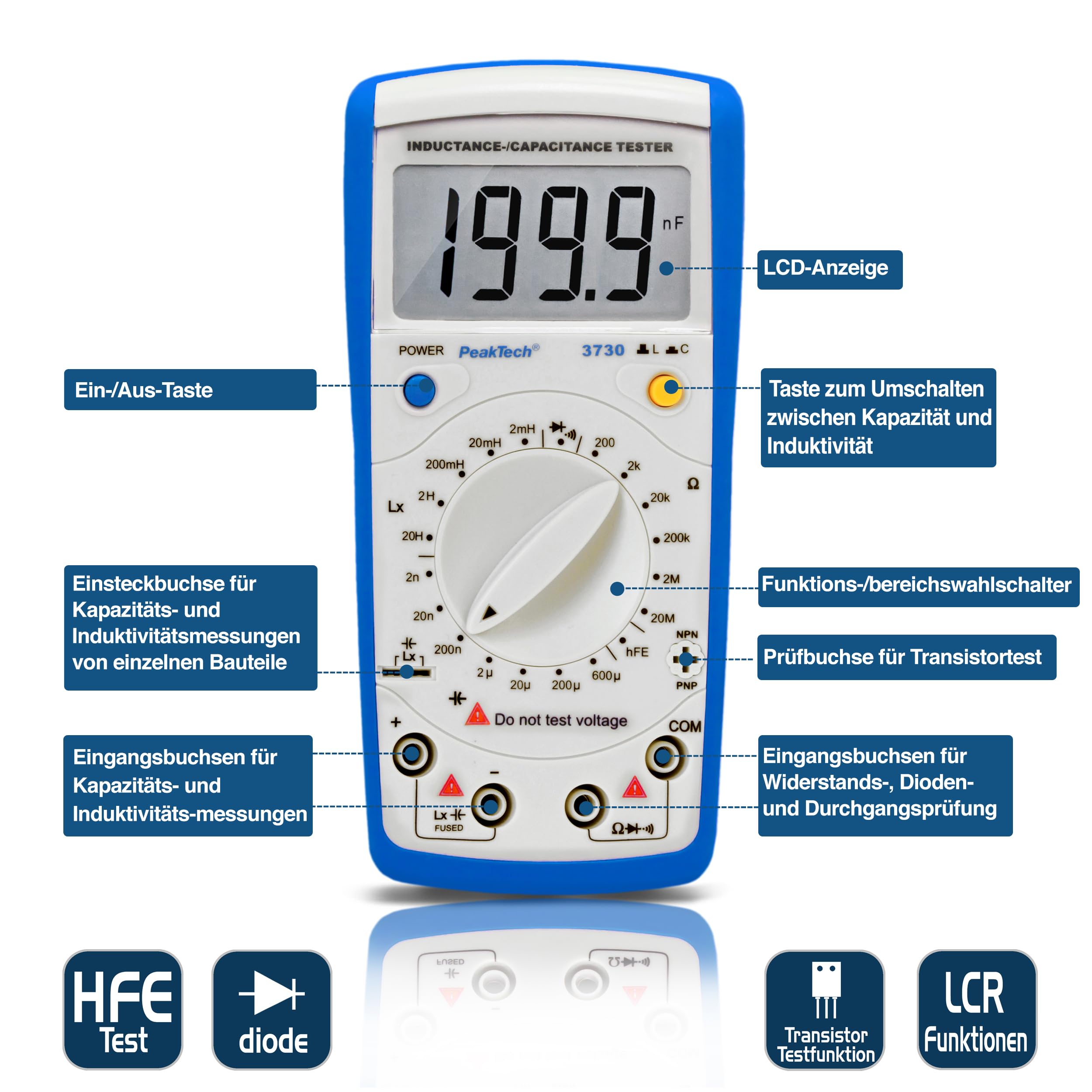

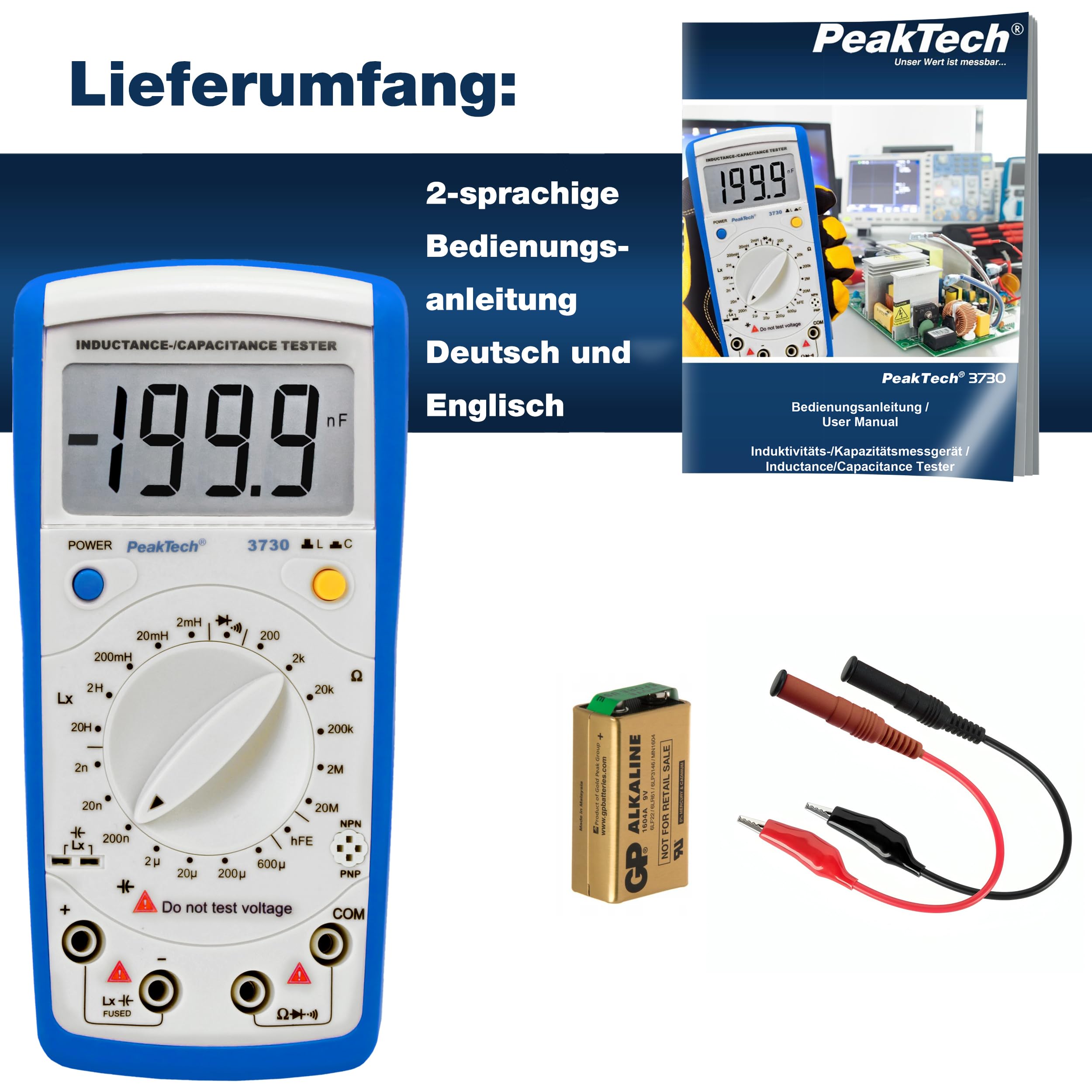

A new and interesting combination in a modern design, for testing capacitors in the areas of 2 nF. 200 microF, coils of 2 mH - 20 H and resistors of 200 Ω. 20 MΩ. The 3 x 12-digit, 21 mm LCD display (max 1,999) allows you to read the values quickly and accurately and also has a diode, continuity test and transistor test function. The capacitors to be measured can be plugged directly into the clamping socket or connected to the supplied test leads. Features: hFE test function, diode and fast continuity test, battery status indicator. Safety: EN 61010-1 CAT II. Accessories: Holster, tests, battery and operating instructions (English language not guaranteed). Specifications: Capacity 0...2/20/200nF/2/20/200 microF accuracy 1.0% + 5 digits resolution 1pF. Inductive 0...2/20/200 mH/2/20 H accuracy 2.0% + 8 pieces. Resolution 1 microH. Resistance 0...200 Ω/2/20/200 kΩ/2/20 MΩ Accuracy 0.8% + 1 Digit Resolution 0.1 Ω. Measurement sequence: 2-3 measurements per second.
