PeakTech 1670 - Digital Clamp Meter with True RMS and Bluetooth 4.0, 1000A AC/DC, LED Lighting, 50.000 Counts, Multimeter, Current Measurement, TÜV/GS, Voltmeter, Ammeter, Data Hold, LCD Display

• PROFESSIONAL DEVICE: The P 1670 clamp meter from PeakTech measures up to 1000 A AC / DC and it is suitable for industrial sector. The device also has an LLED flashlight for measured field lighting.

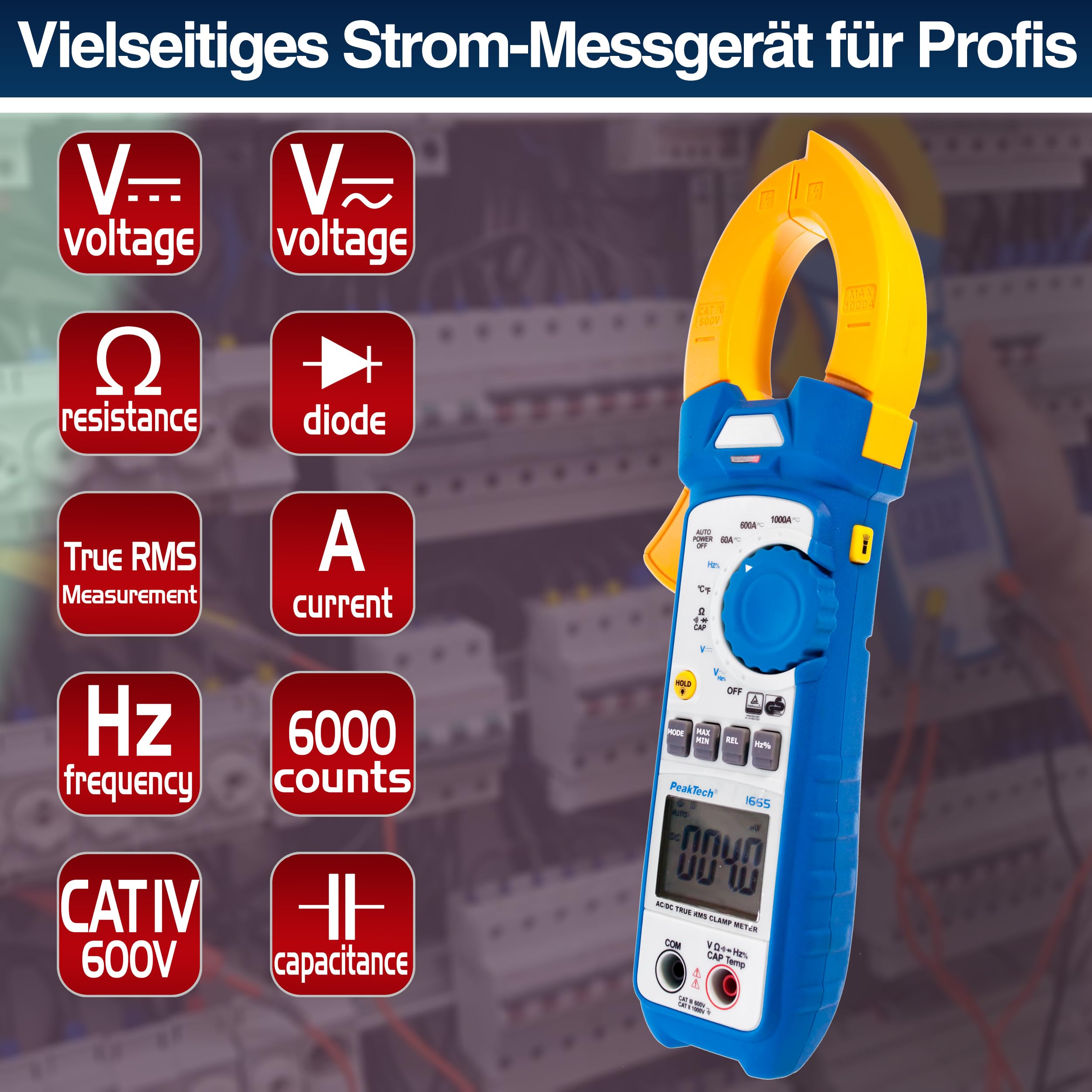

• MEASURING FUNCTION: The device allows AC/ DC voltage and current measurements up tp 1000 V, as well as resistance, frequency, capacitance and temperature measurements and diode and continuity tests
• TRUE RMS & DATA-HOLD: True RMS measures RMS values ​​of AC voltages in other time profiles. The DATA HOLD function enables the measured value to be frozen and called up later on the LCD display
• FEATURES: The P 1670 has additional features such as ability to determine two temperatures at the same time, the direct current measurement in µA range, and the Bluetooth interface for recording data

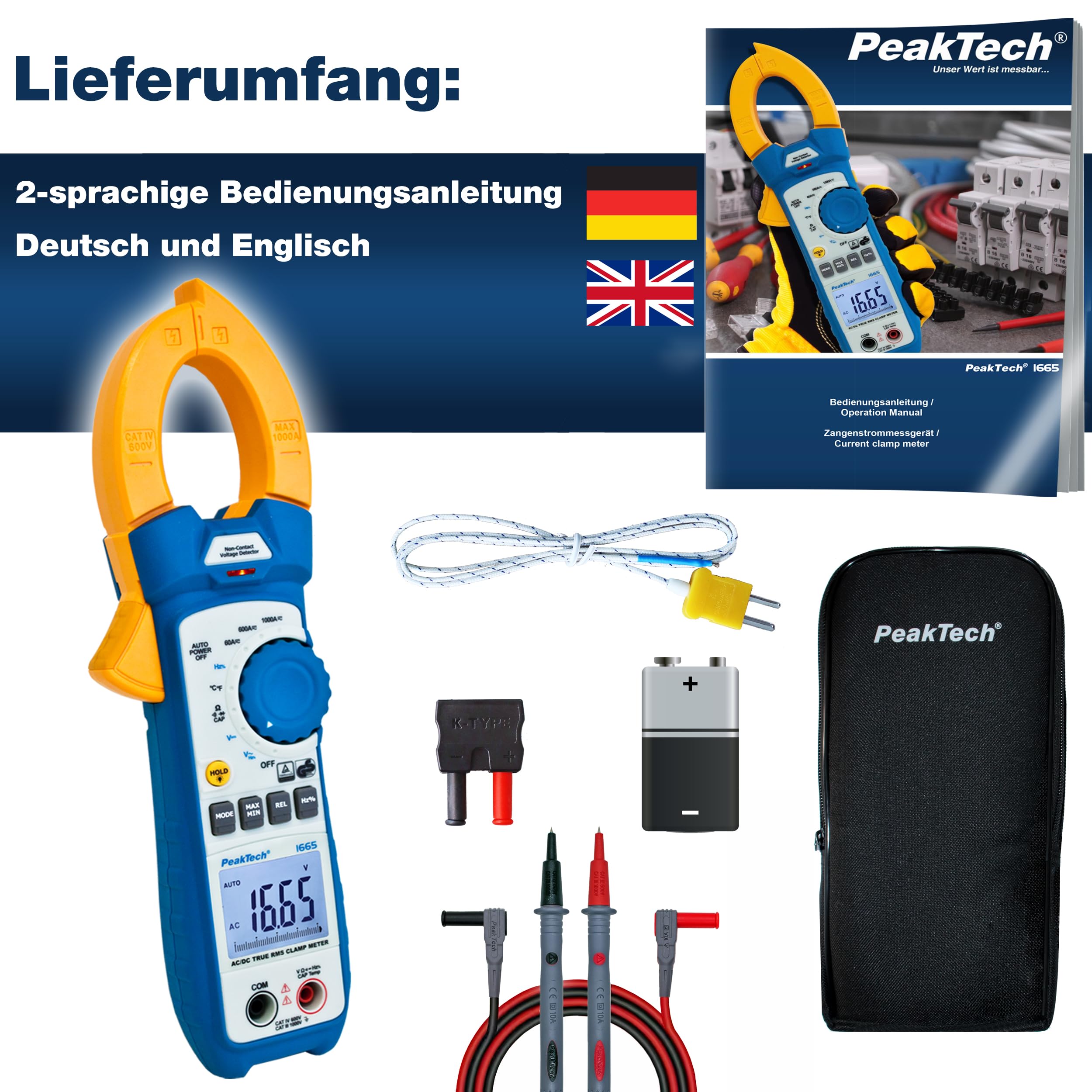

• INFO: Security: EN61010-1; CAT III/IV 60 0V; Backlights; 50.000 counts; With: software CD, case, test leads, type K temperature probes, battery and manual; Dimensions: 76 x 230 x 40 mm, Weight: 315 g

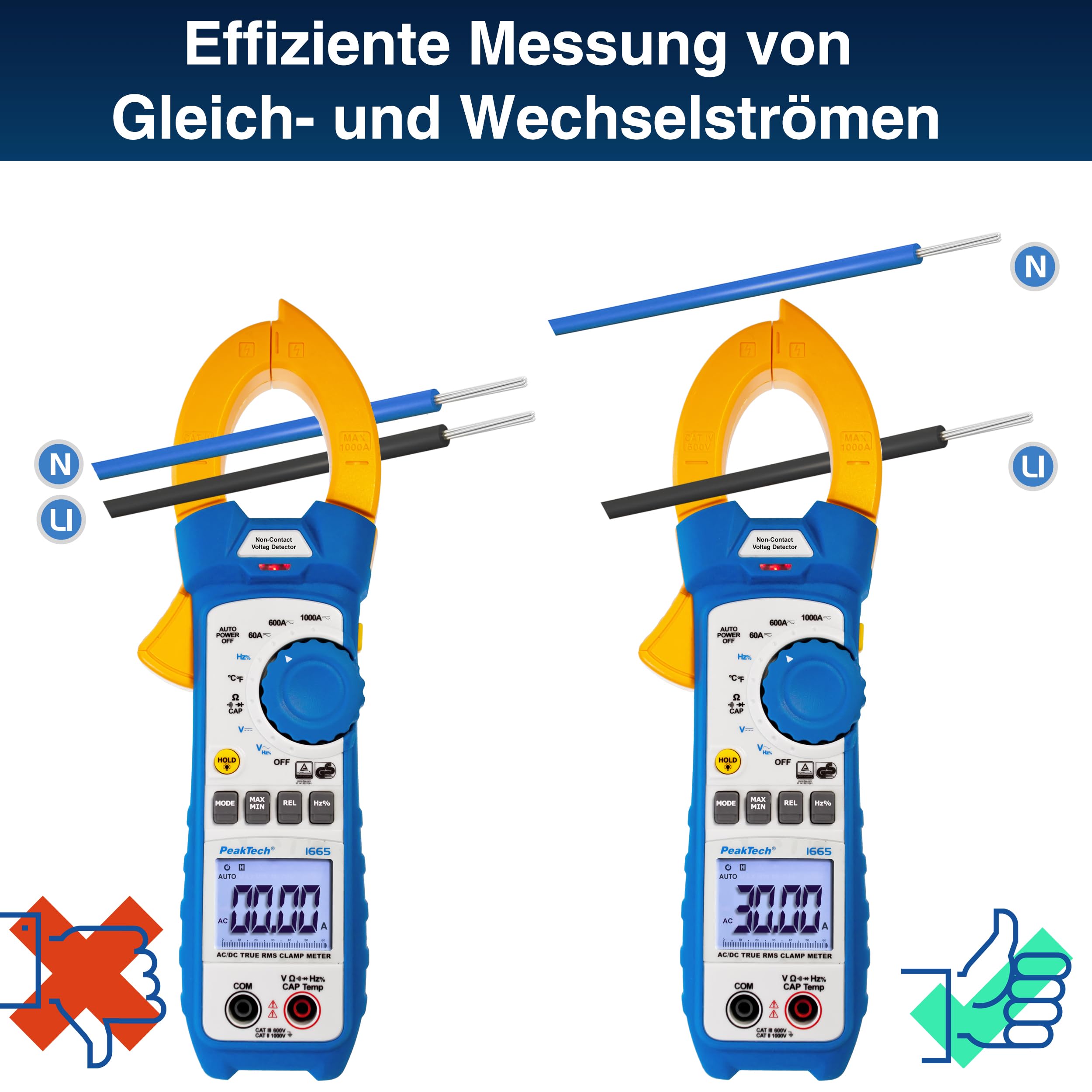

"Current clamp meter with True RMS and Bluetooth, 50,000 counts, 1000A AC / DC, 600V clamps are ideally suited for current measurement in electrical systems and control cabinets, since only single wires are passed through the clamp jaws for non-contact current measurement and no electrical connections have to be separated This method makes it possible to measure very high currents, which would overload any commercially available multimeter if connected directly. The PeakTech 1670 has extended functions, such as the ability to measure two temperatures at the same time with a type K sensor, the direct measurement of small currents in µA / mA range, as well as a Bluetooth interface for data recording on the mobile device. In addition, this model has extensive multimeter functions for voltage, resistance, frequency, capacitance and temperature measurement. Continuity tests with acoustic signals and diode tests can also be carried out k In addition, this measuring device comes with extensive accessories such as test leads, the required battery or a carrying case so that the user can start working immediately. Special protection is provided by the stable, non-slip and fire-retardant plastic housing, which is provided with a sprayed-on rubber coating.This clamp meter carries out measurements as a true RMS value (real-effective value) and, due to its high functionality and ease of use, is suitable for electronics specialists as well as for service technicians or hobby users. Due to these excellent features these devices are the ideal companion for every service technician. 4 4/5-digit LCD display (max. 50000) NEW: Bluetooth 4.0 interface and new Android app Real effective value measurement (True RMS) Conductor diameter: 48 mm max. Simultaneous temperature measurement of two heat sources with the help of two type K temperature sensors LED flashlight for Measuring point lightingContactless voltage detector u Minimum and maximum value holding functionDATA-HOLD measuring value holding functionRelative value measuring functionDiode and continuity test functionAutomatic switch-off and battery status displaySafety: EN61010-1; CAT II 1000 V CAT III 600 VTÜV / GS-tested: TÜV Rheinland Accessories: software CD, bag, test leads, type K temperature sensor, battery and operating instructions DCV: 500 mV / 5/50/500/1000 V; 0.01 mV; +/- 0.1% + 3 st.ACV: 500 mV / 5/50/500/1000 V; 0.1 mV; +/- 1.0% + 30 st DCA: 50/1000 A; 0.01 A; +/- 2.5% + 5 st.ACA: 50/1000 A; 0.01 A; +/- 2.5% + 5 st.µA / mA direct measurement: 500/5000 µA / 50/500 mA; 0.01 µA; +/- 1% + 6 st.Ohm: 500 Ω / 5/50/500 kΩ / 5/50 MΩ; 0.01 Ω; +/- 1.0% + 5 hours temperature: -100… + 1000 ° C; 0.1 ° C; +/- 1.0% + 2.5 ° C Capacitance: 50/500 nF / 5/50/500 µF / 5 mF; 0.01 nF; +/- 3.5% + 10 st. Frequency: 50 Hz - 10 MHz; 1 mHz; +/- 0.3% + 2 pieces. Dimensions (WxHxD): 76 x 230 x 40 mmWeight: 315 gNEW: Due to high customer demand, the PeakTech 1670 current clamp incl. Bluetooth interface has now been integrated into our extensive data logger software "PeakTech DMM Tool "" included. The tool has a large number of functions, allows long-term, time-controlled, area-dependent or manually triggered measured value recordings, is compatible with other PeakTech multimeters and much more.The new version is now available for free download at peaktech.de. "
