Peak Tech Digital Volt Amp Panel Meter Voltmeter Ammeter as Instrument QTY: 1 LDP – 135

• Measuring range available in assorted sizes from 0 V... 200mV/2 V/20 V/200 V/500 V DC
• Measuring range available in assorted sizes 0... 200µA/2mA/20mA/200mA/2000mA via Shunt
• LCD display (1999 Max.) With Free to place of selectable decimal point

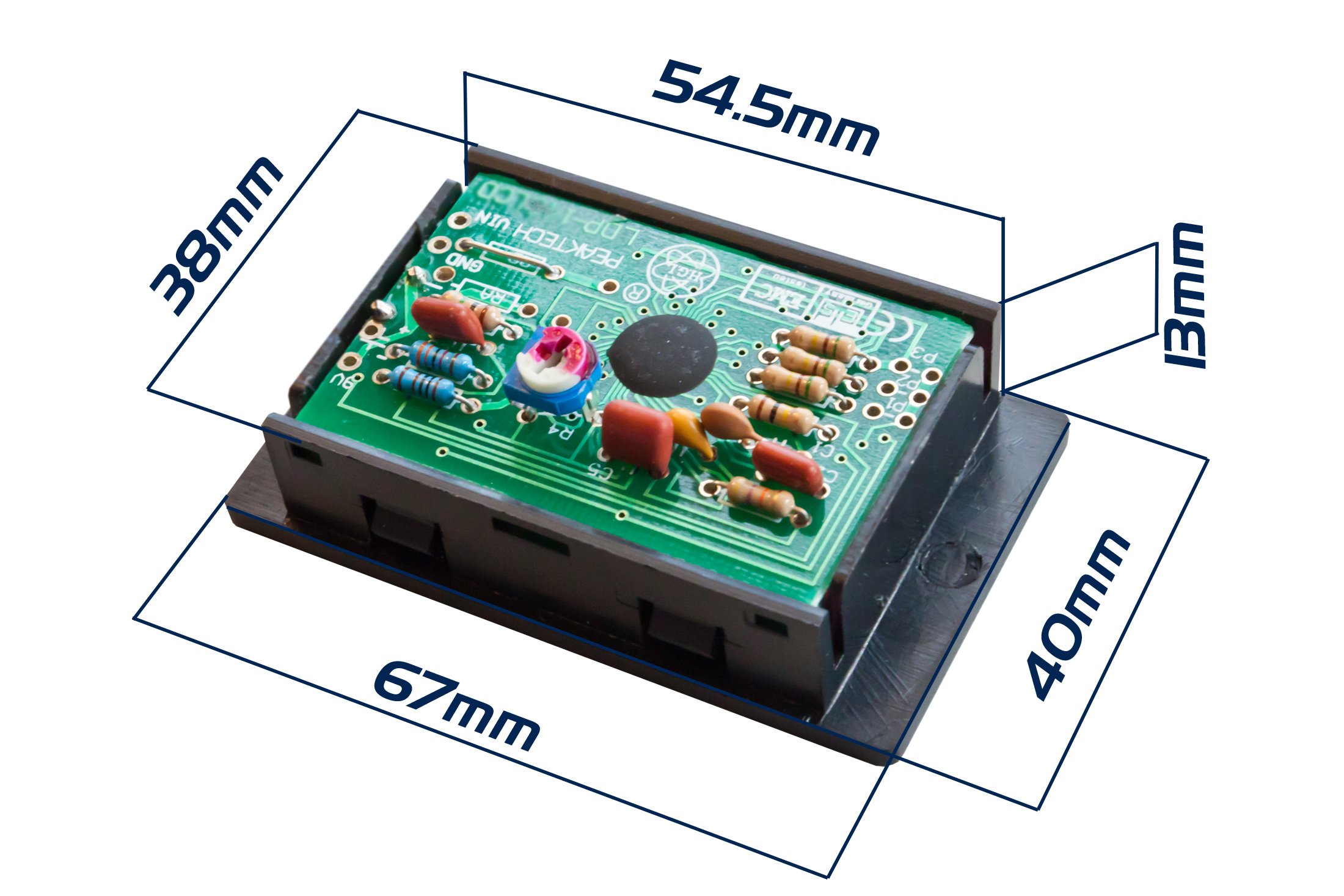

• For front Plattena USSS (W x H): 54 x 38 mm
• Power supply via 9 V battery or transformer isolated power supply möglich

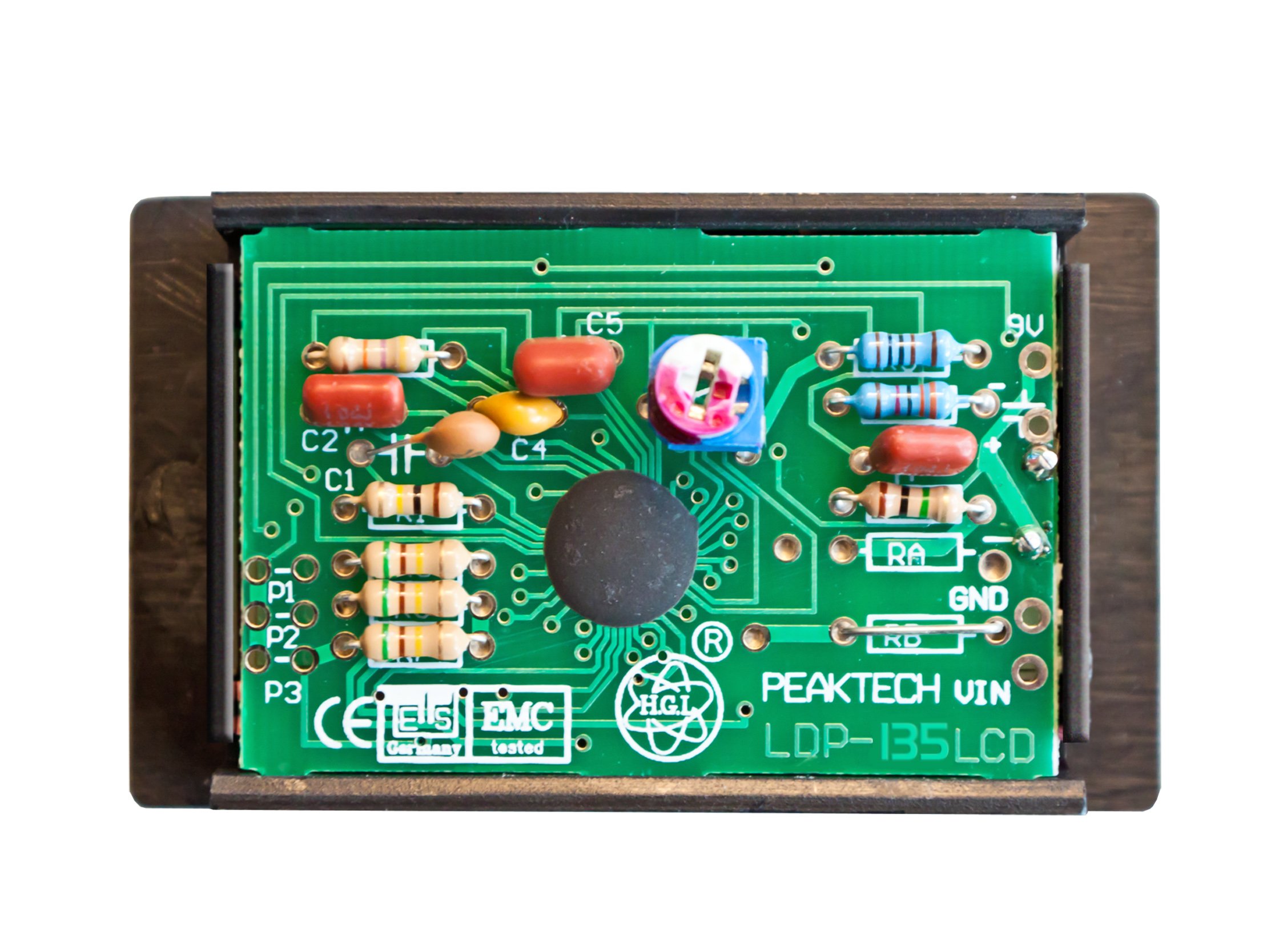

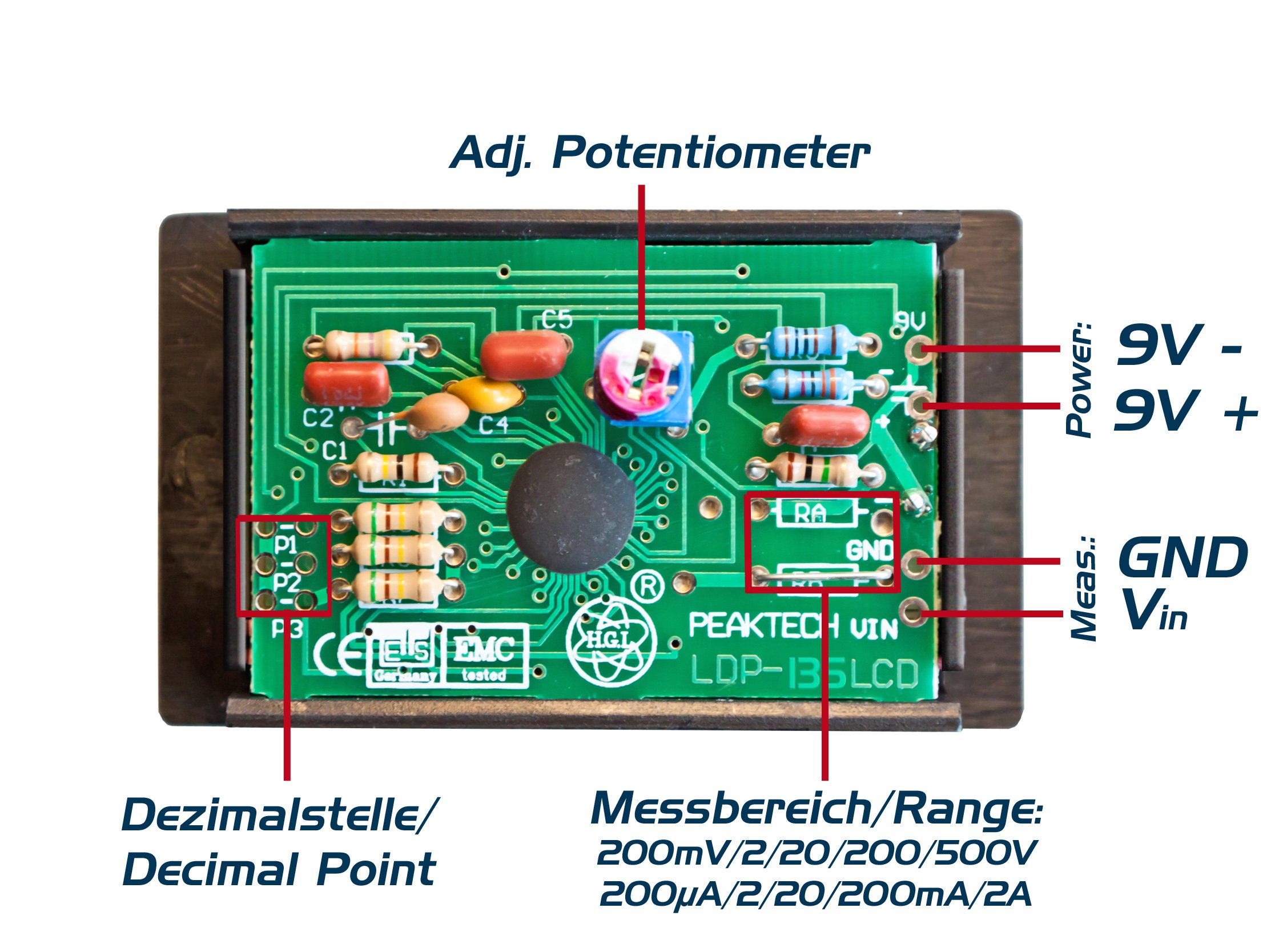

TYPE: 3½ digits (max. 1999 digits), LCD, 13 mm digit height, 200 mV DC presetting +++ DESCRIPTION: +++ Thanks to their low installation depth and the clip-on mounting of the frame, the LDP installation modules enable quick and space-saving installation in any device. On the board accessible from the back there are soldering points for the test voltage, the supply voltage and the decimal point of the display. The power supply can take place via a 9V block battery or an additionally purchased, galvanically separated power supply unit. The modules are available in different sizes with and without background lighting. +++ FEATURES: +++ Area of application, e.g. volt / ammeter +++ Easy installation thanks to simple clip mounting +++ No galvanic isolation +++ Operating voltage: 9 V for LCD modules and 7-12 V for LED modules ++ + Changeable decimal place via solder connection +++ Measuring principle: Double-flank A / D converter +++ Max. Input voltage: 199.9 mV DC +++ Max. Display: 1999 (3½ digits), with automatic polarity display +++ digit height 13 mm +++ measuring sequence 2 ... 3 x per second +++ accuracy ± 0.5% (at 23 ° C ± 5 ° C at RH of 100 MΩ +++ overrange display “1” appears in the display field +++ power loss 1 mA DC +++ decimal point freely selectable through soldered connection +++ overvoltage protection 600 V DC / AC eff +++ dimensions: 67, 5 x 40, 5 x 22, 5 mm +++ for front panel cut-out (W x H): 54 x 38 mm
