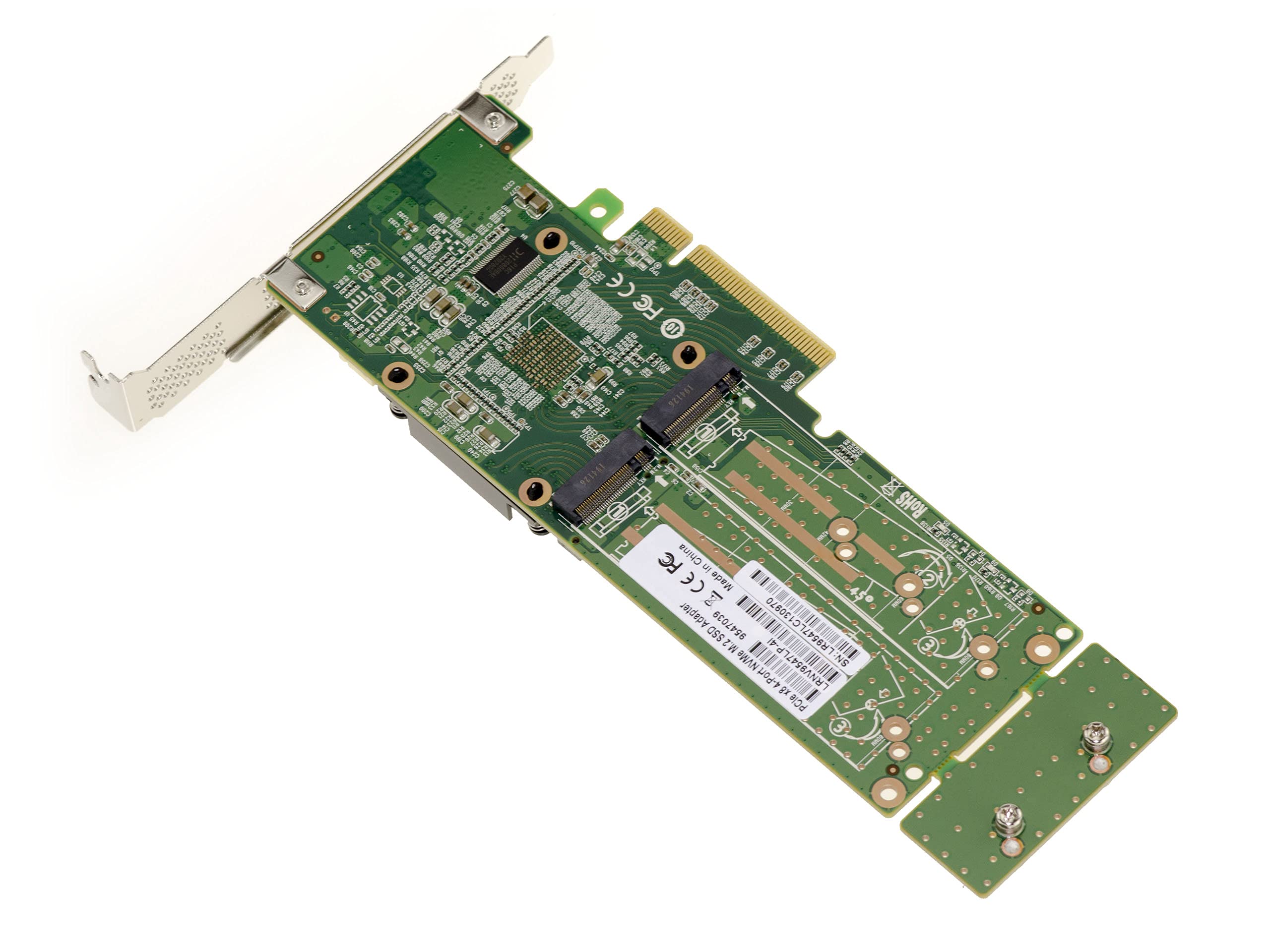

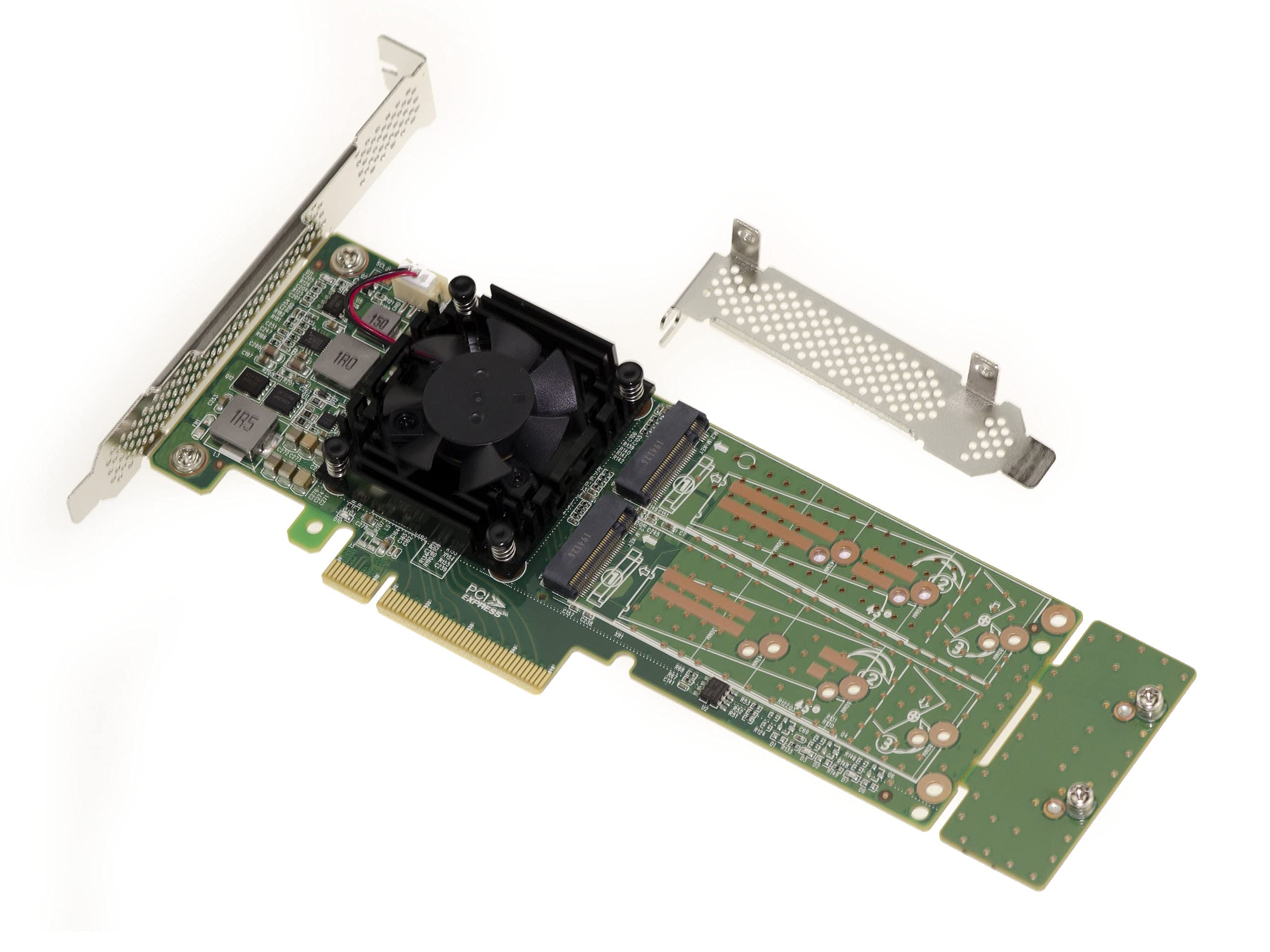

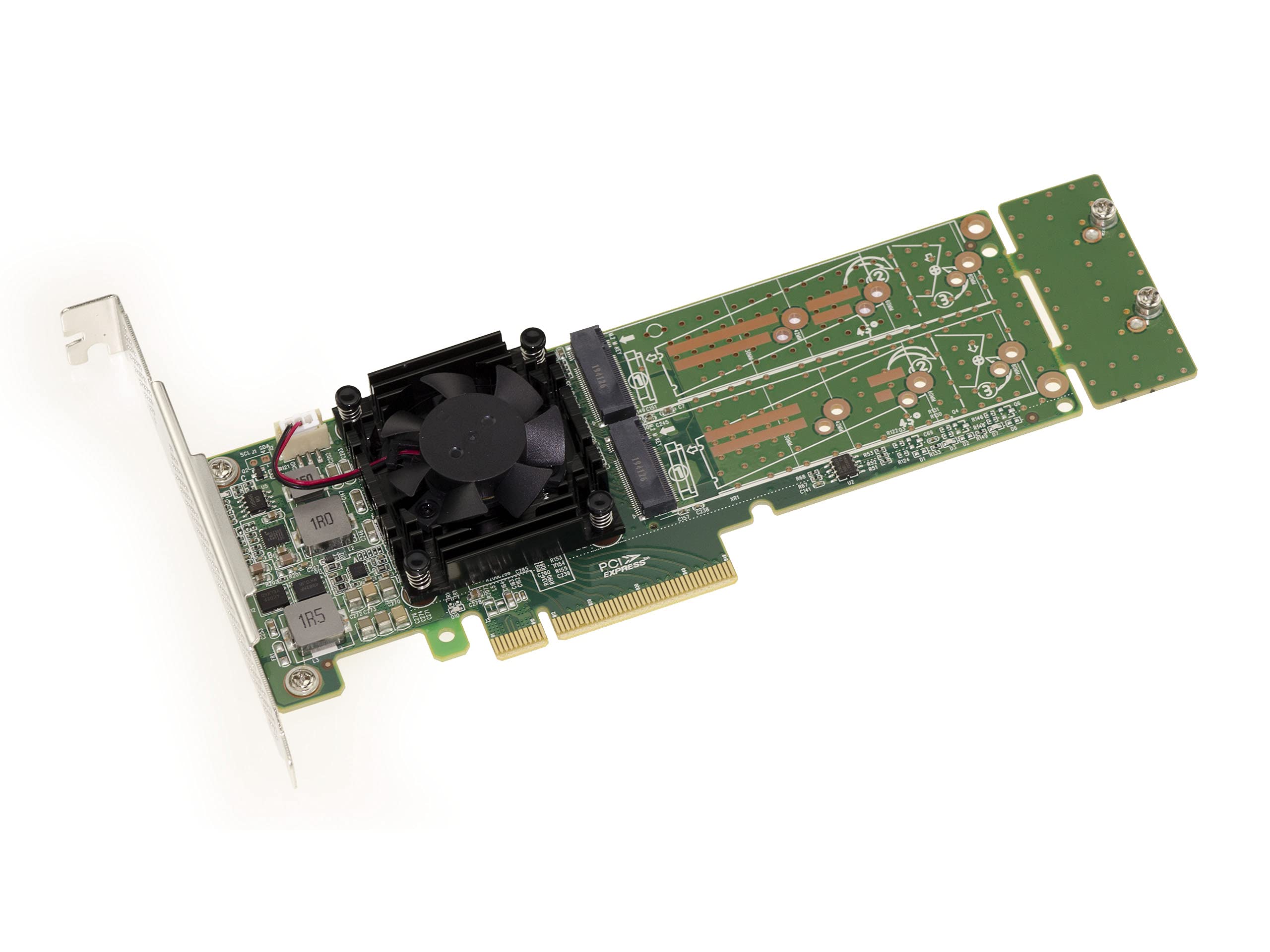

KALEA-INFORMATIQUE M2 PCIe 3.0 x8 controller card for 4 M.2 NVMe M Key SSDs. PLX PEX 8747 chipset

• This card will allow you to control four M.2 PCIe M Key (or B+M Key) SSDs. It does not rely on "fork" mode and will therefore be supported by any motherboard, whether it has fork mode or not.
• For all M.2 "M Key" PCIe NVMe SSDs. Compatible with Windows 11, 10, Red Hat Linux, Cont0S, VMware ESXi, Ubuntu Linux.
• PCI Express 3.0 x16 bus, 32G bandwidth allocated for each pair of SSDs (64G in total). Supports 4 NVMe SSDs.
• M2 interface compatible with sizes 2230, 2242, 2260, 2280 and 22110 (screws supplied). "Break-away card" to shorten it if you're not using a 110mm SSD. Plug and play, no installation required.
• Forced ventilation. Operating temperature range 5°C to 50°C. Dimensions 69mm*205mm (or 175mm if extension removed), weight 175g. Card supplied with Low Profile and High Profile brackets.

This card will allow you to control four M.2 PCIe M Key (or B+M Key) SSDs. It does not rely on the "bifurcation" mode and will therefore be supported by any motherboard, whether it has bifurcation mode or not. For any M.2 "M Key" PCIe NVMe type SSD. Compatible with Windows 10, Red Hat Linux, Cont0S, VMware ESXi, Ubuntu Linux. Specifications: PLX PEX 8747 Chipset. PCI Express 3.0 x16 bus, bandwidth allocated for each pair of 32G SSDs (64G in total). Supports 4 NVMe SSDs. M2 interface compatible with the dimensions 2230, 2242, 2260, 2280 and 22110 (screws included). "Breakable card" to shorten it if you are not using a 110mm SSD. Plug and play, no installation required. Forced ventilation. Operating temperatures supported 5°C to 50°C. Dimensions 69 mm x 205 mm (or 175 mm if extension removed), weight 175 g. Card supplied with low profile and high profile brackets.
