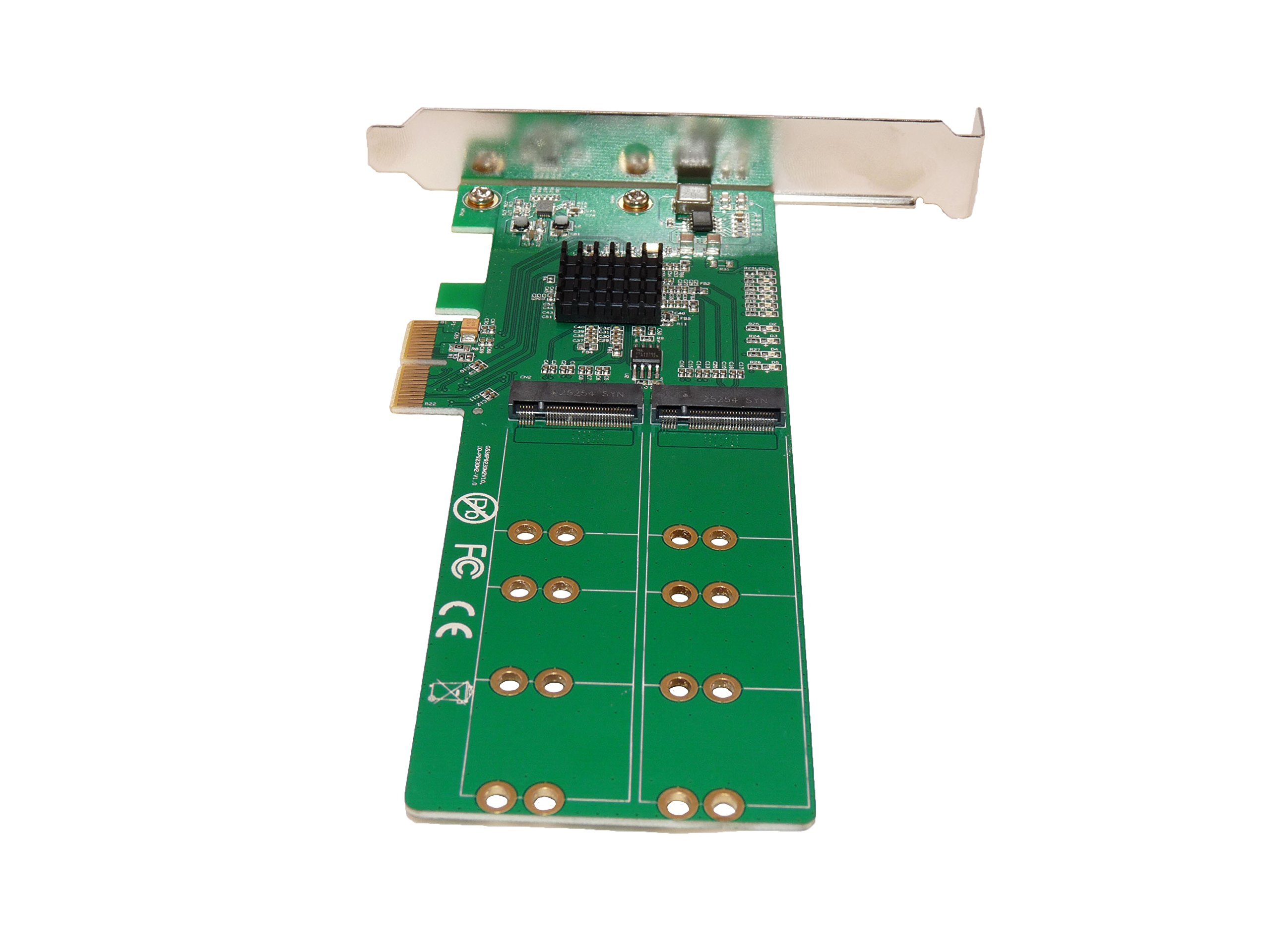

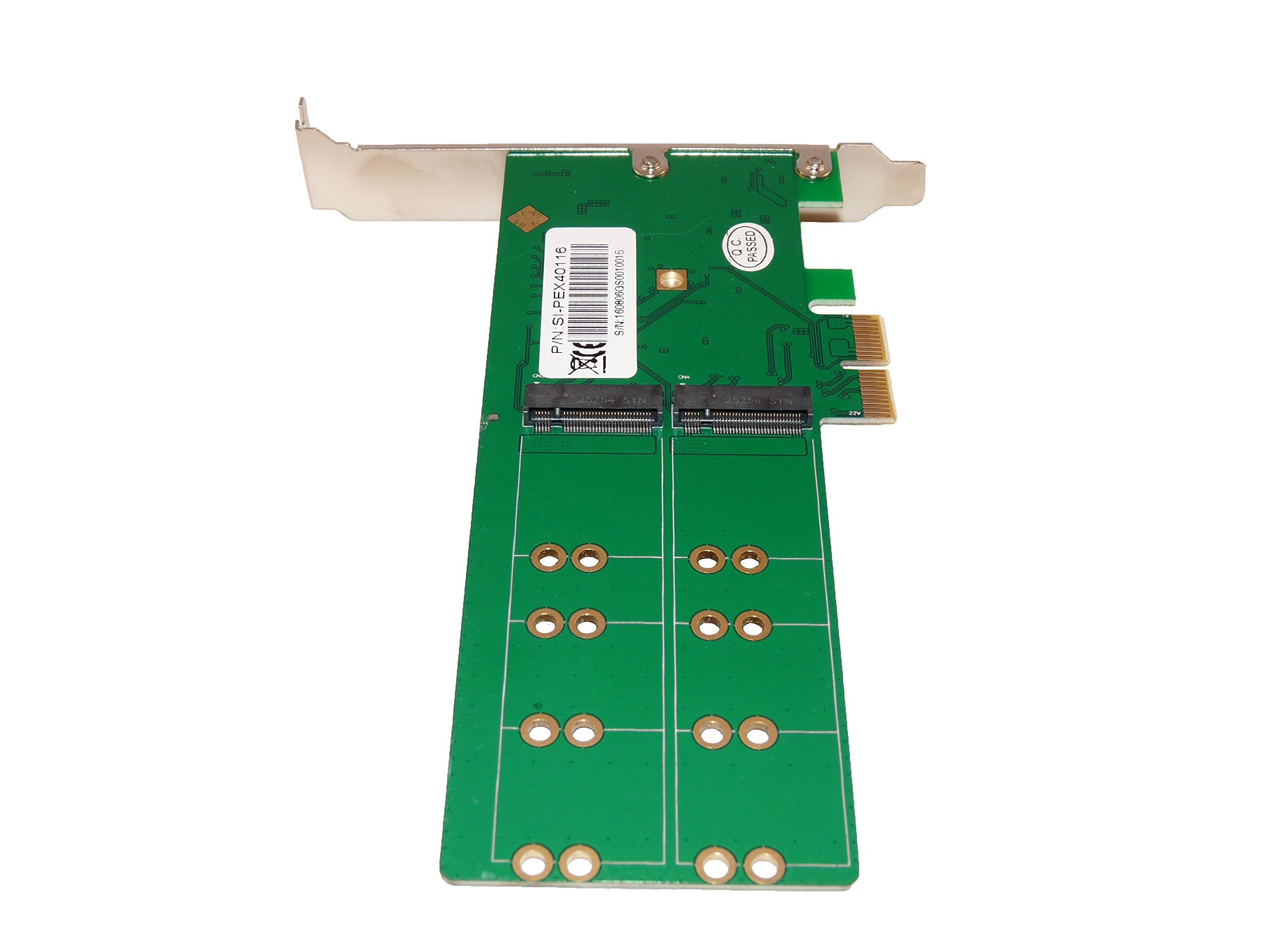

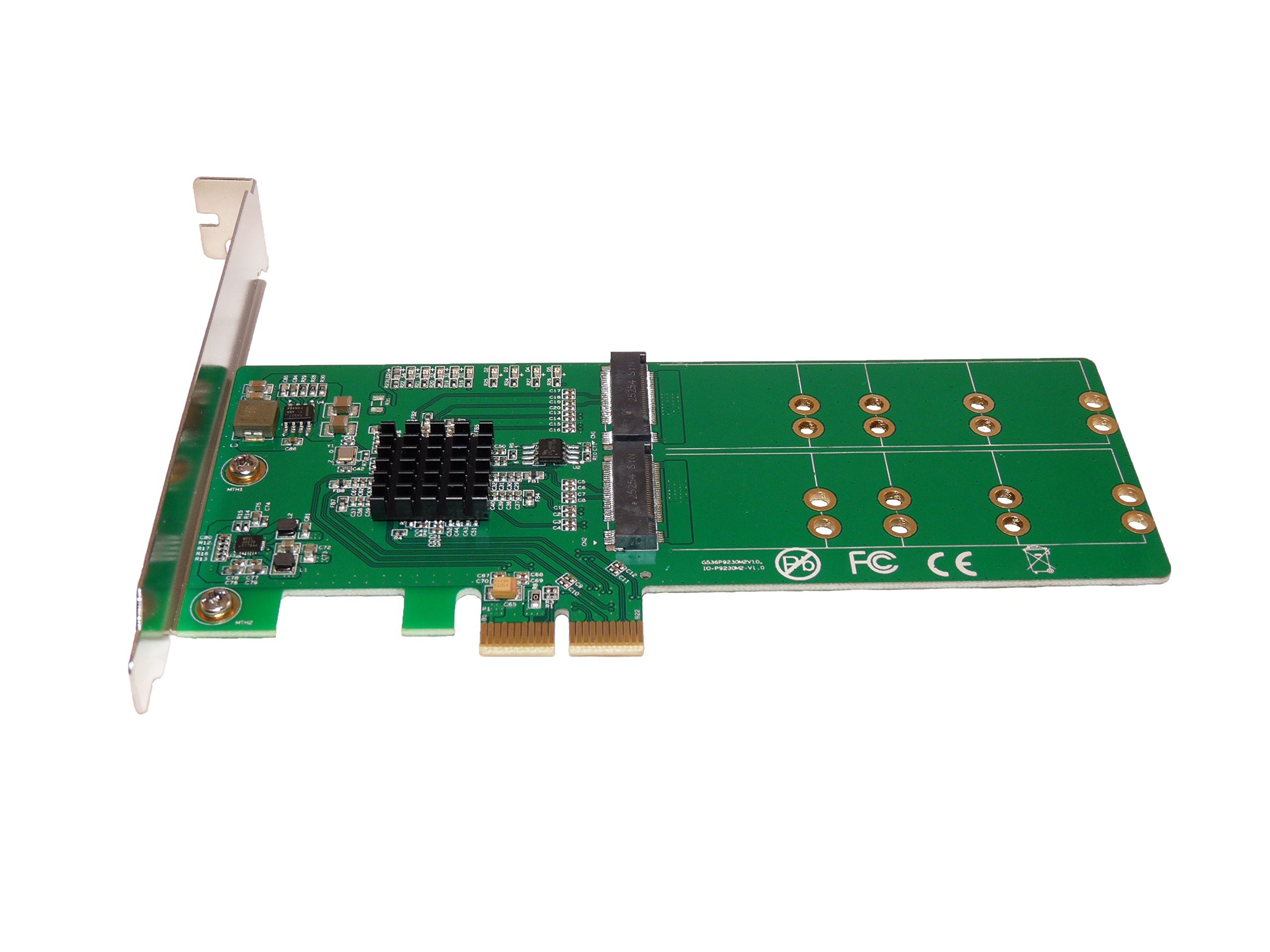

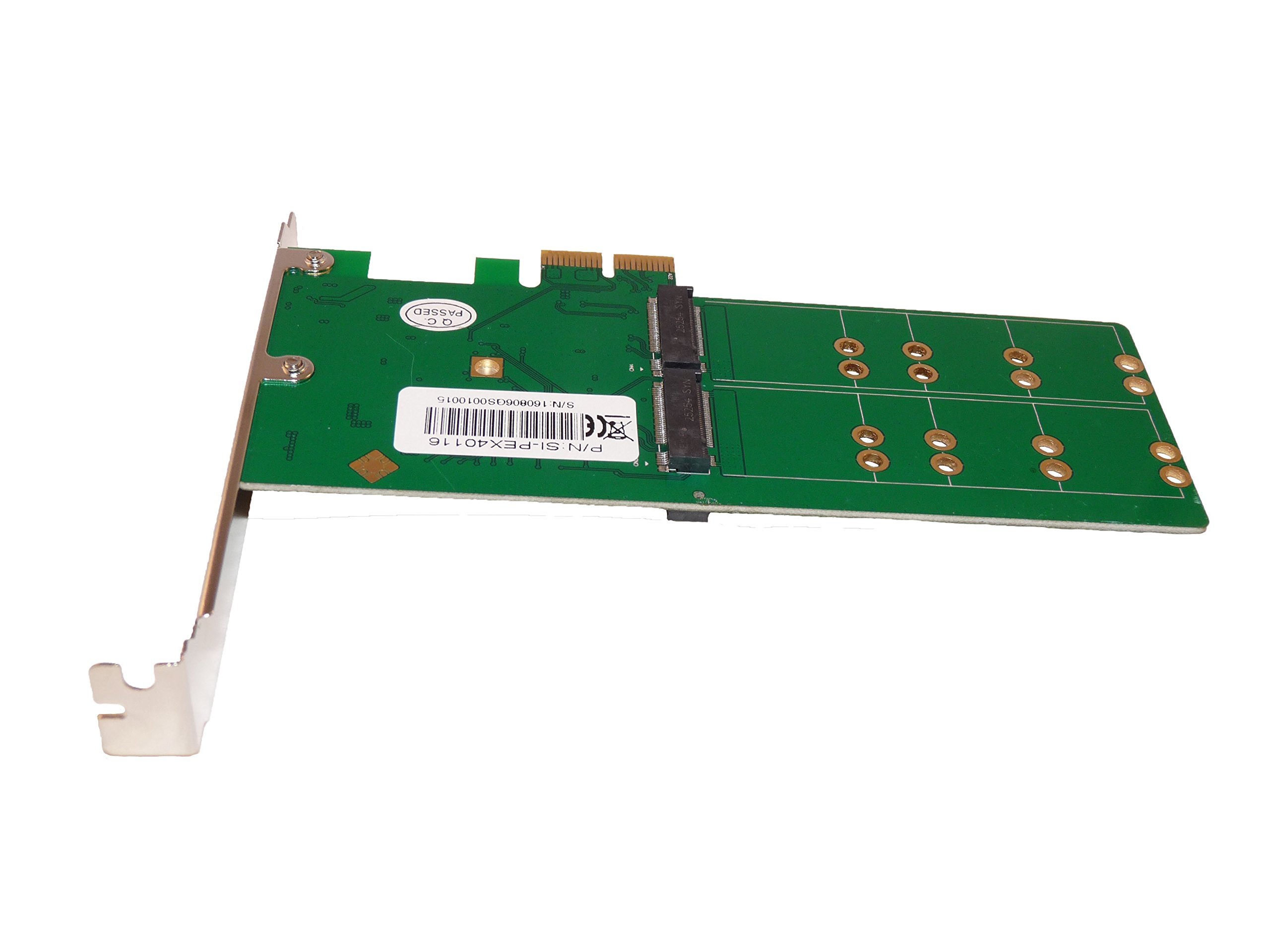

Computer District - High Speed PCI Express Controller Card PCI Express or PCIe x2 with low profile brackets - for 4 SATA III M.2 (NGFF) SSDs - MARVELL 88SE9235 CHIPSET

• Push Storage boundaries - Up to 4 SATA Type M2 SSDs (Type NGFF)
• Transfer to 6Gbps - MARVELL 88SE9235 CHIPSET. Accepts M.2 NGFF modules of SATA type. Theoretical rate of 600 MB / s in bandwidth in SATA 3 (SATA III).
• Universal Compatibility - Connects to a PCI Express 2.0 x2 port; compatible with x2, x4, x8 and x16 port, compatible with PCI Express 1.0 port
• Enhanced Features - Compliant with Serial ATA Revision 3.0 specification and Single-Lane (x2) PCI Express specification revision 2.0 and Serial ATA Advanced Host Controller Interface (AHCI).
• Contents - PCIe controller card + Drivers CD + Low profile bracket + fixing screw.

Turn your computer in the beast you always wanted This card will allow you to add up to 4 SSD M2 (type NGFF) SATA type on your motherboard via your PCIe 2nd generation x2 port. CHIPSET MARVELL 88SE9235. Accepts M.2 NGFF modules in 2280, 2260, 2242, and 2230 formats as "B + M Key" or "B Key" only SATA type. Theoretical transfer rate of 600 MB/s, it means up to 6Gbits/s bandwidth in SATA 3 (SATA III). Performance and compatibility It connects to a PCI Express 2.0 x2 port (compatible with x2, x4, x8, and x16 ports). It is PCI Express 1.0 compatible too but with lower performance. Compatible with all versions of Windows; Windows XP / Windows Vista / Windows 7 / Windows 8 / Windows 10 / Windows Server 2003/2008/2012. Compliant with Serial ATA Revision 3.0 specification and Single-Lane (x2) PCI Express specification revision 2.0 and Serial ATA AHCI (Advanced Host Controller Interface). The Marvell 88SE9235 chipset does not support RAID connection. Contents 1 X PCIe controller card 1 X Drivers CD 1 X Low profile bracket 1 X Set of screws We have a wide choice of PCI Express Controller Card on our Computer District shop, find echo to your needs
