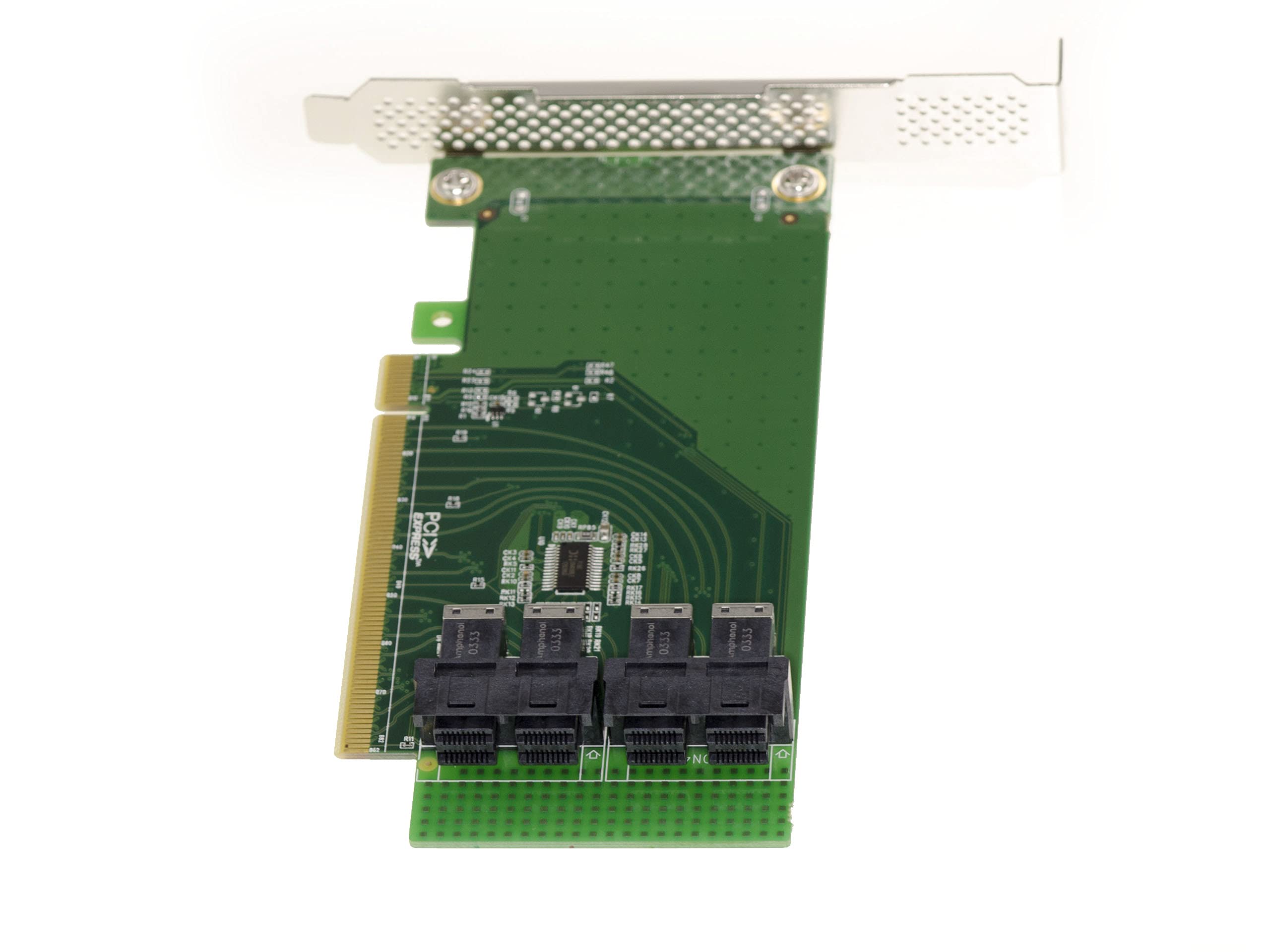

KALEA-INFORMATIQUE PCI Express 16x Riser card for 4 U.2 NVMe SSDs or 4 PCIe x4 ports with SFF-8643 plugs

• PCI Express x16 bifurcated Riser card for PCIe 3.0 to SFF-8643 connector. Connects to NVMe SSDs or PCIe connectors via SFF-8643 connectors. This card requires the motherboard to support the BIFURCATION MODE of PCIe slots (16x to 4 times 4x).
• Supports all current 2.5" U2 SSDs or other NVMe SSDs. WARNING: YOUR MOTHERBOARD MUST SUPPORT "BIFURCATION" MODE OTHERWISE ONLY ONE SSD WILL BE DETECTED. You will need to fork 16x to 4x 4x 4x 4x. For 16x PCIe slot.
• PCIe 16x 3.0 (can be used with older PCIe standards, but throughput will be lower). SFF-8643 miniSAS connectors on the PCIe card, connection to the NVMe SSD via an SFF-8643 / SFF-8639 cable (NOT SUPPLIED). Operating system must support U2 SSDs (Win 10 recommended).
• WARNING: Not all BIOSes support U.2 drives in NVMe format. You will need a BIOS with UEFI and NVMe support. Compatible with all U.2 SSDs or other 2.5" NVMe SSDs using the SFF-8639 interface. No driver required, works transparently with the operating system.

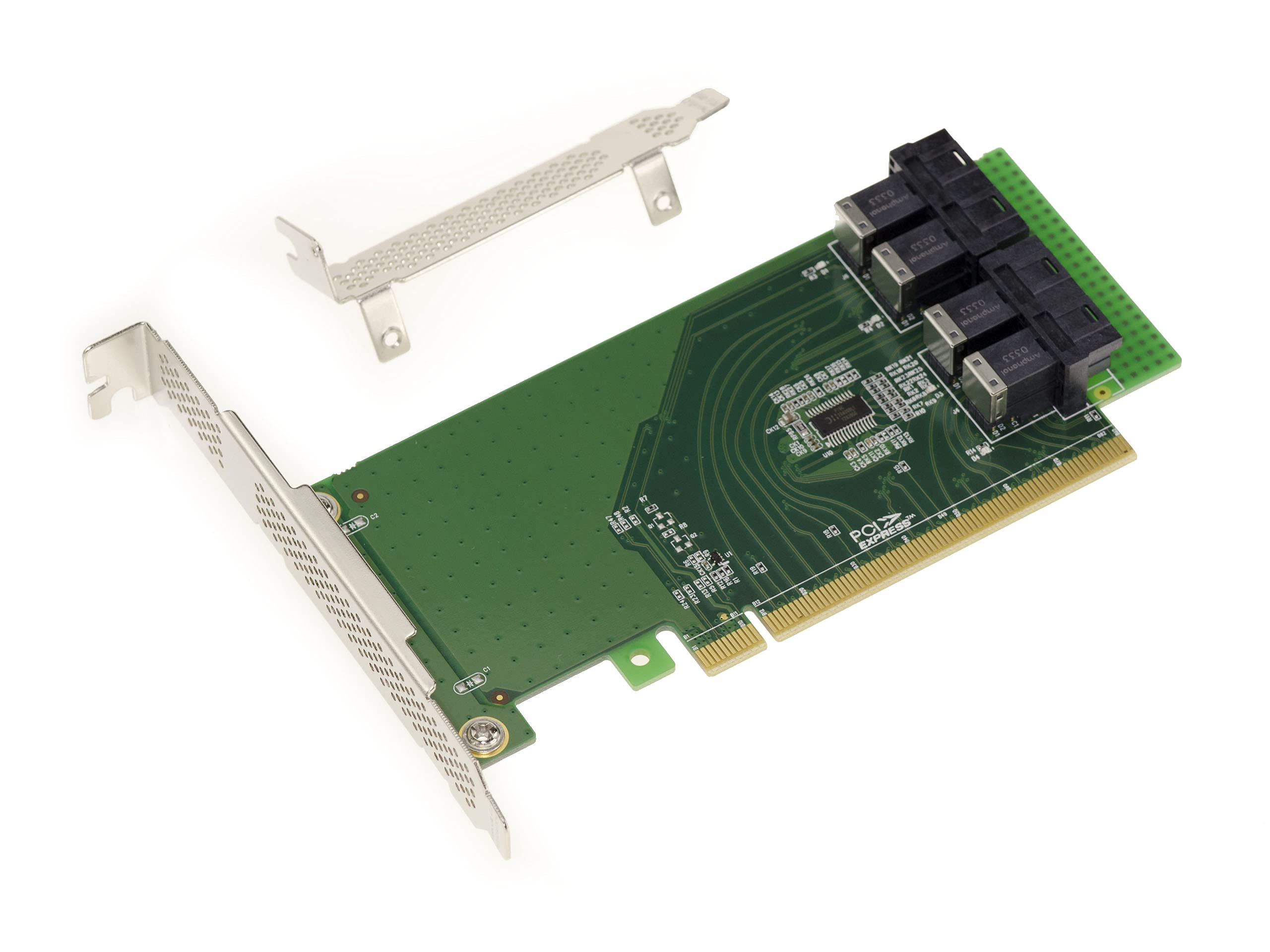

• The PCIe card is supplied with a high profile bracket and a low profile bracket. WILL ONLY WORK ON MOTHERBOARDS WITH "BIFURCATION" MODE. Dimensions 69mm x 147mm, weight 76g. Optimum operating temperature 5 to 50°C.

PCI Express x16 bifurcated Riser card for PCIe 3.0 to SFF-8643 connector. It connects to NVMe SSDs or PCIe slots via SFF-8643 connectors. This card requires the motherboard to support the BIFURCATION MODE of the PCIe slots (16x to 4 times 4x). Compatibility: Supports all current U2 2.5" SSDs or other NVMe SSDs. PLEASE NOTE: YOUR MOTHERBOARD MUST SUPPORT THE "BIFURCATION" MODE OR ONLY ONE SSD WILL BE DETECTED. You will need a 16x to 4x 4x 4x 4x bifurcation. For 16x PCIe slot. Specifications: PCIe 16x 3.0 (can be used on older PCIe standards, but throughput will be lower. SFF-8643 miniSAS connectors on PCIe card, connection to NVMe SSD via SFF-8643 / SFF-8639 cable (NOT SUPPLIED). Operating system must support U2 SSDs (Win 10 recommended). PLEASE NOTE: Not all BIOSes support U.2 drives, which are in NVMe format. drives in NVMe format, you will need a BIOS with UEFI and NVMe support. Compatible with all U.2 or other 2.5" NVMe SSDs using the SFF-8639 interface. Driverless, works transparently with the operating system. The PCIe card is supplied with high profile bracket and low profile bracket. WILL ONLY WORK ON MOTOR CARDS WITH "BIFURCATION" MODE. Dimensions 69mm x 147mm, weight 76g. Optimum operating temperature 5 to 50°C.
