PATIKIL 4" to 6" Cone Duct Connector Flange, Air Ventilation Duct Hose Pipe Adaptor for Heating Cooling Ventilation System, Black

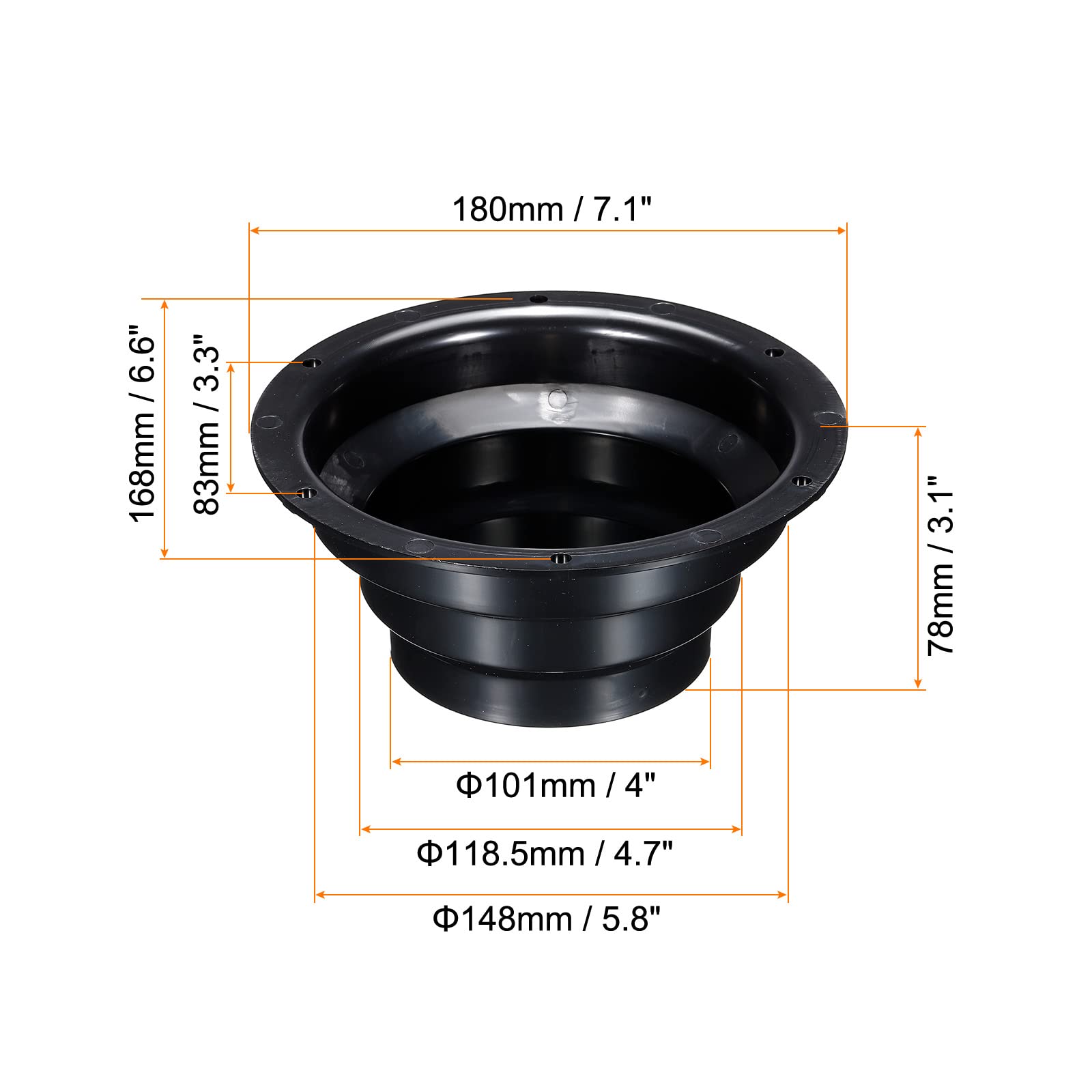

• Outer Diameter of Interface: 101 mm / 4 inch, 118.5 mm / 4.7 inch, 148 mm / 5.8 inch; Overall Height: 78 mm / 3.1 inch; Diagonal Mounting Hole Distance: 168 mm / 6.6 inch; Adjacent Mounting Holes Distance: 83 mm / 3.3 inch; Base Outer Diameter: 180 mm / 7.1 inch; Color: Black; Material: ABS Plastic; Packing List: 1 x Pipe Connector Flange
• Advantage: 1. The connector is made of ABS plastic material, which has good corrosion resistance and temperature resistance and is durable. 2. The connector base has screw mounting holes, which can be directly fixed on the wall with screws without drilling, and the installation is convenient. 3. The flange interface has 3 sizes, which are suitable for the ventilation duct of the size and have a strong practicability.
• Instruction: For ducted ventilation systems, mount the duct connector to the wall and attach your exhaust hose to our duct connector.
• Application: The duct connector flange is primarily used to connect vent air hoses (not included). Widely used in home, kitchen, bathroom, garage, and office. Suitable for the area which needs a ventilation system.
• NOTE: Please confirm the outer diameter of the connector before placing an order. Also, please note that screws are not included in the package.

The duct connector flange is primarily used to connect vent air hoses (not included). Widely used in home, kitchen, bathroom, garage, and office. Suitable for the area which needs a ventilation system. Specification Color: Black Material: ABS Plastic Outer Diameter of Interface: 101 mm / 4 inch, 118.5 mm / 4.7 inch, 148 mm / 5.8 inch Overall Height: 78 mm / 3.1 inch Diagonal Mounting Hole Distance: 168 mm / 6.6 inch Adjacent Mounting Holes Distance: 83 mm / 3.3 inch Base Outer Diameter: 180 mm / 7.1 inch Packing List: 1 x Pipe Connector Flange Advantage 1. The connector is made of ABS plastic material, which has good corrosion resistance and temperature resistance and is durable. 2. The connector base has screw mounting holes, which can be directly fixed on the wall with screws without drilling, and the installation is convenient. 3. The flange interface has 3 sizes, which are suitable for the ventilation duct of the size and have a strong practicability. Instruction For ducted ventilation systems, mount the duct connector to the wall and attach your exhaust hose to our duct connector. NOTE: Please confirm the outer diameter of the connector before placing an order. Also, please note that screws are not included in the package.
