PATIKIL 3/4 SAE Thread Brass Flare Nut, 3 Pack 45 Degree Flared Fitting Nut

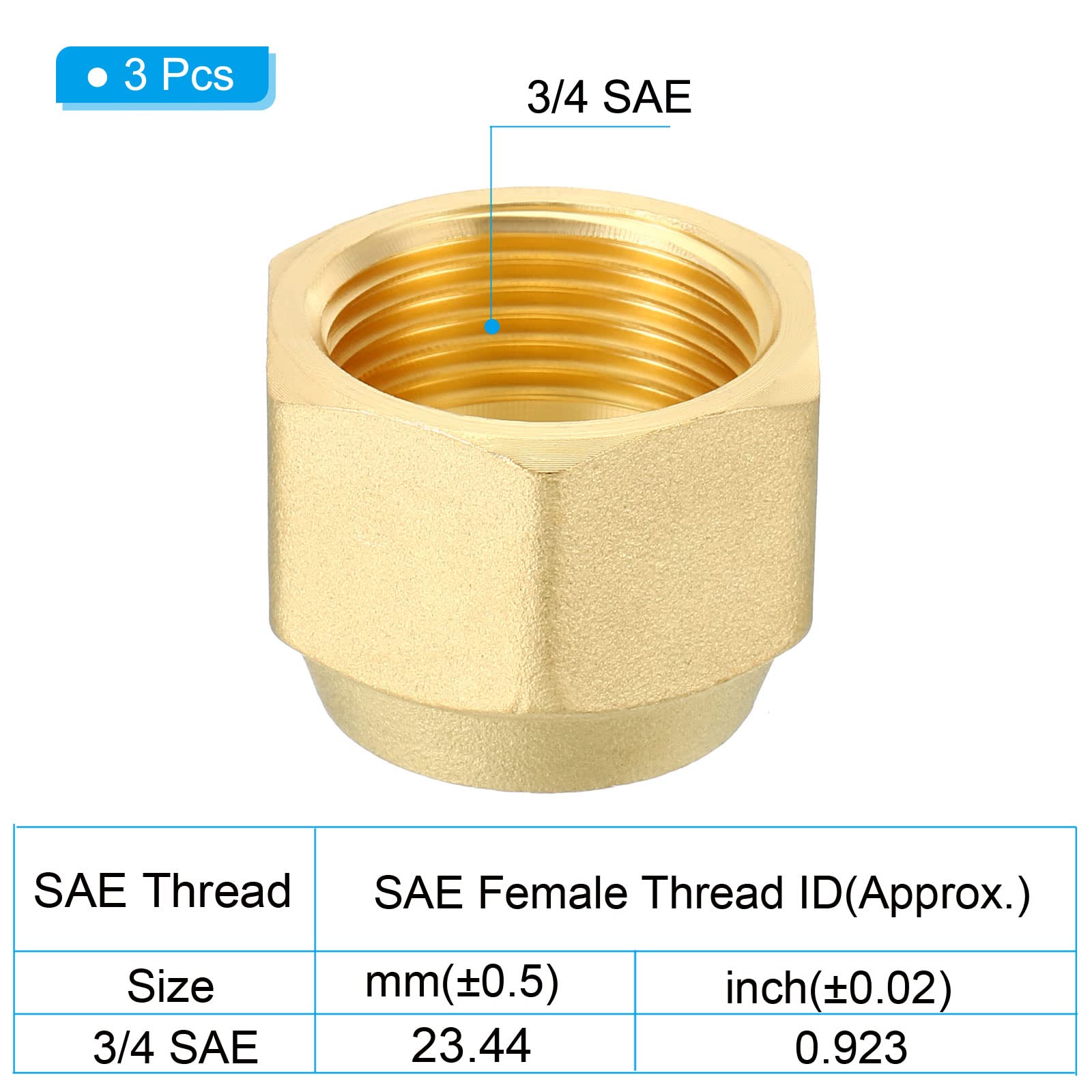

• Color: Gold; Material: Brass; Thread Specification: 3/4 SAE Flare Thread; Height: 25mm / 0.98 inch; Hex Width: 32mm / 1.26 inch; Inner Hole Dia: 19.5mm / 0.77 inch; Temperature: -53 Celsius to 100 Celsius; Packing List: 3pcs x Brass Flare Tube Fitting
• Advantages: 1.Made from brass, our pipe fittings are rust-resistant, corrosion-resistant, and vibration-resistant, ensuring long-lasting performance. 2.Our pipe fittings create a secure, leak-free seal even in high-pressure and vibrating applications, saving you time and effort on repairs.
• Instruction: Easy installation and reusability. Our pipe fittings are easy to install and can be reused, making them a versatile and cost-effective solution for all your pipe fitting needs.
• Application: Our pipe fittings can work with aluminum, copper, brass, and welded steel tubing that can be flared, ensuring a secure connection for all your fuel, oil, gas, and air line applications. These brass flare tube fittings are good solutions for your mini split air conditioner, HVAC system and other plumbing needs.
• NOTE: The size of the flare thread is referred to as a Nominal Pipe size, but it doesn't necessarily represent the actual diameter. To determine the actual thread diameter, you'll need to refer to the specification table. Additionally, it's important to note that the number printed on the surface of the flare cap indicates the UNF thread size. For instance, if you see "7/16" printed on the cap, it means that the thread size is 7/16"-20 UNF.

Our pipe fittings can work with aluminum, copper, brass, and welded steel tubing that can be flared, ensuring a secure connection for all your fuel, oil, gas, and air line applications. These brass flare tube fittings are good solutions for your mini split air conditioner, HVAC system and other plumbing needs. Specification Color: Gold Material: Brass Thread Specification: 3/4 SAE Flare Thread Height: 25mm / 0.98 inch Hex Width: 32mm / 1.26 inch Inner Hole Dia: 19.5mm / 0.77 inch Temperature: -53 Celsius to 100 Celsius Packing List: 3pcs x Brass Flare Tube Fitting Advantages Made from brass, our pipe fittings are rust-resistant, corrosion-resistant, and vibration-resistant, ensuring long-lasting performance. Our pipe fittings create a secure, leak-free seal even in high-pressure and vibrating applications, saving you time and effort on repairs. Instruction Easy installation and reusability. Our pipe fittings are easy to install and can be reused, making them a versatile and cost-effective solution for all your pipe fitting needs. NOTE: The size of the flare thread is referred to as a Nominal Pipe size, but it doesn't necessarily represent the actual diameter. To determine the actual thread diameter, you'll need to refer to the specification table. Additionally, it's important to note that the number printed on the surface of the flare cap indicates the UNF thread size. For instance, if you see "7/16" printed on the cap, it means that the thread size is 7/16"-20 UNF.
