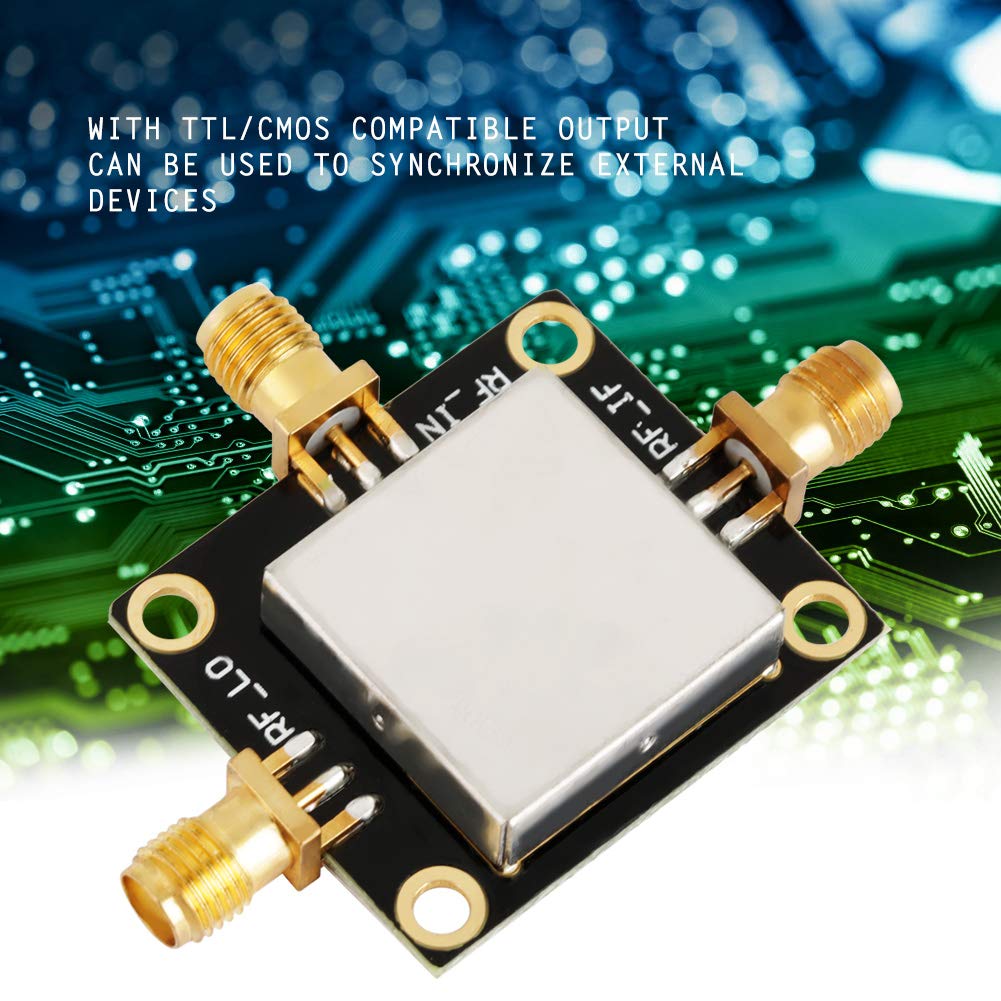

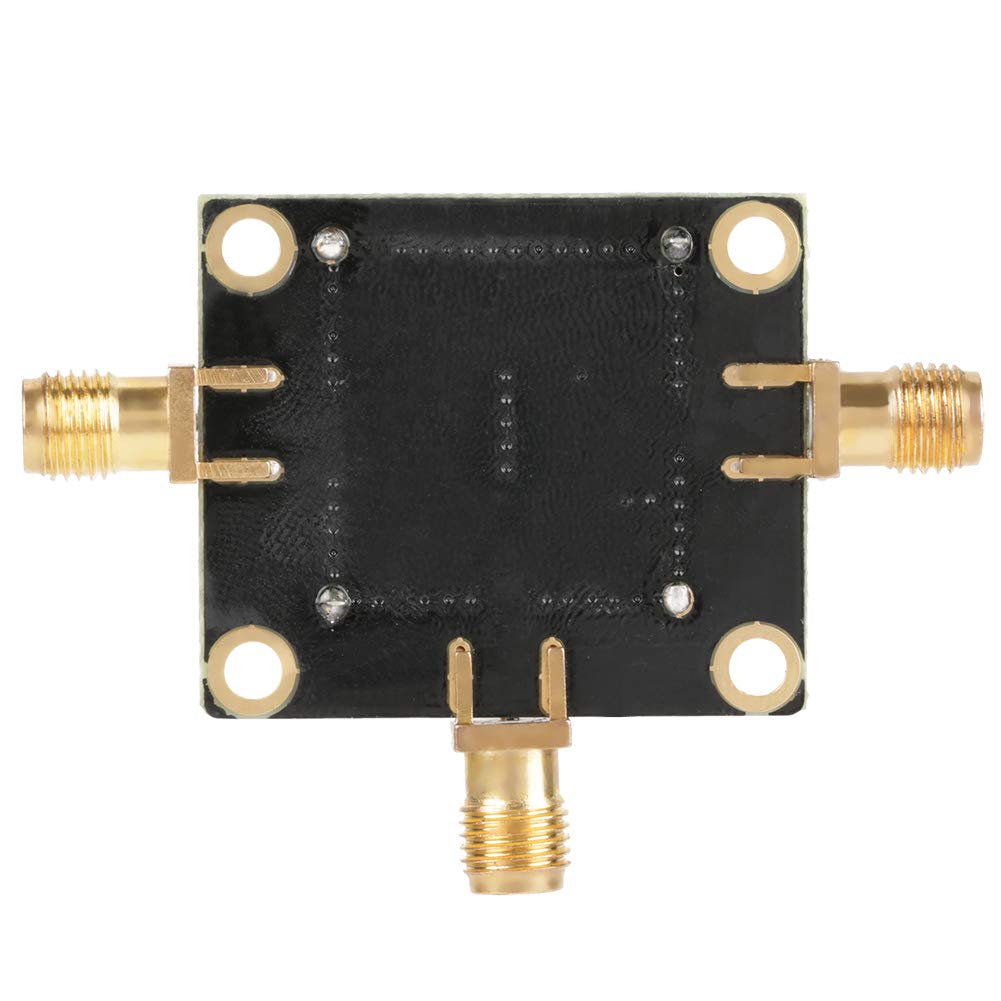

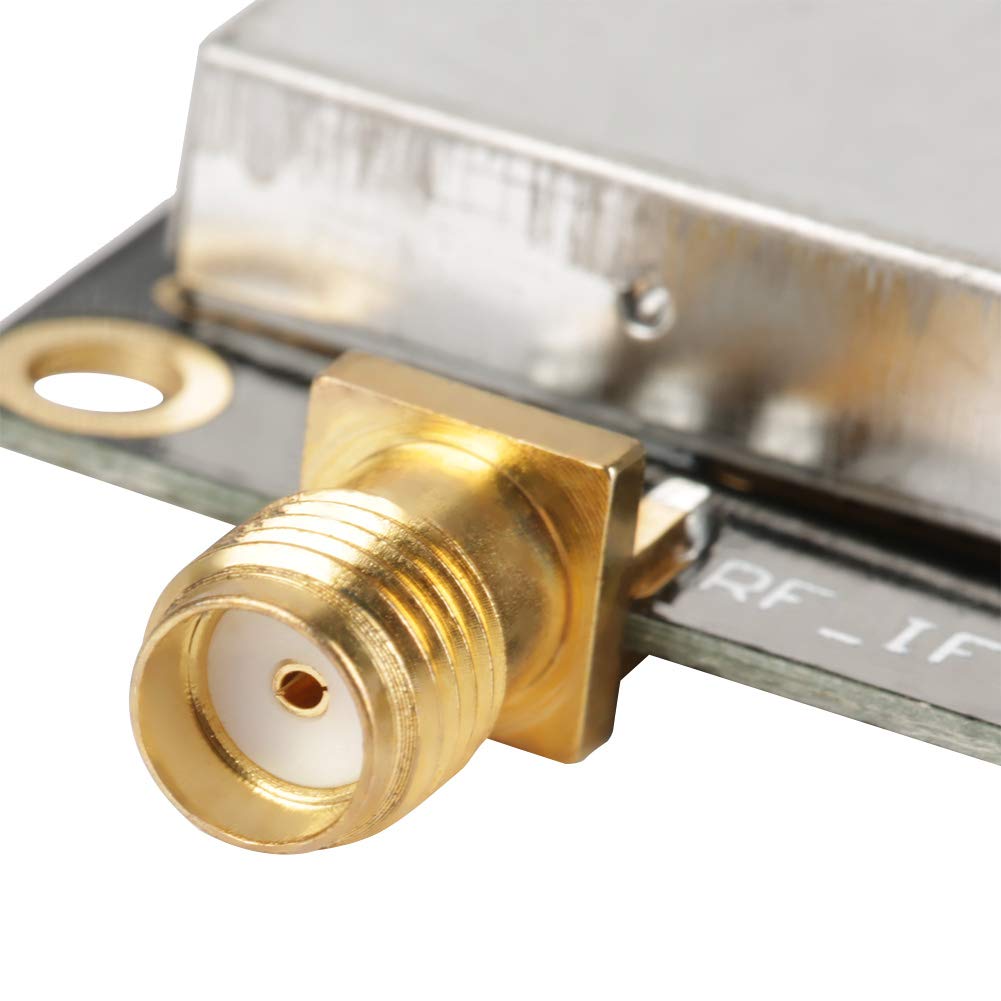

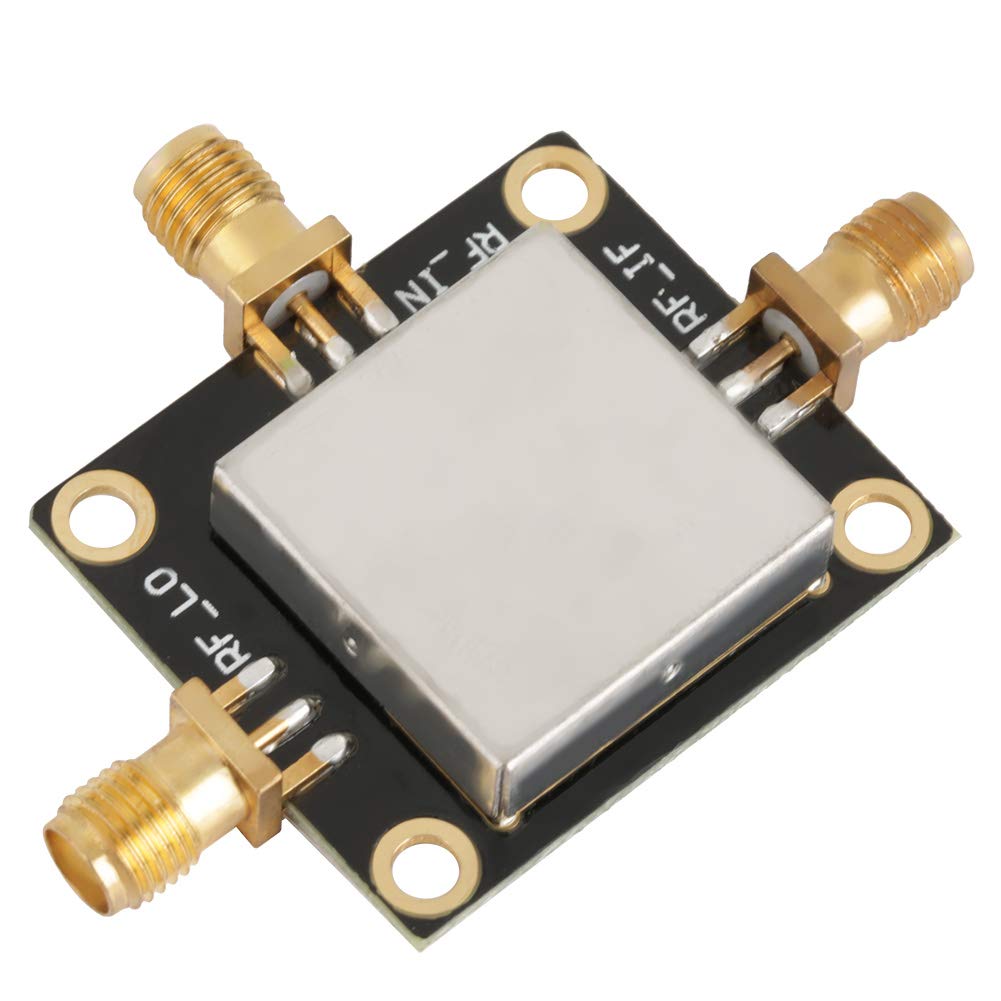

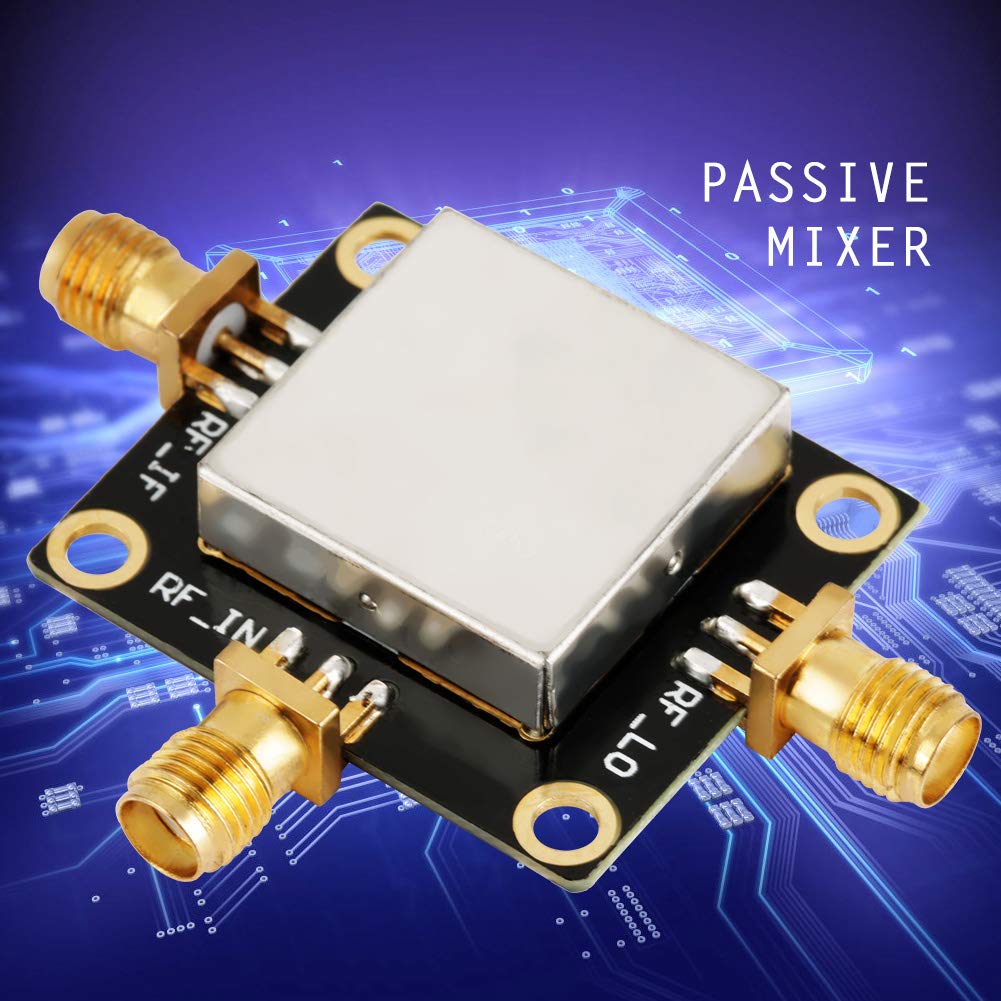

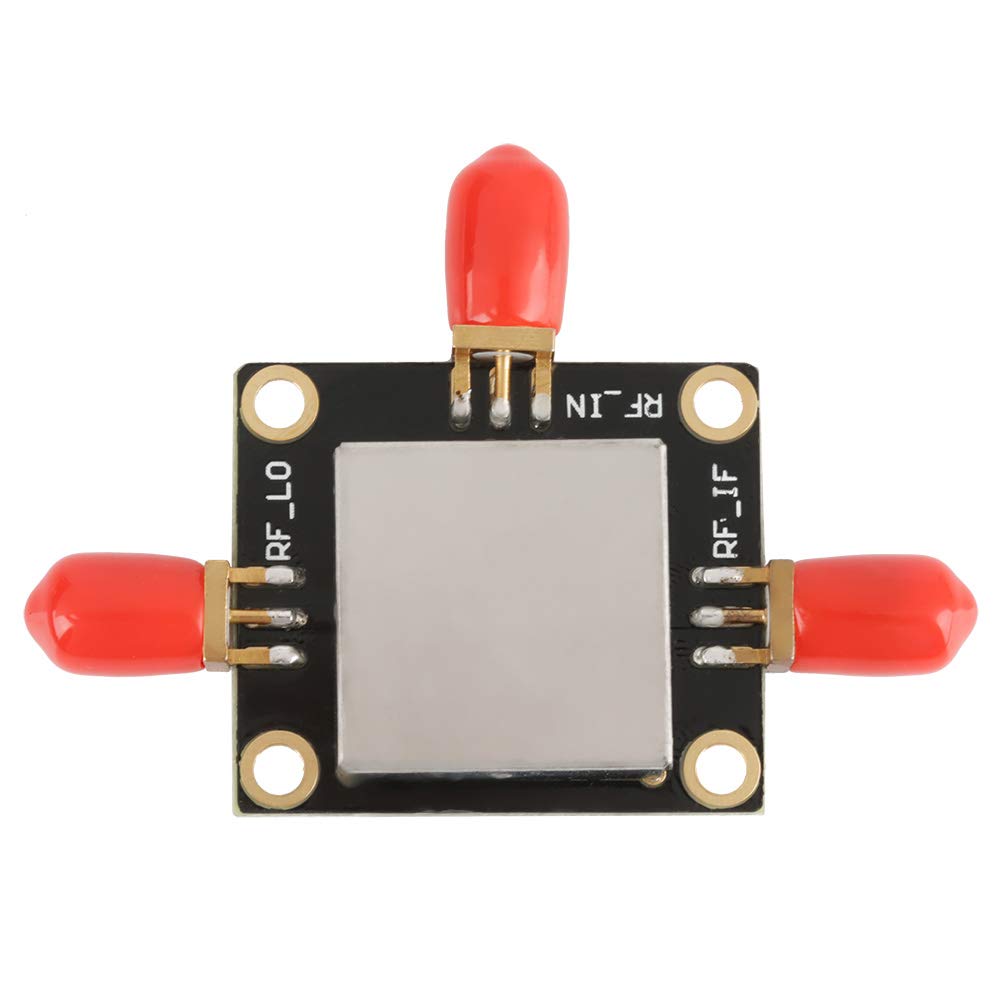

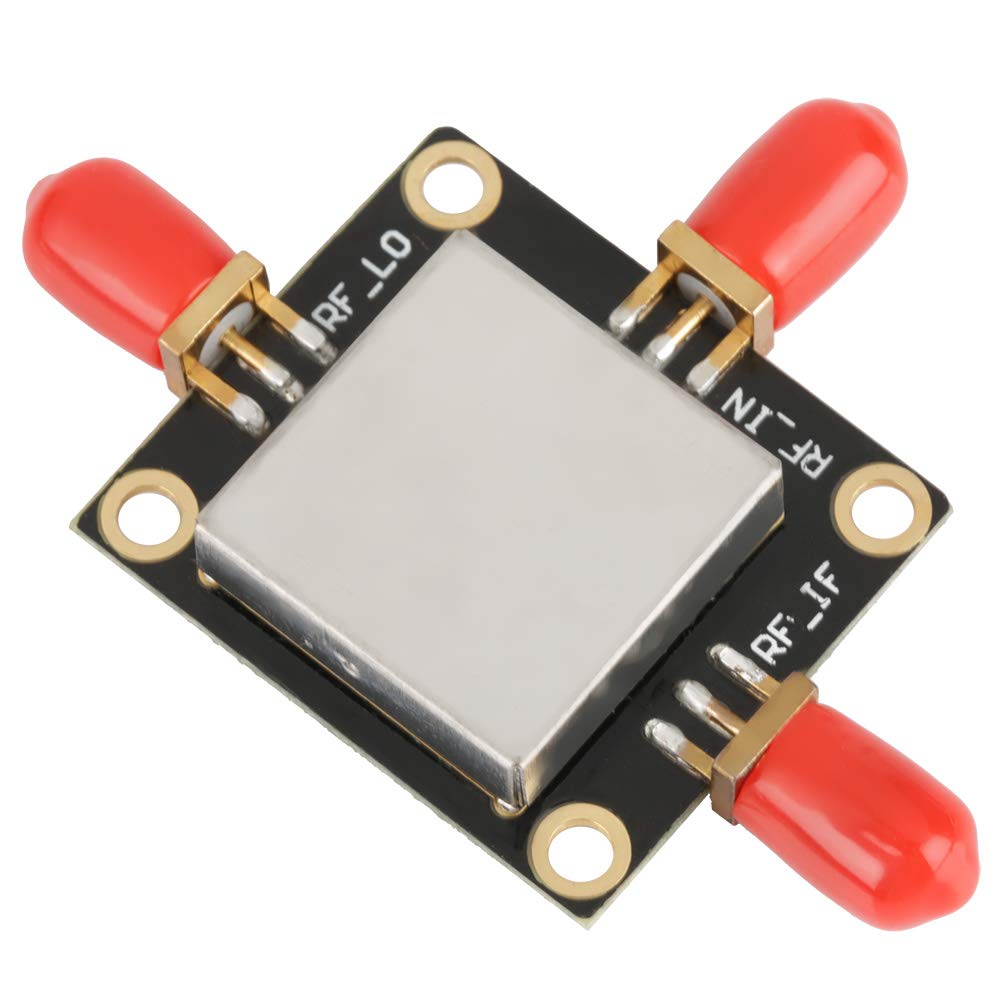

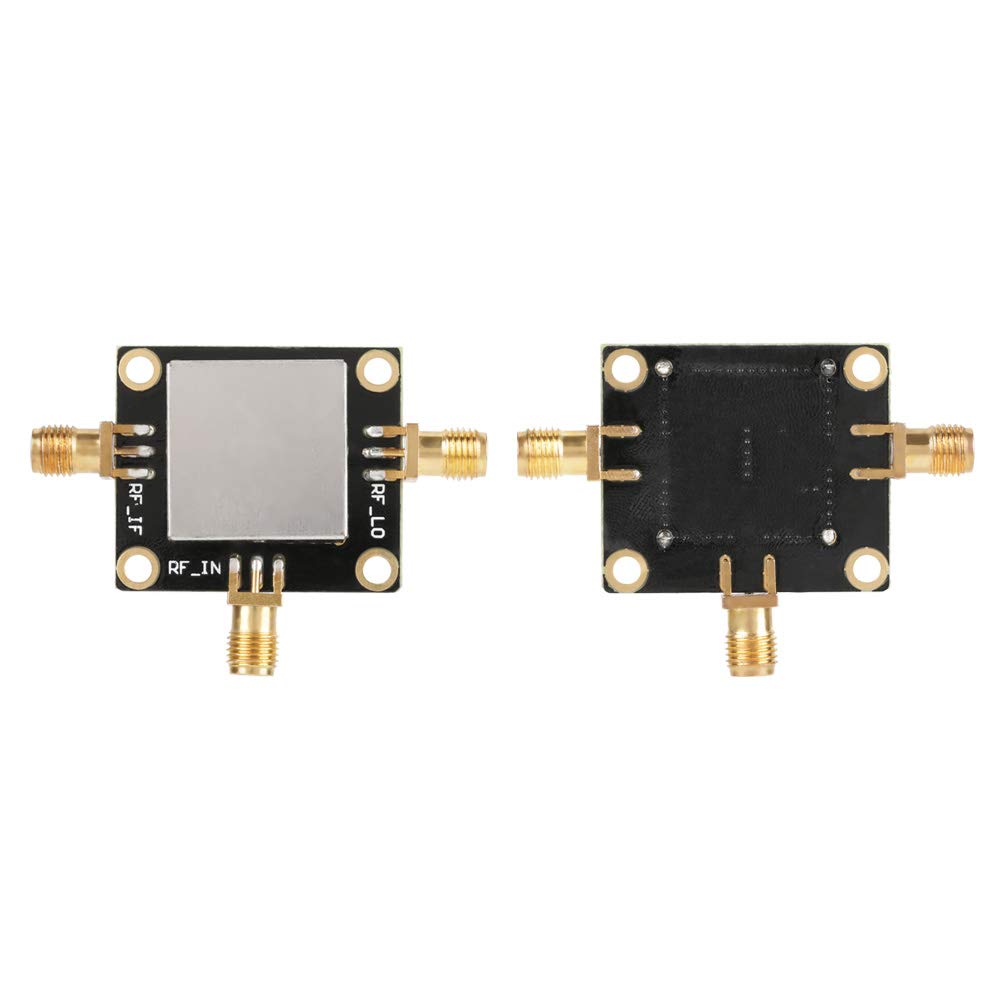

Passive Diode Double Balanced Mixer Module High Linear Low Noise ADE-1 /ADE-6/ADE-25(Optional) (ADE-25 5-2500MHz), diode
About this item
- Type(Optional):0.5-500MHz( ADE-1),0.05-250MHz(ADE-6),5M-2500MHz(ADE-25)
- Frequency conversion passive mixer can be used in VHF/UHF
- Passive Mixer has low conversion loss,respectively are 5.0dB,4.6dB, 7.0dB
- RF Power:50mW;IF Current:40mA
- Passive mixers adopt mini components design,compact and light weight
Product description
Features: The mixer is located behind the low noise amplifier (LNA) and directly processes the RF signal after LNA amplification. The passive mixers adopt mini components design,compact and light weight ADE-1, ADE-6 ,ADE-25Passive Mixerhas low conversion loss,respectivelyare5.0dB, 4.6dB, 7.0dB Passive mixers feature excellent L-R isolation, and low profile package, protected by US patent 6,133,525 Frequency conversion passive mixer can be used in VHF/UHF Specifications: RF Power: 50mW IF Current: 40mA Type(Optional): 0.5-500MHz( ADE-1), 0.05-250MHz (ADE-6), 5M-2500MHz (ADE-25) Conversion loss: 5.0dB(ADE-1), 4.6dB(ADE-6), 7.0dB(ADE-25) ADE-1RF/LO: 0.5-500MHz ADE-6RF/LO: 0.05-250MHz ADE-25RF/LO: 5M-2500MHz Operating Temperature: -40°C to 85°C Storage Temperature: -55°C to 100°C Weight: 9g Package list 1×Passive Mixer
