Parallax Digital Technologies 1 Port 10/100/1000 BASE-T 30W Industrial PoE Injector 12-48VDC

• 12-48VDC Power Input
• 1 x Gigabit Ethernet Input Port
• 1 x Gigabit Ethernet PoE+ Output Port
• Supports 10/100/1000Base-Tx
• -40°C to +80°C Operating Temperature Range

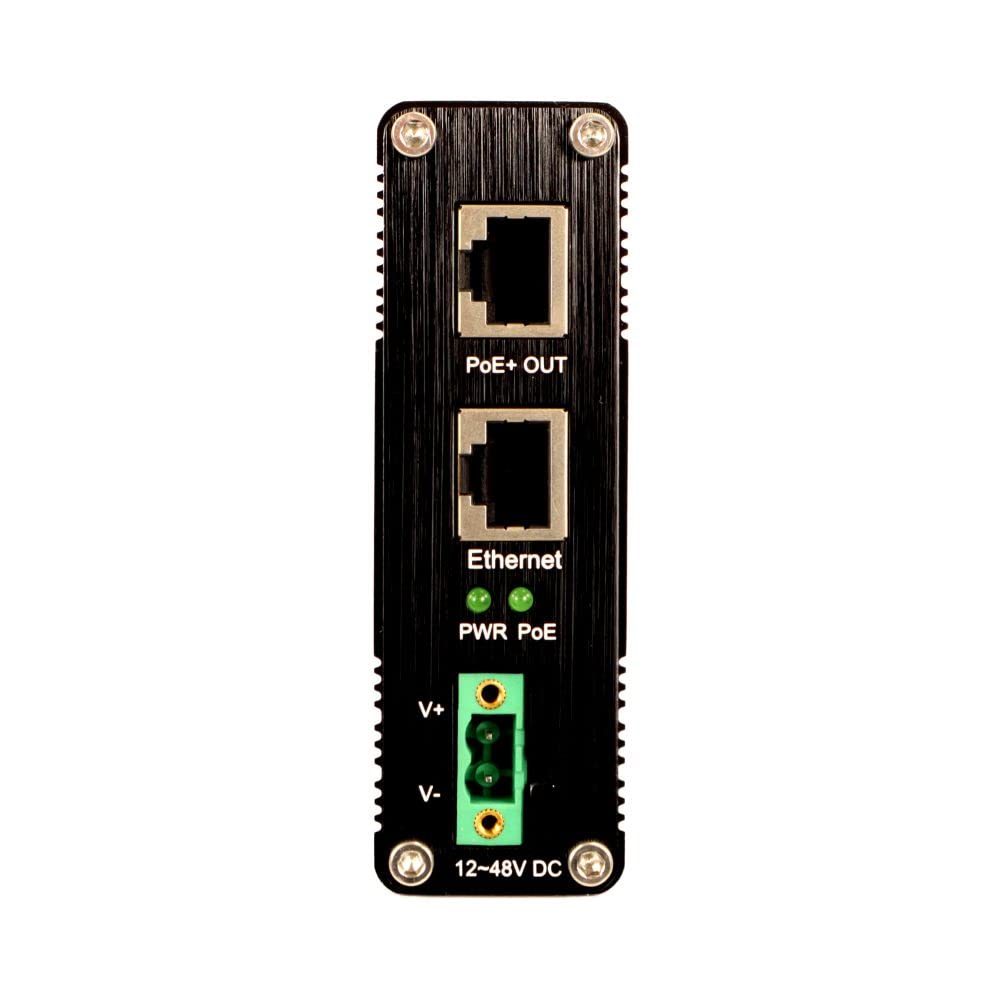

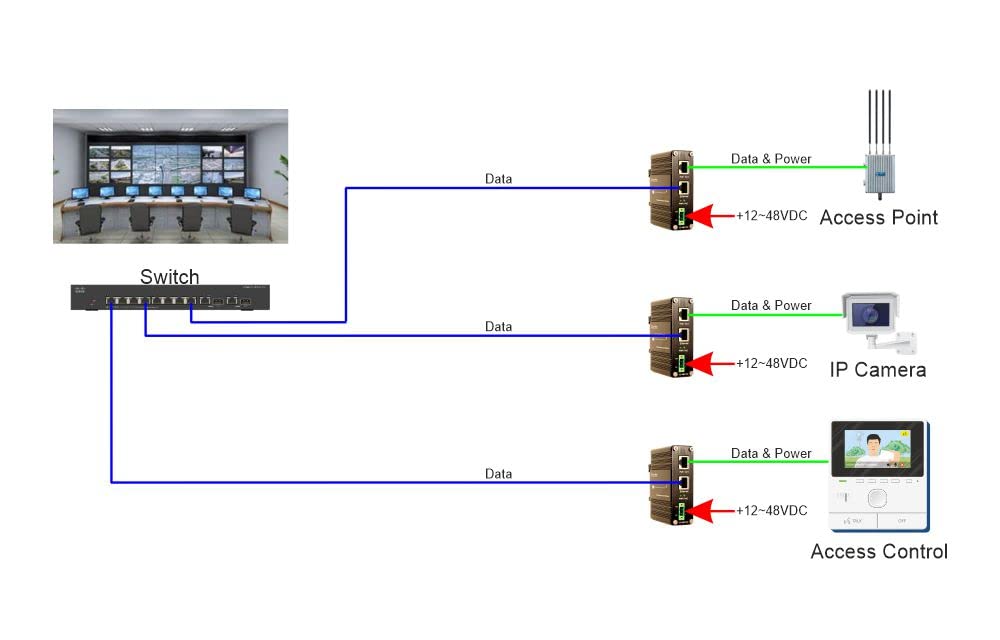

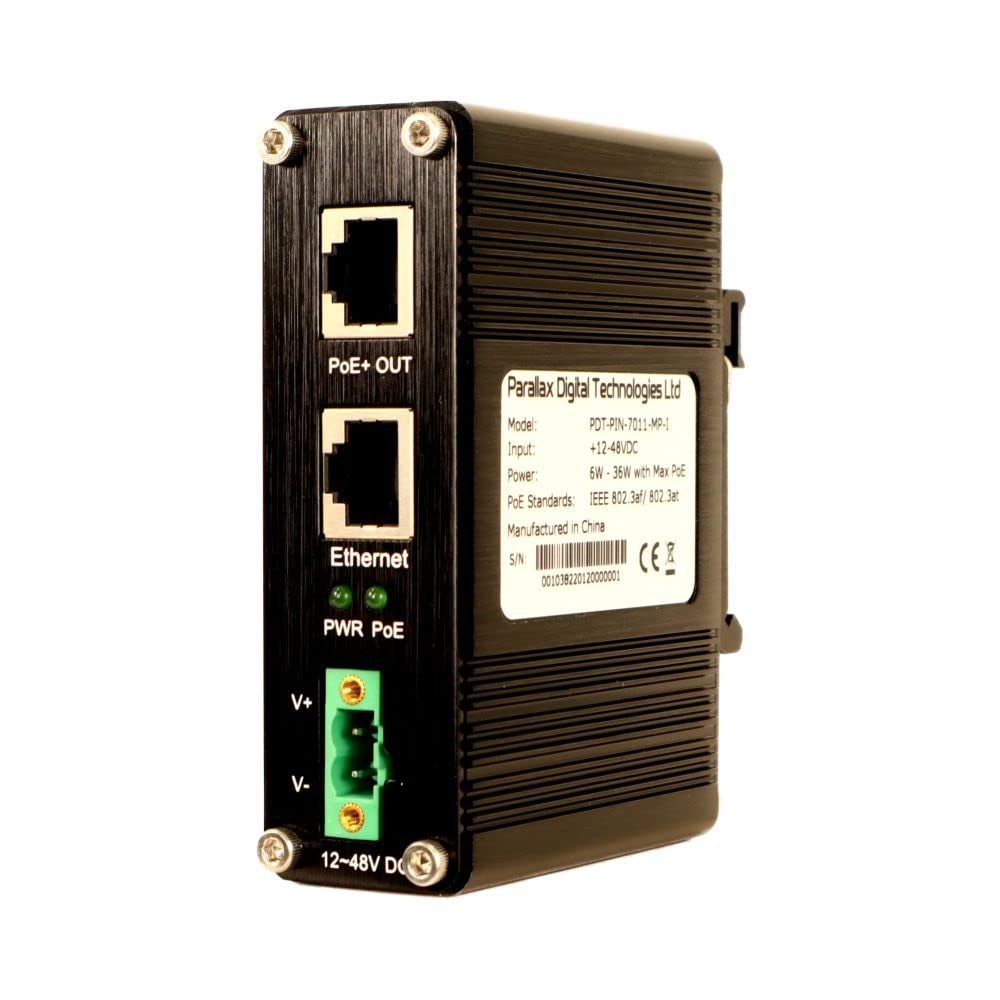

The PDT-PIN-7001-MP-I is a hardened Gigabit Ethernet PoE Injector which facilitates connectivity for IEEE 802.3 af/at devices, such as cameras, access points, and other PoE devices, up to a range of 100m from the PoE Injector. The input and output ports both support 10/100/1000 BASE-T and are compliant with IEEE 802.3ab. This device incorporates a voltage booster circuit which allows for full support of IEEE 802.3 af (PoE) and IEEE 802.3 at (PoE+) devices at +48VDC even with a +12VDC Power Supply, making it suitable for battery and solar applications. It is housed in a ruggedized aluminium casing, and has wide operating temperature range, making it suitable for the harshest of networking environments. Full technical documentation including Datasheet, User Manual, and Declaration of Conformity, are available to download on our manufacturer website
