Panotrade Balustrade Railing System - 1 x Corner Post (304 Grade Steel)

• Panotrade Glass and Stainless Steel Balustrade Raling System - Premium 10mm toughened balustrade safety glass and 304 & 316 stainless steel balustrade posts. Certified for outdoor and indoor use. Ideal for Staircase, Landing, Balcony, Patio and Decking use. The stainless steel posts are sold separately to the glass. Select each product you need from the drop down menu and add to your basket. IF YOU WOULD LIKE US TO DESIGN YOUR BALUSTRADE SYSTEM, TO ENSURE THE BEST & MOST ECONOMICAL LAYOUT, BUY OUR DESIGN LAYOUT IN THE DROP-DOWN MENU FOR £2.00 AND WE'LL DO THE REST!
• 10mm thick Toughened, Safety Glass. 1000mm High. Avialble in 13 Width Sizes. All edges are fully polished. Corners are dubbed rounded. Note: When the glass is fitted to the balustrade posts, the total height beomes 1100mm. There will be a 100mm gap at the bottom, between the glass panel and the floor surface. See photos.

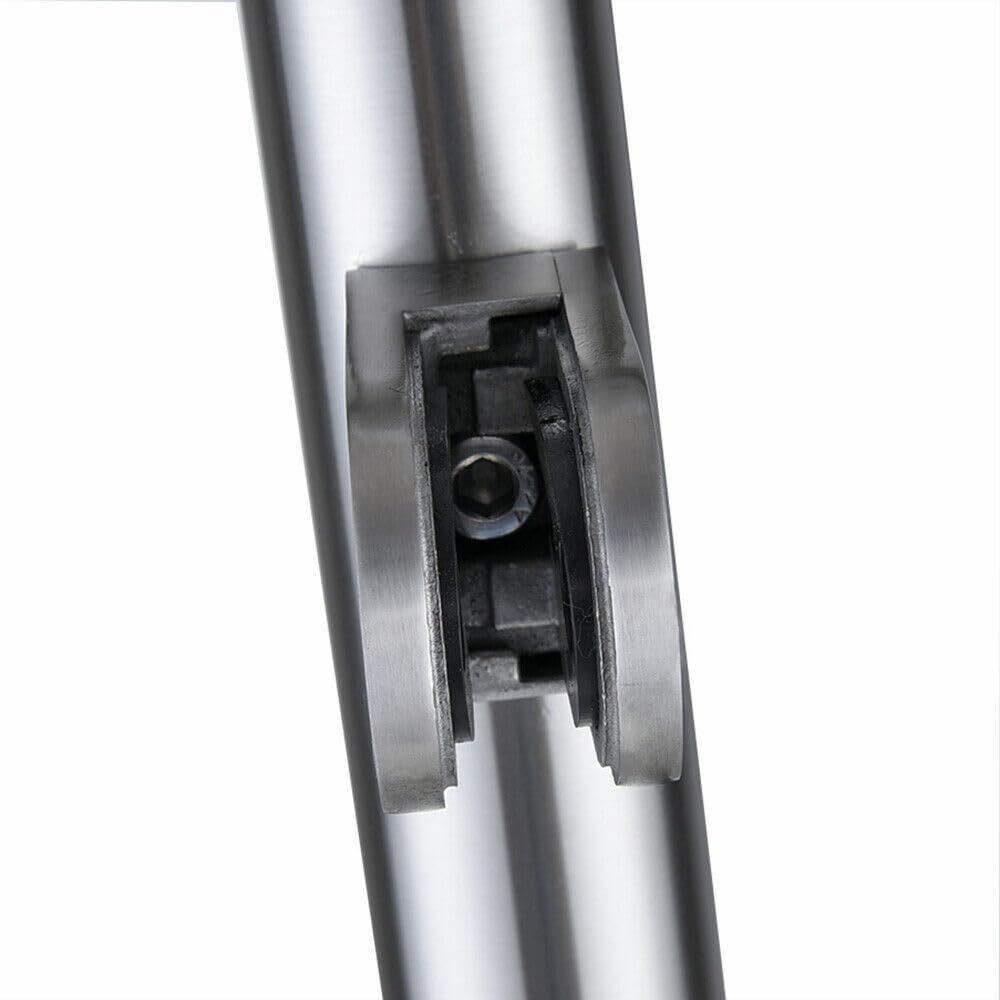

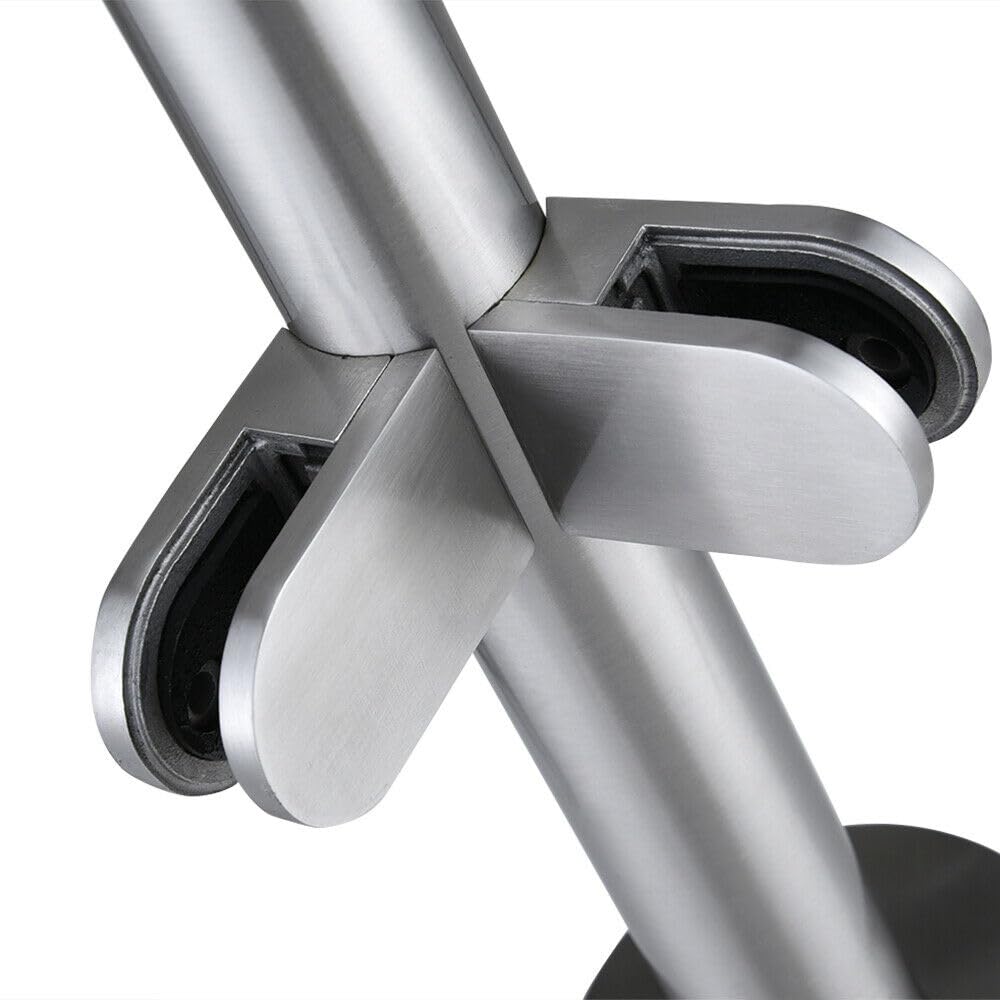

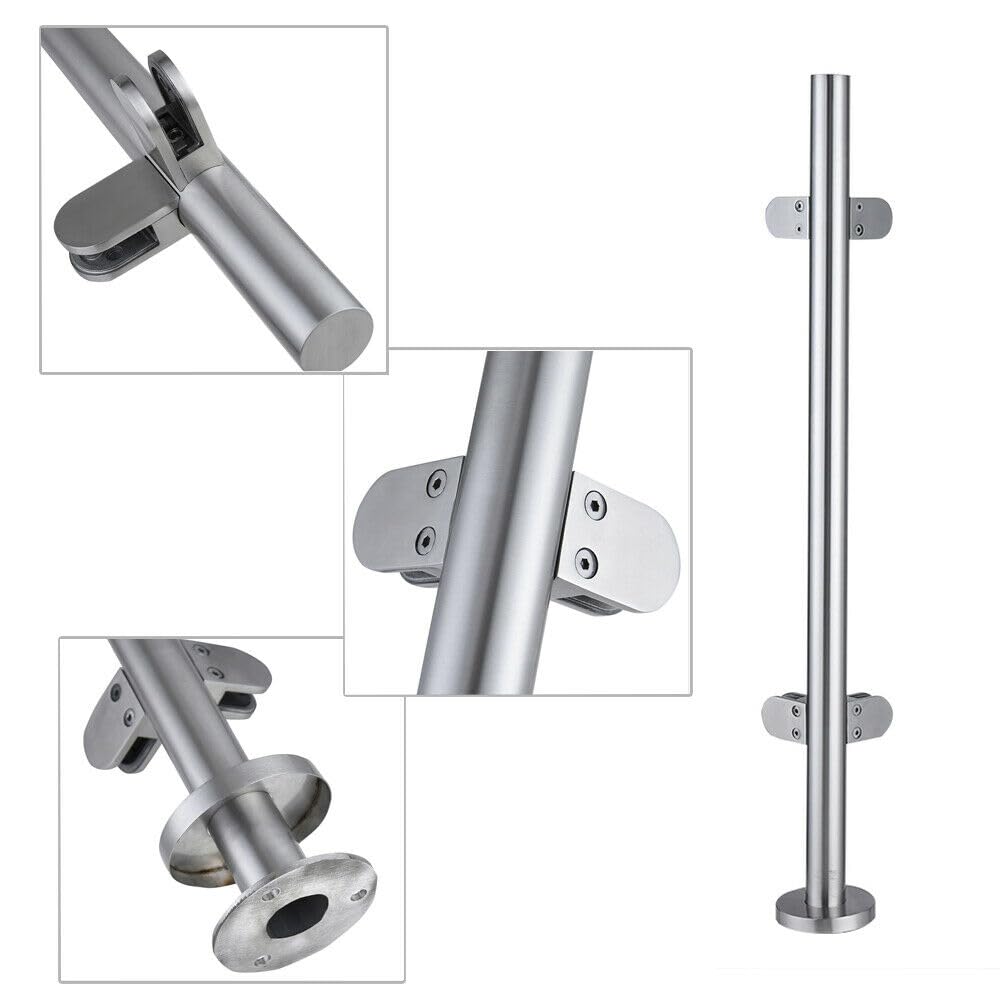

• Each Stainless Steel Post comes complete with the correct amount of clamps. Centre & Corner Posts come with 4 clamps each and End Posts with 2 clamps. Glass is available in the following sizes: ALL 10mm THICK: 300mm x 1000mm, 400mm x 1000mm, 500mm x 1000mm, 600mm x 1000mm, 700mm x 1000mm, 800mm x 1000mm, 900mm x 1000mm, 1000mm x 1000mm, 1100mm x 1000mm, 1200mm x 1000mm, 1300mm x 1000mm, 1400mm x 1000mm and 1500mm x 1000mm. Sqaure Backk & Curve Back Glass Clamps are also available to buy seperatley.
• The Stainless Steel Posts are sold separately to the Glass, Available in 304 or 316 Grade. Select each product, glass and/or posts from the drop down menu and add each item to your shopping basket seperatley.
• THERE ARE TWO STEEL GRADE POSTS TO CHOOSE FROM IN THIS LISITING. GRADE 304 GRIT MARINE STAINLESS STEEL POSTS, WHICH ARE SUITABLE FOR USE OUTSIDE OF SEASPRAY ZONES, (MORE THAN 10 MILES INLAND FROM THE SEA) AND 316 GRIT MARINE STAINLESS STEEL POSTS, WHICH ARE SUITABLE FOR COASTAL AREAS.
• All purchases are covered by Panotarde's Warranty & Technical Support Aftercare. If you are unsure what size panels to order, or how many you need to best utilise the area you have, we can help design your layout and recommend the best sizes. Simply call our helpline on 07756 296660 and ask for the Balustrade Design Team.
• HOW TO CALCULATE THE GLASS SIZES YOU NEED: When calculating the size of the panels you require, remember to add 85mm to the width between each glass panel, (where the balustrade post will stand). E.g. - Two 800mm x 1000mm glass panels, with two end posts and one centre joining post will require a space of 1855mm, (85mm End Post + 800mm Glazed Panel + 85mm Centre Post + 800mm Glazed Panel + 85mm End Post). Refer to the example diagram on the left. The glass panel sits 40mm inside each clamp.
• INSTALLATION NOTES: Installing to a solid foundation is essential. We recommend a minimum fixing depth of 100mm for each post. Place all posts in the desired position, Use ALL of the fixing holes found on the base plates when fixing the balustrade into position. Use chemical resin with the fixing bolts if you have an unstable fixing point. Do not use power tools to tighten glass clamps or covers. There must be a minium gap of 3mm from the edege of the glass to the metal clamp once installed to allow for expansition , Maximum gap is 10/14mm.
• Our posts stand 1100mm high. The glass is 1000mm high. By design, the top of the glass is fitted flush with the top of the posts. There will be a 100mm gap at the bottom of the glass, once fitted.
• PLEASE NOTE: It is the customer's responsibility to ensure that the balustrade is installed safely and in accordance with relevant planning and building regulations.

Panotrade Glass and Stainless Steel Balustrade Railing System - Premium 10mm toughened balustrade safety glass and 304 & 316 stainless steel balustrade posts. Certified for outdoor and indoor use. Ideal for Staircase, Landing, Balcony, Patio and Decking use. The stainless steel posts are sold separately to the glass. Select each product you need from the drop down menu and add to your basket. Square Back & Curve Back Glass Clamps are also available to buy seperatley. IF YOU WOULD LIKE US TO DESIGN YOUR BALUSTRADE SYSTEM, TO ENSURE THE BEST & MOST ECONOMICAL LAYOUT, BUY OUR DESIGN LAYOUT IN THE DROP-DOWN MENU FOR £2.00 AND WE'LL DO THE REST! Legal Disclaimer Please note that it is the customer's responsibility to ensure that the balustrade is installed safely and in accordance with relevant planning and building regulations. Important: If you are located outside of Mainland UK, including but not limited to Ireland, Northern Ireland, Scottish Highlands and Islands, Channel Islands, Isle of Wight and Channel Islands - you may need to make extra arrangements with the courier to get the item to your location. It is your responsibility to ensure all local building regulations are being adhered to when installing this product. Standard steel posts are not suitable if you live within 10 miles of the sea (see spray zone).
