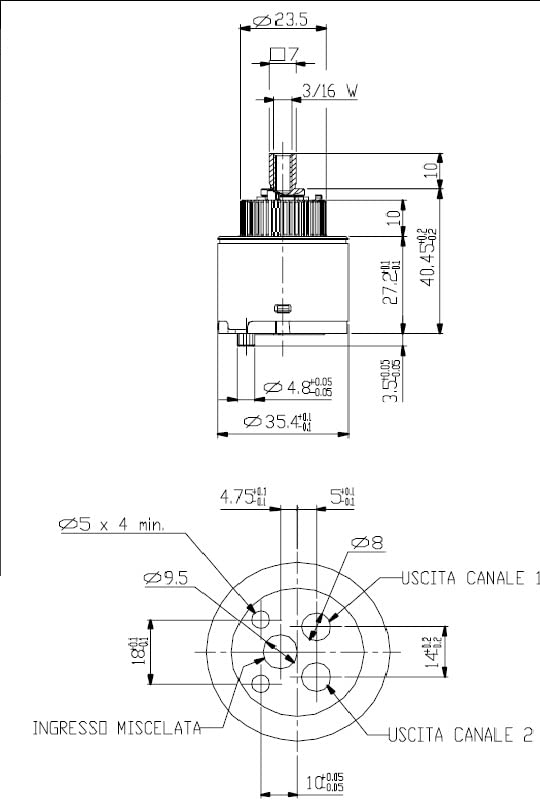

Paini 53CC956DEV35 Cartridge, Grey

• Visit Paini website to learn the cartridge or screw code that mounts your mixer/tap
• Diameter 35
• Rotary diverter
• 2 outputs
• With intermediate closure

TECHNICAL SPECIFICATIONS / TECHNICAL SPECIFICATIONS diameter / diameter 35 mm type of diverter / type of diverter closed / closed number of outputs / outlets 2 max water temperature of use / water max temperature of use 85° recommended water temperature / recommended water temperature 65° water inlet from bottom / water outlet outlet from bottom / from bottom flow rate * (see table) / flow * (see table) pressure status ica max / static pressure max 25 bar working pressure / work pressure 1 ÷ 5 bar international regulations / international regulations EN200 - 200,000 cycles NF077EAU-U3 - 500,000 cycles ASME A.112.18.1 / CSAB125.1 / 500.0.0 00 cycles torque tightening torque torque tightening brass nut 10 Nm lever type customizable / kind of metal rod / metal broach material used for body / body material PSU (UDEL) +10% fiberglass food certifications / food regulations WRAS / KTW / ACS / W270 No. pieces per packaging / n. pieces per package 100 / 150 / 20 0 CINEMATE ICA DEVIATORS / CINEMATIC DIVERTERS lever opening angle / opening angle of the lever N.A. lever rotation angle / angle of the lever rotation 90°+90° opening moment / opening torque (open/closed) N.A. rotation moment / turn left/right torque 0,2 Nm TECHNICAL DATA CERAMIC / CERAMIC DISCS TECHNICAL DATA material / material AL2 O3 - 96% surface roughness / surface roughness 0,05 - 0,25 micron surface contact area / surface contact area 50 % - 80% REACH TEST 3 BAR / FLOW RATE TESTS 3 BAR single channel / single channel L/min A restrictor 13,1 B restrictor N.A. C restrictor N.A. D restrictor 21,3 free flow 27,5 * OPTIONALS / FEATURES flow closure / flow rate closing SI positions with shared outputs / positions with shared ways NO handle fixing with broach or framework / broach or squared lever SI number of the case back legs 2 distributor NO
