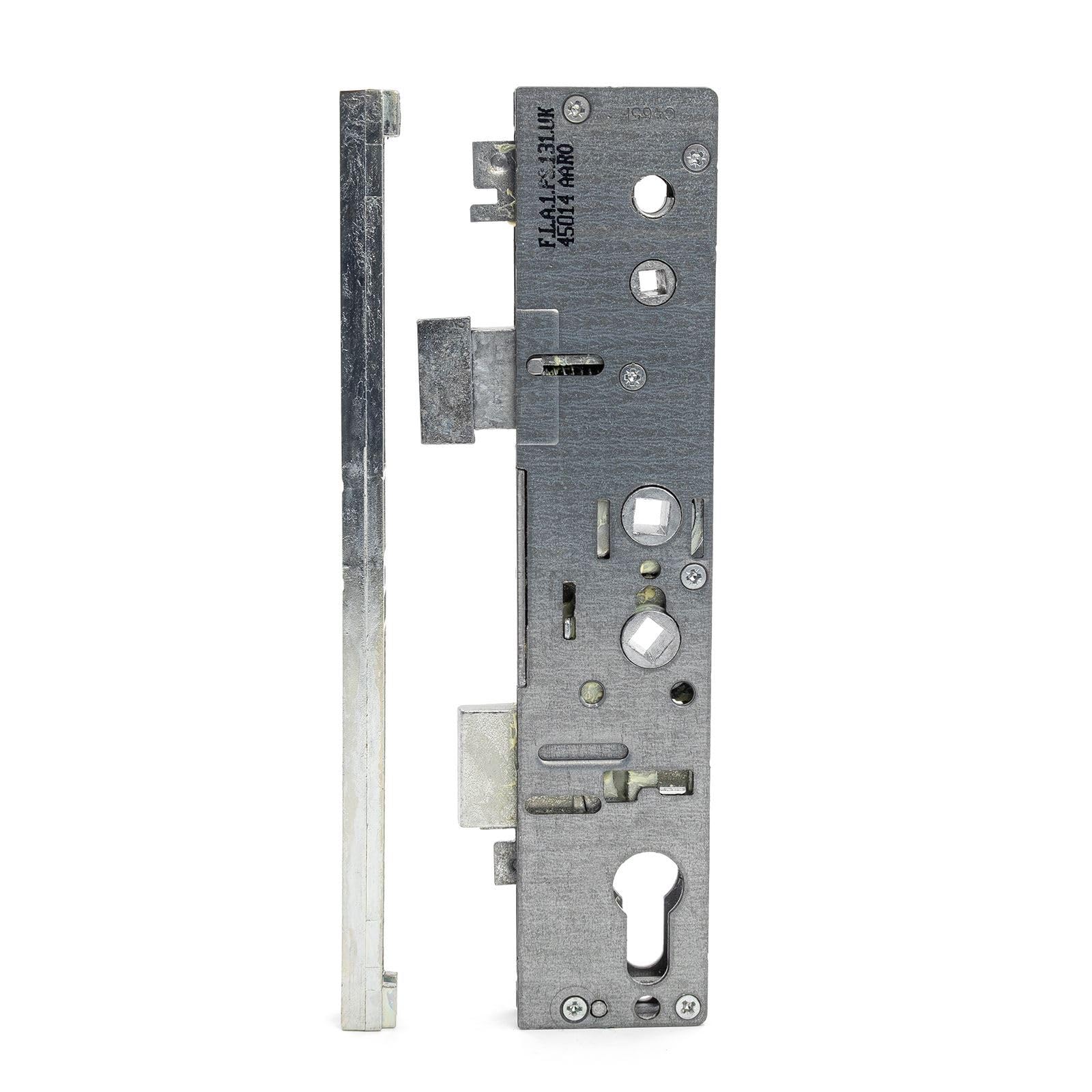

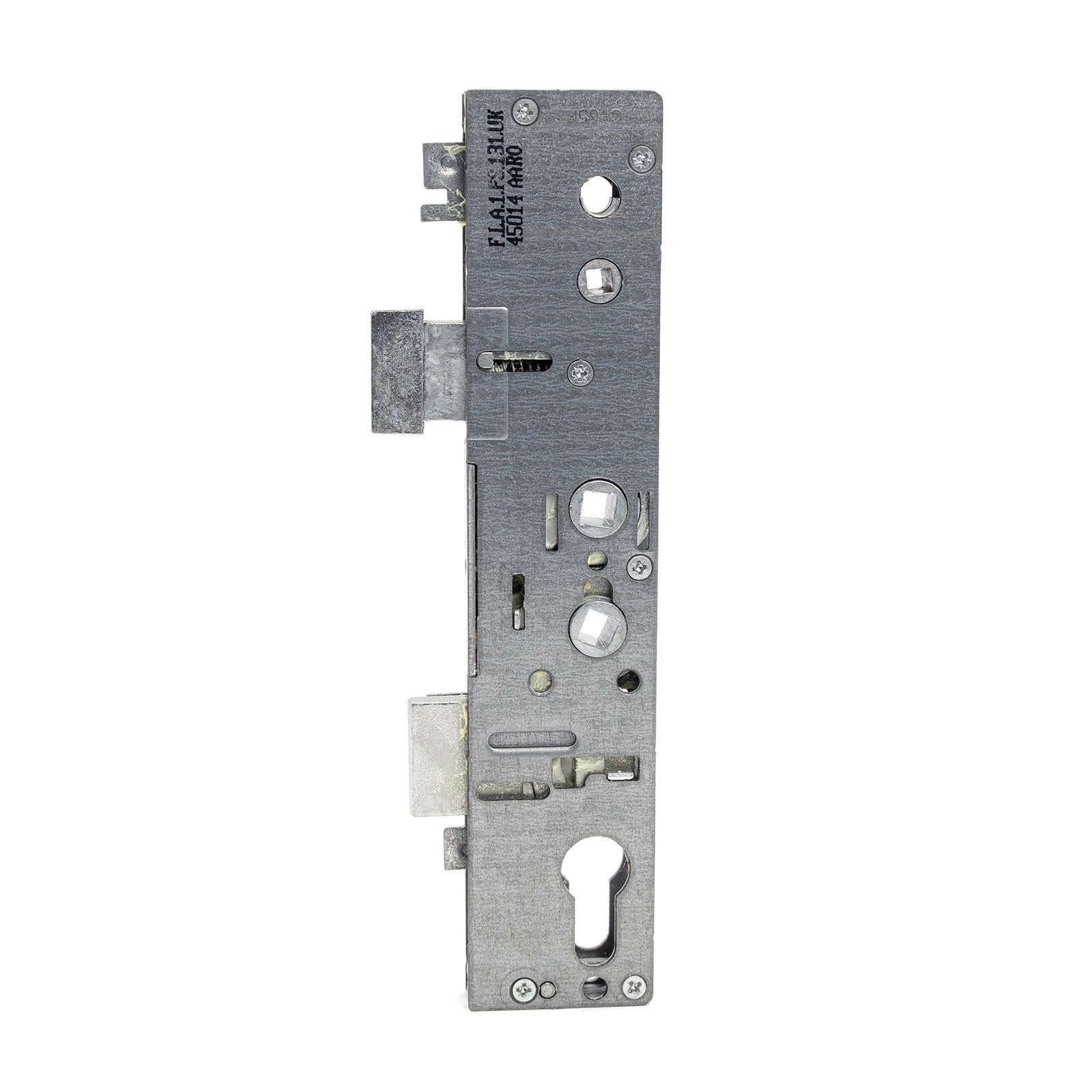

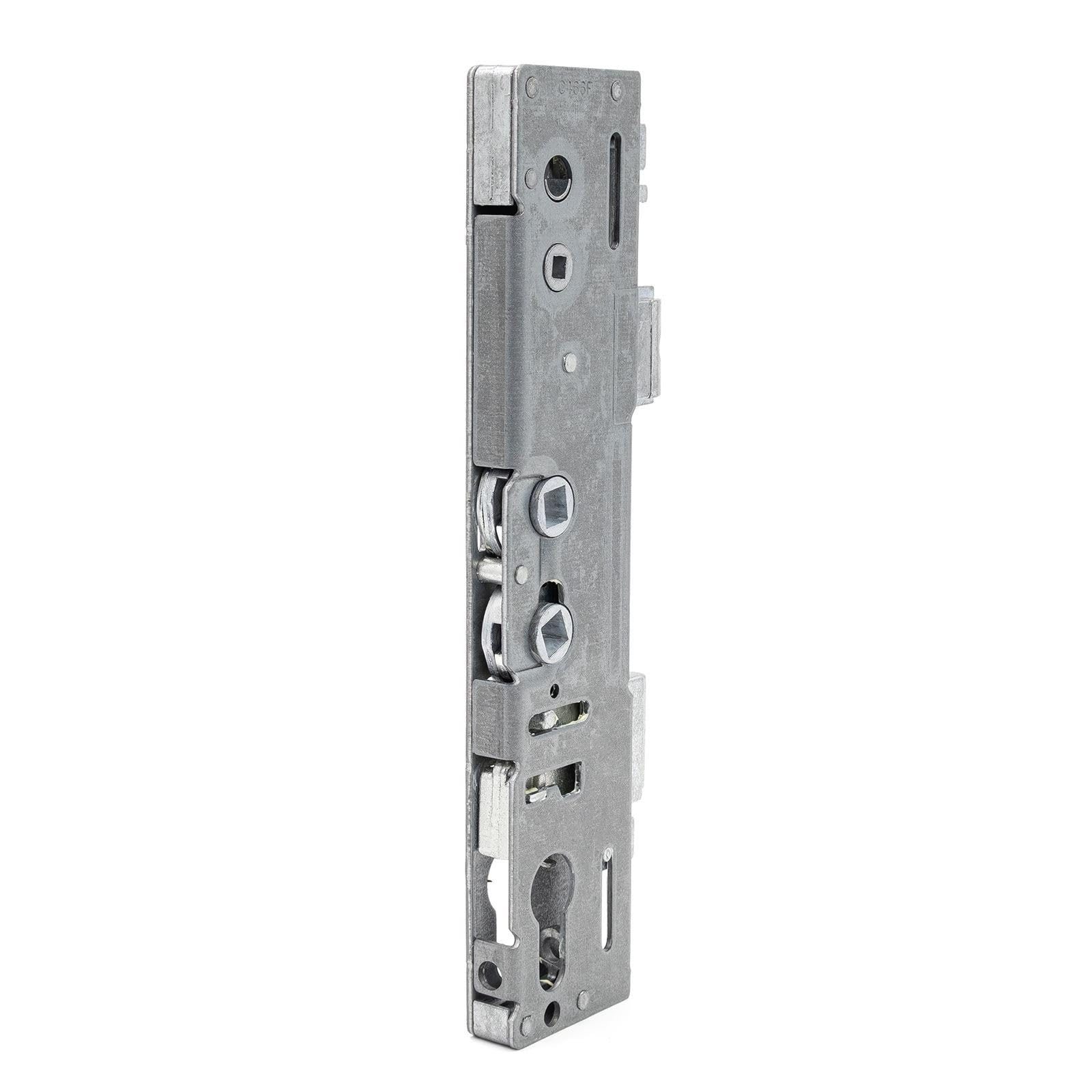

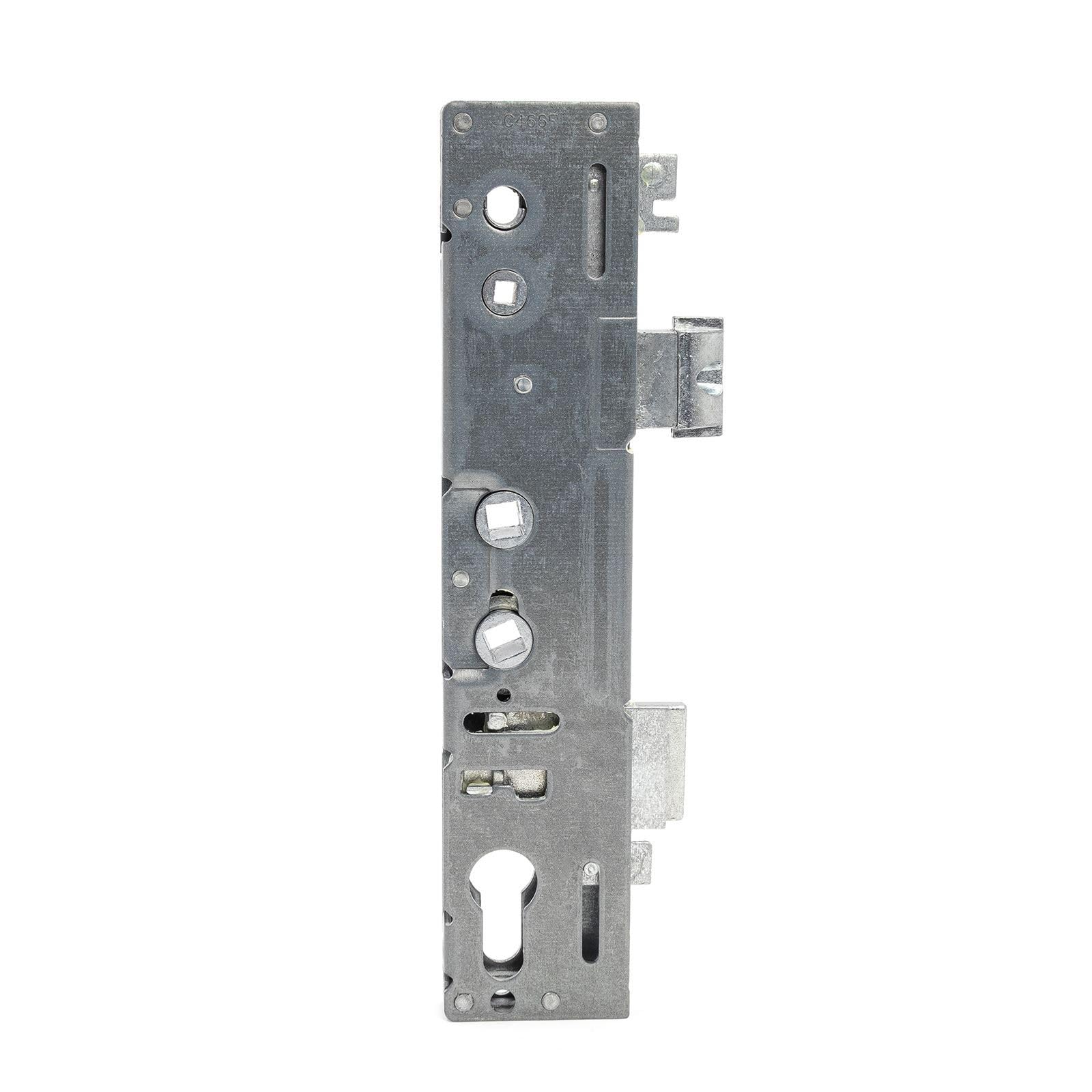

Paddock PAD99945U+PAD99945P Gearbox (45mm) with Spacing Plate - Dual Spindle

• Fits quickly and easily - just removal of a few screws
• Suits left or right doors - latch can be easily reversed
• Spacing plate included - achieves full 45mm backset
• Stainless steel construction - strong and highly durable

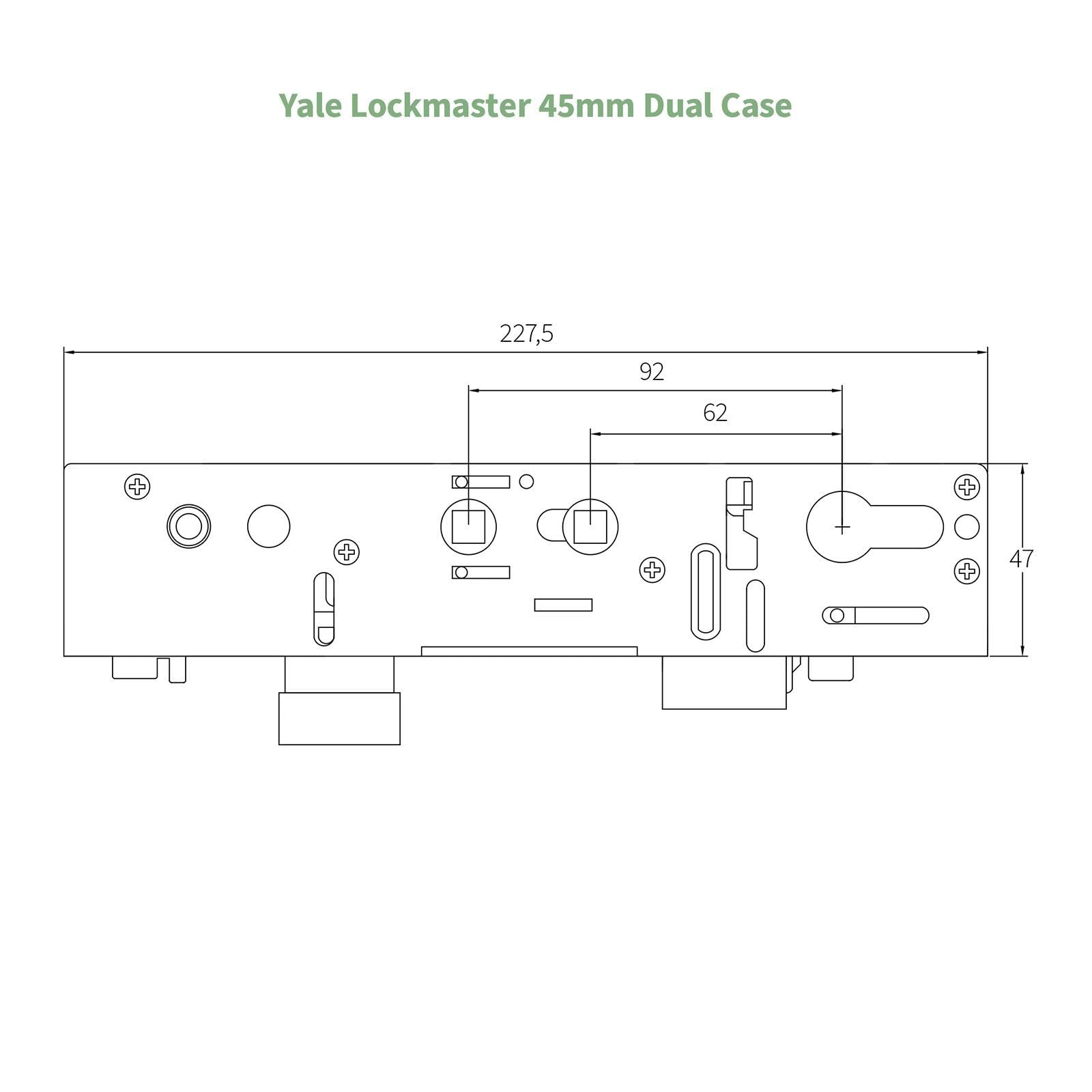

• Fits lever/pad handles - offset 92/62PZ centres

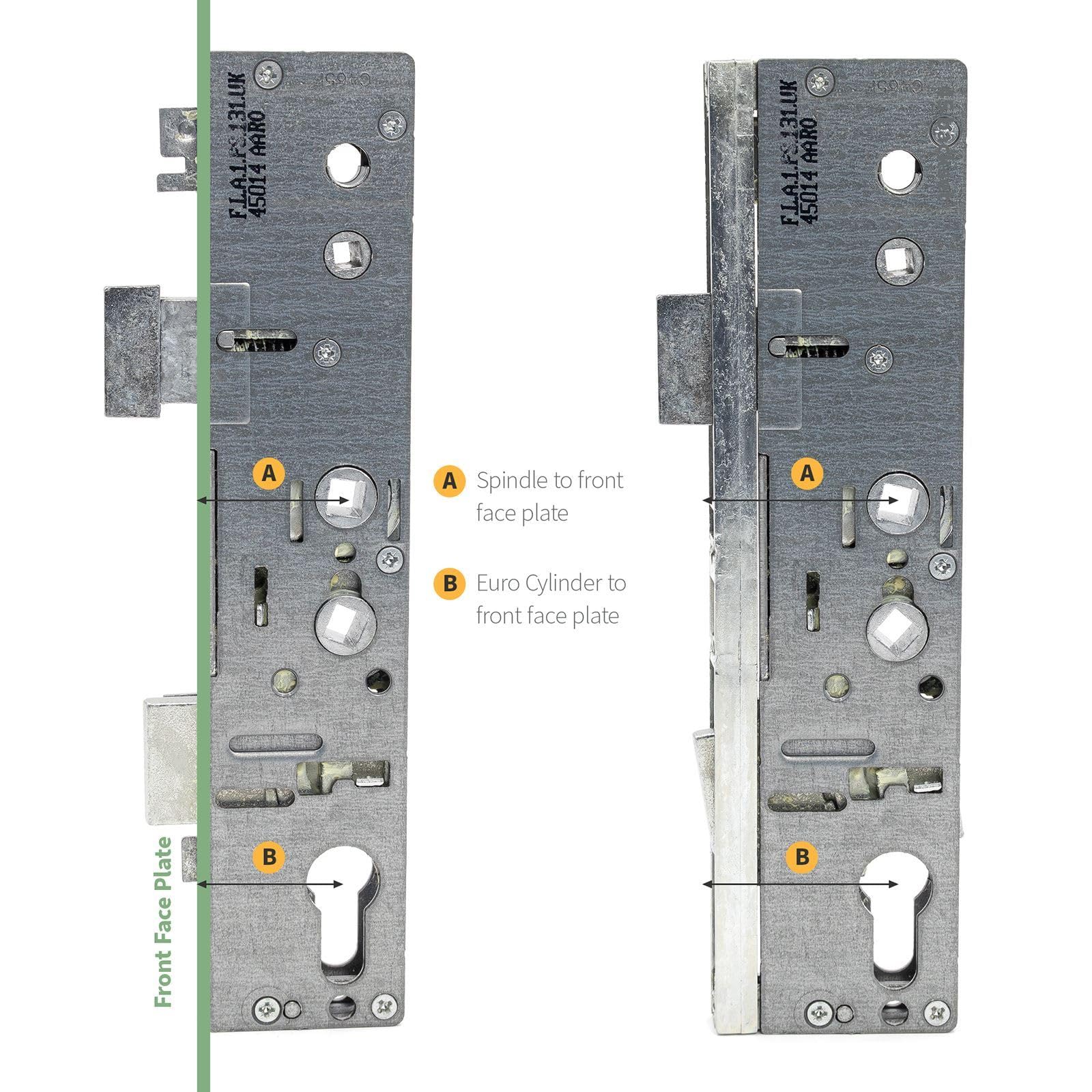

YALE LOCKMASTER PADDOCK GEARBOX (45MM) (Choose spindle type and spacer) Replacement multipoint lock, to suit 45mm gearbox of Yale Lockmaster, Mila Master and more. Offers single-spindle, and dual-spindle centre cases, with separate spacing plate option. Designed with a reversible latch for use on left and right-handed doors. The 45mm Paddock backsets use a 10mm spacing plate to offset the centre case to the correct position. Existing spacers can be reused, to save cost, or new ones can be bought with the gearbox. British-built with 92PZ single-spindle option, for use with lever/lever handles, plus a 92/62PZ offset dual-spindle for lever/pad. Dual-spindle option features a ‘snib' facility to prevent accidental lock outs. Features & Benefits Fits quickly and easily - just removal of a few screws Optional spacing plate - buy only what you need Suits left or right doors - latch can be easily reversed Stainless steel construction - strong and highly durable Choice of spindle type - single and dual options Popular gearbox size - 92PZ with 45mm backset Saves time and money - no need to replace mechanism Corrosion resistant - long-lasting performance 10-year mechanical guarantee - peace of mind Technical Information Backset Size: 45mm (requires a 10mm Spacing Plate) Spindle Type: Single (92PZ), and Dual (92/62 PZ) options Case Length: 227mm Case Width: 47mm Case Thickness: 15mm Material: Stainless steel Handedness: Left-hung and right hung-doors Case Locking: Single-Spindle - Sprung Latch and deadbolt. Dual-Spindle - Unsprung Latch and deadbolt. Suitability: Single, double, PVCu and aluminium doors Guarantee: 10-year mechanical guarantee
