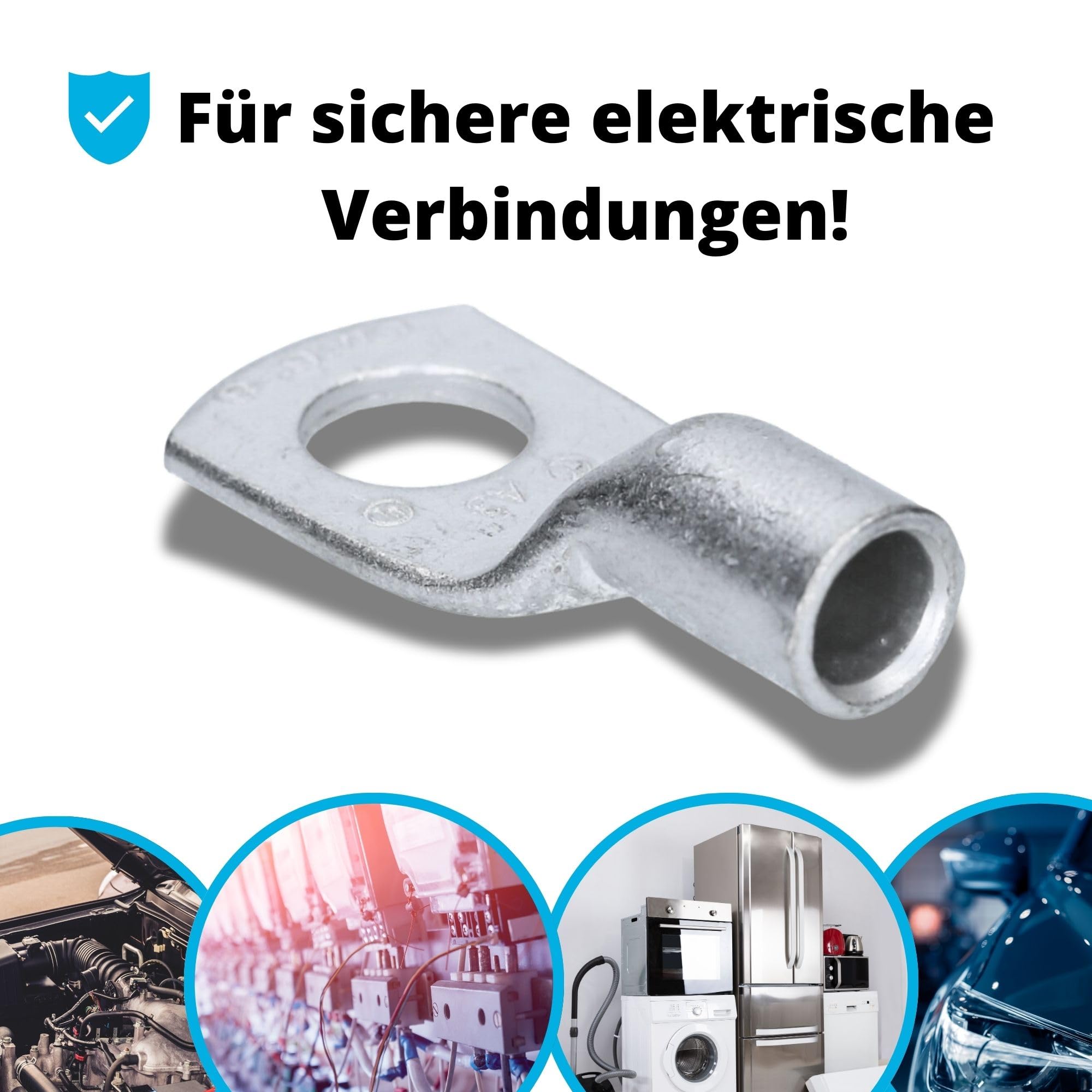

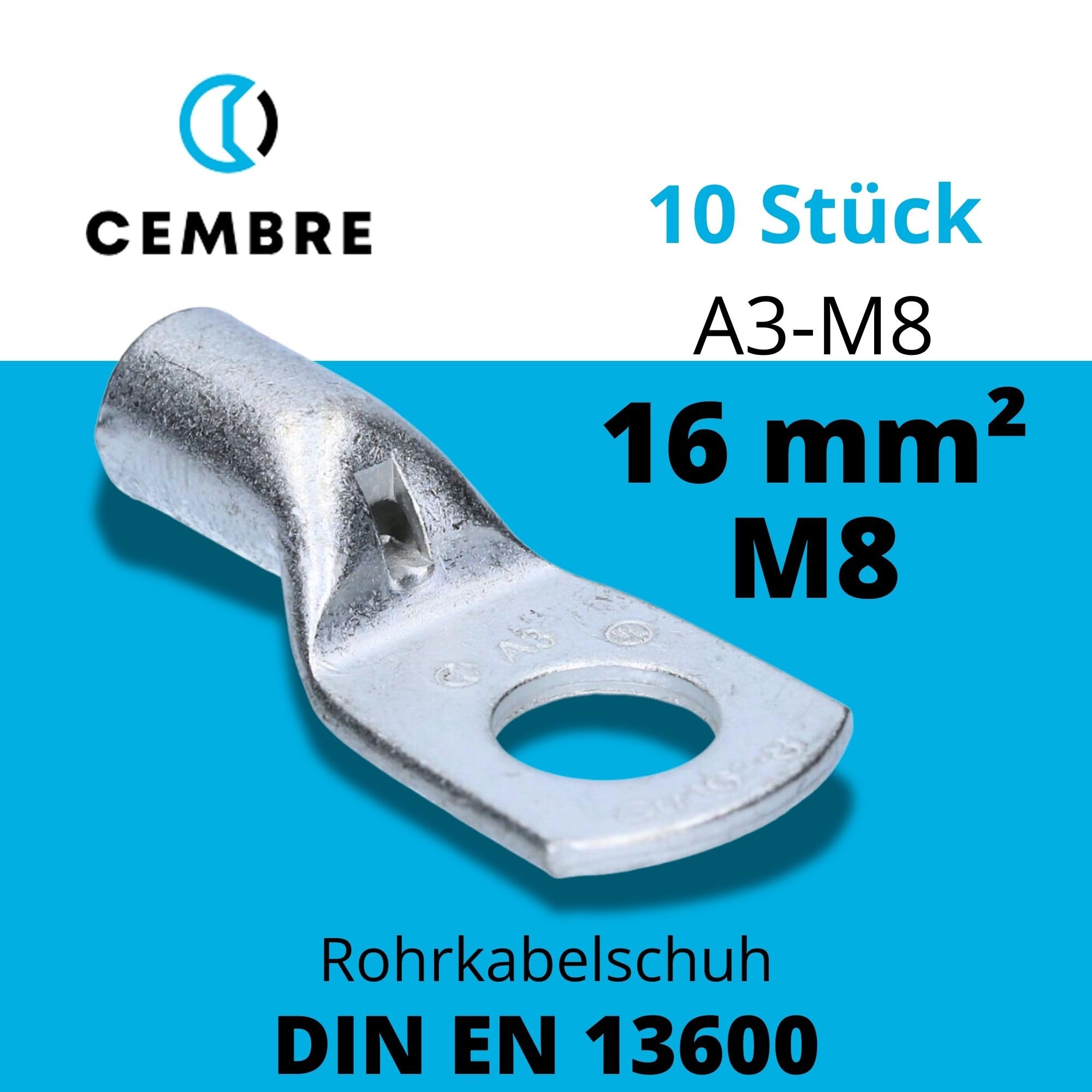

Pack of 10 Cembre A3-M8 Tubular Cable Lug 16 mm² M8 Uninsulated Copper Tin-Plated

• Cable lugs type A-M are made of electrolytic copper tube (SE-Cu according to DIN EN 13600). We recommend using our press connectors by mandrel crimping.
• All crimp terminals are annealed again after mechanical processing to ensure optimal crimping.

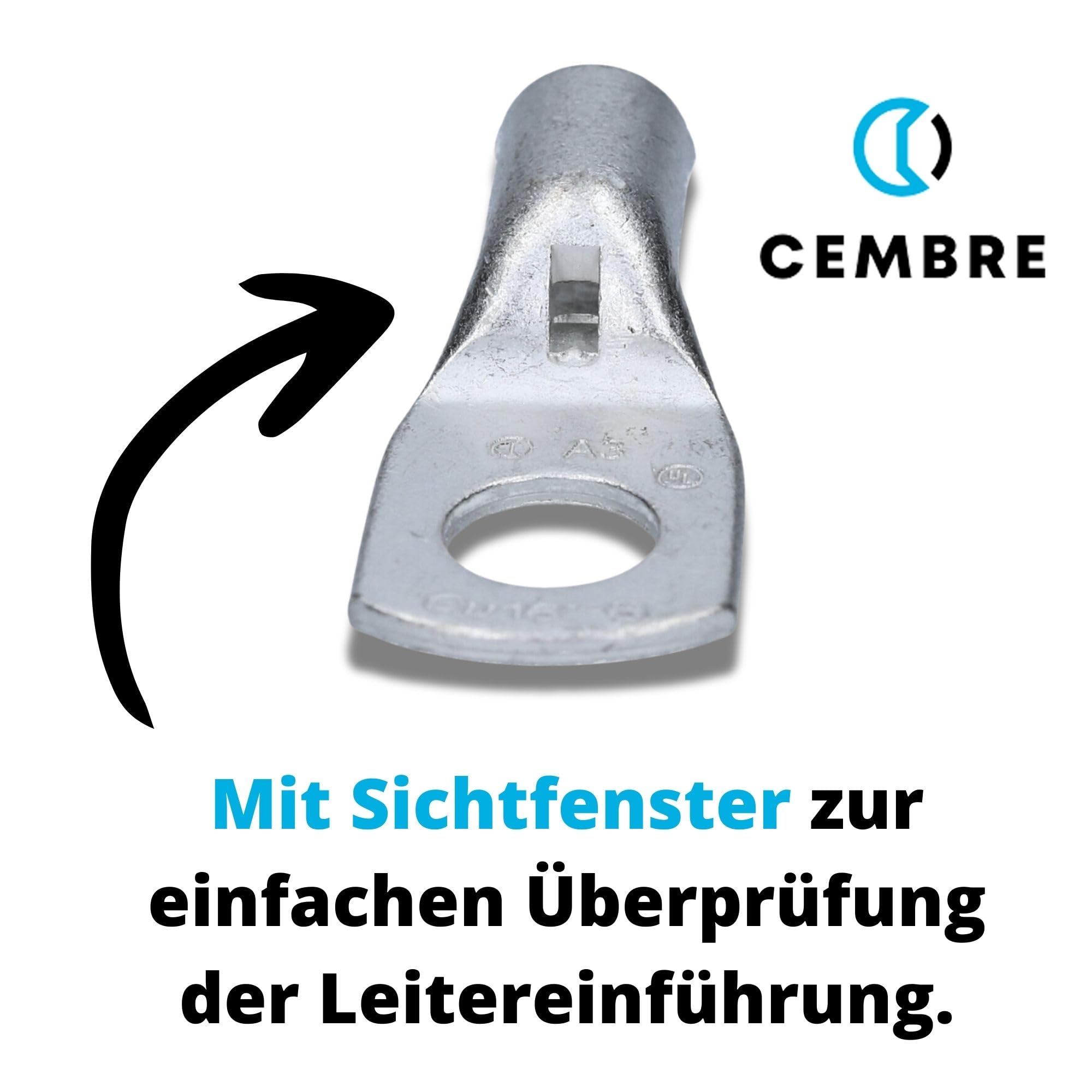

• The cable connectors all have a viewing hole that allows the correct insertion of the conductor. Each crimping cable lug bears the following features: Cembre company logo, product name, conductor cross section (mm2)
• Compression cable lugs for making safe electrical connections in electrical installation, e.g. in the house, garden and garage, on the car, truck, motorcycle, bicycle
• Box contents: 10 x tube cable lugs

Cable lugs type A-M are made of electrolytic copper tube (SE-Cu according to DIN EN 13600). The tube wall thickness guarantees the best electrical conductivity and mechanical protection against vibrations and extension of the conductor. Our cable lugs are annealed to ensure optimum elasticity, which is essential as the terminals must withstand strong deformation during crimping and the ordinary twisting of the tab during use. Even during vibrations and vibrations, the connectors must ensure a reliable contact. Under these circumstances, hardness plays a crucial role in preventing breakages and cracks. The viewing hole ensures the correct insertion of the conductor. The sleeve length has been chosen so large to ensure easy and correct positioning between the press inserts during crimping. All Cembre tubular cable lugs are equipped with a security code system, e.g. A 24 (= 120 mm²). When crimping with the hexagonal press inserts ME, the same code (A 24) is pressed into the hexagonal surface of the pressing point. With a subsequent visual inspection, it is therefore easy to check and a confusion is excluded. Terminals are electrolytically tin-plated to prevent oxidation. For further information, our technicians are available
