Oyaide SuperSlimSeries 6.35mm(1/4") TS Phone Plug Made In Japan for Effects Pedals Patch Cables (P-6.3S φ6.0mm Straight)

• High-performance ultra-compact telephone plug suitable for wiring effector boards, [SuperSlimSeries]. The high quality of the “P-series” represents Japanese precision work.
• Shape: Standard 6.3mm mono phone plug (1/4 ", 2 poles) straight type
• Compatible cable diameter (Install O.D.)：φ6.0mm

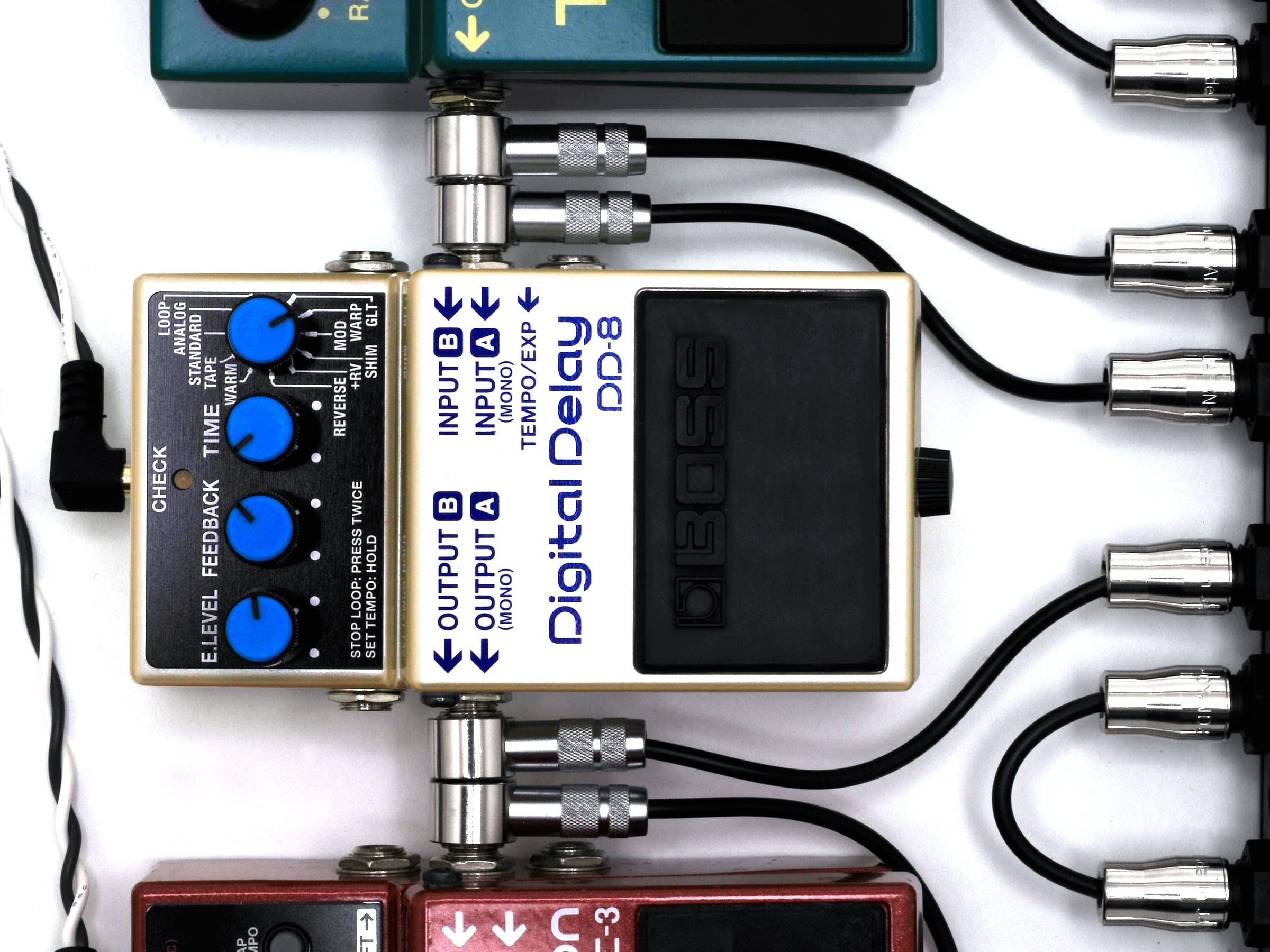

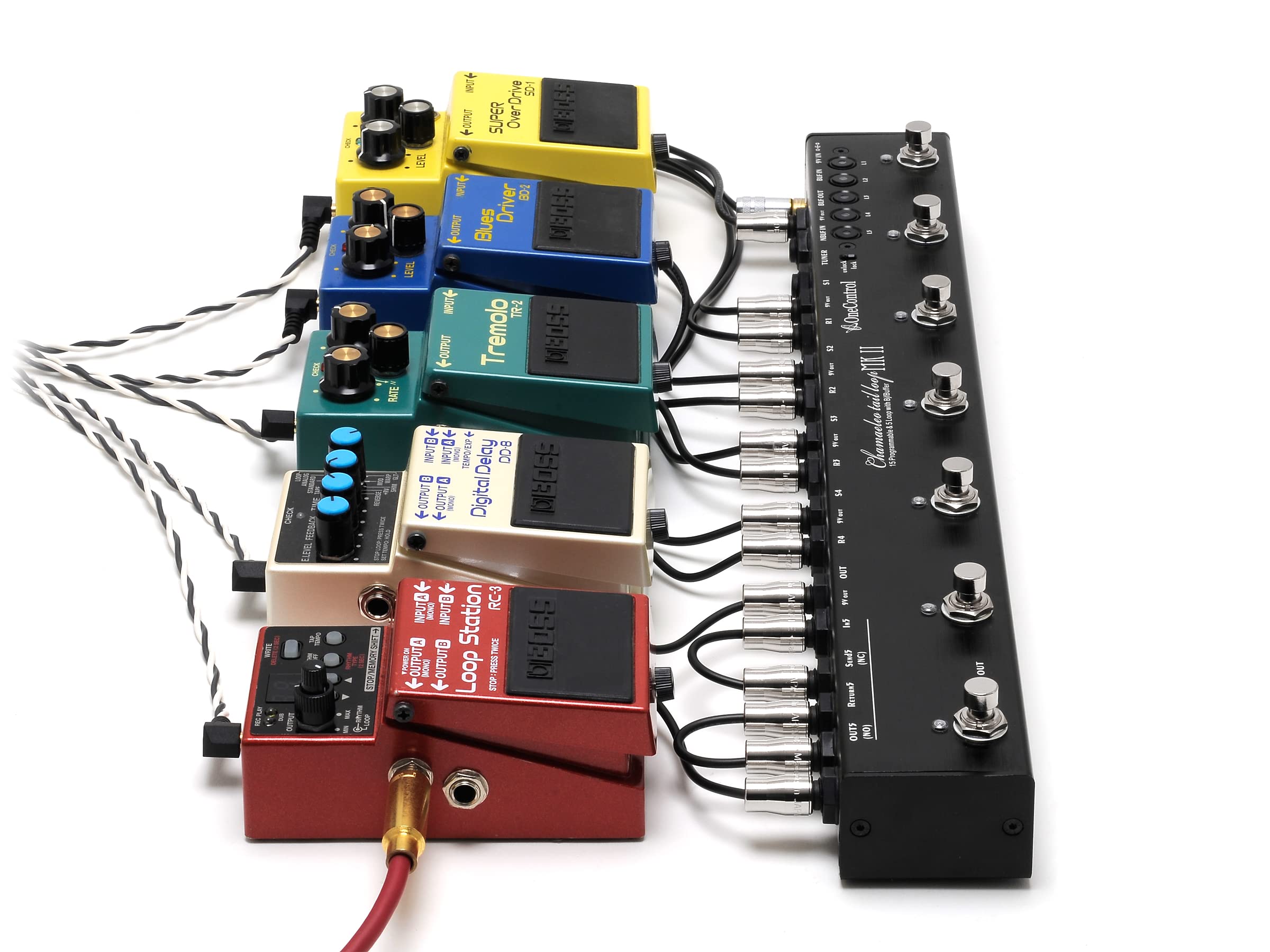

• The thin and compact plug gives you more flexibility for your effector board making. As the benefit of minimising the component configuration, each part has a direct contact to reduce signal transmission loss. The body and outer cover are trimmed down from a brass bar by precision CNC machining.

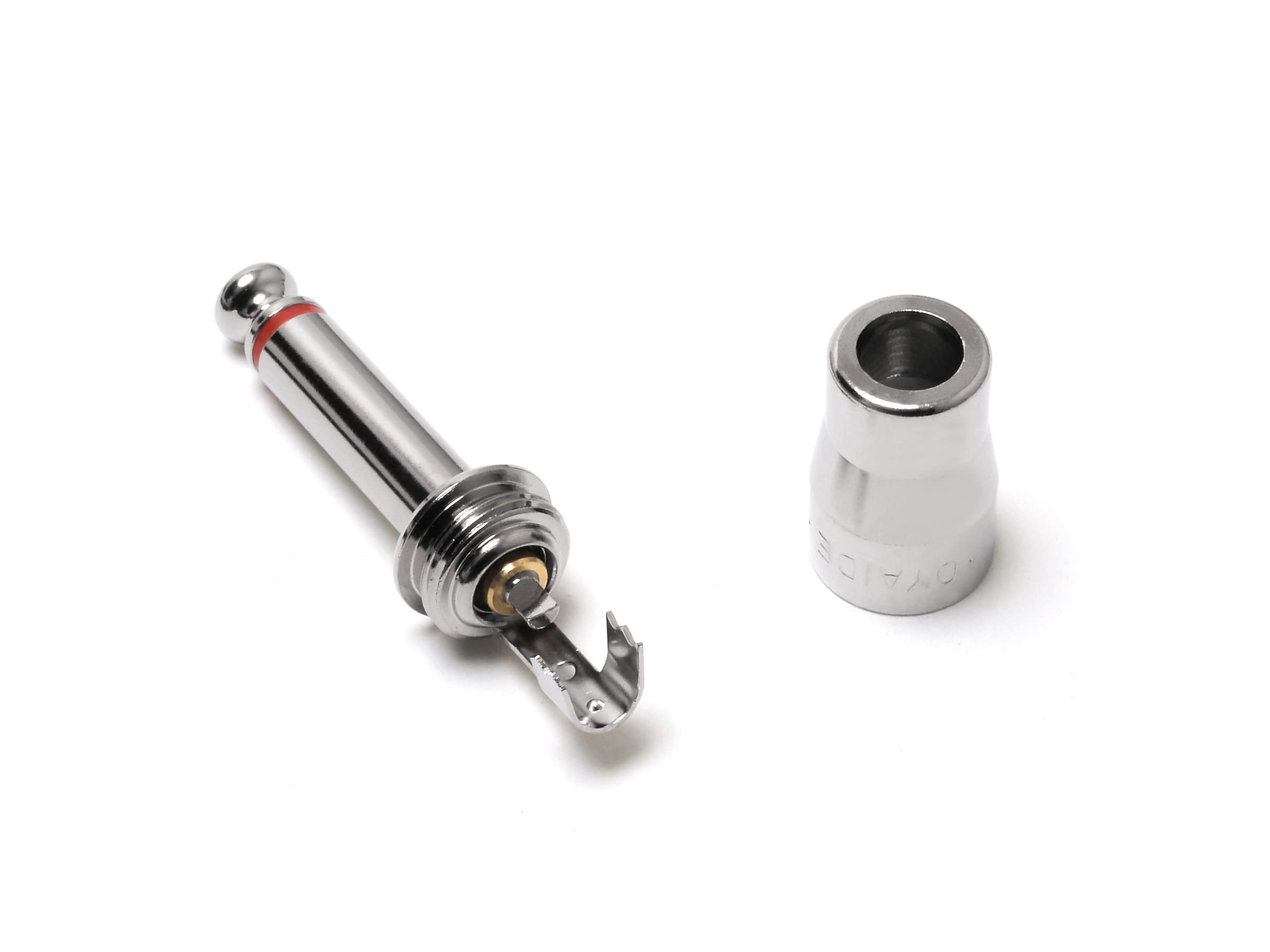

• The TIP and soldering plate are made of an integrated brass round bar. It actualises direct transmission from the connection plate for soldering to avoid signal loss and increases mechanical strength. The body is made of brass (RoHS compliant). Electroless nickel plating maintains uniform surface thickness and low electrical resistance (approx. 6.5 μΩ/m). The isolation ring between TIP and Sleeve is made of POM to give the best isolation property and excellent rigidity. Bakelite is used for insulation inside the main body to provide excellent insulation characteristics.

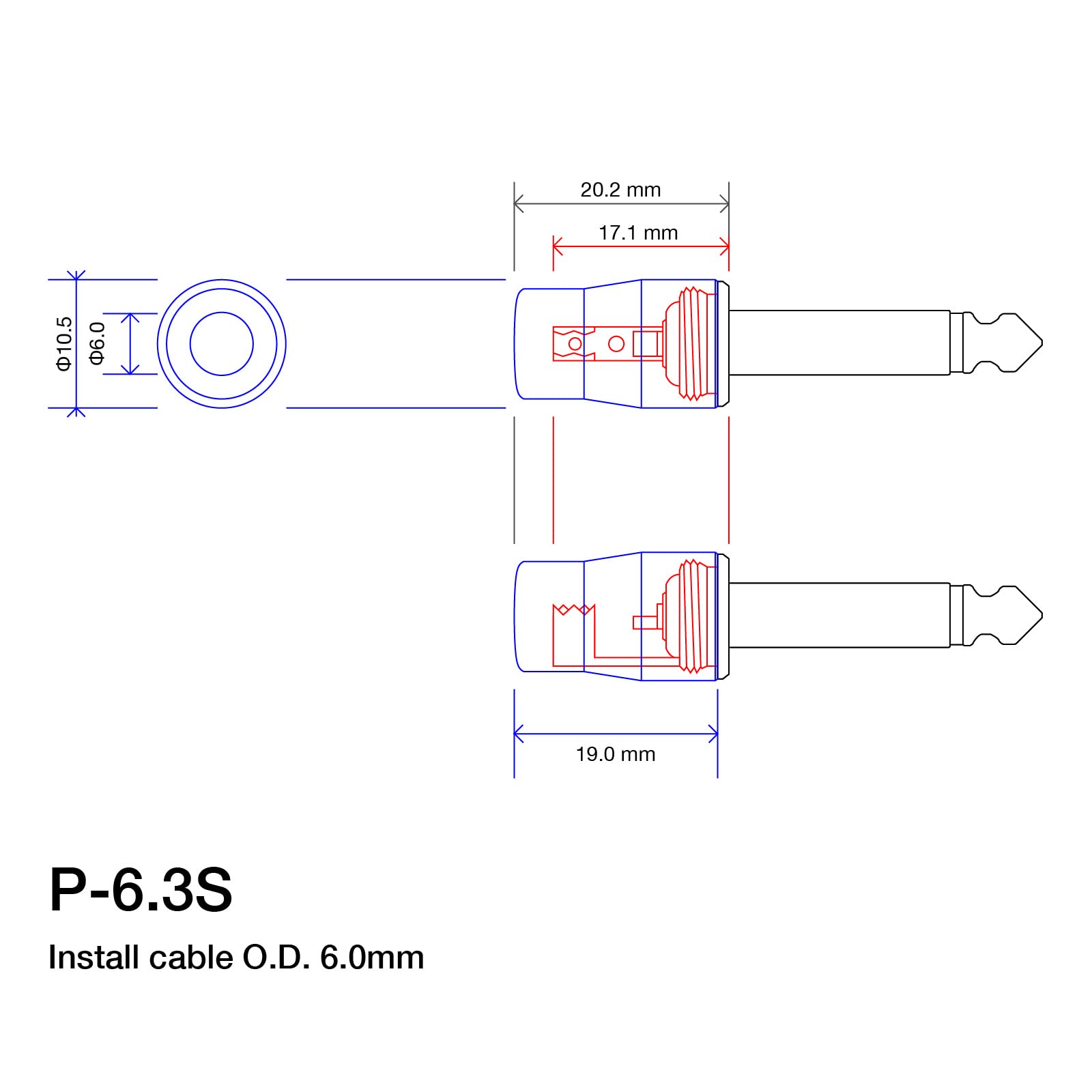

Manufacturer: Oyaide Part number: P-6.3S Compatible cable diameter ~ φ6.0mm Product Dimensions: L40.8mm D34.6mm W13.9mm Housing D8.3mm High-performance ultra-compact telephone plug suitable for wiring effector boards, [SuperSlimSeries]. The high quality of the “P-series” represents Japanese precision work. Despite its stylish appearance, it produces a powerful and clear sound. The thin and compact plug gives you more flexibility for your effector board making. As the benefit of minimising the component configuration, each part has a direct contact to reduce signal transmission loss. The body and outer cover are trimmed down from a brass bar by precision CNC machining. The TIP and soldering plate are made of an integrated brass round bar. It actualises direct transmission from the connection plate for soldering to avoid signal loss and increases mechanical strength. The body is made of brass (RoHS compliant). Electroless nickel plating maintains uniform surface thickness and low electrical resistance (approx. 6.5 μΩ/m). The isolation ring between TIP and Sleeve is made of POM to give the best isolation property and excellent rigidity. Bakelite is used for insulation inside the main body to provide excellent insulation characteristics. Compliant with EIA-453 standards.
