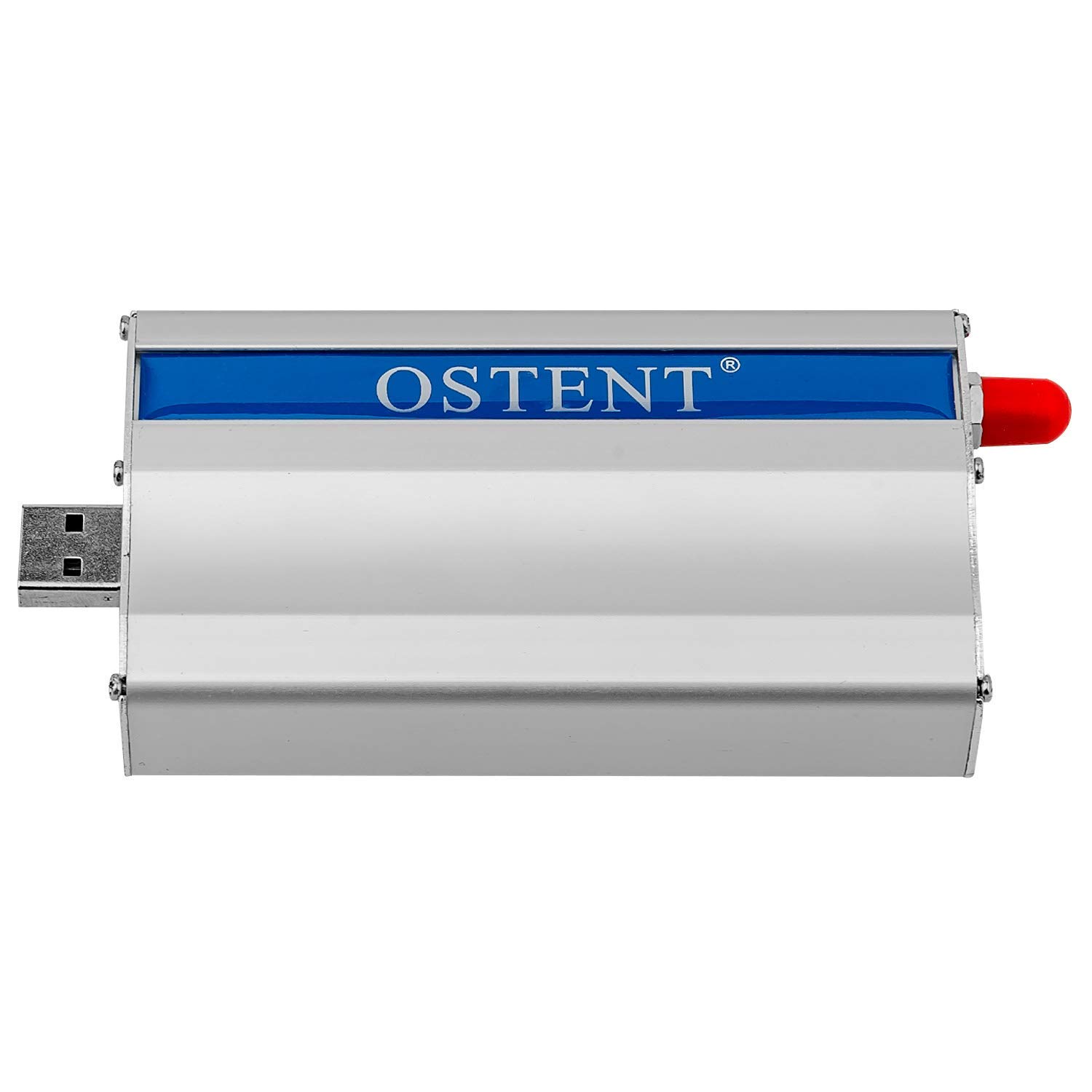

OSTENT Quad-Band GSM GPRS Modem with Wavecom Q24PLUS Module USB Interface TCP/IP SMS MMS

• Industrial-Grade GPRS Modem
• Based on Wavecom Q24PLUS Module
• USB Port Interface
• Control via AT Commands
• Support Quad Frequencies: GSM/GPRS 850/900/1800/1900MHz

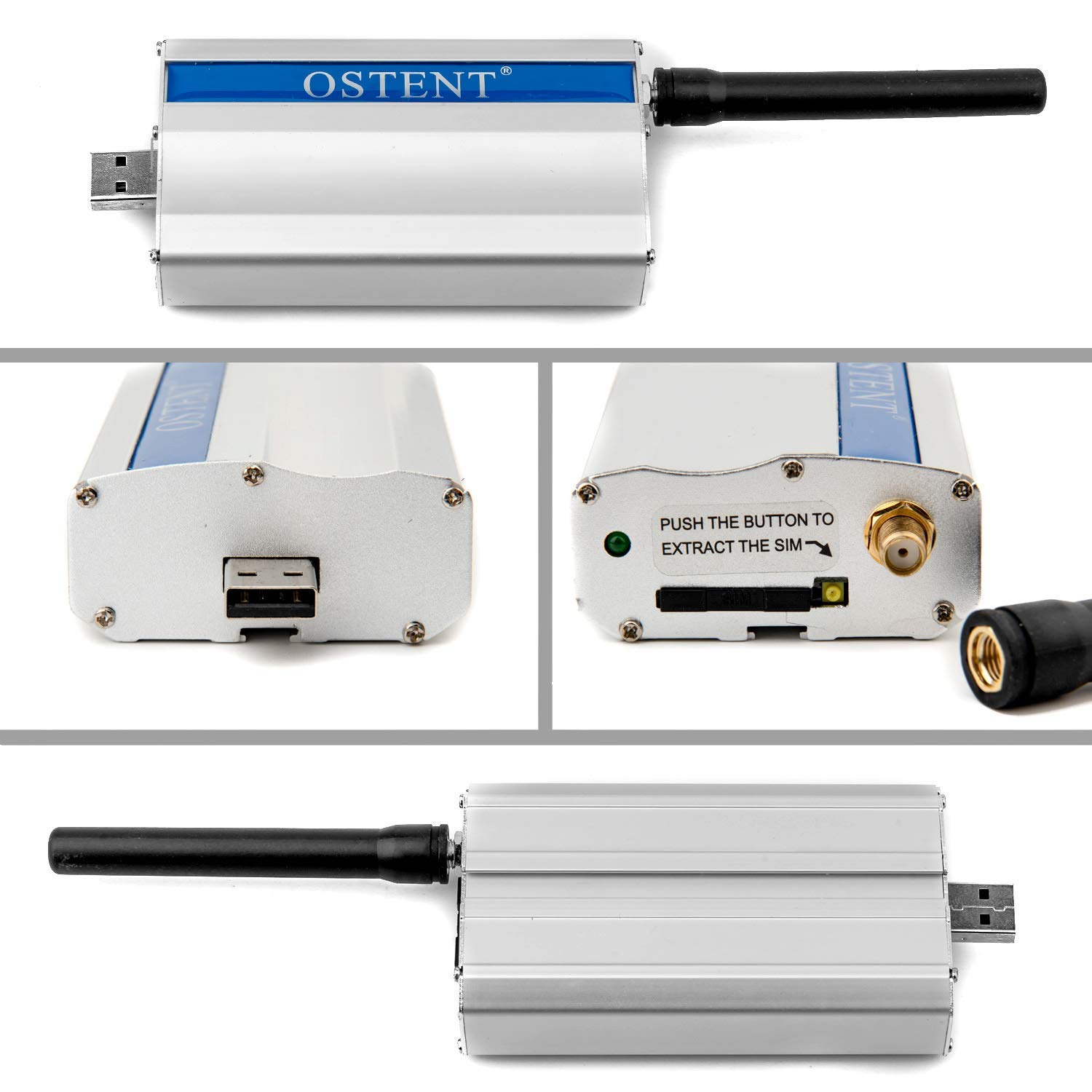

Before taking this item, please check whether your region is covered by anyone of GSM/GPRS 850MHZ/900MHZ/1800MHZ/1900MHZ. GPRS Modem Product List The whole product includes following list of articles: 1. One USB cable 2. One DB Antenna, 80mm 3. Modem Body: white aluminous shell 4. One Sliding SIM Card Slot Specifications GSM GPRS Modem, Wavecom chipset: Q24PLUS, Interface: USB Interface (male connector), With TCP IP STACK, GPRS Class 10 Specifications Model: Wavecom Q24 PLUS Design: Industrial Design, Aluminum Casing Based On: Based on WAVECOM Module Q24PLUS Band: 850/900/1800/1900MHz, in compliance with ETSI GSM Phase2 + Standard Internet: Wireless Access to internet TCP/IP stack: Yes AT Commands: Remote control GSM 07.07 & 07.05 Interface: USB Interface (male connector), SIM card reader, Antenna connector SMA (male) SIM Slot: 3 Volt SIM Card slot GPRS Class: GPRS Class 10 Enhanced Functions: GPRS link detection and redial (work with Microsoft dialup software) Support dialup control Transmitting Speed: Maximum Transmitting Speed 115.2Kbps DTMF: Yes Work: Send and Receive SMS, Data, FAX, E-mail voice, MMS SMS: Point-to-point MO and MT SMS cell broadcast Text and PDU mode Antenna: Male SMA Connector Output Power: 850/900MHz 2W (Class 4) 1800/1900MHz 1W (Class 1) Input Voltage: 5V to 24V DC Input Current: 1A to 2A Working Temp.: (-20C to +60C) Store Temp.: (-25C to +70C)
