OSTENT GSM Modem with Wavecom Q2303A Module COM/RS232/Serial Port AT Commands SMS Voice Call UK Plug Power Adapter

• Industrial-Grade GSM Modem
• Based on Wavecom Q2303A Module
• COM/RS232/Serial Port Interface
• Control via AT Commands
• Support Dual Frequencies: GSM 900/1800MHz

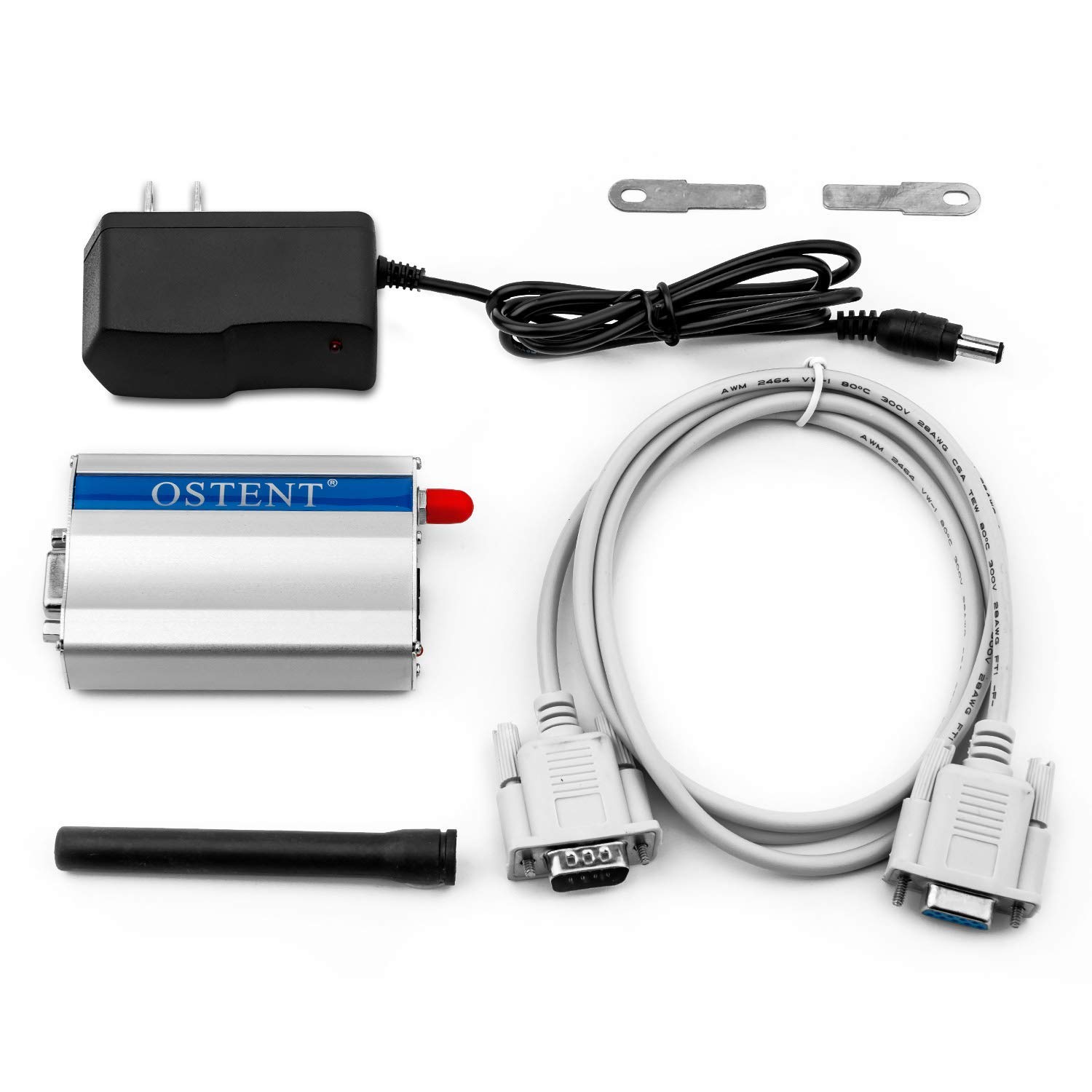

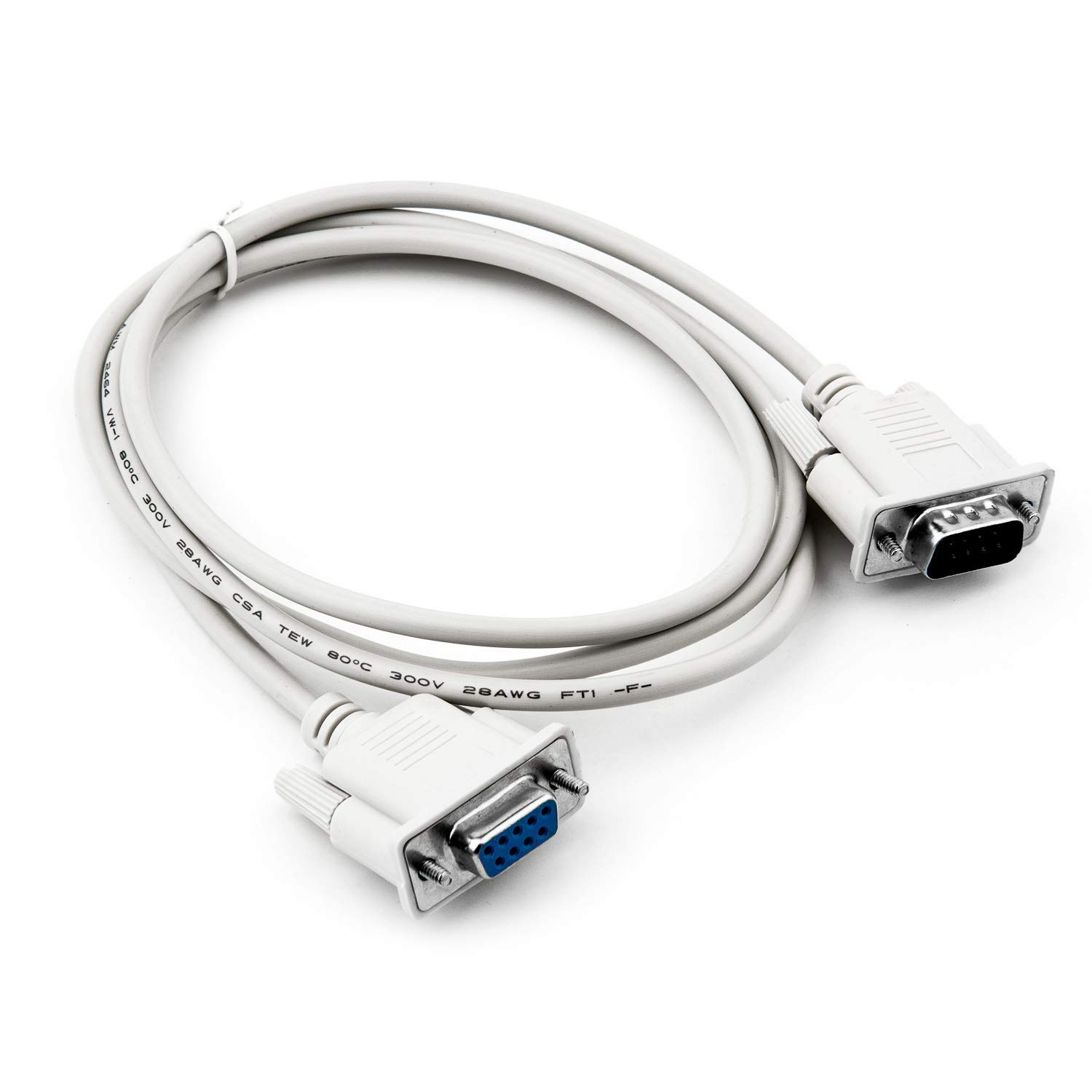

Before taking this item, please check whether your region is covered by anyone of GSM 900MHZ/1800MHZ. GSM Modem Product List The whole product includes following list of articles: 1. One Power Supply Adapter(UK plug), 7.5V 1A 2. One Data Line (COM: DB9 to DB15, 150cm extension cord). 3. One DB Antenna, 80mm 4. Modem Body: white aluminous shell 5. One Sliding SIM Card Slot Technical Parameters Specification for GSM Modem 1. Type GSM Modem with industrial-grade Wavecom Q2303A module. 2. Technological Specifications *Support dual frequency: GSM 900/1800MHz *Conform to ETSI GSM 2+ standard *Output Power: Class4 (2W @ 900 MHz) Class5 (1W @ 1800 MHz) *Power Source: 5-24V DC *Temperature Range: -20 Centigrade Degree ~ +55 Centigrade Degree active status -25 Centigrade Degree ~ +70 Centigrade Degree preserved condition *Product Size: standard 3. Basic Features *Asynchronous, Transparent or Non-transparent, The highest baud rate: 14400bits/s *Serial Baud Rate: 300-115200bits/s *Automatic Baud Rate: from 2,400 to 19,200bits/s *Support Group 3 Document Facsimile Transmission *Support Switching between Voice and Fax *V.42,V.42bis *RS-232 Interface, Mini DB-9 Connector *Control via AT Commands (GSM 07.07, 07.05) Voice, SMS Function *Voice Function Call Urgent telephone Speech coding and decoding: full rate, enhanced full rate and half rate Double tone, multiple frequency (DTMF) *SMS Function Writing and PDU Point-to-point (MT/MO) Cell broadcast
