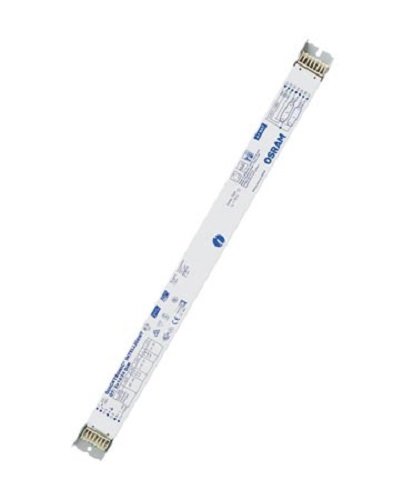

OSRAM Electronic Control Gears (ECG), QUICKTRONIC Intelligent DIM T5, ECG LL/KLL DIM 1…10V, QTI 2X21/39/220-240 DIM

• Perfect lamp start for applications with motion sensors
• Dimming of amalgam lamps without flickering or reduced lifespan
• Very high efficiency thanks to cut-off technology
• Automatic restart after lamp replacement
• ECGs comply with MINERGIE standard due to very low standby consumption

Product Description The current generation of dimmable QUICKTRONIC Intelligent control gear with DALI (Digital Addressable Lighting Interface) or 1-10 V interface (QTi DALI/DIM): Coloured light applications are in. Special features have been integrated in dimmable QUICKTRONIC INTELLIGENT units with the DALI interface for such applications. The lamp can be started instantly at any time as it is now possible for the first time to have permanent activation of filament preheating while the lamp is switched off. QUICKTRONIC INTELLIGENT QTi DALI DIM is also optimised for rapid changes in light, for example in high-frequency flashing sequences.QUICKTRONIC INTELLIGENT QTi DIM (1-10 V) for T5Supply voltage: 220 to 240 VLine frequency: 0 Hz | 50 Hz | 60 HzLine voltage: 198 to 264 VDimming range: 1 to 100% luminous fluxLamp start within 0.6 s Box Contains 1 x QTi 2x21/39 DIM
