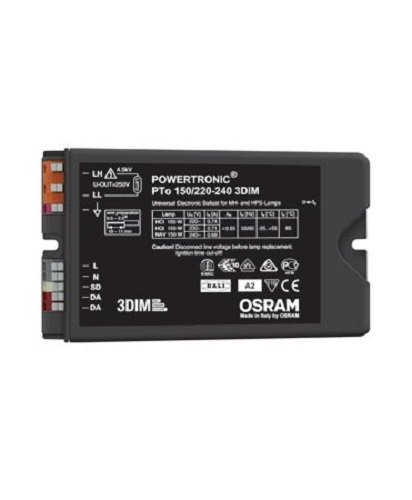

OSRAM Electronic Control Gears (ECG), POWERTRONIC Outdoor PTo, ECG, PTO 150/220-240 3DIM

• High surge protection: up to 3 kV (L-N) / 4 kV (L/N-PE)
• Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
• Excellent thermal behavior for very high limit temperatures tc and ta
• Product family features: 3DIM functionality (StepDIM/AstroDIM/DALI)
• Energy Efficiency Index EEI: A2

Product Description Product family benefits: Energy savings up to 30 % (compared to CCG operation) thanks to 3DIM (except PTo 35). High surge protection: up to 3 kV (L-N) / 4 kV (L/N-PE). Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL). Excellent thermal behavior for very high limit temperatures tc and ta. Product family features: 3DIM functionality (StepDIM/AstroDIM/DALI). Energy Efficiency Index EEI: A2. Lightning protection: up to 10 kV. Supply voltage: 220…240 V. Line frequency: 50…60 Hz. Line harmonics according to EN 61000-3-2. Immunity according to EN 61547. RI suppression: to EN 55015. Safety: to EN 61347-2-12. Luminous flux factor 1 compared with CCG operation. Not suitable for DC operation. Areas of application: Suitable for luminaires of protection classes I and II. Suitable for outdoor applications in luminaires with IP 54. Box Contains 1 x PTo 150/220-240 3DIM
