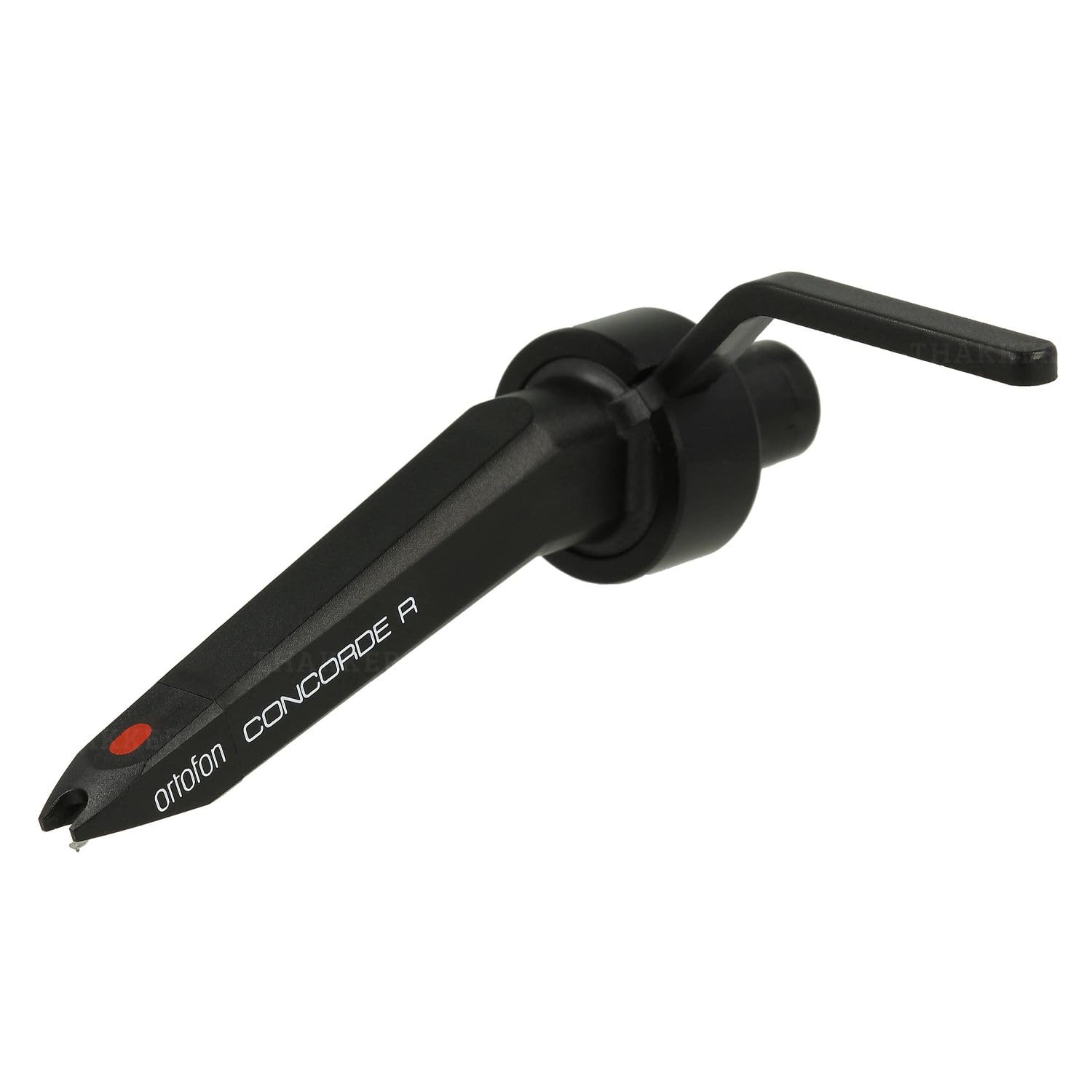

Ortofon Concorde R 10 - genuine HiFi Cartridge | Moving Magnet

• The only Concorde currently built by Ortofon with real HiFi genes.
• With the improved generator from the popular Ortofon 2M Blue, an increased output power of 5.5 mV is achieved.
• Cartridge specifications:
• Direct mounting via SME bayonet connection to all S-shaped tonearms with 52mm overhang and universal mount (the time-consuming adjustment of the cartridge is no longer necessary).
• Easy upgrade via plug and play with Ortofon Stylus 20, 30 and 40 possible.

Output voltage at 1000 Hz, 5cm/sec. - 5.5 mV Channel balance at 1 kHz - 1.5 dB Channel separation at 1 kHz - 25 dB Channel separation at 15 kHz - 15 dB Frequency range at - 3dB - 20-25.000 Hz Frequency response - 20-20.000 + 3 / - 1 dB Tracking ability at 315Hz at recommended tracking force - 60 µm Compliance, dynamic, lateral - 20 µm/mN Stylus type - Elliptical Stylus tip radius - r/R 8/18 µm Tracking force range - 1.6-2.0g (16-20 mN) Tracking force, recommended - 1.5 g (15 mN) Tracking angle - 20°Internal impedance, DC resistance - 1,3 kOhm Internal inductance - 700 mH
